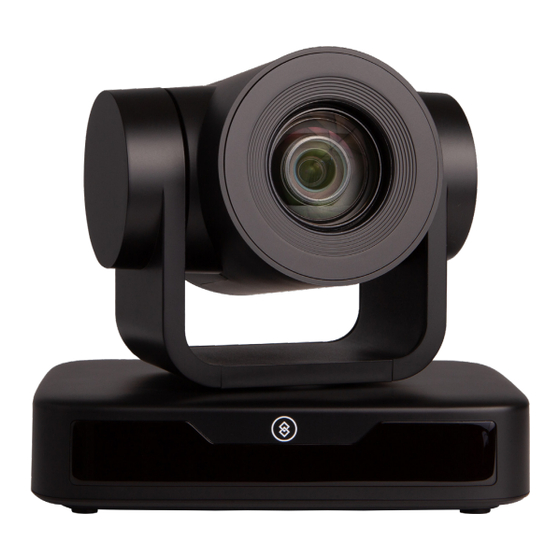

LIBERTY AV SOLUTIONS DL-USB-PTZ10-B Quick Manual

Full hd ptz camera
Hide thumbs

Advertisement

Quick Links

Download this manual

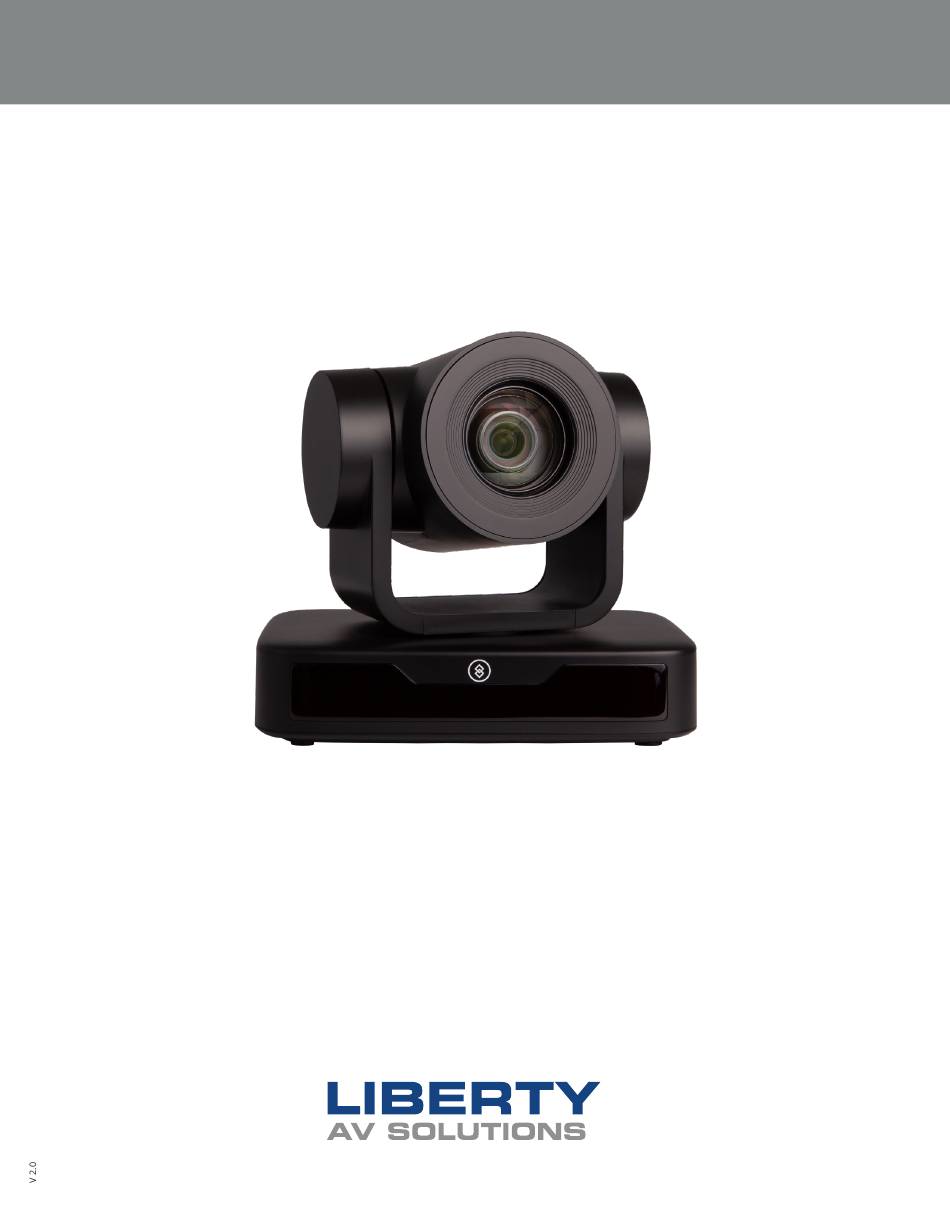

QUICK GUIDE
DL-USB-PTZ10-B
FULL HD PTZ CAMERA
www.libav.com 800.530.8998

Advertisement

loading
Need help?

Need help?

Do you have a question about the DL-USB-PTZ10-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIBERTY AV SOLUTIONS DL-USB-PTZ10-B

Summary of Contents for LIBERTY AV SOLUTIONS DL-USB-PTZ10-B

  • Page 1 QUICK GUIDE DL-USB-PTZ10-B FULL HD PTZ CAMERA www.libav.com 800.530.8998...

  • Page 2: Product Overview

    • 5-year product warranty, including advanced replacement. PACKAGE CONTENTS (x1) Control (x1) Remote (x1) 1m USB (x1) Quick (x1) Power (x1) Wall (x1) Cable Control 2.0 A Male to Start Guide Supply Mount Camera 2 x A Male Y Splitter Cable QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 3 2. Remote Control Receiving Indicator 7. RS232 Control Interface (Output) 3. Camera Base 8. RS485 Input (left +, right-) 4. Tripod Screw Hole 9. USB 2.0 Interface 5. Screw Hole for Tripod 10. DC12V Input Power Supply Socket QUICK GUIDE / DL-USB-PTZ10-B...

  • Page 4: Mounting Options

    MOUNTING OPTIONS Wall mounting the camera using the provided wall mount or third party mount. Included Items: STEP 1 STEP 2 STEP 3 STEP 4 FINISHED QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 5 *Optional Ceiling Mount Included Items: STEP 1 STEP 2 STEP 3 STEP 4 FINISH QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 6 If the length of the USB cable is not long enough, use a TYPE A USB 2.0 extension cable, signal extender or USB hub. Navigation - Go to settings>privacy>camera (or similar) on your PC and turn on “let apps use my camera.” Close all other applications that may use the PTZ Camera. QUICK GUIDE / DL-USB-PTZ10-B...

  • Page 7: Maintenance And Troubleshooting

    Make sure the menu setting has been closed out. Serial port is not working a. Check whether the camera serial device protocol, baud rate, address is consistent. b. Check whether the control cable is connected properly. QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 8 7. IR OUT 7. RTS 8. NC 8. CTS 9. RI RS-232 Mini-DIN 8-pin Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR OUT IR Commander Signal No Connection QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 9 Camera 1 Camera 2 1. DTR 1. DTR 2. DSR 2. DSR 3. TXD 3. TXD 4. GND 4. GND 5. RXD 5. RXD 6. GND 6. GND 7. IR OUT 7. OPEN 8. NC 8. OPEN QUICK GUIDE / DL-USB-PTZ10-B...

  • Page 10: Using The Remote Control

    (Valid only in manual focus mode) Focus - (far): Press [FOCUS -] key (Valid only in manual focus mode) Press and hold the keys. The action of focus will keep continue and stop as soon as the key is released. QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 11 Back to middle position: Press “[HOME]” Press and hold the up/down/left/right key, the pan/tilt movements will keep running, from slow to fast, until it runs to the endpoint; stop as soon as the key is released. QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 12 ] Select: For selecting menu (P/T/Z) ] Change Value: For modifying parameters (Version) [MENU] Back: Press [Menu] to return [Home] OK: Press [Home] to confirm (Restore Default) ] Select [ ] Change Value [Menu] Back [Home] OK QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 13 CAMERA Image: Enter into image setting Focus: Enter into focus setting ============================= Noise Reduction: Enter into noise reduction (Exposure) (Color) (Image) (Focus) (Noise Reduction) Style Default ] Select [ ] Change Value [Menu] Back [Home] OK QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 14 Saturation 100% RED GAIN: 0~255 (only available in Manual mode) BLUE GAIN: 0~255 (only available in Manual mode) AWB Sensitivity: high/middle/low AWB Sensitivity High Chroma: 0~14 ] Select [ ] Change Value [Menu] Back QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 15 ============================= Flip-V: On/Off Brightness B&W Mode: color, black/white Contrast Gamma: Default/0.45/0.50/0.5/0.63 Sharpness DCI: Dynamic Contrast: Off/1~8 Flip-H Minimum Illumination: On/Off Flip-V B&W-Mode Color Gamma Default Close Low-Light Mode ] Select [ ] Change Value [Menu] Back QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 16 Move the pointer to the (NOISE REDUCTION) in the Menu, click the [HOME], and enter the (NOISE REDUCTION) as follows. 2D Noise Reduction: Auto, close, 1~7 3D Noise Reduction: Close, 1~8 NOISE REDUCTION Dynamic Hot Pixel: Close, 1~5 ============================= NR-2D NR-3D Dynamic Hot Pixel ] Select [ ] Change Value [Menu] Back QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 17 1 when all parameters or Restore Default? system parameters are restored. User should change the remote address to 1 (press [1] according ] Select [ ] Change Value to the camera to get normal operation). [Menu] Back [Home] OK QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 18 Command Not z0 61 41 FF Returned when a command cannot be executed Executable due to current conditions. For example, when commands controlling the focus manually are received during auto focus. QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 19 8x 01 04 35 06 FF 3500K 8x 01 04 35 07 FF 4500K 8x 01 04 35 08 FF 5500K 8x 01 04 35 09 FF 6000K 8x 01 04 35 0A FF 7000K 8x 01 04 35 0B FF QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 20 8x 01 04 0E 03 FF Direct 8x 01 04 4E 00 00 0p pq: ExpComp Position 0q FF CAM_Back Light 8x 01 04 33 02 FF Back Light Compensation 8x 01 04 33 03 FF QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 21 8x 01 06 08 03 FF IR_ReceiveReturn 8x 01 7D 01 03 00 00 IR(remote commander) receive message via the VISCA communication ON/OFF 8x 01 7D 01 13 00 00 CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 22 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF RelativePosition 8x 01 06 03 VV WW 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF Home 8x 01 06 04 FF Reset 8x 01 06 05 FF QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 23 50 00 00 0p 0q FF pq: Iris Position CAM_Gain LimitInq 8x 09 04 2C FF y0 50 0p FF pq: Gain Positon CAM_ BrightPosiInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 24 8x 09 04 A4 FF y0 50 00 FF y0 50 01 FF Flip-H y0 50 02 FF Flip-V y0 50 03 FF Flip-HV CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF p: Gamma setting QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 25 8x 09 06 12 FF y0 50 0w 0w 0w 0w wwww: Pan Position zzzz: 0z 0z 0z 0z FF Tilt Position Note: [X] in the above table indicates the camera address to be operated, [y] = [x + 8]. QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 26 Query Tilt Position 0xFF Address 0x00 0x5B Value High Byte Value Low Response Byte Query Zoom 0xFF Address 0x00 0x55 0x00 0x00 Position Query Zoom 0xFF Address 0x00 0x5D Value High Byte Value Low Position Response Byte QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 27 Address 0x00 0x5B Value High Byte Value Low 0xAF Response Byte Query Zoom 0xA0 Address 0x00 0x55 0x00 0x00 0xAF Position Query Zoom 0xA0 Address 0x00 0x5D Value High Byte Value Low 0xAF Position Response Byte QUICK GUIDE / DL-USB-PTZ10-B...

  • Page 28: Technical Specifications

    Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve >50dB Input/output Interface Video Output USB2.0 Interface Video Compression MJPG, H.264, H.265 Format Control Interface RS232 (IN/OUT), RS485 Control Protocol VISCA/Pelco-D/Pelco-P Power Interface HEC3800 outlet (DC12V) QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 29 Storage Humidity 20%~90% Working Temperature -10°C~+50°C Working Humidity 20%~80% Dimension (W*H*D) 156.8mm×112.6mm×139.5mm Weight Application Indoor Package Power Supply, RS232 Control Cable, IR Remote Control, User Manual, Warranty Card, Wall Mount, USB2.0 Cable Optional Accessories Ceiling Mount QUICK GUIDE / DL-USB-PTZ10-B...

  • Page 30: Product Dimensions

    PRODUCT DIMENSIONS Measurements are in millimeters. QUICK GUIDE / DL-USB-PTZ10-B...
  • Page 31 Thank you for your purchase. For technical support please call our toll-free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 800-530-8998 QUICK GUIDE / DL-USB-PTZ10-B...
