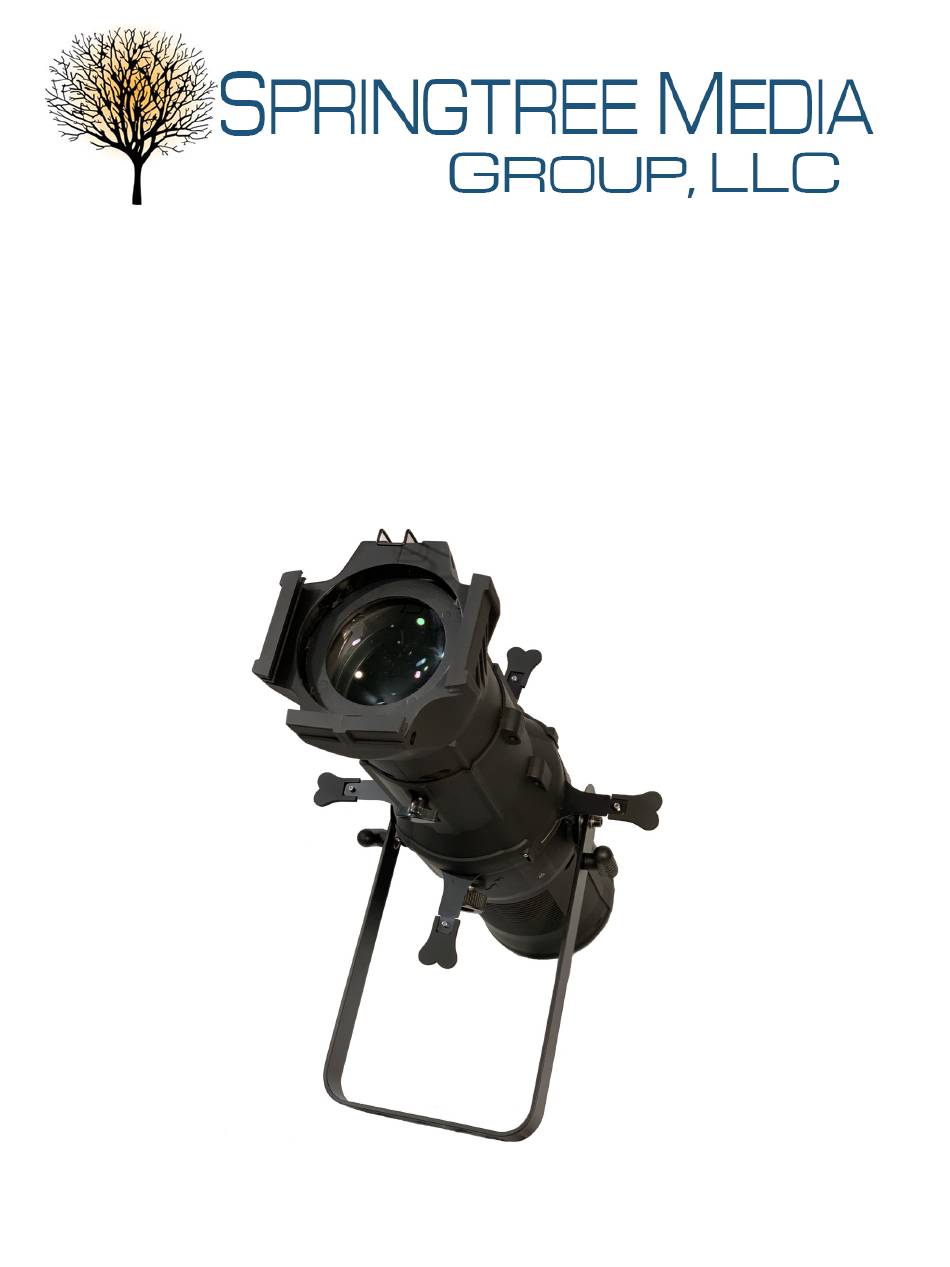

- Page 1 Springtree Profile HD200 WW LED Ellipsoidal USER MANUAL AND INSTALLATION GUIDE...
-
Page 2: Table Of Contents
Features............................4 3. Installation Power supply..........................5 Mounting............................5 4. Operation Touch buttons...........................6 LED display menu.........................6-8 DMX linking..........................8 Adjusting the shutters........................9 Using a gobo..........................9 Using a gel or filter........................9 5. Maintenance Cleaning your ellipsoidal......................10 Troubleshooting........................10 6. Technical Specifications Beam angles..........................11 Dimensions..........................11 Warranty...........................12 Contact us..........................12 (615) 599-1505 www.springtree.net... -
Page 3: Before You Begin
3. One gel frame 4. One Powercon power cord *If any of these items is damaged or missing, please contact Springtree Media Group. Safety precautions • To reduce the risk of electrical shock or fire, do not expose this unit to moisture. • Be sure that the local power outlet matches that of the required voltage for your unit •... -
Page 4: Product Information
Product Information Description The Springtree Profile HD200 WW LED Ellipsoidal is a powerful, versatile fixture with all of the professional features found on higher priced units. Features • 200W Warm White LED COB • Digital Display • Interchangeable 19°, 26°, or 36° lenses • Lightweight 13 lb body • Three pin XLR jacks •... -
Page 5: Installation
When mounting your ellipsoidal, make sure there is adequate room for ventilation. Operating in an insufficiently ventilated room can lead to an overheating of the device and may cause serious accidents. Keep a minimum distance of 6 inches around and above the device. Before deciding on a location, mount in a way that it will be easy to access the unit for maintenance and addressing. (615) 599-1505 www.springtree.net... -
Page 6: Operation
2- Strobe 3- Dimmer Mode 0-126 LED 127-255 Halogen 4- Dimmer Curves 0-005 No Function 006-063 Linear 064-127 Exponential 128-191 Logarithmic 192-255 S-Curve Slave (Enter) Up/Down Select (Enter) Options: (615) 599-1505 www.springtree.net Stand Alone (Enter) Static (Enter) Dimmer 1-255 (Enter) - Page 7 Up/Down Select (Enter) To Lock/ Unlock hold Up and Down for 5 sec. Options: Dimmer Response (Enter) Up/Down Select (Enter) Options: Halogen Dimmer Curve (Enter) Up/Down Select (Enter) Options: S-Curve Logarithmic Exponential (615) 599-1505 www.springtree.net Linear DMX Fail (Enter) Up/Down Select (Enter)
-
Page 8: Dmx Linking
IN) on your lighting unit to the DMX-output of the controller. Connect a second light via its DMX-in- put to the first unit’s DMX-output (labeled DMX OUT) to control and synchronize muiltiple lighting units at once. DMX IN DMX OUT DMX OUT DMX IN DMX IN (615) 599-1505 www.springtree.net... -
Page 9: Adjusting The Shutters
Slide the holder into the slots located in front of the lens. When removing the gel and holder, make sure to let it Framing shutter cool before handling. Gel frame (615) 599-1505 www.springtree.net... -
Page 10: Maintenance
1. Check that the DMX cables are connected properly and are wired correctly. DMX output DMX input 2. Check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected. (615) 599-1505 www.springtree.net... -
Page 11: Technical Specifications
IP Rating: IP20 • Data In/Out: XLR 3Pin • Environment Temp: -30°C-50°C with single yolk • Dimensions(mm): L24.25 x W8.25 x H6.5 • Net Weight: 13 lbs Beam Angles: Dimensions: 24.25 in 6.5 in 8.25 in 18 in 23.75 in 10.5 in (615) 599-1505 www.springtree.net... -
Page 12: Warranty
2nd YEAR - Repair/ Replace Springtree discretion. Return shipping covered by customer. Contact us Springtree Media Group would like to thank you for choosing our company for your lighting needs! If you have any questions or concerns, please contact us. Office hours:...
