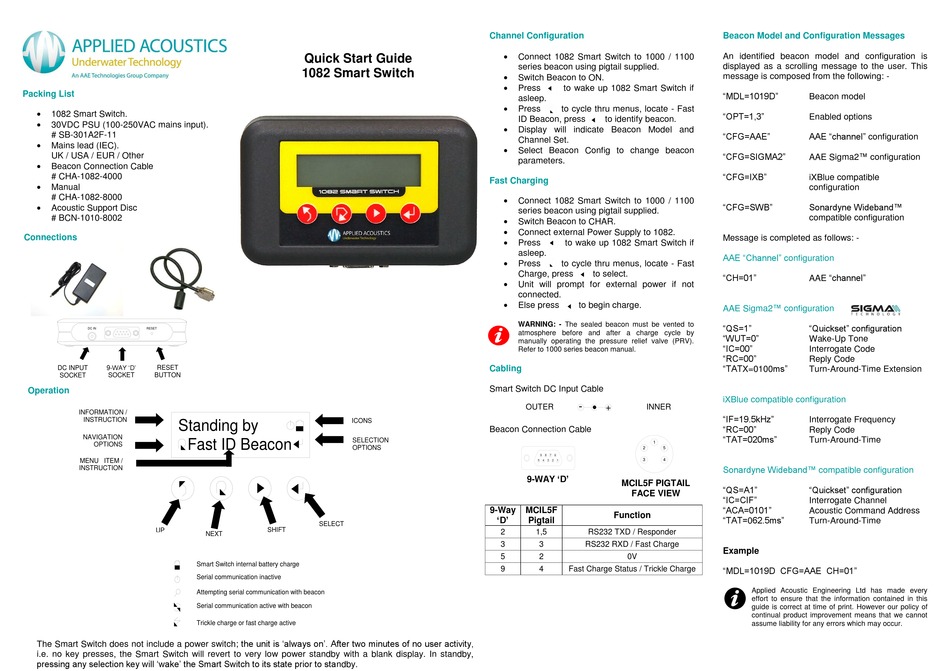

APPLIED ACOUSTICS 1082 Quick Start Manual

Packing List



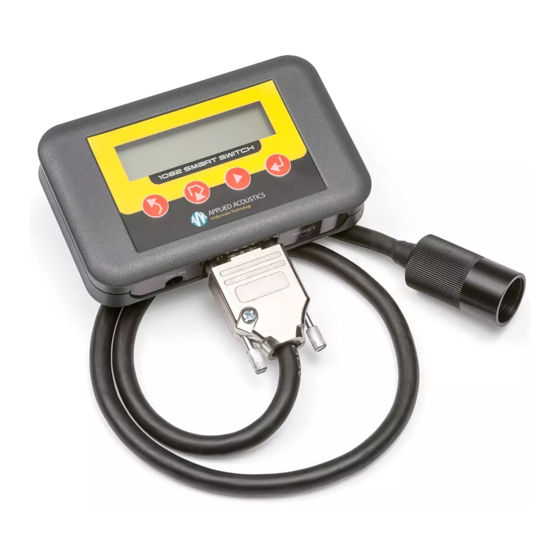

1082 Smart Switch.

30VDC PSU (100-250VAC mains input).
# SB-301A2F-11

Mains lead (IEC).
UK / USA / EUR / Other

Beacon Connection Cable
# CHA-1082-4000

Manual
# CHA-1082-8000

Acoustic Support Disc
# BCN-1010-8002
Connections
DC IN RESET
9-WAY 'D'
DC INPUT RESET
SOCKET SOCKET BUTTON

Operation

INFORMATION /
INSTRUCTION
Standing by
NAVIGATION
Fast ID Beacon
OPTIONS
MENU ITEM /
INSTRUCTION
UP
Smart Switch internal battery charge
Serial communication inactive
Attempting serial communication with beacon
Serial communication active with beacon
Trickle charge or fast charge active
The Smart Switch does not include a power switch; the unit is 'always on'. After two minutes of no user activity,
i.e. no key presses, the Smart Switch will revert to very low power standby with a blank display. In standby,
pressing any selection key will 'wake' the Smart Switch to its state prior to standby.
Quick Start Guide
1082 Smart Switch
ICONS
SELECTION
OPTIONS
SELECT
SHIFT
NEXT

Channel Configuration


Connect 1082 Smart Switch to 1000 / 1100
series beacon using pigtail supplied.

Switch Beacon to ON.

Press to wake up 1082 Smart Switch if
asleep.

Press to cycle thru menus, locate - Fast
ID Beacon, press to identify beacon.

Display will indicate Beacon Model and
Channel Set.

Select Beacon Config to change beacon
parameters.

Fast Charging


Connect 1082 Smart Switch to 1000 / 1100
series beacon using pigtail supplied.

Switch Beacon to CHAR.

Connect external Power Supply to 1082.

Press to wake up 1082 Smart Switch if
asleep.

Press to cycle thru menus, locate - Fast
Charge, press to select.

Unit will prompt for external power if not
connected.

Else press to begin charge.
WARNING: - The sealed beacon must be vented to
atmosphere before and after a charge cycle by
manually operating the pressure relief valve (PRV).
Refer to 1000 series beacon manual.

Cabling

Smart Switch DC Input Cable
-
OUTER + INNER
Beacon Connection Cable
1
2 5
9 8 6
7
3 4
5 4 3 2 1
9-WAY 'D'
MCIL5F PIGTAIL
PLUG
FACE VIEW
FACE
VIEW
9-Way MCIL5F
Function
'D'
Pigtail
2 1,5 RS232 TXD / Responder
3 3 RS232 RXD / Fast Charge
5 2 0V
9 4 Fast Charge Status / Trickle Charge

Beacon Model and Configuration Messages

An identified beacon model and configuration is
displayed as a scrolling message to the user. This
message is composed from the following: -
"MDL=1019D"
Beacon model
"OPT=1,3"
Enabled options
"CFG=AAE" AAE "channel" configuration
"CFG=SIGMA2"
AAE Sigma2™ configuration
"CFG=IXB"
iXBlue compatible
configuration
"CFG=SWB" Sonardyne Wideband™
compatible configuration
Message is completed as follows: -
AAE "Channel" configuration
"CH=01" AAE "channel"
AAE Sigma2™ configuration
"QS=1" "Quickset" configuration
"WUT=0"
Wake-Up Tone
"IC=00"
Interrogate Code
"RC=00"
Reply Code
"TATX=0100ms"
Turn-Around-Time Extension
iXBlue compatible configuration
"IF=19.5kHz"
Interrogate Frequency
"RC=00"
Reply Code
"TAT=020ms"
Turn-Around-Time
Sonardyne Wideband™ compatible configuration
"QS=A1" "Quickset" configuration
"IC=CIF"
Interrogate Channel
"ACA=0101"
Acoustic Command Address
"TAT=062.5ms"
Turn-Around-Time
Example
"MDL=1019D CFG=AAE CH=01"
Applied Acoustic Engineering Ltd has made every
effort to ensure that the information contained in this
guide is correct at time of print. However our policy of
continual product improvement means that we cannot
assume liability for any errors which may occur.
