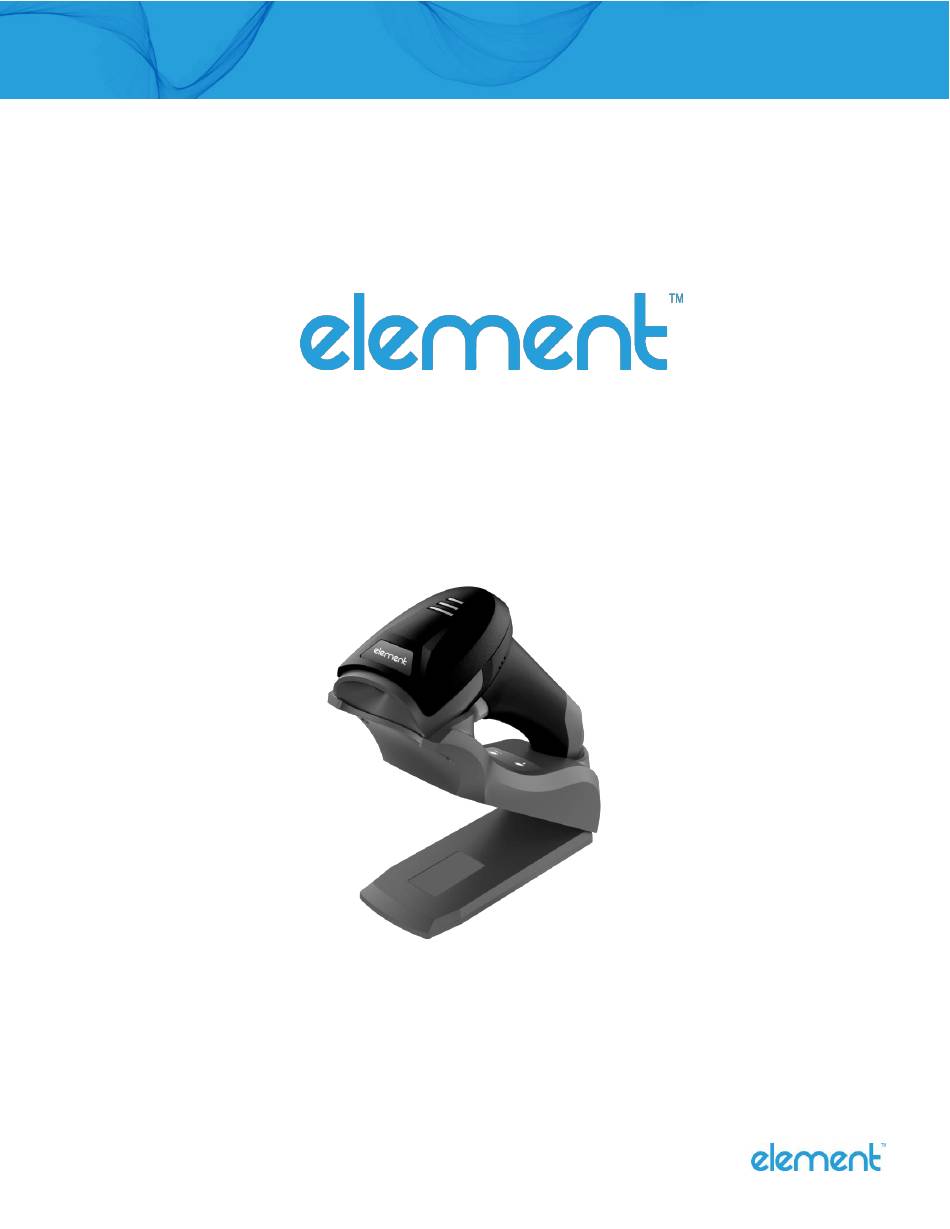

  • Page 1 P303BT Scanner User Manual Rev 1.01 Element P303BT User Guide I Page 1 of 53...

  • Page 2: Table Of Contents

    3.8 Good Read Delay ............................. 19 3.9 Reread Delay ..............................19 4 Data Formatting ............................20 4.1 General Configuration ........................... 200 4.2 Add Prefix ................................ 21 4.3 Add Suffix ................................. 22 Element P303BT User Guide I Page 2 of 53...
  • Page 3 5.18 Maxi code ..............................45 5.19 Aztec ................................46 6 Appendix ..............................48 6.1 Appendix 1: AIM ID Table ..........................48 6.2 Appendix 2: ASCII Table ........................... 49 6.3 Appendix 3: Digit Barcodes..........................53 Element P303BT User Guide I Page 3 of 53...

  • Page 4: Getting Started

    The Element 2D Barcode Reader features fast scanning and decoding accuracy. Barcodes rotated at any angle can still be read with ease. When scanning a barcode, simply center the aiming beam or pattern projected by the Element 2D Barcode Reader over the barcode.

  • Page 5: Communication Interfaces

    2.1.4 Country Keyboard Types Keyboard layouts vary from country to country. The default setting is U.S. keyboard. If your interface is Bluetooth Keyboard, scan the Keyboard Country barcode below to change this layout. Element P303BT User Guide I Page 5 of 53...
  • Page 6 US(default) Belgian Finnish_Swedish French German Italian Swiss_German British Danish Novwegian Spanish Element P303BT User Guide I Page 6 of 53...

  • Page 7: Convert Case

    When a Bluetooth terminal connect with scanner, its virtual keyboard will disappear at once. You may need to scan the barcodes below to switch input language into English. Switch Input Method（Windows/Android） Switch Input Method(iOS) Popup/Hide Virtual Keyboard(iOS) Element P303BT User Guide I Page 7 of 53...

  • Page 8: Power Setting

    Scan the barcode below can restore the cradle to factory defaults. Restore Cradle Factory Defaults 2.2.2 Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the Host requirements. Element P303BT User Guide I Page 8 of 53...

  • Page 9: Data Bit & Parity Check & Stop Bit

    2.2.3 Data Bit & Parity Check & Stop Bit None Parity /7 Data Bits/1 Stop Bit None Parity /8 Data Bits/1 Stop Bit (default) Even Parity /8 Data Bits/1 Stop Bit None Parity /7 Data Bits/2 Stop Bits Element P303BT User Guide I Page 9 of 53...

  • Page 10: Cradle Country Keyboard Types

    2.2.4 Cradle Country Keyboard Types Keyboard layout varies from country to country, American keyboard is default, you can switch the Cradle/Dongle’s keyboard types by scanning the follow barcode. USA（default） Belgian French Finnish_Swedish Italian German Element P303BT User Guide I Page 10 of 53...

  • Page 11: Usb Interface

    When you connect cradle to the Host via a USB connection, the USB COM Port Emulation feature allows the Host to receive data in the way as a serial port does. A driver is required for this feature, visit the official website (www.elementpos.co) to download and install . Element P303BT User Guide I Page 11 of 53...

  • Page 12: Transmission Rate

    2.2.9 Synchronous Transfer mode Note: Data transmit when Bluetooth connected, drop when disconnected. 2.2.10 Asynchronous Transfer mode Note: Data is stored when Bluetooth disconnected and will upload automatically when reconnect. 2.2.11 Mass Storage mode Element P303BT User Guide I Page 12 of 53...
  • Page 13 Note: Data is always stored. Upload all stored data Count total amount of uploaded data Clear stored data Element P303BT User Guide I Page 13 of 53...

  • Page 14: General Configuration

    When in serial mode, the scanner scans until a barcode has been read or until the deactivate command is sent. Manual Trigger Mode – Normal (Default) 3.2 Presentation Mode This set the scanner to work in presentation mode. Presentation Mode – Normal Presentation Mode – Continue Scan Element P303BT User Guide I Page 14 of 53...

  • Page 15: Auto Sense

    Auto sense enable, then putting barcode reader on the Cradle is Presentation mode and taking it off is Trigger mode. Enable Disable (default) 3.4 Inverse color OFF (Default) Only Inverse ON Inverse And Normal Both ON Element P303BT User Guide I Page 15 of 53...

  • Page 16: Illumination

    Manual Trigger Mode Illumination setting for 22XX/24XX/26XX BLE series. Illumination Level 4 (Default) Illumination Level 3 Illumination Level 2 Illumination Level 3 Manual Trigger Mode Illumination setting for 51XX/52XX BLE series. Level 1 Level 2 Element P303BT User Guide I Page 16 of 53...
  • Page 17 Level 3 Level 4 (default) Presentation Mode Illumination setting. Illumination Level 4 (Default) Illumination Level 3 Illumination Level 2 Illumination Level 3 Element P303BT User Guide I Page 17 of 53...

  • Page 18: Good Read Beeper

    3.6 Good Read Beeper ON (Default) 3.7 Good Read Beeper Volume Middle High (Default) Element P303BT User Guide I Page 18 of 53...

  • Page 19: Good Read Delay

    3.8 Good Read Delay No Delay (Default) Delay 500 MS Delay 1000 MS 3.9 Reread Delay Delay 500 MS (Default) Delay 750 MS Delay 1000 MS Element P303BT User Guide I Page 19 of 53...

  • Page 20: Data Formatting

    4 Data Formatting 4.1 General Configuration Add CR Add LF Add CRLF Add TAB Element P303BT User Guide I Page 20 of 53...
  • Page 21 1. Check the hex values of “ODE” in the ASCII Table. (“ODE”: 4F , 44, 45) 2. Scan the Set Custom Prefix barcode. 3. Scan the numeric barcodes”9”,”9”,“4”,“F”,“4”,“4”,“4”and“5”in Appendix 3 4. Scan the Save barcode. 5. Note: 99 indicates all symbollogies Element P303BT User Guide I Page 21 of 53...

  • Page 22: Clear All Prefix And Suffix

    2. Scan the Set Custom Suffix barcode. 3. Scan the numeric barcodes”9”,”9”,“4”,“F”,“4”,“4”,“4”and“5”in Appendix 3 4. Scan the Save barcode. 5. Note: 99 indicates all symbologies 4.4 Clear All Prefix and Suffix Clear All Prefix And Suffix (Default) Element P303BT User Guide I Page 22 of 53...

  • Page 23: Symbologies

    Code 128 min length command: 020A02. The parameter of this command can be set from 0 to max. Example: Set the Barcode Message length of the minimum value is 10; the maximum value is 25. Element P303BT User Guide I Page 23 of 53...

  • Page 24: Ean-8

    An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code. Element P303BT User Guide I Page 24 of 53...
  • Page 25 Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (Default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (Default) Add-On Code Required EAN-8 Add-On Code Required EAN-8 Add-On Code Not Required (Default) Element P303BT User Guide I Page 25 of 53...

  • Page 26: Ean-13

    When this feature is enabled, there is a space between barcode and addenda. When this feature is disabled, there is no space. Enable ENA/JAN-8 Addenda Separator (Default) Disable ENA/JAN-8 Addenda Separator UPC 5.4 EAN-13 Enable/Disable EAN-13 Enable EAN-13 (Default) Disable EAN-13 Transmit Check Digit Transmit EAN-13 Check Digit (Default) Element P303BT User Guide I Page 26 of 53...
  • Page 27 Enable 2-Digit Add-On Code Disable 2-Digit Add-On Code (Default) Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code (Default) Add-On Code Required EAN-13 Add-On Code Required EAN-13 Add-On Code Not Required (Default) Element P303BT User Guide I Page 27 of 53...

  • Page 28: Upc-E

    ISBN Translate When enable this feature and is scanned, EAN-13 Book land symbols are translated into their equivalent ISBN number format. Enable ISBN Translate Disable ISBN Translate (Default) 5.5 UPC-E Enable/Disable UPC-E0/E1 Element P303BT User Guide I Page 28 of 53...
  • Page 29 Enable UPC-E0 (Default) Disable UPC-E0 Enable UPC-E1 Disable UPC-E1 (Default) Enable ENA/JAN-8 Addenda Separator (Default) Disable ENA/JAN-8 Addenda Separator UPC UPC-E0 Check Digit Enable UPC-E0 Check Digit (Default) Element P303BT User Guide I Page 29 of 53...
  • Page 30 Disable UPC-E0 Expand (Default) UPC-E0 Addenda Required When required is scanned, the scanner will only read UPC-E barcodes that have addenda. Enable UPC-E0 Required Disable UPC-E0 Required (Default) UPC-E0 Addenda Separator Element P303BT User Guide I Page 30 of 53...
  • Page 31 Enable UPC-E0 Number System (Default) Disable UPC-E0 Number System UPC-E0 Addenda Enable 2 Digit Addenda Disable 2 Digit Addenda (Default) Enable 5 Digit Addenda Element P303BT User Guide I Page 31 of 53...

  • Page 32: Upc-A

    Disable UPC-A UPC-A Check Digit Enable UPC-A Check Digit (Default) Disable UPC-A Check Digit UPC-A Addenda Required When required is scanned, the scanner will only read UPC-E barcodes that have addenda. Element P303BT User Guide I Page 32 of 53...
  • Page 33 The number system digit of UPC symbol is normally transmitted at the beginning of the scanned data, but the unit can be programmed so it will be not transmitted. Enable UPC-A Number System (Default) Element P303BT User Guide I Page 33 of 53...

  • Page 34: Interleaved 2 Of 5

    Disable UPC-A Number System UPC-A: Addenda Enable 2 Digit Addenda Disable 2 Digit Addenda (Default) Enable 5 Digit Addenda Disable 5 Digit (Default) 5.7 Interleaved 2 Of 5 Enable/Disable Interleaved 2 Of 5 Element P303BT User Guide I Page 34 of 53...

  • Page 35: Matrix 2 Of 5

    Programming command: Max: 02040425 ; Min: 02040310. Interleaved 2 Of 5 Check Digit No Check Char (Default) Validate And Transmit Validate Not Transmit 5.8 Matrix 2 Of 5 Enable/Disable Matrix 2 Of 5 Element P303BT User Guide I Page 35 of 53...

  • Page 36: Industrial 2 Of 5

    Industrial 2 of 5 max length command: 020603. The parameter of this command can be set from min to 48. Industrial 2 of 5 min length command: 020602. The parameter of this command can be set from 1 to max. Element P303BT User Guide I Page 36 of 53...

  • Page 37: Code 39

    5.10 Code 39 Enable/Disable Code 39 Enable Code 39 (Default) Disable Code 39 Transmit Start/Stop Character Transmit Start/Stop Character Do Not Transmit Start/Stop Character (Default) Code 39 Check Character No Check Char (Default) Element P303BT User Guide I Page 37 of 53...
  • Page 38 Code 39 barcode which does not have append character. Then the data is transmitted in the order that the barcodes were read. Enable Append Disable Append (Default) Code 39 Full ASCII Enable Code 39 Full ASCII Disable Code 39 Full ASCII (Default) Element P303BT User Guide I Page 38 of 53...

  • Page 39: Coda Bar

    Coda bar min length command: 020205. The parameter of this command can be set from 2 to max. Example: Set the Barcode Message length of the minimum value is 10; the maximum value is 25. Programming command: Max: 02020625 ; Min: 02020510. Transmit Start/Stop Character Element P303BT User Guide I Page 39 of 53...

  • Page 40: Code 93

    Transmit Start/Stop Character Do Not Transmit Start/Stop Character (Default) Coda bar Check Character No Check Char (Default) Validate And Transmit Validate No Transmit 5.12 Code 93 Enable/Disable Code 93 Enable Code 93 (Default) Element P303BT User Guide I Page 40 of 53...

  • Page 41: Gs1-128

    Code 93 barcode which does not have append character. Then the data is transmitted in the order that the barcodes were read. Enable Code 93 Append Disable Code 93 Append (Default) 5.13 GS1-128 Enable/Disable GS1-128 Enable GS1-128 (Default) Element P303BT User Guide I Page 41 of 53...

  • Page 42: Code 11

    Example: Set the Barcode Message length of the minimum value is 10; the maximum value is 25. Programming command: Max: 020B0325 ; Min: 020B0210. 5.14 Code 11 Enable/Disable Code 11 Enable Code 11 Disable Code 11 (Default) Code11 Check Digit(s) One Check Digit Element P303BT User Guide I Page 42 of 53...

  • Page 43: Pdf 417

    Two Check Digits (Default) 5.15 PDF 417 Enable/Disable PDF 417 Enable PDF 417 (Default) Disable PDF 417 Enable/Disable Micro PDF 417 Enable Micro PDF 417 Disable Micro PDF 417 (Default) Element P303BT User Guide I Page 43 of 53...

  • Page 44: Qr Code

    QR barcode with append character (ex. Space character), it buffers the data until it reads a QR barcode which does not have append character. Then the data is transmitted in the order that the barcodes were read. Element P303BT User Guide I Page 44 of 53...

  • Page 45: Data Matrix

    Data Matrix min length command: 023602. The parameter of this command can be set from 1 to max. Example: Set the Barcode Message length of the minimum value is 10; the maximum value is 25. Programming command: Max: 02360325 ; Min: 02360210. 5.18 Maxi code Enable/Disable Maxi code Element P303BT User Guide I Page 45 of 53...

  • Page 46: Aztec

    Example: Set the Barcode Message length of the minimum value is 10; the maximum value is 25. Programming command: Max: 02340325 ; Min: 02340210. 5.19 Aztec Enable/Disable Aztec Enable Aztec (Default) Disable Aztec Message Length Element P303BT User Guide I Page 46 of 53...
  • Page 47 Aztec min length command: 023305. The parameter of this command can be set from 1 to max. Example: Set the Barcode Message length of the minimum value is 10; the maximum value is 25. Programming command: Max: 02330625 ; Min: 02330510. Element P303BT User Guide I Page 47 of 53...

  • Page 48: Appendix

    Matrix 2 of 5 One check digit, MOD10; transmit check digit One check digit, MOD11; do not transmit check digit PDF417 Comply with 1994 PDF417 specifications ECC000 - ECC140 Data Matrix ECC200 Element P303BT User Guide I Page 48 of 53...

  • Page 49: Appendix 2: Ascii Table

    (Carriage Return) Enter CTRL+M (Shift Out) Insert CTRL+N (Shift In) CTRL+O (Data Link Escape) CTRL+P (XON) (Device Control 1) Home CTRL+Q (Device Control 2) PrtScn CTRL+R (XOFF) (Device Control 3) Backspace CTRL+S Element P303BT User Guide I Page 49 of 53...
  • Page 50 (Right / Closing Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol) Element P303BT User Guide I Page 50 of 53...
  • Page 51 Char (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) (Underscore) (Grave Accent) Char Element P303BT User Guide I Page 51 of 53...
  • Page 52 (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete) Element P303BT User Guide I Page 52 of 53...

  • Page 53: Appendix 3: Digit Barcodes

    6.3 Appendix 3: Digit Barcodes Element P303BT User Guide I Page 53 of 53...
