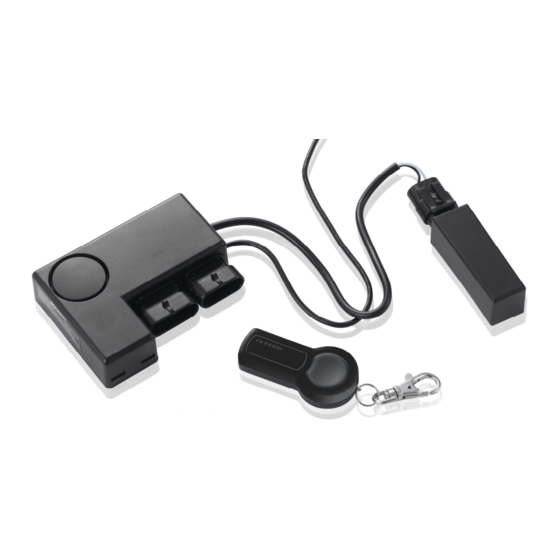

SR-i800
Motorcycle Security System
INSTALLATION MANUAL
AND USER'S GUIDE
Table of Contents
Installation
Component List ----------------------------------------------------------------
•
Planning The Installation ----------------------------------------------------
•
Mounting The Components -----------------------------------------------
•
Color Codes ---------------------------------------------------------------------
•
Connections ---------------------------------------------------------------------
•
Using the T-tap ------------------------------------------------------------------
•
User's Guide
Standard Features ------------------------------------------------------------
•
Transceiver Battery ------------------------------------------------------------
•
Violation Display ---------------------------------------------------------------
•
Operating the transceiver --------------------------------------------------
•
Adjusting G Sensor ------------------------------------------------------------
•
Selecting Arming Modes ----------------------------------------------------
•
Alarm Triggers -------------------------------------------------------------------
•
Manual Override Code -----------------------------------------------------
•
Encoding a Transceiver -----------------------------------------------------
•
Troubleshooting Guide -------------------------------------------------------
•
Accessories
Optional Accessories
------------------------------------------------------
•
Perimeter Sensor (SN-5) ------------------------------------------------------
•
Warranty and FCC Information
Limited Warranty -------------------------------------------------------------
•
FCC Notice ----------------------------------------------------------------------
•
Contact information ----------------------------------------------------------
•
Encoding a Transceiver
Note: The transceivers are programmed from the factory. Encoding is only necessary should
the transceiver lose its code and will not arm or disarm the security system or if a
replacement remote is obtained.
1.
Unplug HAR-1 from the MCM-9 and plug it back in, the siren will chirp 2 times and
the lights will flash 2 times.
2.
Within 6 seconds of plugging in the HAR-1, turn ignition switch "ON" and "OFF" 3
times.
3.
If step 2 is done correctly and within the time allowed , the siren will chirp 2 times
and the lights will flash an additional 2 times to confirm that the system is in
"Learn Mode".
4.
Press and hold the button until the system chirps 2 times and the lights flash 2
times to indicate that the MCM has learned the code.
5.
Turn ignition "ON" and "OFF" to exit "Learn Mode".
**It is not recommended to clip the remote to your ignition key. Attaching the
remote to your key may damage the remote and/or scratch your bike**
Page 3
Page 3
Page 4
Page 5
Page 5
Page 6
Page 2
Page 3
Page 6
Page 7
Page 7
Page 7
Page 8
Page 8
Page 1
Page 10
Page 2
Page 9
Page 11
Page 11
Page 11
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Scorpio SR-i800
Summary of Contents for Scorpio SR-i800
-
Page 1: Table Of Contents
Transceiver Battery ------------------------------------------------------------ Page 3 • Violation Display --------------------------------------------------------------- Page 6 • Operating the transceiver -------------------------------------------------- Page 7 • SR-i800 Adjusting G Sensor ------------------------------------------------------------ Page 7 • Selecting Arming Modes ---------------------------------------------------- Page 7 • Alarm Triggers ------------------------------------------------------------------- Page 8 •... -
Page 2: Component List
Components List MCM (Main Control Module) Standard Features Remote Transceiver Ultra low power drain MCM • Built-in Analog Devices accelerometer • Remote sensor control • Battery safeguard with “sleep mode” • Violation display Generic Installation Kit (GEN-1) Accessory Harness (ACC-1) •... -
Page 3: Mounting The Components
(Planning the Installation cont) Main Harness Check that your motorcycle battery is fully charged and that all electrical circuits are in good working condition. If the optional factory connector kit is being used, please disregard this section of the Check the layout and construction of the motorcycle to decide what space is instructions and refer to the instructions that were supplied with the factory connector kit. -
Page 4: Using The T-Tap
Selecting Arming Modes The SR-i800 can be manually armed and disarmed by using the button on the remote or automatically armed and disarmed by turning your ignition key on and off. When the Using the T-tap Connectors alarm is first installed the alarm will arm 5 seconds after the HAR-1 harness is installed. -
Page 5: Alarm Triggers
Perimeter Sensor (SN-5) Alarm Triggers Mounting the SN-5 The Perimeter Sensor uses high frequency microwave technology to detect mass density movement around the motorcycle. The signal can transmit through the seat, fiberglass, 1. If bike is bumped, the siren will sound for 5 Seconds and the turn signal lights will flash. leather and plastic, but not metal. - Page 6 This completes Aritronix warranty and no other warranty exists. What should you do if you experience a problem with a Scorpio product? First contact Aritronix, Ltd [Proof of purchase, installer and motorcycle information will be requested].
