UM2366
User manual
Getting started with the STEVAL-RFPLUG01 RF smart plug based on
STM32L443
Introduction
The
STEVAL-RFPLUG01
evaluation board has been physically tested and validated; it is not for sale.
It is a virtual board intended as a general reference to help you develop your own custom solutions.
It is designed to be used in home automation for Internet of Things (IoT) applications and embeds the core functionality required
for a secure communication.
It has the capability of wireless connectivity over sub-GHz or BLE and can also measure energy parameters such as power,
voltage, current and power factor via the
STPM32
metering IC.
You can use the Triac to control the load, and the isolated USB port and dual EEPROM (M24LR) to communicate with GUI and
NFC.

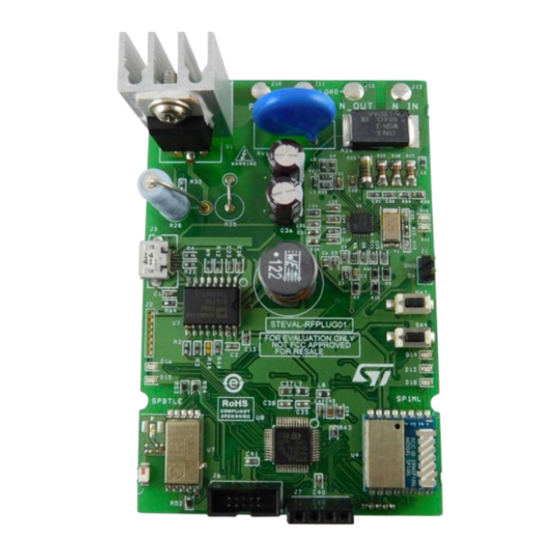

Figure 1.
STEVAL-RFPLUG01 evaluation board
UM2366 - Rev 1 - February 2018
www.st.com
For further information contact your local STMicroelectronics sales office.
