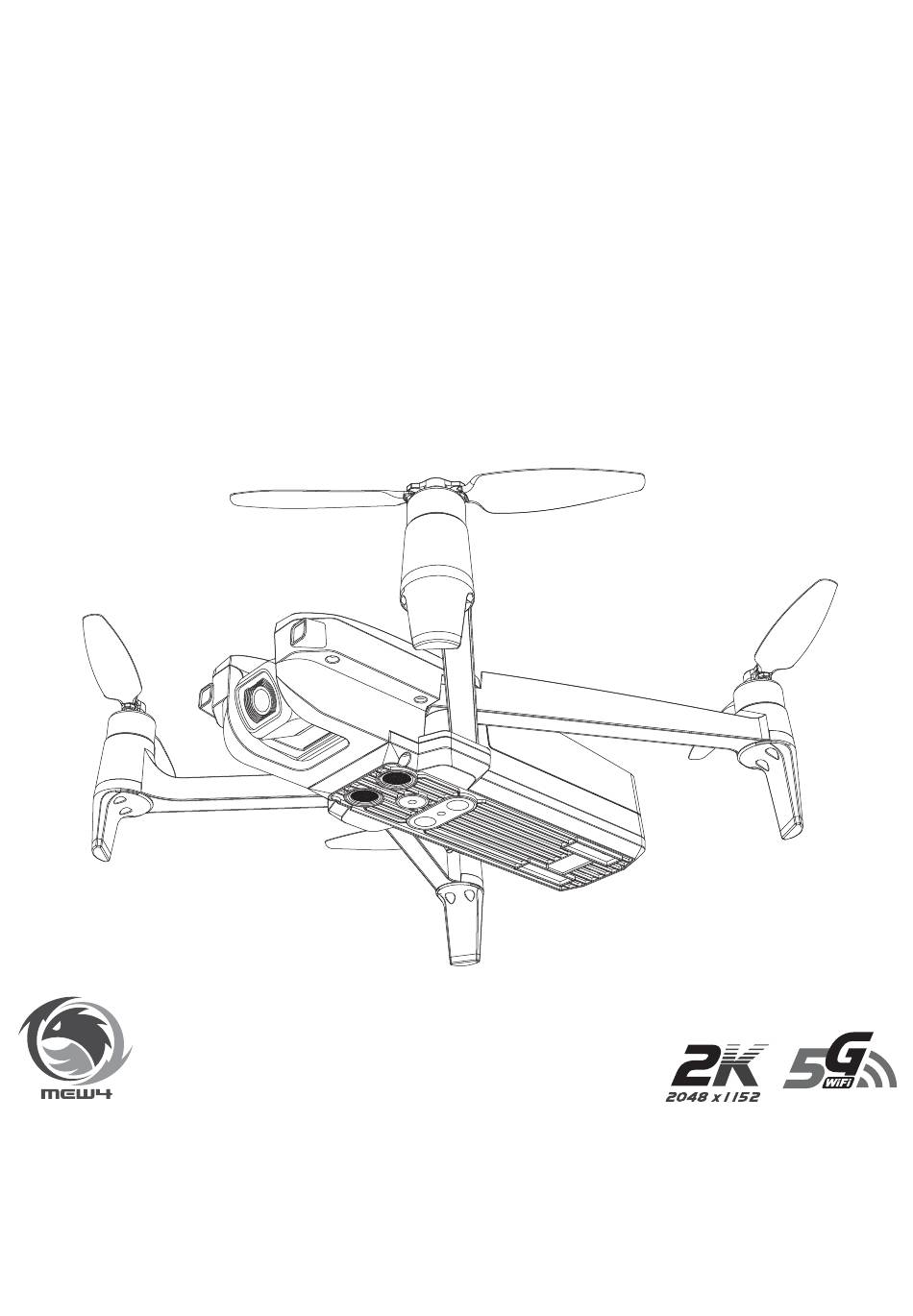

- Page 1 MEW4-1 Quick Start Farther.Faster.Clearer...
- Page 2 Aircraft 1. Brushless motor 2. Undercarriage 3. Propeller 4. Camera 5. Ultrasonic sensor 6. Bottom lights 7. Vision positioning lens 8. Battery 9. Rear light 10. Power switch *Please turn to User Manual for detailed information of flight environment requirements.
- Page 3 Remote Controller 1. Power switch 2. One-key RTH 3. Left stick 4. Right stick 5. Photo/Video 6. One-key unlock/lock 7. Mobile phone holder 8. Antenna 9. Hand stick 10. LCD display 11. One-key takeoff/One-key landing 12. Light switch (short-press); High/Low speed switch (long-press) 13.
- Page 4 LCD screen display Return to Home (RTH) icon Signal strength Aircraft battery Remote controller level battery level Photo/Video Distance against High/Low speed Home Point mode Satellite amount Altitude against GPS mode Remote controller Home Point throttle mode Return to Home (RTH) icon Photo/Video The icon is on during the RTH procedure and will be off Flashing once to take photos;...
- Page 5 Preparation before Use Download the software “X-DRONE” APP ANDROID APP ON Available on the App Store Prepare your MEW4-1 Unfold the arms. Insert the TF Card (TF Card is not included). Flight Preparation Install 2*AA batteries into the Install the aircraft battery.
- Page 6 Power on the aircraft by pressing the on the remote controller. switch on the aircraft for 3 seconds. Compass calibration Step 1. Rotate the MEW4-1 360 degrees for Step 2. Rotate the MEW4-1 360 degrees for 3 circles horizontally. 3 circles vertically.
- Page 7 Flight Unlock the aircraft Short-press the unlock button. Change the throttle mode Keep pressing the unlock button and turn Keep pressing the RTH button for 3 on the remote controller. seconds to change the throttle mode. Control the aircraft Throttle mode is set at Mode 2 by default. Left stick determines Mode 1 is opposite to Mode 2.
- Page 8 Long-press the unlock button and turn off Power off your aircraft by pressing the switch for 3 seconds. the remote controller. Charge the Aircraft Battery Power adaptor USB cable Charger Battery (not included) Available on the ANDROID APP ON X-DRONE App Store MEW4-1...
