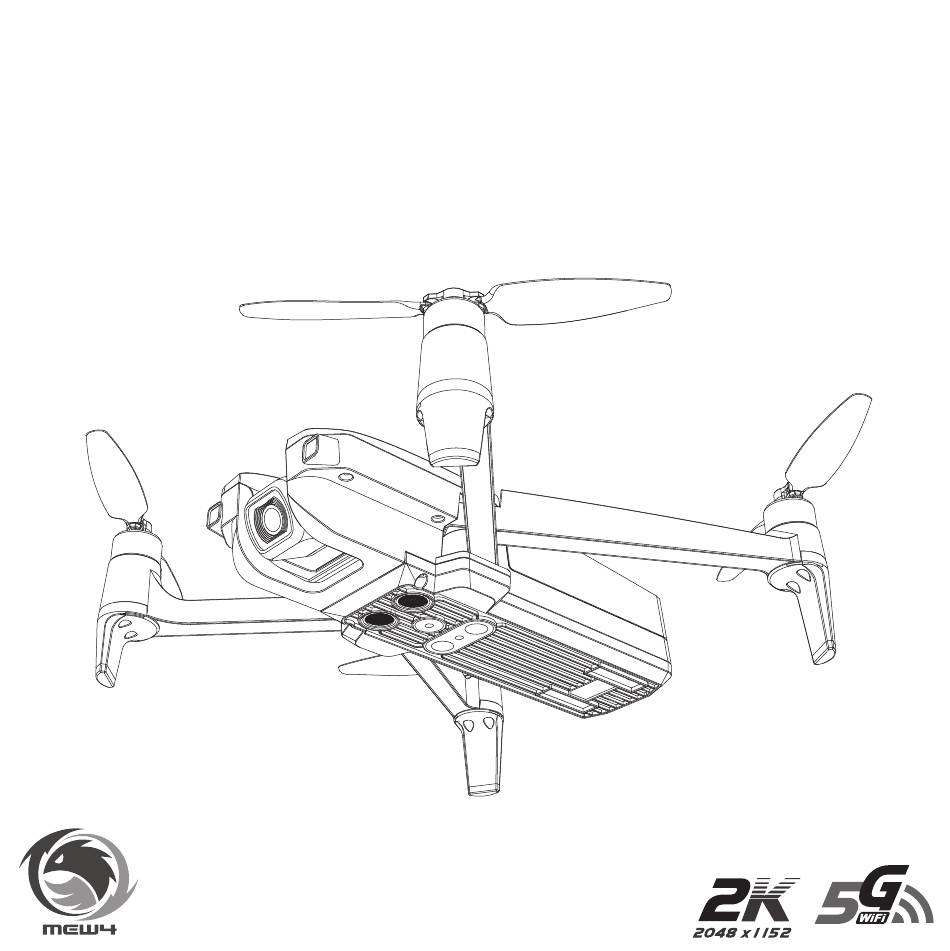

MEW4-1
User Manual
Farther.Faster.Clearer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEW4-1 and is the answer not in the manual?

Questions and answers

Andrea
March 15, 2025

FUNCIONAMIENTO Y CONTROLES

2 comments:
Mr. Anderson
March 15, 2025

The MJX MEW4-1 has several functions and controls:

1. Positioning & Stability: Equipped with a Vision System and GPS, it can precisely position, hover, and automatically return.
2. Intelligent Flight Modes: Supports Point of Interest, Follow Me, and Waypoint Flight.
3. Camera & Gimbal: Features a single-axis gimbal and can shoot 2K videos.
4. Remote Controller Functions: Controls aircraft movement, throttle, and other flight operations.
5. Throttle Control Stick Mode: Allows users to control altitude and movement.
6. Return to Home (RTH): Automatically returns to the starting point.
7. Flight Modes: Different modes for various flying conditions.
8. Status Indicators: Aircraft lights show battery and connection status.
9. Propeller Attachment & Detachment: Allows for easy maintenance.
10. Mobile App Integration: Works with the “X-DRONE” app for FPV real-time image transmission.

This answer is automatically generated

Andy
March 15, 2025

@Mr. Anderson me puede poner los controles

Andrea
March 15, 2025

cuál es el Manejo de cámara y sensores

1 comments:
Mr. Anderson
March 15, 2025

The MJX MEW4-1 is equipped with a 4K 5G WiFi camera that supports 720P@20FPS image transmission via a 5G WiFi (802.11.ac) video transmission system. The image transmission range is 200-350m. The drone features multiple positioning sensors, including GPS, Optical Flow, Barometer, and Ultrasonic sensors to assist with stability and accurate hovering.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for MJX MEW4-1

  • Page 1 MEW4-1 User Manual Farther.Faster.Clearer...
  • Page 2: Table Of Contents

    Contents Product Profile Introduction Prepare Your MEW4-1 Prepare the Remote Controller Major Parts & Functional Switch Aircraft Flight Modes Aircraft Status Indicator Lights Return to Home (RTH) Vision System Aircraft Power Switch Aircraft Battery Attach and Detach the Propellers Remote Controller...
  • Page 3: Product Profile

    Introduction ● Equipped with Vision System and GPS System, your MEW4-1 can precisely position, hover and automatically return. It is also capable of flying in the intelligent flight modes like Point of Interest, Follow Me and Waypoint Flight. Features a single-axis gimbal, your MEW4-1 can shoot 2K, 2-megapixel photos and adjust camera angle 90 degrees in flight.
  • Page 4: Prepare The Remote Controller

    MEW4-1 User Manual Battery installation Step 1. Insert the battery into socket at the top of the aircraft (Pic. 1); Step 2. Slide the battery into the compartment by pushing with appropriate force. Make sure that you hear a click sound indicating the battery is firmly installed (Pic.
  • Page 5: Major Parts & Functional Switch

    MEW4-1 User Manual Major Parts & Functional Switch [1] Power switch [2] Brushless motor [3] Undercarriage [4] Battery [5] Propeller [6] Camera [7] Ultrasonic sensor [8] Bottom lights [9] Vision positioning lens [1] Photo/Video [2] Left stick [3] One-key unlock/lock...
  • Page 6 MEW4-1 User Manual [8] One-key takeoff/ one-key landing [10] [9] Gimbal trimmer [10] Light switch (short-press); High/Low speed switch (long-press) [11] GPS/Gesture mode switch [11]...
  • Page 7: Aircraft

    MEW4-1. Flight Modes Your MEW4-1 has 3 flights modes: GPS mode: ON Slide the button up at the right side to position “ON” (Pic.1), the aircraft is in GPS mode and can precisely position and hover by the assistance of the GPS module.
  • Page 8: Aircraft Status Indicator Lights

    MEW4-1 User Manual Aircraft Status Indicator Lights Rear light Aircraft status indicator Indicator status Meanings Rear light flashes yellow rapidly. Aircraft 2.4GHz disconnected. Rear light flashes red, green and yellow alternatively. Aircraft is in initialization detection status. Rear light glows solid yellow.
  • Page 9: Return To Home (Rth)

    MEW4-1 User Manual Indicator status Meanings Rear light flashes red three times, stop for 1.5 second. Something wrong with the compass. Rear light flashes red four times, stop for 1.5 second. Something wrong with the GPS module. Rear light flashes red five times, stop for 1.5 second.
  • Page 10: Vision System

    Vision System Consisted by camera ① and ultrasonic sensor ②, the Vision System locates at front bottom of your MEW4-1. It is a positioning system that is composed by image sensor and ultrasonic sensor. Your MEW4-1 acquires its location through using the camera sensor to detect the ground texture and visible features.
  • Page 11 MEW4-1 User Manual Vision Positioning System function The Vision Positioning System is typically used in indoor environment when GPS is weak or unavailable. It works best when the aircraft altitude is less than 3 meters. The precision of the vision system is easily affected by the light strength and features of the surface textures. It would happen that the ultrasonic sensor could work normally to detect the altitude when it is flying over objects that is made by sound-absorbing materials.
  • Page 12: Aircraft Power Switch

    Once battery is installed firmly, press on the power switch for 3 seconds, the aircraft makes beep sounds and the rear light keeps flashing. Turn off the aircraft Press on the power switch for 3 seconds, the aircraft light goes off and the MEW4-1 turns off. Aircraft Battery ●...
  • Page 13: Attach And Detach The Propellers

    MEW4-1 User Manual ● Need adult supervision when this aircraft is being played by children. ● Only batteries of the same or equivalent type as recommended are to be used. ● Insert batteries with correct polarity. ● Rechargeable batteries are to be removed from the aircraft before being charged.
  • Page 14 MEW4-1 User Manual Detach the propellers Take out the screws by rotating counter-clockwise and then remove the propellers. ● Please make sure that the clockwise and the counter-clockwise propellers are installed on the correct motors, because the aircraft will not fly normally for wrong propellers installation.
  • Page 15: Remote Controller

    Remote Controller This section describes the features of the remote controller, including the instruction on controlling the MEW4-1. Remote Controller Functions and Status Flight mode switch Choose the flight mode by switching the GPS button to ON/OFF position. The on-working flight mode “...
  • Page 16 MEW4-1 User Manual LCD Screen display Return to Home (RTH) icon Signal strength Aircraft battery Remote controller level battery level Photo/Video Distance against High/Low speed Home Point mode Satellite amount Altitude against GPS mode Remote controller Home Point throttle mode...
  • Page 17 APP interface. One-key takeoff/landing ● After the MEW4-1 unlocked, short-press the “ ” button (indicated as below), the aircraft will automatically take off and hover at 1.5m altitude.
  • Page 18 MEW4-1 User Manual Emergency stop Press the “ ” button for 3 seconds to stop the flight urgently ONLY when the aircraft encounters emergency, or the aircraft will drop down or be crashed. Smart RTH button ● Press the button to start the RTH, the remote controller makes a beep sound and the aircraft will fly back to the recorded Home Point.
  • Page 19: Throttle Control Stick Mode

    2) The battery is removed after the aircraft connects to the remote controller. Optimal transmission zone To obtain a satisfied flight experience, please make sure that your MEW4-1 is flying ahead of the remote controller and no obstacles between the aircraft and the remote controller.
  • Page 20: Install Mobile Phone Holder

    MEW4-1 User Manual How to change throttle mode Step 1. Keep pressing the red button “ ” and turn on the remote controller, the remote controller is under signal connection status (Pic. 1); Step 2. Keep pressing the RTH button “ ” for 3 seconds to choose the throttle control mode (Pic. 2). The throttle control mode will change according to each press.
  • Page 21: App Download & Installation

    App Download & Installation This section introduces how to download the “X-DRONE” APP and connect with mobile device. FPV Real-time Image Transmission Software “X-DRONE” Where to download “X-DRONE” APP 1. For Apple IOS system, please turn to Apple store, search “X-DRONE” or scan the QR code as below to download the software. 2.
  • Page 22 MEW4-1 User Manual How to link the “X-DRONE” to the camera Power on the aircraft, then enter phone settings option. Turn on WiFi, find drone_****** on the list and connect it. When “ ” legend is shown, it means WiFi connecting is successful. Exit settings and tap “X-DRONE” APP at your mobile device, Click “...
  • Page 23: Flight

    Flight limits and GEO zones Abide by all laws and regulations when flying your MEW4-1. Flight limitations are applied by default to help users operate this product safely and legally. Flight limitations include altitude limits, distance limits and GEO Zones.
  • Page 24: Aircraft Operations

    MEW4-1 User Manual Aircraft Operations Signal connection between the aircraft and remote controller ● Keep pressing the red button “ ” and turn on the remote controller (Pic. 1). The remote controller makes 2 beep sounds, and the indicator light “...
  • Page 25 MEW4-1 User Manual Aircraft compass calibration 1. Compass calibration should be performed after successful aircraft initialization detection. 2. Aircraft compass calibration should be done for every flight. That is to say, if changing new battery or the battery is reinstalled, compass calibration should be done again.
  • Page 26 MEW4-1 User Manual Attention: To fly at GPS mode, please choose an open and wide space for the flight, and make sure that the satellite amount is over 7. ● Please do not calibrate the compass in strong magnetic area, such as magnetic field, parking place or construction areas with underground reinforcement.
  • Page 27 MEW4-1 User Manual Method 2: After the aircraft lands on the ground, pull down the throttle stick to the bottom position and keep for 3 seconds, the motors will stop rotating and the aircraft is locked. Warm tips: ● Please do not lock the aircraft by pressing the “...
  • Page 28: Test Flight

    3. Connect the remote controller with the aircraft and then proceed aircraft initialization detection. 4. Connect the MEW4-1 with your phone and enter into the image transmission interface. 5. Unlock the aircraft after the gyro detection of the aircraft is completed.
  • Page 29: Appendix

    Appendix Product Parameters Aircraft Gross Weight MEW4-1: about 360g (Battery and propellers included) Dimensions Folded: 230*70*65mm (length*width*height) Unfolded: 305*320*65mm (length*width*height) Diagonal 240mm Max Ascent Speed 3m/s Max Descent Speed 2m/s Max Speed 36km/h Flight Height Limitation 150m Max Flight Time...
  • Page 30 MEW4-1 User Manual 2.4-2.4835GHz Operating Frequency 5.15-5.35GHz Transmission Power (EIRP) 2.4GHZ≤20dBm 5GHz≤16dBm Gimbal Controllable Range Tilt: -90° to 90° Camera Image Sensor 1/3 “ CMOS; Effective Pixel: 2 million Lens FOV: approx. 110° Aperture: f/2.2 Shooting Range: 1m to ∞...
  • Page 31 MEW4-1 User Manual Charger Input 5V 2A Charging Voltage 3.8V 2A Rated Power 7.6W Aircraft Battery Capacity 2050mAh Voltage 7.6V Battery Type LiPo 2S Energy 15.58Wh Net Weight about 98g Charging Temperature Range 5℃-40℃ Charging Time 3-5 hours (depends on the adaptor specification)
  • Page 32: Packing Detail

    MEW4-1 User Manual Packing Detail Full package includes the following parts. Aircraft *1 Remote Controller *1 Extra Propellers Set *1 Aircraft Battery *1 Charger *1 USB Cable *1 MEW4-1 MEW4-1 Quick Start User Manual Farther.Faster.Clearer Farther.Faster.Clearer Screwdriver *1 Quick Start *1...
  • Page 33: Important Statement

    MEW4-1 User Manual Important Statement ● This aircraft is not a toy, but hobby grade model. It should be assembled and operated properly. Pilot must operate this aircraft in safe way. Improper operation may cause injury or property damage. ● This aircraft is applicable for pilots aged 14+ who are with skilled flying experience.
  • Page 34 MEW4-1 User Manual ● Keep away from heat source The aircraft is made of metal, fiber, plastic, electronic component and other material. Please keep it away from the heat source to avoid deformation or even damage caused by sun exposure and high temperature.
  • Page 35 Note: a) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
