- Page 1 EM3566 Hardware Manual V1.20210730 Boardcon Embedded Design www.boardcon.com...
- Page 2 Your Idea Customize the embedded system based on 1. Introduction 1.1. About this Manual This manual is intended to provide the user with an overview of the board and benefits, complete features specifications, and set up procedures. It contains important safety information as well. 1.2.
-
Page 3: Table Of Contents
Your Idea Customize the embedded system based on Content 1 EM3566 Introduction ........................3 1.1 Summary ..........................3 1.2 RK3566 Specifications ......................3 1.3 EM3566 Features ......................... 4 1.4 PCB Dimension ........................6 1.5 Block Diagram ........................7 1.6 CPU module Introduction ..................... 7 2 Peripherals Introduction ....................... -
Page 4: Em3566 Introduction

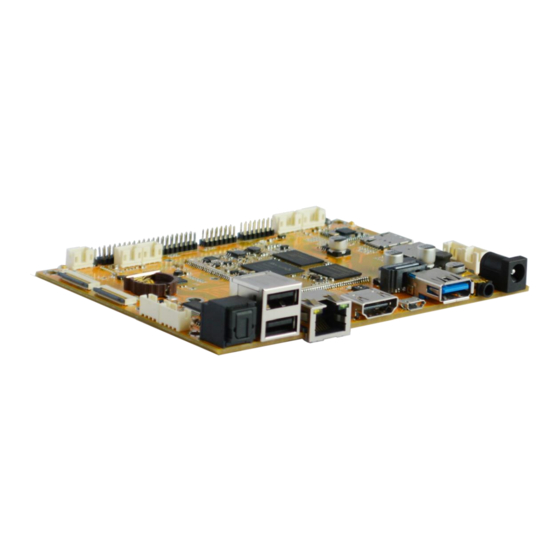

1 EM3566 Introduction 1.1 Summary The EM3566 is a single-board computer powered by a Rockchip RK3566 processor featuring four ARM Cortex-A55 CPU cores and Mali-G52-2EE graphics and designed for AIoT applications such as AI robot, smart POS machine, face recognition terminal, and business display integrated equipment. -
Page 5: Em3566 Features
Your Idea Customize the embedded system based on 1.3 EM3566 Features SATA/USB3.0 Switch 2x USB2.0 Headphone HDMI Host USB3.0 Power in Ethernet Host SATA USB2.0 Host SATA Power USB2.0 Host SD Card Camera SIM Card Camera WiFi&BT Recover Debug UART2... - Page 6 Your Idea Customize the embedded system based on 8GB / 32GB / 64GB / 128GB eMMC M.2 PCIe 2.0 socket NVMe SSD (Expand with 2242 NVMe SSD) Storage MicroSD card slot (Expand with TF card) SATA3.0 (can switch between SATA and USB 3.0) Power Supply 12V/3A DC input jack 1x USB OTG 2.0...
-
Page 7: Pcb Dimension
Your Idea Customize the embedded system based on 1.4 PCB Dimension 135mm 95mm... -
Page 8: Block Diagram
Your Idea Customize the embedded system based on 1.5 Block Diagram 4x ARM Cortex-A55 Power DC/DC LPDDR4 iNAND Camera1 up to 8GB up to 128GB Debug Debug Camera2 MIPI CSI UART2 USB-to-UART mPCIe UART4 SIM card 2x UART USB2.0 HOST 4G&GPS UART5 USB HUB... - Page 9 Your Idea Customize the embedded system based on Pin Definition Signal Description or functions GPIO serial IO Voltage VCC3V3_SYS 3.3V Main Power input 3.3V VCC3V3_SYS 3.3V Main Power input 3.3V VCC3V3_SYS 3.3V Main Power input 3.3V RTC button Cell Power VCC_RTC 3.0V-1.8V input...
- Page 10 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage GMAC1_TXD2_M0 GPIO3_A2_d 3.3V GMAC1_TXD3_M0 GPIO3_A3_d 3.3V GMAC1_TXCLK_M0 GPIO3_A6_d 3.3V MIPI_DSI_TX0_D3N/L MIPI DSI or LVDS TXD3N 1.8V VDS_TX0_D3N MIPI_DSI_TX0_D3P/L MIPI DSI or LVDS TXD3P 1.8V VDS_TX0_D3P MIPI_DSI_TX0_D2N/L MIPI DSI or LVDS...
- Page 11 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage MIPI_CSI_RX_D1P CSI0 RXD1P 1.8V MIPI_CSI_RX_D1N CSI0 RXD1N 1.8V MIPI_CSI_RX_D0N CSI0 RXD0N 1.8V MIPI_CSI_RX_D0P CSI0 RXD0P 1.8V MIPI_CSI_RX_CLK0N MIPI CSI0 CLKN 1.8V MIPI_CSI_RX_CLK0P MIPI CSI0 CLKP 1.8V Ground...
- Page 12 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage SDMMC0_D3 UART5_RTSn_M0 GPIO2_A0_u 3.3V SDMMC0_D2 UART5_CTSn_M0 GPIO1_D7_u 3.3V SDMMC0_D1 UART6_RX_M1 GPIO1_D6_u 3.3V SDMMC0_D0 UART6_TX_M1 GPIO1_D5_u 3.3V USB_OTG0_ID 3.3V USB_OTG0_VBUSDE USB OTG VBUS input 3.3V UART1_RX_M0 GPIO2_B3_u 1.8V...
- Page 13 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage PDM_CLK1_M0/SPDIF_TX UART4_RX_M0 GPIO1_A4_d 3.3V AudioPWM_ROUT_P UART4_TX_M0 GPIO1_A6_d 3.3V /PDM_CLK0_M0 I2S1_LRCK_TX_M0_ GPIO1_A5_d 3.3V PMIC I2S1_SDI0_M0/PDM_ PDM_SDI0_M0 GPIO1_B3_d 3.3V SDI0_M0_PMIC I2S1_SCLK_TX_M0_ UART3_CTSn_M0 GPIO1_A3_d 3.3V PMIC I2S1_SDO0_M0_PMI AudioPWM_ROUT_N/UAR GPIO1_A7_d 3.3V...
- Page 14 Your Idea Customize the embedded system based on Signal Description or functions GPIO serial IO Voltage CIF_8BIT_D1 CIF_D9 GPIO3_D7_d 1.8V CIF_8BIT_D0 CIF_D8 GPIO3_D6_d 1.8V Ground USB2_HOST2_DM HOST2_DM 1.8V USB2_HOST2_DP HOST2_DP 1.8V USB2_HOST3_DP HOST3_DP 1.8V USB2_HOST3_DM HOST3_DM 1.8V CIF_8BIT_VSYNC GPIO4_B7_d 1.8V CIF_8BIT_HREF GPIO4_B6_d 1.8V...
-
Page 15: Peripherals Introduction
Main power supply. VCC12V_DCIN Ground DC 12V power in Ground 2.2 Audio I/O Headphone (J7, 3.5mm jack) The EM3566 adopts audio codec ES8388 to provide stereo audio output/input. Feature Low power ⚫ Integrated ADC and DAC ⚫ IIS transfer audio data ⚫... -
Page 16: Hdmi Out (J4)
SPDIF signal 3.3V power supply SPDIF_TX_M2 VCC3V3_SYS Ground 2.3 HDMI OUT (J4) EM3566 supports HDMI 2.0 transmitter with HDCP 1.4/2.2, up to 4K@60fps. HPD input analog comparator ⚫ 13.5–600MHz input reference clock ⚫ Up to 10-bit Deep Color modes ⚫... -
Page 17: Usb Otg (J29)
Your Idea Customize the embedded system based on 2.4 USB OTG (J29) EM3566 OTG is a Micro USB2.0 port, it is used to download image and ADB transfer file. Feature Compatible with USB OTG2.0 specification ⚫ Supports USB 2.0 High Speed (480Mbps), Full Speed (12Mbps) and Low Speed (1.5Mbps) ⚫... -
Page 18: Usb3.0/Sata3.0 (J25, J34)
Your Idea Customize the embedded system based on P3 (dual-USB) Signal Description Signal Description VCC_USB USB Power. DC 5V USB_DM1 USB data- USB_DP1 USB Data+ Ground VCC_USB USB Power. DC 5V USB_DM2 USB data- USB_DP2 USB Data+ Ground J6 / J17 (4-pin connector) Signal Description Signal... -
Page 19: Ethernet (Jp1)
Your Idea Customize the embedded system based on EM3566 on-board 7-pin SATA Interface. It requires 5V power supply. SATA(J34) Signal Description Signal Description Ground USB SSTX Data+ USB3_SSTXP USB SSTX Data- Ground USB3_SSTXN USB SSRX Data- USB SSRX Data+ USB3_SSRXN... -
Page 20: Edp/Lvds/Mipi Panel (Con1)
LED2/CFG_L LED2 Ground LED1/CFG_L LED1 Ground 2.8 eDP/LVDS/MIPI Panel (CON1) EM3566 supports 10.1-inch HD capacitive LCD, up to 1280 x 800 resolution. Power supply MIPI DSI LVDS Touch 21 23 25 27 29 33 35 37 39 9 11 13 15 17 19 21 23 25... -
Page 21: Bt656 (J26)
Your Idea Customize the embedded system based on Signal Description Signal Description eDP data lane eDP data lane EDP_TX_D3P EDP_TX_D3N positive output negative output eDP data lane eDP data lane EDP_TX_D2P EDP_TX_D2N positive output negative output eDP data lane eDP data lane EDP_TX_D1P EDP_TX_D1N positive output... -
Page 22: Gpio (Con4)
Your Idea Customize the embedded system based on Signal Description Signal Description VOP_BT656_D4 VOP_BT656_D5 BT656 data BT656 data VOP_BT656_D6 VOP_BT656_D7 BT656 data BT656 data VOP_BT656_CL Not connect BT656 clock K_M1 2.10 GPIO (CON4) Power supply 14 12 10 GPIO 13 11 9 The GPIO is a 14-pin header connector. -
Page 23: Mipi Camera (J30, J31)
Your Idea Customize the embedded system based on 2.12 MIPI Camera (J30, J31) EM3566 features two 26-pin MIPI connectors for camera (OV13850). Features Support 4 data lane, providing up to 6Gbps data rate ⚫ Support 1080p@60fps output ⚫ Lane operation ranging from 80 Mbps to 1.5Gbps in forward direction. -
Page 24: Ir (J24)
Your Idea Customize the embedded system based on Not connect AF 2.8V power supply AF_2V8 I2C4_SDA_M0_1 I2C4_SCL_M0 I2C data line I2C clock line _1V8 2.8V power AVDD2V8_DV Not connect supply CAMERAF_RST GPIO4_B5_d_1 Camera reset GPIO MIPI CSI positive MIPI_CSI_RX_ Ground differential data line transceiver output IMIPI CSI negative... -
Page 25: Rs485 (J32, Jp2)
Your Idea Customize the embedded system based on Support auto flow control mode for UART1-5 ⚫ The J10 is 3-pin connector. The debug serial port baud rate is 1500000. Signal Description Signal Description Serial data input UART2DBG_TX Serial data output UART2DBG_RX Ground The J11, J12 are RS232 serial ports. -
Page 26: Button (K3)
KEY/RECOVERY 2.17 4G Module (CON2, P4) EM3566 adopts the standard PCI Express® MiniCard form factor (MiniPCIe) and provides global network coverage on the connectivity of 4G. It delivers 50Mbps-up and100Mbps-down data rates on 4G FDD networks and can also be fully backward compatible with existing UMTS and GSM/GPRS networks. -
Page 27: Micro Sd (J3)
Your Idea Customize the embedded system based on Ground PERST GPIO0_A0_d Not connect 3GVCC DC 3.3V Not connect Ground Ground Not connect Ground Not connect Not connect Not connect Not connect Ground USB2_HOST2_ Ground Host data DN USB2_HOST2_ Ground Host data DP 3GVCC DC 3.3V Ground... -
Page 28: Wifi&Bluetooth (U20)
Your Idea Customize the embedded system based on Signal Description Signal Description SDMMC0_D2 SDMMC0_D3 SD/MMC data2 SD/MMC data3 SD/MMC command SDMMC0_CMD VCC3V3_SD 3.3V signal SDMMC0_CLK Ground SD/MMC clock SDMMC0_D0 SDMMC0_D1 SD/MMC data0 SD/MMC data1 SDMMC0_DET_ SD/MMC detect signal 2.19 WiFi&Bluetooth (U20) view The Realtek RTL8723BS is a low-power consumption module which has incorporated Wi-Fi and Bluetooth into one chip. - Page 29 Your Idea Customize the embedded system based on Signal Description Signal Description RF I/O (Connect to Ground WL_BT_ANT IPEX) Ground Not connect HOST_WAKE_B HOST wake-up Not connect Bluetooth device BT_WAKE_HO Bluetooth device to Not connect ST_H wake-up HOST VBAT_WL 3.3V power supply XTAL_IN Crystal input Internal regulators...
-
Page 30: Ssd (Con3)
Your Idea Customize the embedded system based on 2.20 SSD (CON3) M.2 M key socket (PCIe) for NVMe SSD. 57 67 Signal Description Signal Description Ground PCIE_3V3 3.3V power supply Ground PCIE_3V3 3.3V power supply Not connect Not connect Not connect Not connect Ground PCIE DAS... -
Page 31: Gps (Mu4)
Your Idea Customize the embedded system based on Signal Description Signal Description PCIE20_CLK Ground Clock Request REQn_M2 PCIe Reference PCIE20_REFCL PCIE20_WAK PCIe PME Wake Clock signals - En_M2 PCIe Reference PCIE20_REFCL Not connect Clock signals + Ground Not connect PMIC_32KOU Not connect Suspend Clock (32KHz) T_SOC... -
Page 32: Rtc (Bt1)
Your Idea Customize the embedded system based on Signal Description Signal Description Ground UART3_RX_M0 UART3 receive UART3_TX_M0 UART3 transmit Not connect Backup voltage Not connect VCC_RTC supply GPSVDDIO IO Supply Voltage VDD_GPS Supply voltage GPSRST Reset Ground GPS_RFIN GPS signal input Ground Output Voltage RF Not connect... -
Page 33: Product Configurations
Customize the embedded system based on 3 Product Configurations 3.1 Standard Contents Item Qty. (PCS) Description EM3566 board Standard Content (2GB RAM, 8GB eMMC) Android/Debian BSP, Documents, tools, Schematic Drawing, TF card / CD-ROM datasheets Ethernet cable 1.5m Crossover cable...
