Bush Hog Tough 3545 Specifications

Bush Hog
®

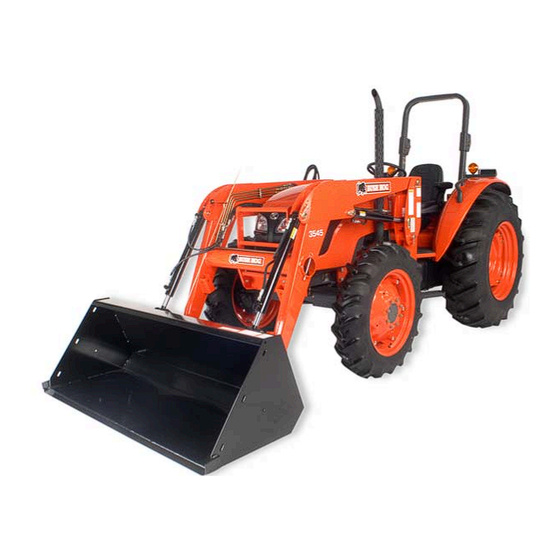

3545 Quick Attach Mid-Mount Loaders
Skid Steer Quick Attach System
BUSH HOG TOUGH FeATUreS
®
TOUGH Boxed Boom Design
TOUGH Large Diameter Cross Tubes
TOUGH robotic Welds
TOUGH High Strength Chrome Plated Cylinder rods
TOUGH Steel Tube Hydraulic Lines
TOUGH Pivot Pins With recessed Grease Zerks
TOUGH Bush Hog Made Buckets
TOUGH Powder Coat Paint
MODeL Specifications Based on 1997 ASAE STANDARDS
Tractor PTO HP range
2WD/FWA
Maximum Lift Height - Measured at Pivot Pin
Maximum Lift Height - Under Level Bucket
Maximum Dump Angle
Digging Depth
Lift Capacity to Maximum Height - At Pivot Pin
Lift Capacity to Maximum Height - 31.5 inches Forward of Pivot Pin
Lift Capacity to 59 inch Height - At Pivot Pin
Lift Capacity to 59 inch Height - 31.5 inches Forward of Pivot Pin
Breakout Force - At Pivot Pin
Breakout Force - 31.5 inches - Forward of Pivot Pin
rollback Force at Maximum Height - 31.5 inches Forward of Pivot Pin
rollback Force at 59 inch Height - 31.5 inches Forward of Pivot Pin
rollback Force at Ground Level - 31.5 inches Forward of Pivot Pin
raising Time (Ground Level to Full Height)
Lowering Time (Full Height to Ground Level)
Bucket Dumping Time (Full Rollback to Full Dump)
Bucket rollback Time (Full Dump to Full Rollback)
Hydraulics Two 2.25 inch Bore, 23.13 inch Stroke Double Acting Bucket Cylinders and Two 2.5 inch Bore, 18.25 inch Stroke Double Acting Lift Cylinders
Specifications Based on Tractor System of
regular Duty Skid Steer Buckets
Commercial Grade Skid Steer Buckets
Options
Warranty
FeATUreS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
TOUGH
Forklift Attachment (48 inch tines), Round Bale Spear, Dual-Probe Bale Spear, Grapple Fork, Bucket Tine Teeth,
Bolt-On Digging Teeth, Side Cutting Edges, Spill Guard Attachment, Hydraulic Self-Leveling, and Grill Guards
"Universal" skid steer quick attach system compatible with skid steer style attachments,
3545
40 - 60
2WD/FWA
120 inches
110 inches
45°
3.5 inches
3000 lbs
1950 lbs
3900 lbs
2500 lbs
4300 lbs
2750 lbs
3550 lbs
4050 lbs
3550 lbs
5 seconds
4 seconds
5 seconds
3 seconds
2850 PSI hyd. pressure & 11 GPM pump capacity
Available in 72, 80 and 84 inch widths
Available in 60, 72 and 84 inch widths
1 year limited warranty
Available in major tractor colors
