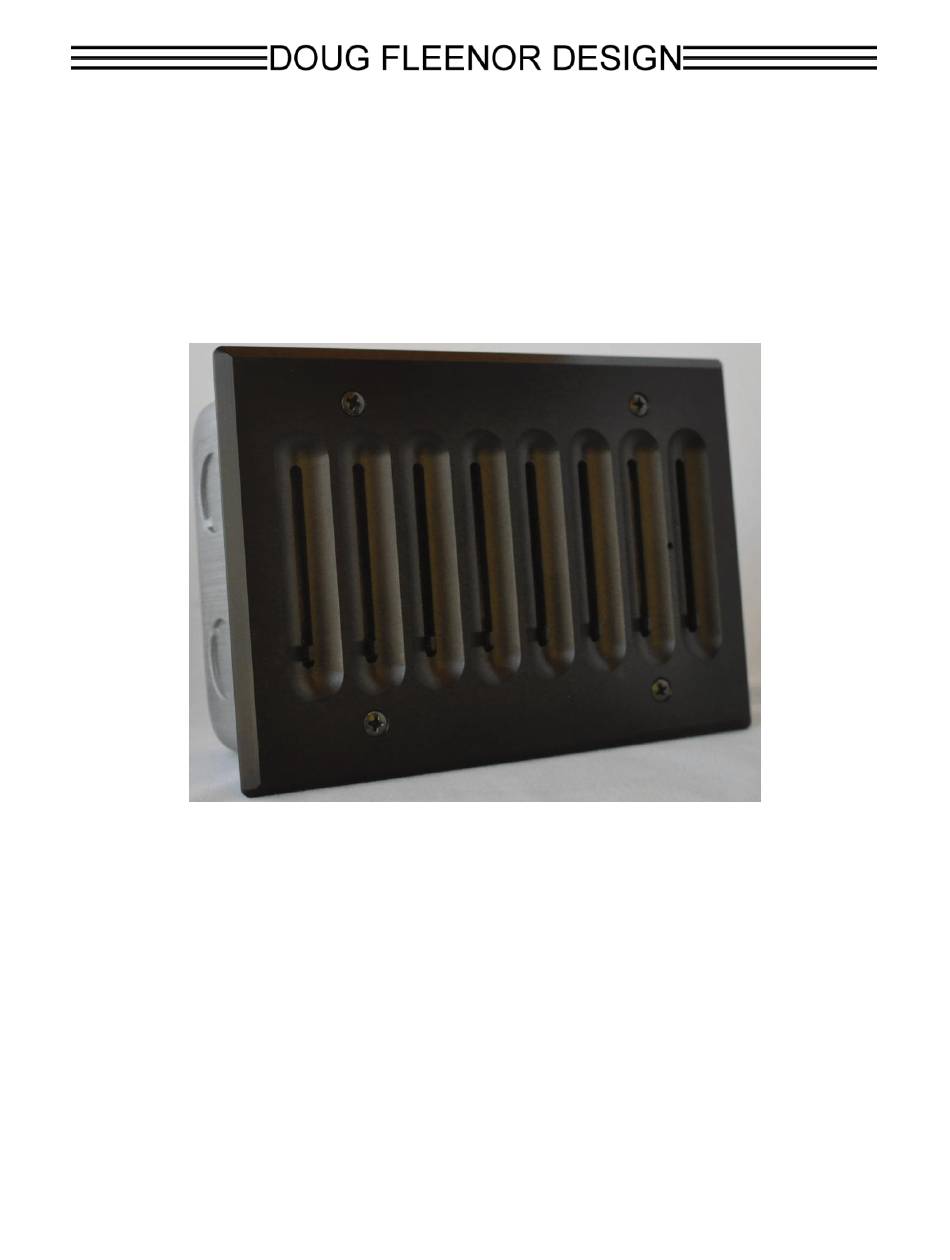

- Page 1 Model PRESET 8 Installation and Operations Manual Doug Fleenor Design, Inc. 396 Corbett Canyon Road Arroyo Grande, CA 93420 (805) 481-9599 Voice and FAX Manual revision May 2019 Page 1 of 7...
- Page 2 Product description The Preset 8 is a lighting control station that stores eight preset looks. Each look, or scene, has an associated slider that adjusts the light levels for that look. The preset looks are recorded into the Preset 8 by capturing the output of any DMX512 console.
- Page 3 DC power to the Preset 8. A low voltage AC source can be used to power the Preset 8. The low voltage AC power must be within the range of 12 – 24V. Note that if a single transformer is used to power multiple stations, all stations must be wired with the same polarity.
- Page 4 BE DAMAGED BEYOND REPAIR AND WILL NOT BE COVERED BY ANY WARRANTY. Jumper settings There are six jumpers on the rear of the Preset 8. All are installed at the factory. This configures the Preset 8 as a Main station which will support most applications. To enable additional features, jumpers can be removed as shown by the table below.
- Page 5 Recording a preset The Preset 8 comes from the factory with DMX slot 1 recorded at full on slider 1. DMX slot 2 is recorded at full on slider 2, etc.
- Page 6 The Main station and/or the Remote station are connected to the output of a splitter or other DMX processing device. Preset 8 stations must only be connected to the input of a splitter or other DMX processing device. Main and Remote stations must also be directly connected to one another with no active devices between them.
- Page 7 Limited Manufacturer's Warranty Products manufactured by Doug Fleenor Design (DFD) carry a five-year parts and labor warranty against manufacturing defects. It is the customer's responsibility to return the product to DFD at the customer's expense. If covered under warranty, DFD will repair the unit and pay for return ground shipping.
