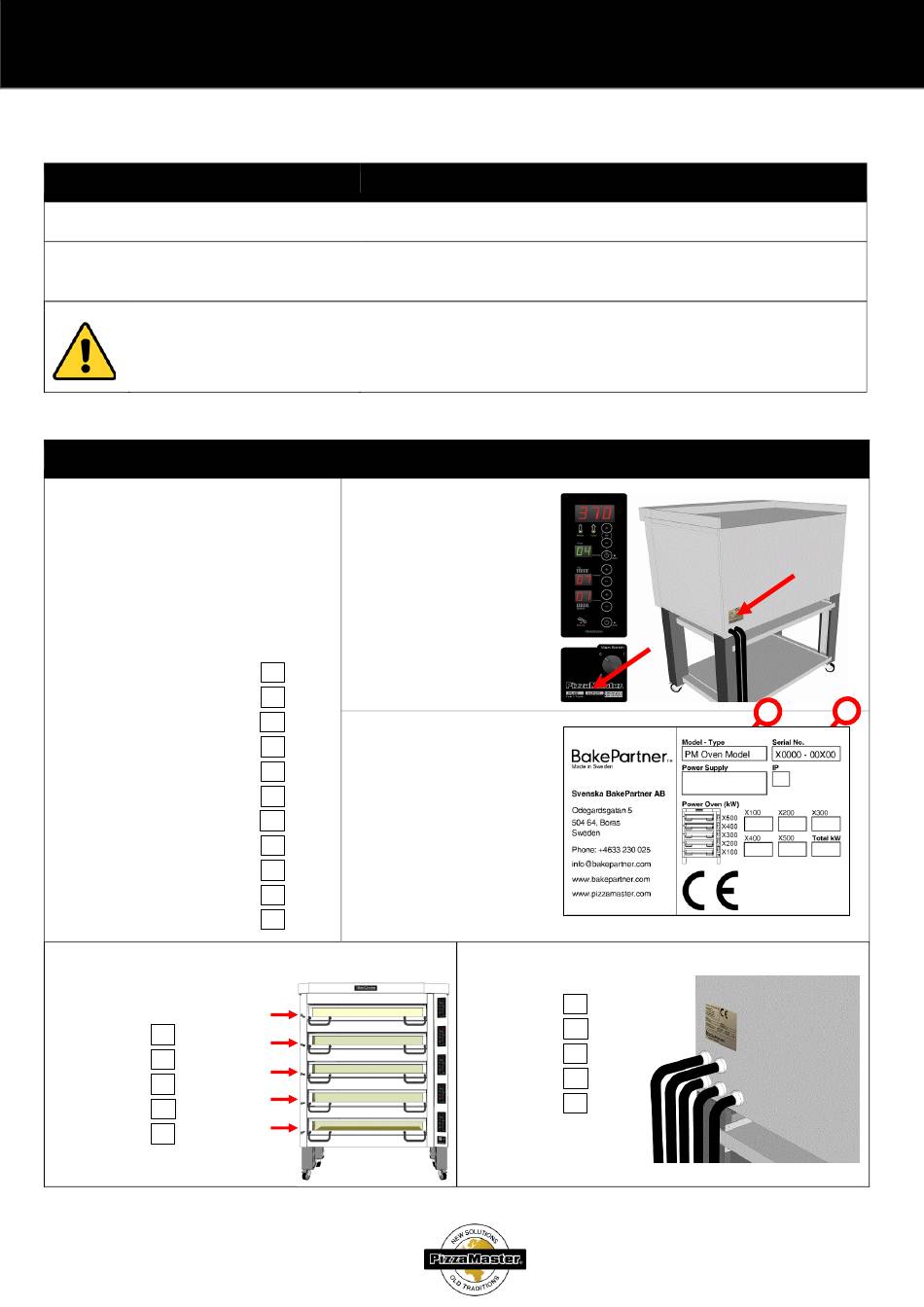

INSTRUCTIONS
PM 700/800/900 ED
Technical Support Contact
IMPORTANT!
OVEN IDENTIFICATION
1.
Model-Type
______________________________
2.
Serial No.
______________________________
3.
Power Supply:
a)
230V 1ph + N ..................
b)
400V 3ph + N ..................
c)
480V 3ph + N ..................
d)
230 3ph/400V 3ph + N...
e)
200V 3ph .........................
f)
208V 1ph .........................
g)
208V 3ph .........................
h)
240V 1ph ........................
i)
240V 3ph ........................
j)
400V 3ph ........................
k)
480V 3ph (440 - 480).....
4.
Number of decks
Decks are counted from
bottom to top, maximum
Deck 5
5 decks
Deck 4
1 Deck .............
Deck 3
2 Decks ...........
Deck 2
3 Decks ...........
Deck 1
4 Decks ...........
5 Decks ...........
FUNCTION CONTROL CHECKLIST
PM 700 / 800 / 900
Notes
Keep the information with you when contacting technical support,
this will help us to identify the equipment and trouble shoot accurate
• All part replacements must be carried out by trained personnel
• Use only original parts
• Electrical work must always be performed by authorized personnel
Notes
Find the information under the
main Switch or on the power
rating plate.
Fill points 1 to 3 using the
information on the power rating
plate.
1-
Model-Type
2-
Serial No.
3-
Power Supply
5.
Number of Cables
1 Cable ............
2 Cables ..........
3 Cables ..........
4 Cables ..........
5 Cables ..........
2
1
3
Advertisement
Table of Contents

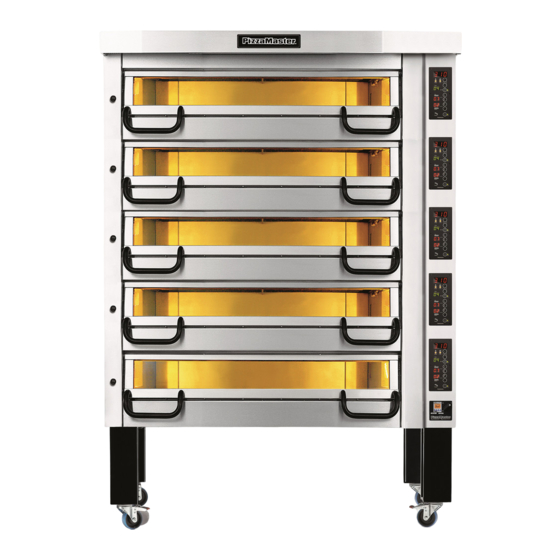

Related Manuals for PizzaMaster PM 700
Summary of Contents for PizzaMaster PM 700
- Page 1 FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 INSTRUCTIONS Notes PM 700/800/900 ED Technical Support Contact Keep the information with you when contacting technical support, this will help us to identify the equipment and trouble shoot accurate • All part replacements must be carried out by trained personnel •...
- Page 2 FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 VENTILATION CHECK Your oven could be connected with one of the following connections 2. Exhaust tube or Pipe 3. No ventilation 1. Exhaust Hood -*(Recommended Option) The oven is connected to an exhaust tube...
-
Page 3: Warning-Electrical Hazard
FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 INTERNAL CONNECTION CHECK Check Internal Breakers and Cables WARNING-ELECTRICAL HAZARD! 3. Open the ovens electrical Panel 2. Turn OFF breakers/fuses or unplug the oven before opening the ovens electrical The panel is at the right-hand side of the... -
Page 4: Power Supply
FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 INTERNAL POWER CHECK Power Supply X500 X400 X300 X200 X100 2. Turn ON Breakers/fuses or Plug in the 3. Use a digital multimeter to check the oven: Connect/plug the oven to the power... -
Page 5: Function Test
FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 FUNCTION TEST Test the function of the electric components 2. Is the display dimmed and can OFF be If NOT – Check if the black transformer is 1. Turn main switch to position 1... - Page 6 FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 FUNCTION TEST Test the function of the electric components 11. Measure all heaters, there should be voltage 10. Turn oven OFF and then ON again, 12. Measure Amps on incoming wires and note...
- Page 7 FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 CIRCUIT BOARD TEST Test the function of circuit board 1. TURBO: When starting the oven cold, TURBO function is ON. This is a function to reach the set temperature as fast as possible.
- Page 8 FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 4. Start the oven, set TEMP to MAX, set ALL 5. Start with TOP FRONT heat zone. Set 6. Press SET key to see the setting. Look at HEAT ZONES to “0”. This turns turbo off heat zone TOP to “5”...
-
Page 9: Temperature Check
FUNCTION CONTROL CHECKLIST PM 700 / 800 / 900 TEMPERATURE CHECK Test the function of the temp sensor PT1000 We must know if the temperature shown on the display is correct and equal to real temperature. The oven should be on for at least one hour before performing this test How to check In this example the temp.
