- Page 2 BW/BWS Series Indicator Technical Manual - 1 -...
-
Page 3: Table Of Contents
CONTENTS 1. SPECIFICATION..…………………………………………………………………. 2 2. INTRODUCTION…………………………………………………………………... 3 3. INSTALLATION……………………………………………………………………. 4 Precautions …………………………………………………………………………4 Parts………………………………………………………………………………… 4 Installation………………………………………………………………………….. 5 4. KEYS DESCRIPTION……………………………………………………………... 6 Key Board…………………………………………………………………………... 6 Secondary functions of the keys………………………………………………….7 Display……………………………………………………………………………….7 5. OPERATION……………………………………………………………………… 8 5.1. Basic Operation…………………………………………………………..8 1. Power On /Off………………..………………………………………………8 2. - Page 4 BW/BWS Series Indicator Technical Manual PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION Permit only qualified persons to service the instrument ...
-
Page 5: Specification
BW/BWS Series Indicator Technical Manual 1. SPECIFICATION Model BW-E BWS-E 52mm LCD 1.2” LED 52mm LCD 1.2” LED Display Housing ABS Plastic Operating Temperature -10°C - 40°C / 14°F - 104°F Resolution 1/6000 (OIML Approved) Key Pad 7 Keys Power AC Adaptor (12V/500mA)/ Battery (6V/4Ah) Calibration Automatic External... -
Page 6: Introduction
BW/BWS Series Indicator Technical Manual 2. INTRODUCTION The BW series weighing indicator that amplifies signals from a load cell, converts it to digital data and displays it as a mass value. It is suitable for general weighing or more specialized applications such as check weighing, animal weighing and accumulation applications. -
Page 7: Installation
BW/BWS Series Indicator Technical Manual 3. INSTALLATION Unpacking When you receive the scale, inspect it to make sure that it is not damaged and that all are parts are included: Remove the Indicator from the carton. Remove the protective covering. Store the packaging and to use if you need to transport the scale later. -
Page 8: Installation

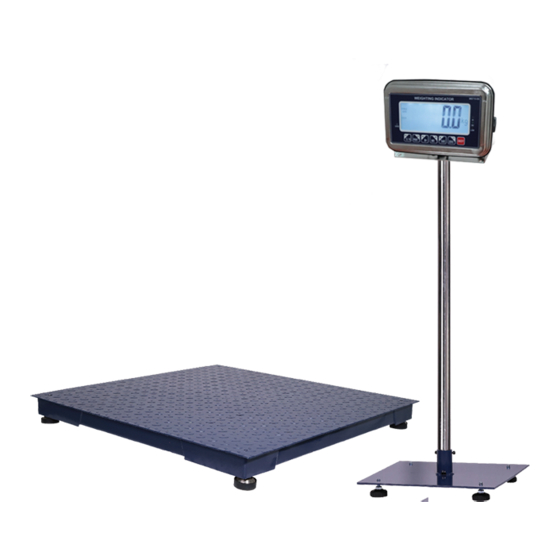

BW/BWS Series Indicator Technical Manual Installation Place the Indicator on a table or use indicator holder to connect with stand. Connect the plat form load cell cable in to the indicator load cell connecter. Load cell connecter is locating back side of the indicator. ... -
Page 9: Keys Description
BW/BWS Series Indicator Technical Manual 4. KEYS DESCRIPTION Key Board Keys Description Power turn ON/OFF Set the Zero Display To perform a tare function, Subtracts weights. Accumulator key, current values will store to the memory, To send the data to printer or PC Shift to Gross / Net Weight. -
Page 10: Secondary Functions Of The Keys
BW/BWS Series Indicator Technical Manual Secondary functions of the keys Function Keys To confirm the selected menu To change the menu and active digit To move the active digit to right To move the active digit to left To enter in to the menu Escape from the menu to normal operation. -
Page 11: Operation
BW/BWS Series Indicator Technical Manual 5. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. 5.1. Basic Operation 1. Power On/Off: Switch on the balance by pressing on/ off key. The display is switched on and the test is started and if want to switched off, press again the key. -
Page 12: Check Weighing
BW/BWS Series Indicator Technical Manual 5.2. Check Weighing It can set an upper or lower limit when weighing with the limits range. During the limit controls dividing the unit will indicate whether a value upper or lower limits with an alarm sound . 5.2.1. -
Page 13: Accumulation
BW/BWS Series Indicator Technical Manual and beeper will be sounded. Check mode ng : When the weight is out of the limits, the beeper will be sounded and OK will shown. Note: Check weighing available only when weight more than 20d 5.3. -
Page 14: Parts Counting
BW/BWS Series Indicator Technical Manual The scale can be set to accumulate automatically. For settings, see the parameter p 1 Com » mode » auto Automatic Accumulation Operation Place the load on the platform. When display gets STABLE indication, display will be show acc 1 then will be show the total saved value. -
Page 15: Keyboard Lock
BW/BWS Series Indicator Technical Manual To enter or exit animal weighing mode, press key until HOLD indicator will be displayed or not.. When in animal weighing mode HOLD indicator will be displayed. 5.6. Keyboard Lock It can set lock key board, for settings, see the parameter p 3 oth » lock When the keys are not using with in 10 minutes, the keys will be lock automatically. -
Page 16: Set Back Light
BW/BWS Series Indicator Technical Manual It can set back light when scale in use. Hold key three seconds display will show setbl Press key to confirm To set auto option. When start to use back light setbl will be on and when stop the operation back light also will off. -
Page 17: Parameters
BW/BWS Series Indicator Technical Manual 6. PARAMETERS To set parameter, turn on the scale. Press key during the self checking. Display will be show pn Press to enter, display will be show po chk Menu Sub Menu Description Set H Set high limits for check weighing... - Page 18 BW/BWS Series Indicator Technical Manual Baud To set the baud rate. Options: 600 / 1200 / 2400 / 4800 / 9600 To set the parity Options: 7 e1 / 7 o1 / 8 n1 Ptype To set printer model Options: Tpu p : set the Tscale printer tpup Lp50 : Set the Tscale printer LP-...
-
Page 19: Calibration
BW/BWS Series Indicator Technical Manual Gravity To select dual interval - mode 2 Note: First interval will active in CAP 1 Second interval will active in CAP 2 Count To check internal counts Dual 2 Deci To set decimal points Di v 1 select first... -
Page 20: Rs-232 Output
BW/BWS Series Indicator Technical Manual Press to select sigr /dual 1 key to confirm and press /dual 2 Press to select cal key to confirm and press Press key to confirm Calibration Press key to enter calibration, display will show kg or lb. press key to select the calibration unit kilograms or pounds, press unld key ,display will be show... -
Page 21: Connecter
BW/BWS Series Indicator Technical Manual 8.2. RS-232 (9pin D type connector) Pin ２ Input Receiving data Pin ３ Output Transmission data Pin ５ ― Signal ground 9pin D Connecter: Indicator Computer Pin 2: Pin 3 Pin 3: Pin 2 Pin 5: Pin 5 Check Weighing Output Pin 1 : VB... -
Page 22: Drawing
BW/BWS Series Indicator Technical Manual Decimal point=0, header1=22H Decimal point=1, header1=23H Decimal point=2, header1=24H Decimal point=3, header1=25H Decimal point=4, header1=26H Header2 follow weigh status, default value=20H If in net mode (tare value not 0), header2=header2|01H If gross weight “-“, header2=header2|02H If overload or gross weight “-“, header2=header2|04H If unstable, header2=header2|08H If weighing unit=kg, header2=header2|10H... -
Page 23: Bw Parts List
BW/BWS Series Indicator Technical Manual 9.2. BW Parts List Parts Name Spec Key Panel - 20 -... -
Page 24: Bws Drawing
BW/BWS Series Indicator Technical Manual Display Protection Plate Front Cover Main PCBA Insulation Washer 8x3.1x1.5t Self Thread Screw 3x10 Screw M3x16 (Optional) Insulation Washer 8x3.1x1.5t (optional) RS-232 PCBA (0ptional) Seal Ring Screw Column 5.8x3.8x10H (Optional) Analog Output PCBA M3, Hexagon Self Thread Star (+) Screw 4x10 Washer... -
Page 25: Bws Parts List
BW/BWS Series Indicator Technical Manual 9.4. BWS Parts List - 22 -... - Page 26 BW/BWS Series Indicator Technical Manual Parts Spec Key Panel Front Cover Display Protection Plate M3*6 Main PCBA Washer 8x3.1x1.5 Star (+) Self Thread screw M3x8 Water Proof Rubber Bar Star (+) Screw M4x10 Washer Battery Clamp Washer Star (+) Big head Screw M4x12 Bracket Bracket Screw...
- Page 27 BW/BWS Series Indicator Technical Manual - 24 -...
