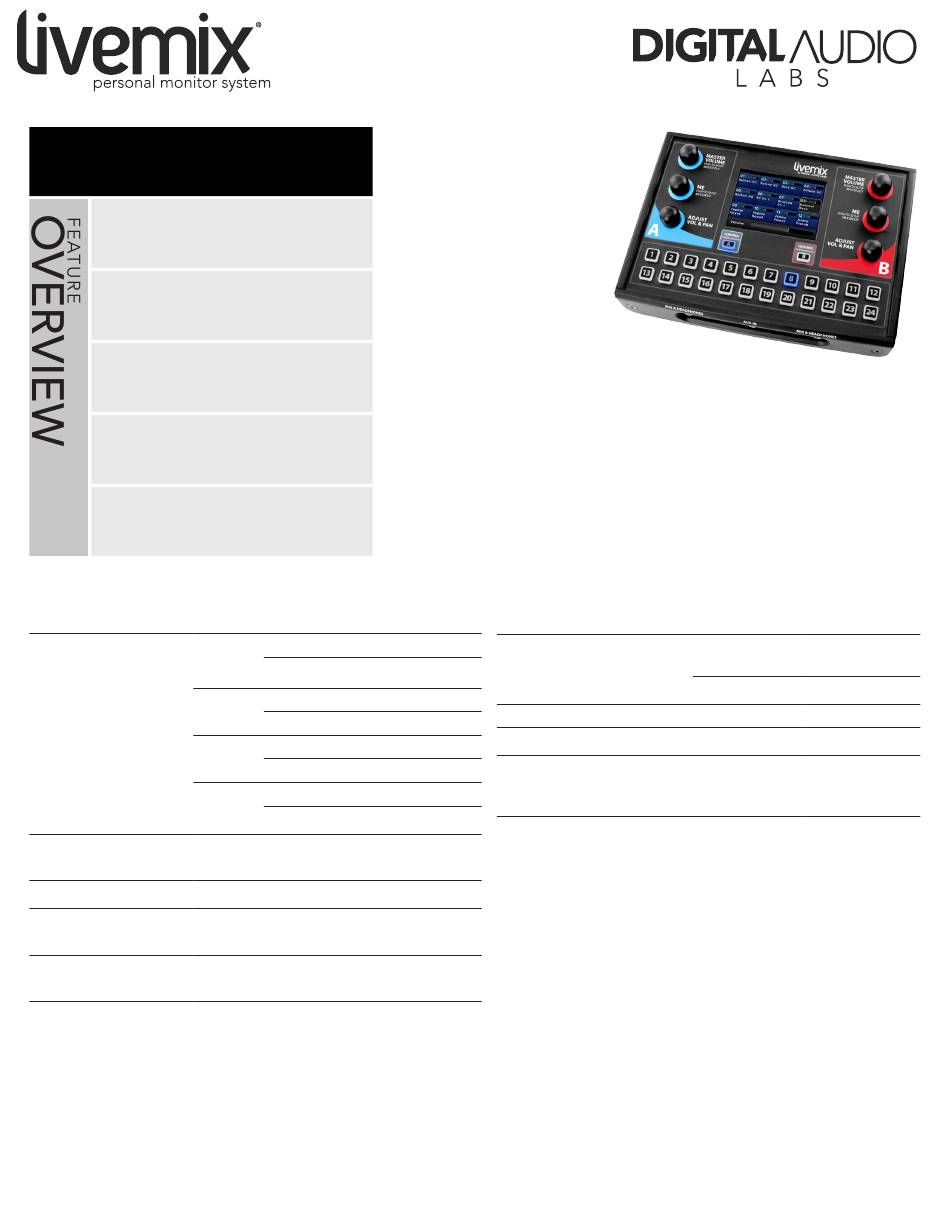

Digital Audio Labs Livemix CS-DUO Quick Start Manual

CS-DUO DUAL MIX
PERSONAL MIXER
Designed with both volunteer
and professional users in mind
Two discrete personal
monitor mixes per unit
24 channels with DSP and
also DSP on master output
Rugged frame with clearly
LCD touchscreen, tactile knobs
and channel select buttons
CS-DUO
Output Power &
THD+N
Frequency Response
S/N Ratio
Input Impedance
(Aux In)
Crosstalk
(Left to Right)
Max Cable length
from MIX-16/MIX-32
™ & ® 2014-2015 DIGITAL AUDIO LABS. © 2016 DIGITAL AUDIO LABS.
Subject to change without notice.
labeled functions
200mW @ 1% THD+N
@22Ω
100mW @ .03% THD +N
250mW @ 1% THD+N
@32Ω
100mW @ .014% THD +N
250mW @ 1% THD+N
@64Ω
100mW @ .005% THD +N
130mW @ 1% THD+N
@300Ω
100mW @ .003% THD +N
20 Hz - 22 kHz ± 3 dB
103 dB
7.5kΩ
-103 dB
100m CAT5e
(recommended)
The Livemix CS-DUO is simple
to use and full of professional
features. The LCD touchscreen
with custom naming makes
creating a mix easy.
Dedicated knobs provide
quick access to essential
features.
The Livemix CS-DUO is two personal
mixers in one. With two mixers per unit, you can
reduce your overall per node cost without sacrificing quality or
functionality.
The CS-DUO provides 24 channels plus accessory channels,
each with EQ and compression. The master output features EQ,
compression and reverb. MirrorMix
mute and solo options and channel grouping make the Livemix
system deep enough for professionals, but simple enough for
volunteers.
Filter Q
Filter Cut/Boost Amount
Ambient Mic Gain
Dimensions
Weight
remote setup and mixing,
®
High pass &
.707
Low pass
Peak/Dip 1.2
± 6 dB
25 dB
8.2" (208mm) W
6" (152mm) D
1.594" (49mm) H
1.9 lbs (0.86kg)
