4.OPERATIONS

*WITHOUT USING THE FOOT SWITCH
① PLUG IN THE A.C.CABLE
② CONNECT THE HANDPIECE TO THE D.C.MOTOR SOCKET.
③ TURN THE SPEED CONTROL KNOB ALL THE WAY TO THE LEFT(COUNTER‑CLOCKWISE) THIS IS THE MINIMUM ROTATION SPEED.
④ TURN THE MAIN SWITCH ON.(POWER LAMP WILL BE GREEN)
⑤ TO START THE MOTOR,PUSH THE REMOTE SWITCH OF THE HANDPIECE OR ON/OFF SWITCH ON THE FRONT PANEL.
⑥ TURN THE SPEED CONTROL KNOB TO ADJUST THE MOTOR SPEED TO THE APPROPRIATE POSITION FOR YOUR WORK.
⑦ TO STOP THE MOTOR, PUSH THE REMOTE SWITCH OR ON/OFF SWITCH OF THE POWER PACK AGAIN.
*WHEN THE SAFETY SYSTEM ACTUATES(THE MOTOR STOPS AND THE OVER LOAD LAMP TURNS RED), PUSH THE REMOTE SWITCH OR
ON/OFF SWITCH AGAIN TO RESET.
*USING THE FOOT SWITCH

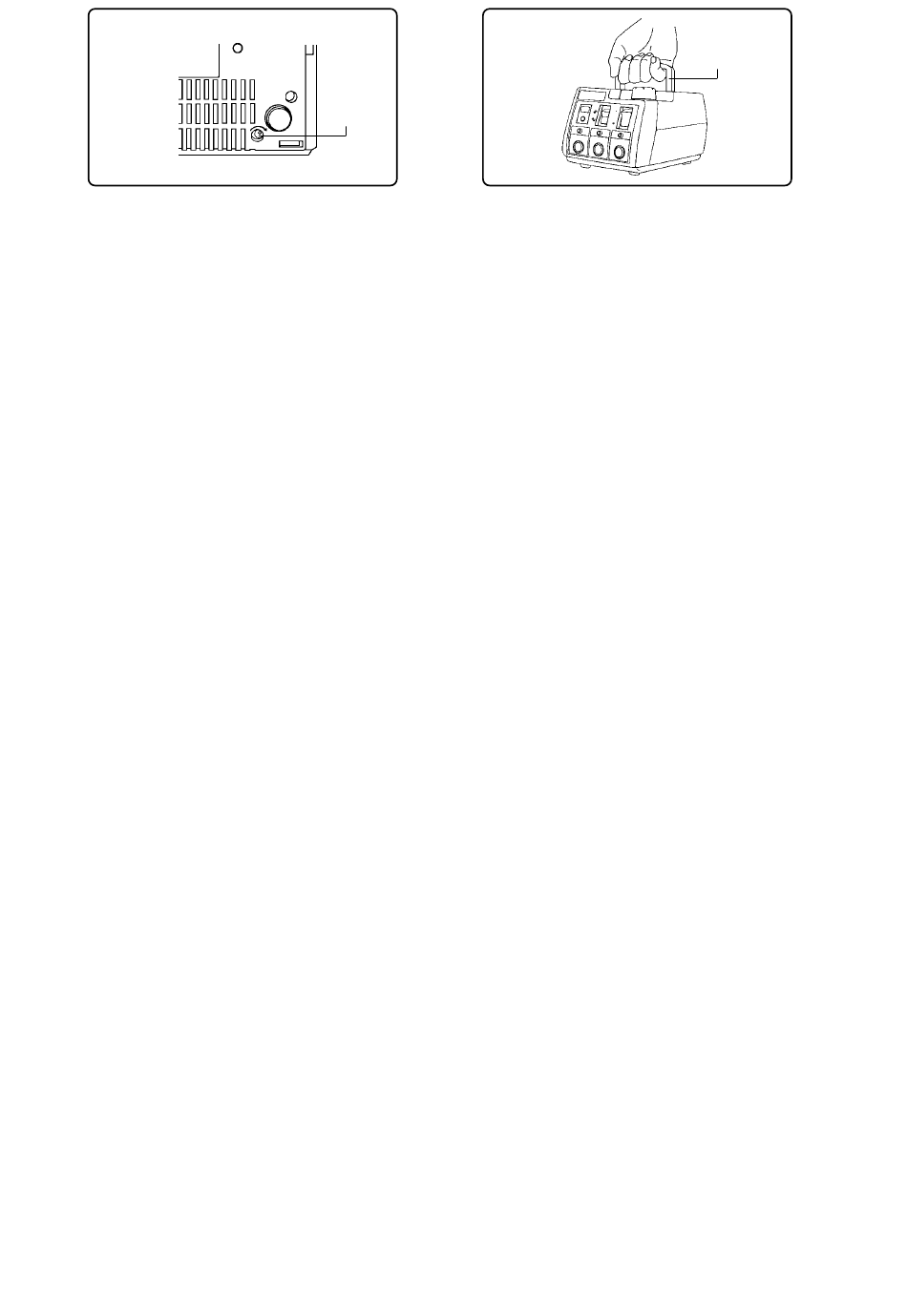

① CONNECT THE FOOT SWITCH TO THE FOOT SWITCH SOCKET ON THE BACK OF THE POWER PACK.
② PLUG IN THE A.C. CABLE.
③ CONNECT THE HANDPIECE TO THE D.C.MOTOR SOCKET.
④ TURN THE SPEED CONTROL KNOB ALL THE WAY TO THE LEFT(COUNTER‑CLOCKWISE) THIS IS THE MINIMUM ROTATION SPEED.
⑤ TURN THE MAIN SWITCH ON.(POWER LAMP WILL BE GREEN)
⑥ HOLD THE HANDPIECE FOR SURE AND DEPRESS THE PEDAL OF THE FOOT SWITCH TO START THE MOTOR.
⑦ TURN THE SPEED CONTROL KNOB TO ADJUST THE MOTOR SPEED TO THE APPROPRIATE POSITION FOR YOUR WORK.
FOR VC301(VARIABLE SPEED CONTROL TYPE), DEPRESS THE PEDAL ALL THE WAY AND WITH KEEPING THE POSITION, ADJUST
THE SPEED WITH SPEED CONTROL KNOB TO THE APPROPRIATE SPEED FOR YOUR WORK.THEN, CONTROL THE SPEED WITH THE PEDAL.
⑧ TO STOP THE MOTOR, RELEASE THE PRESSURE TO THE PEDAL. FOR FS211 WITH A‑MODE , DEPRESS THE PEDAL AGAIN TO STOP
THE MOTOR.
*WHEN THE SAFETY SYSTEM ACTUATES(THE MOTOR STOPS AND THE OVER LOAD LAMP TURNS RED), ONCE, TURN IT OFF AS ⑧ , THEN
DEPRESS THE PEDAL AGAIN TO START THE MOTOR.
5.OPTION ACCESSARIES
< FOOT SWITCH >
● FS201 ........ ON‑OFF TYPE FOOT SWITCH
REMAINS ON AS LONG AS PRESSED.
TO TURN OFF, RELEASE THE PRESSURE.
● FS211 ........ TWO INTERCHANGEABLE OPERATION MODES
A‑MODE......... REMAINS ON ONCE PRESSED AND PRESS AGAIN TO TURN OFF
B‑MODE.........SAME FUNCTION AS FS201
● VC301 ........ VARIABLE SPEED CONTROL TYPE
THE MOTOR SPEED DEPENDS ON HOW FAR THE PEDAL IS DEPRESSED.
< EXTENSION CORD >
● CB211........ TO CONNECT THE POWER PACK TO THE CURLED CORD OF THE HANDPIECE.
(3m LONG) ONLY ONE EXTENSION CORD CAN BE CONNECTED.
