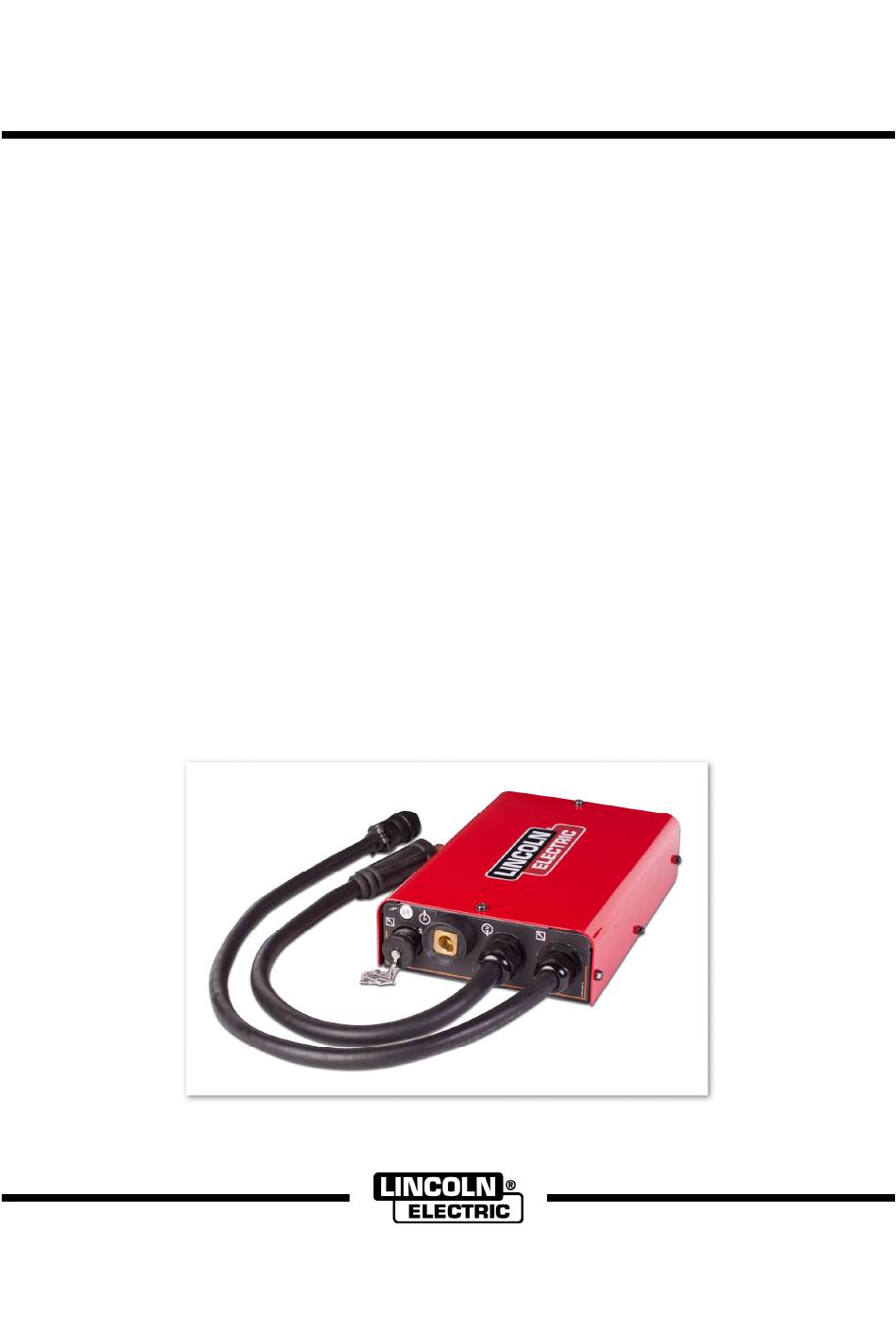

- Page 1 IM3066 05/2021 REV03 LADI Analog-Digital Interface OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having chosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code &... -
Page 3: Technical Specifications
Technical Specifications NAME INDEX LADI K14152-1 INPUT Input Voltage U Input Amperes I EMC Class 42Vac RATED OUTPUT Duty Cycle 40°C Output Current (based on a 10 min. period) 100% 385A 500A OUTPUT RANGE Welding Current Range Peak Open Circuit Voltage 5 ÷... -
Page 4: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 5 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 6: Installation And Operator Instructions
Installation and Operator Instructions General Description Table 1 Meaning The LADI box is an analog-digital communication ® interface which allows to use the ArcLink (5P) power LED Light feeders with the analog (14P) power sources. Only machines which using ArcLink ®... - Page 7 Cable Connections There are two circular connectors on the front of the LADI (see 5-pin – Figure 3 and 14-pin - Figure 4) Figure 2 6. Mounting holes: Allows the fastening, with 4 screws (M5x20), to the power source. Use the attached drill mask (R-0010-599-1) to position LADI on the power source.
- Page 8 We respond to our customers connector based on the best information in our possession at that remote potentiometer, common for power time. Lincoln Electric is not in a position to warrant or Voltage sense source guarantee such advice, and assumes no liability, with 42VAC connectivity respect to such information or advice.
-
Page 9: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 10: Suggested Accessories
Suggested Accessories K14130-1 LACI communication interface. English English... -
Page 11: Connections Diagrams
Connections Diagrams English English... - Page 12 English English...
