Xerox

Wireless Print Solutions Adapter

Installation and Connection Setup Guide

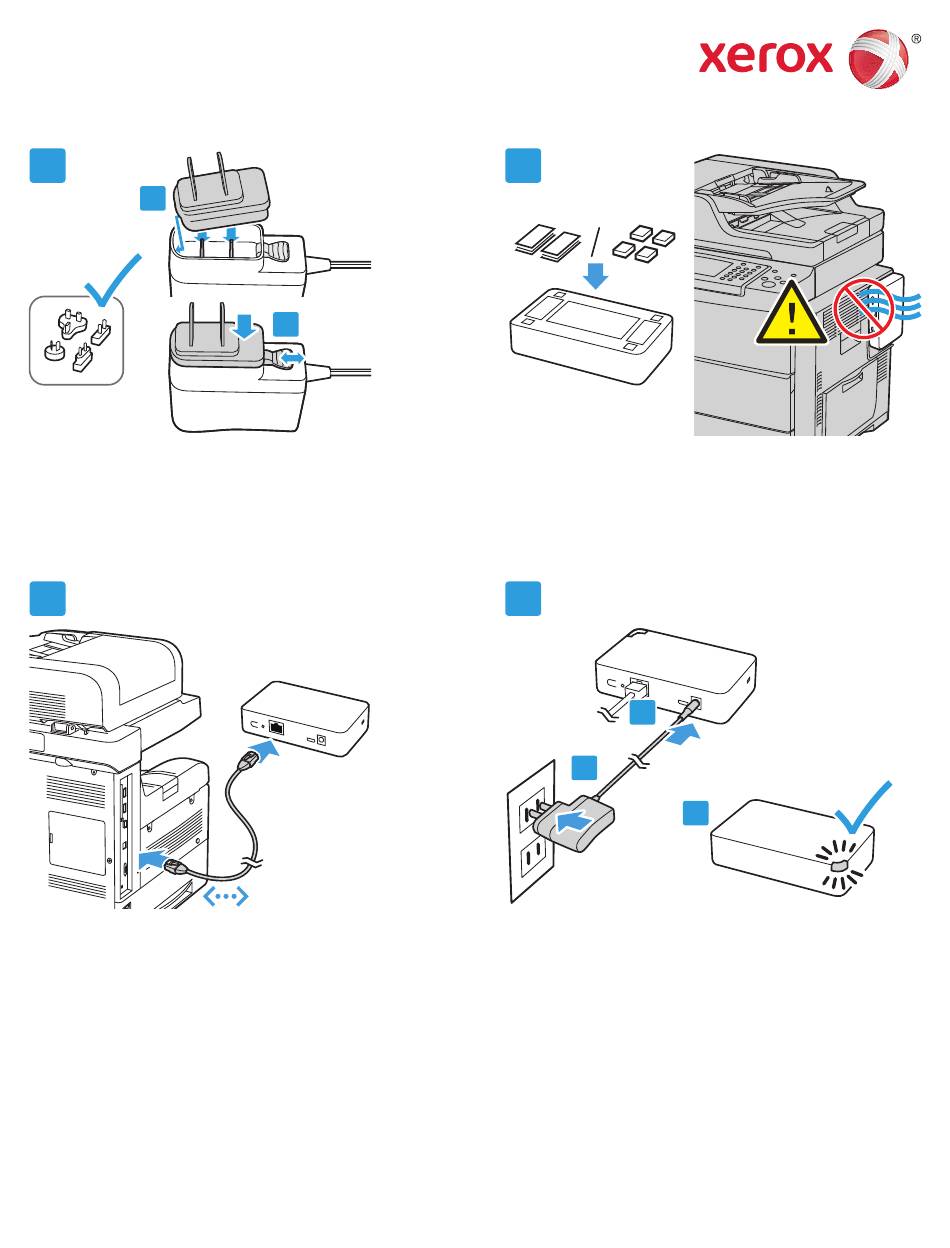

Installating the Hardware

1.1

Select and install one of the AC plug adapters on

the 5 VDC Power Supply. Ensure that the adapter

snaps securely and fully into the base.

Plug the Ethernet cable into your printer and the

Wireless Print Solutions Adapter.

1.2

Apply the included rubber feet or hook-and-loop

strips to the base of the unit. If you are attaching

the device to the printer, ensure that you do not

block vents or access doors.

4.1

4.2

110V/220V 50/60 Hz

Plug in the power adapter to a wall outlet

(110 V/220 V AC) or a power strip. Wait until the

Status LED ﬂashes amber.

www.xerox.com/ofﬁce/WPSAsupport

4.3

Table of Contents

Need help?

Do you have a question about the Wireless Print Solutions Adapter and is the answer not in the manual?

Page 1 Xerox ® Wireless Print Solutions Adapter Installation and Connection Setup Guide Installating the Hardware Select and install one of the AC plug adapters on Apply the included rubber feet or hook-and-loop the 5 VDC Power Supply. Ensure that the adapter strips to the base of the unit.
Page 2 MAC address of your adapter (not the Wireless MAC address). You can ﬁnd the MAC address on the label that is located on the bottom of your adapter. www.xerox.com/ofﬁce/WPSAsupport...
Page 3 From the list of Available Networks, click the required network’s SSID. For Connect To, enter the credentials for the SSID that you selected. Leave the ﬁelds for Printer and Add Printer blank. Click Submit, then to conﬁrm, click OK. www.xerox.com/ofﬁce/WPSAsupport...
Page 4 Solutions Adapter. For details, refer to your printer windows and wait for the Status LED on the documentation. Wireless Print Solutions Adapter to turn green. Open the Wireless Print Solutions Adapter Web Locate the IP address of your printer. To ﬁnd the Interface.
Page 5 WPSAsupport. In the Search for Keyword or Phrase ﬁeld, enter troubleshooting. ® ® © 2015 Xerox Corporation. All Rights Reserved. Xerox , and Xerox and Design are trademarks of Xerox Corporation in the United States and/or other countries. BR#15961...
