+GF+ SIGNET 5075 Totalizing Monitor Instructions
3-5075.090-1
CAUTION!
• Refer to this instruction manual for more
details.
• Remove power to unit before wiring input and
output connections.
• Follow instructions carefully to avoid personal
injury.
1. Power Connections
CAUTION!
Never connect 115 VAC or 230 VAC to rear power
terminals. High voltage AC will damage instrument and
void warranty.
5075
Terminals
12-24 V
+
= Double Insulated
= DC or AC power
Technical Notes:
• To reduce the possibility of noise interference, isolate AC
power lines from signal lines.

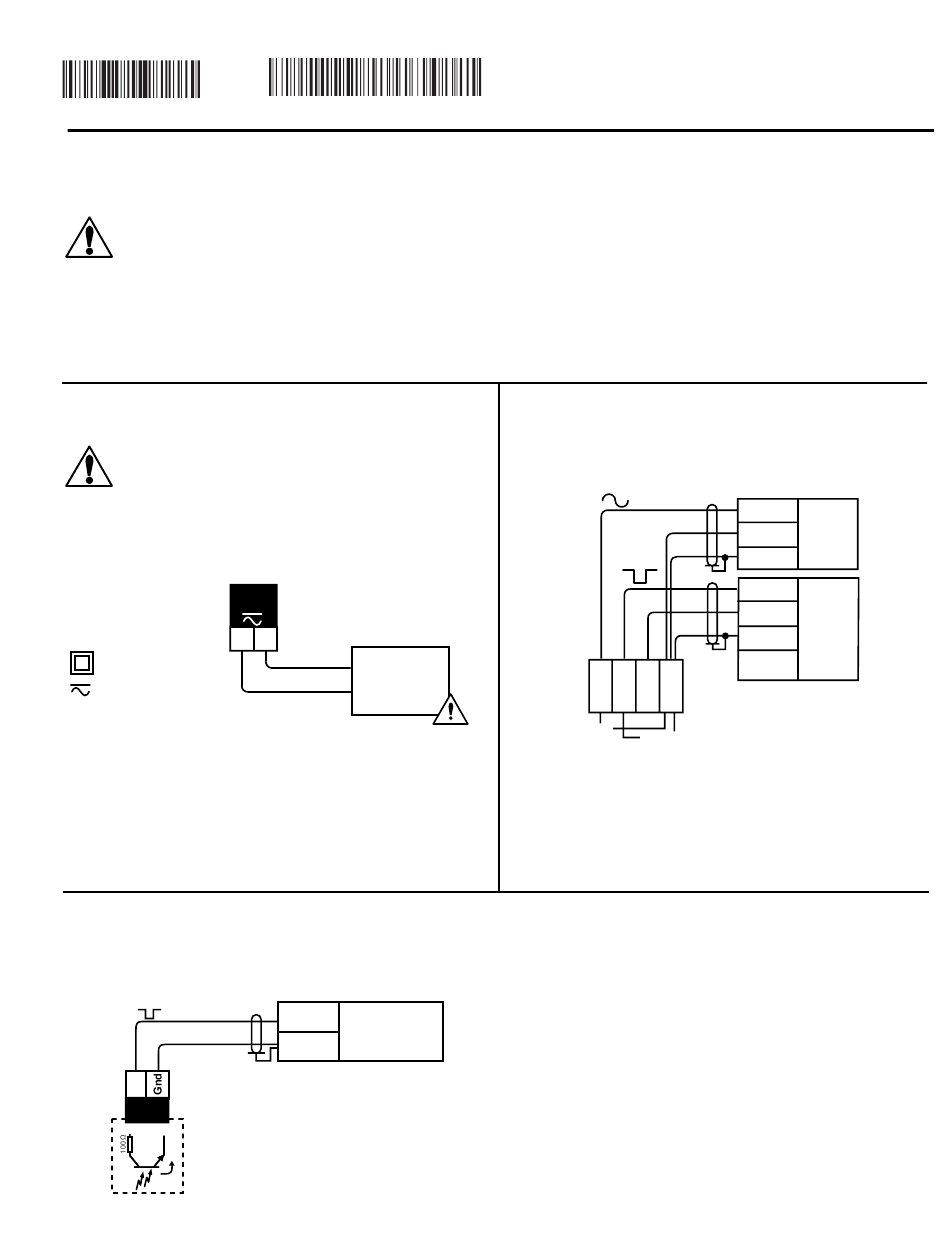

3. Sensor Pulse Output Connections
3.1 +GF+ SIGNET instrument with internal open-collector excitation voltage and pull-up resistor.
+
PLS
output 5075
Terminals
+GF+ SIGNET 5075 Totalizing Monitor Instructions
(B-1/00) English
10 W
External power
supply
-
-
12 - 24 VDC
OR
+ 12 - 24 VAC
Freq. IN*
+GF+ SIGNET
Red
Instrument
Iso. Gnd
Shld
*Open-collector sensor terminals
Contents
1. Power Connections
2. Compatible Sensor Wiring
3. Sensor Pulse Output Connections
4. Auxiliary Pulse Output Connections
5. Totalizer Reset Connections
6. Output Functions
7. Menu Functions
8. Parts and Accessories
9. Specifications
10. Quick Reference Menu Parameters
11. Troubleshooting
12. Maintenance
2. Compatible Sensor Wiring
Std. Sensor
Open Collector
Sensor
Technical Notes:
• To reduce the possibility of noise interference, route sensor
cable away from AC power lines.
• *Vortex sensor or system frequency output
Technical Notes:
• Use 2-conductor shielded twisted-pair cable for output lines up
to 30 m (100 ft.) max.
• Pull-up resistor NOT REQUIRED when connected to +GF+
SIGNET instruments.
• Use the 2535/2536 input card setting for +GF+ SIGNET
Intelek-Pro controllers.
ENGLISH
+GF+ SIGNET Sensors
Red
515
525
Black
2517
Shld.
2000
Red
2100
Black
2507
2536
Shld.
2540
Vortex*
5075
Terminals
Pg 1 of 12
