GF Signet Signet 2580 FlowtraMag Operating Instructions Manual

Signet 2580 FlowtraMag™ Meter
*3-2580.090*
3-2580.090 Rev 1 08/19
• English
CALL TOLL FREE 877-742-2878 FOR SALES AND SUPPORT

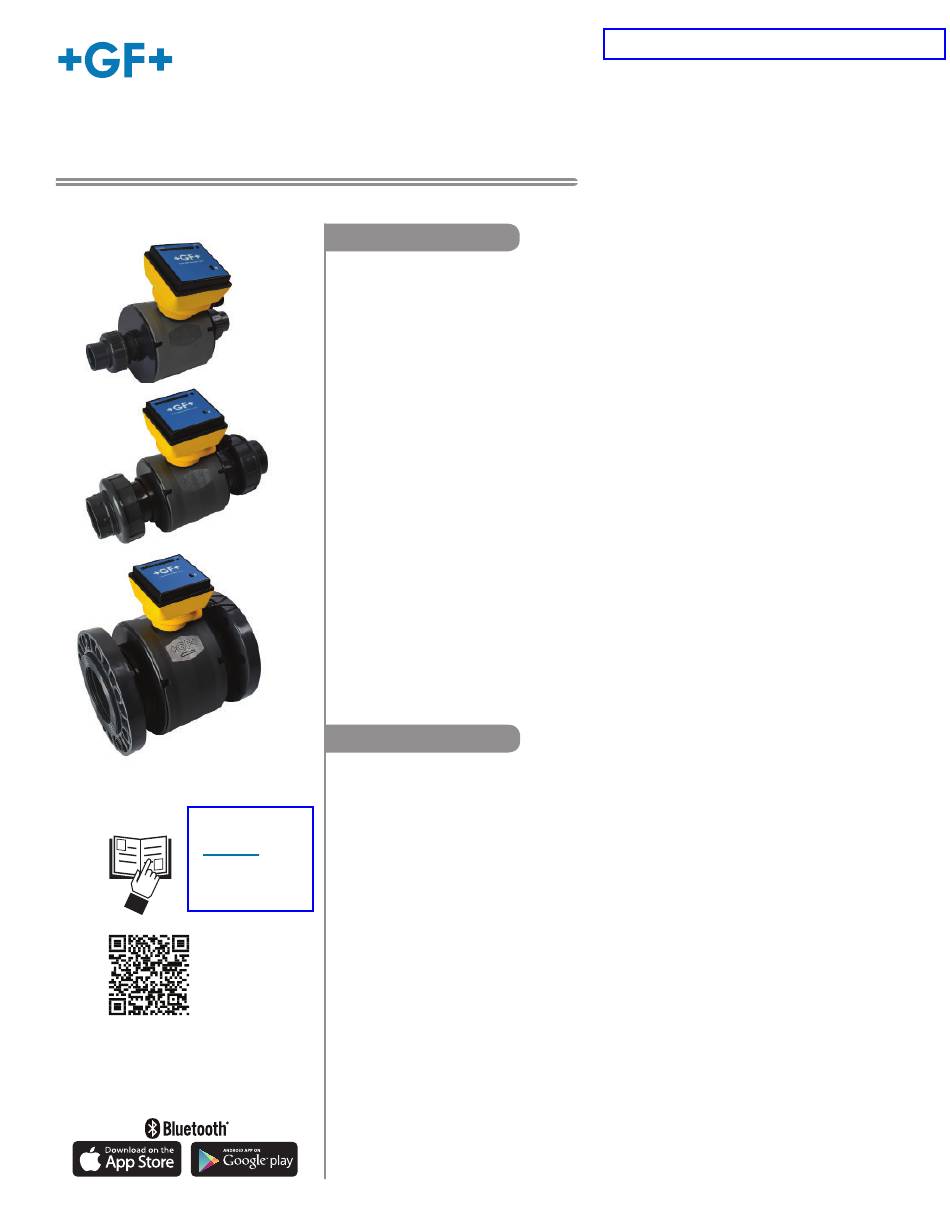

Description

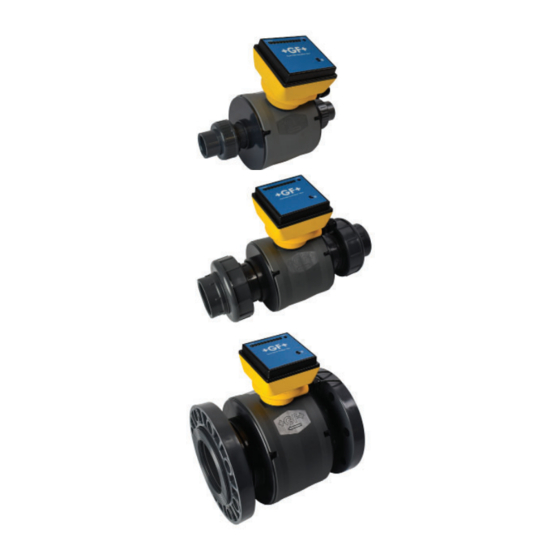

The Signet 2580 FlowtraMag is a full-bore plastic PVC in line style magnetic fl owmeter. The
PVC body with titanium electrodes has no moving parts, and is two to three times lighter
in weight compared to traditional metal magmeters on the market. It is designed for high
accuracy fl ow measurement in short pipe runs, making it an ideal solution for industrial
applications where performance and ease of use are important.
The FlowtraMag is available in pipe sizes of 1", 2" and 4", optimized for performance in short
pipe runs often associated with fi nal effl uent lines, well heads and water treatment skids.
Features include:
• No moving parts
• No pressure drop
• Lighter in weight compared to traditional metal magmeters
• Reduced straight run requirements, ideal for fi nal effl uent lines, well heads and skids
• Factory calibrated with certifi cate (±1% of reading accuracy)
• Partially fi lled pipe detection status indicator
• Visual LED indicators make sensor status clear and easy to read
• Reverse fl ow direction confi gurable with 0252 Confi guration Tool or GF Confi g Tool
Bluetooth ® App
• Capable of temperature readings of the media using the 0252 Confi guration Tool or
GF Confi g Tool Bluetooth
• One device with three diff erent outputs: fi eld selectable Frequency or Digital (S³L),
and analog 4 to 20 mA
• On-the-fl y confi guration with GF Confi g Tool Bluetooth
• Bluetooth ® 4.2 capable, support iOS and Android for simple user confi guration

Table of Contents

Warranty Information ...............................................................................2
Product Registration ................................................................................2
Safety Information ...................................................................................2
Chemical Compatibility ............................................................................2
Specifi cations ..........................................................................................3
Temperature-Pressure Graph ..................................................................3
Sensor Dimensions .................................................................................4
Sensor Location.......................................................................................4
Sensor Mounting Angle ...........................................................................5
Sensor Pipe Installation ...........................................................................5
Hardware Confi guration...........................................................................6
Default Confi gurations .............................................................................6
Wiring ...................................................................................................7-9
App Confi guration - Setup .....................................................................10
App Confi guration - Sensor Setup ....................................................11-12
Calibration .............................................................................................13
Customization and Performance Settings .............................................13
Averaging and Sensitivity Settings ........................................................14
LED Status Indicators ............................................................................14
Confi guration - 0252 Confi guration Tool ...........................................15-17
Troubleshooting ................................................................................18-19
Ordering Information..............................................................................20
U.S. and International Patents Pending
