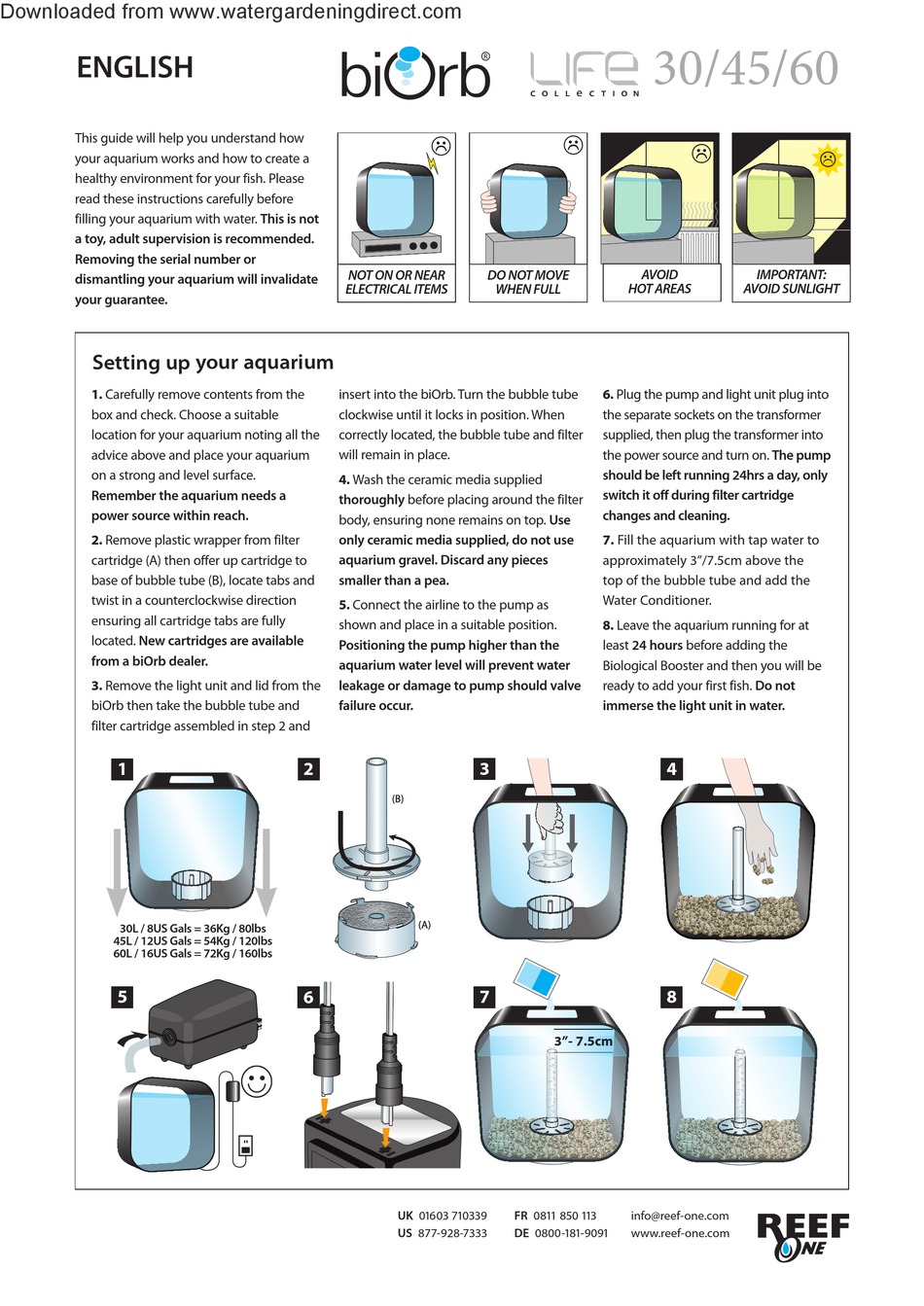

biOrb LIFE 30 Quick Start Manual

Downloaded from www.watergardeningdirect.com
ENGLiSh
This guide will help you understand how
your aquarium works and how to create a
healthy environment for your fish. Please
read these instructions carefully before
filling your aquarium with water. This is not
a toy, adult supervision is recommended.
Removing the serial number or
dismantling your aquarium will invalidate
your guarantee.
1. Carefully remove contents from the
box and check. Choose a suitable
location for your aquarium noting all the
advice above and place your aquarium
on a strong and level surface.
Remember the aquarium needs a
power source within reach.
2. Remove plastic wrapper from filter
cartridge (A) then offer up cartridge to
base of bubble tube (B), locate tabs and
twist in a counterclockwise direction
ensuring all cartridge tabs are fully
located. New cartridges are available
from a biOrb dealer.
3. Remove the light unit and lid from the
biOrb then take the bubble tube and
filter cartridge assembled in step 2 and
1
30L / 8US Gals = 36Kg / 80lbs
45L / 12US Gals = 54Kg / 120lbs
60L / 16US Gals = 72Kg / 160lbs
5
L
NOT ON OR NEAR
ELECTRICAL ITEMS
insert into the biOrb. Turn the bubble tube
clockwise until it locks in position. When
correctly located, the bubble tube and filter
will remain in place.
4. Wash the ceramic media supplied
thoroughly before placing around the filter
body, ensuring none remains on top. Use
only ceramic media supplied, do not use
aquarium gravel. Discard any pieces
smaller than a pea.
5. Connect the airline to the pump as
shown and place in a suitable position.
Positioning the pump higher than the
aquarium water level will prevent water
leakage or damage to pump should valve
failure occur.
2
6
UK 01603 710339
US 877-928-7333
30/45/60
L
DO NOT MOVE AVOID
HOT AREAS
WHEN FULL
6. Plug the pump and light unit plug into
the separate sockets on the transformer
supplied, then plug the transformer into
the power source and turn on. The pump
should be left running 24hrs a day, only
switch it off during filter cartridge
changes and cleaning.
7. Fill the aquarium with tap water to
approximately 3"/7.5cm above the
top of the bubble tube and add the
Water Conditioner.
8. Leave the aquarium running for at
least 24 hours before adding the
Biological Booster and then you will be
ready to add your first fish. Do not
immerse the light unit in water.
3
7
3''- 7.5cm
FR 0811 850 113 info@reef-one.com
DE 0800-181-9091 www.reef-one.com
L
L
IMPORTANT:
AVOID SUNLIGHT
4
8
