Summary of Contents for Pride MILFORD

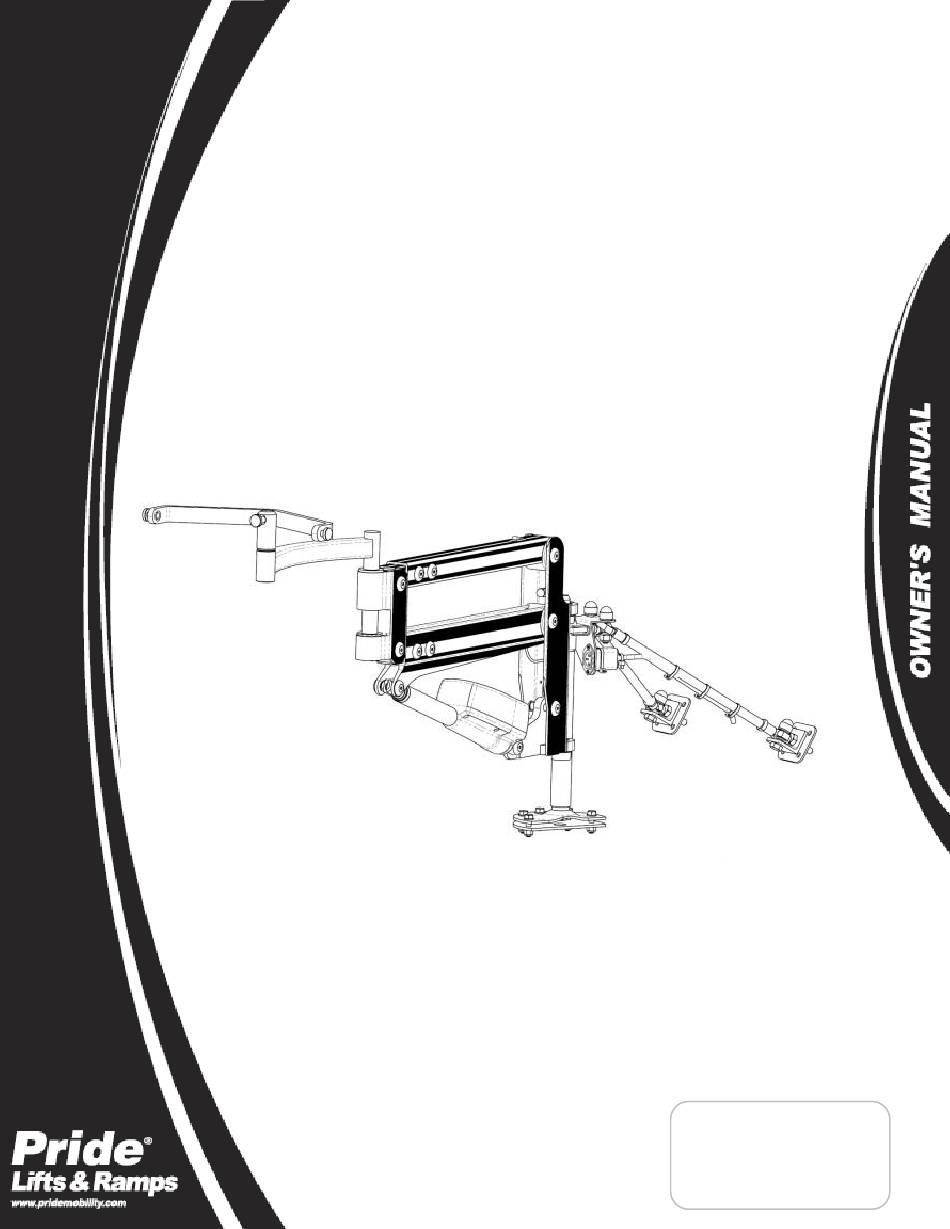

- Page 1 MILFORD PERSON LIFT AFFIX BARCODE LABEL HERE...
- Page 2 NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements. NOTE: The Milford Person Lift and its components are not made with natural rubber latex. Consult with the manufacturer regarding any after-market accessories.
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ........................4 SAFETY ...........................5 III. TECHNICAL …........................8 IV. OPERATION ........................11 TROUBLESHOOTING .......................16 VI. CARE AND MAINTENANCE ..................18 VII. WARRANTY ........................19 Milford Person Lift www.pridemobility.com... -
Page 4: Introduction
Pride is not liable for damage to property or personal injury arising out of the unsafe use of a lift system. Pride is also not liable for any property damage or personal injury arising out of the failure of... -
Page 5: Safety
Battery posts, terminals and related accessories contain lead and lead compounds. Wear goggle and gloves when handling batteries and wash hands after handling. Disposal and recycling-Contact your authorized Pride Provider for information on proper disposal of your Pride product and its packaging. Milford Person Lift www.pridemobility.com... - Page 6 Pride accepts no liability for damage or injury caused by the use of inappropriate slings. PRE-LIFT INSPECTION There should be no sharp edges on either the Milford Person Lift or the fitting kit. If you find any sharp edges, please contact your supplier before use.
- Page 7 I I . S A F E T Y OPERATOR POSITIONING Keep hands clear of the lift arms during motion. The Milford Person Lift is only doing the lifting, control the lateral movement using the handle on the back of the sling. Stand close to the person being lifted to be able to safely control their movement, refer to the operating instructions for detailed guidance.
-
Page 8: Technical
* This does not mean that it will necessarily lift a person by this total range when installed and adjusted. The Milford Person Lift has different lifting capacities depending on the extension settings. These are detailed in the table below;... - Page 9 Pride Provider. When you wash your Milford Person Lift Sling, you must remove the buckles and the webbing anchors – failure to do so may result in damage to your washing machine. Your sling can be washed at up to 167°F (75°C).
- Page 10 STORAGE BAG The large carry bag is supplied with the Milford Person Lift to store the lift arm, extension arm, spreader bar and sling when not in use. Milford Person Lift...
-
Page 11: Operation
WARNING! Ensure that both pins are engaged and the lift arm rotates freely. 2. Position the lift arm and the person being lifted …now connect the side straps B) 3. A) First connect the leg straps, Milford Person Lift www.pridemobility.com... - Page 12 5. Using the handle on the back of the sling, maneuver the person closer to the vehicle and position their legs over the door sill, as shown above 6. Begin to guide the person into the vehicle, knees first Milford Person Lift www.pridemobility.com...
- Page 13 8. Lift again until the person being moved is free of the seat (Do not lift too high when inside the vehicle, as this could cause injury) 9. Once inside the vehicle, position the person comfortably in the seat Milford Person Lift www.pridemobility.com...
- Page 14 I V . O P E R A T I O N 10. Lower the lift arm until the sling straps are slack and disconnect in reverse order to connecting. Remove the Milford Person Lift for storage in the trunk EXITING THE VEHICLE 1.
- Page 15 5. Lower onto the seat. Lift up on the rear 6. Switch the Milford Person Lift off and sling strap to help get the person into a...
-
Page 16: Troubleshooting
Is the person too heavy for the lift? 330lbs (150kg) is the maximum safe working load. (See page 8) If the Milford is extended refer to the technical section to check the lift capacity for the setting. Is the vehicle’s battery charged? - Page 17 To correct this, lower the person to a safe position, pull the sling lower at the back before repositioning the leg supports checking that they are spread evenly under the thigh. Correct sling setting. Milford Person Lift www.pridemobility.com...
-
Page 18: Care And Maintenance
Cleaning: The slings can be washed in a washing machine. (See page 9) If required the Milford Person Lift can be cleaned with a damp cloth and detergent. Ensure the unit is disconnected before cleaning. Do not immerse in water, do not allow water to run into the electrical connectors or control box and allow to dry before use. -
Page 19: Warranty
No alteration should be made to the Milford Person Lift by anyone other than a qualified person, as defined by an authorized Pride Provider. In the event of damage or defects in the actuator, the Milford Person Lift should be returned to your authorized Pride Provider for evaluation. - Page 20 Milford Person Lift www.pridemobility.com...
