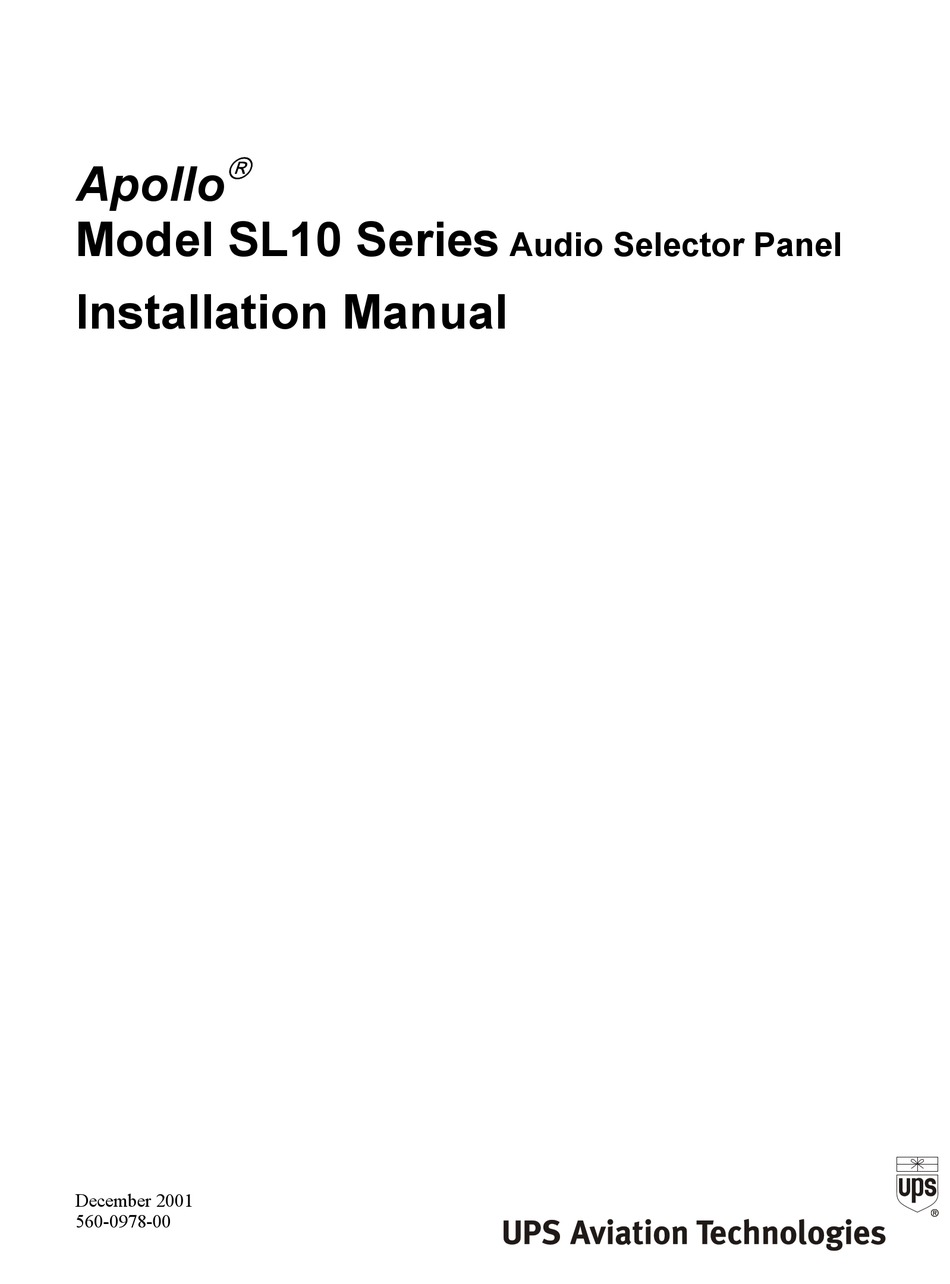

- Page 1 â Apollo Model SL10 Series Audio Selector Panel Installation Manual December 2001 560-0978-00...
- Page 2 No part of this document may be reproduced in any form or by any means without the express written consent of UPS Aviation Technologies, Inc. UPS Aviation Technologies, Inc., II Morrow, and Apollo are trademarks of UPS Aviation Technologies, Inc.
-
Page 3: Table Of Contents
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Table of Contents Section I GENERAL INFORMATION....................1-1 INTRODUCTION......................... 1-1 SCOPE ............................1-1 EQUIPMENT DESCRIPTION..................... 1-1 APPROVAL BASIS - FAA ......................1-2 SPECIFICATIONS ........................1-2 EQUIPMENT SUPPLIED ......................1-3 EQUIPMENT REQUIRED BUT NOT SUPPLIED .............. - Page 4 UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual 3.5.6 Push to talk intercom mode ....................3-4 Marker Beacon (SL10M, SL10M-S....................3-5 3.6.1 Middle Marker Sense......................3-5 3.6.2 External Marker Lights (SL10, SL10S)................3-5 3.6.3 Receiver Sensitivity......................3-5 Section IV- Warranty and Service ......................
-
Page 5: Section I General Information
Before installing and/or using this product, please read this manual completely. This will ensure that you will take full advantage of all the advanced features. SCOPE This manual provides detailed installation and operation instructions for the UPS Aviation Technologies SL10-series of Audio Selector Panel/Intercom Systems. This includes the following units: Model... -
Page 6: Approval Basis - Faa
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual APPROVAL BASIS - FAA TSO Approval. The SL10 and SL10S, Audio Selector Panels are FAA approved under TSO C50c (Audio Amplifiers). The SL10M and SL10MS are FAA approved under TSO C50c and TSO C35d (Marker Beacon Receivers). -
Page 7: Equipment Supplied
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Factory adjusted to 1400mV (Soft) 160 mVolts (Hard) High: Factory adjusted to 150mV (Soft) Selectivity: -6 dB at 110 kHz -40 dB at 120 kHz External Lamp Output: 9.0 (+/- 0.5) VDC Positive when active, max. -
Page 8: Section Ii -Installation
Section 1.6 (B). If any claim is to be made, save the shipping material and contact the freight carrier. Do NOT return units damaged in shipping to UPS Aviation Technologies. If the unit or accessories shows any sign of external shipping damage, contact UPS Aviation Technologies to arrange for a replacement. -
Page 9: Mounting Rack Installation
It is imperative that correct wire be used. Refer to FAA Advisory Circular 43.13-2A for more information. Failure to use correct techniques may result in improper operation, electrical noise or unit failure. Damage caused by improper installation will void the UPS Aviation Technologies warranty. 2.4.1 Noise Due to the variety and the high power of radio equipment often found in today's general aviation aircraft, there is a potential for both radiated and conducted noise interference. -
Page 10: Entertainment Input
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual 2.4.2 Entertainment Input 2.4.2.1 Monaural (SL10, SL10M) Two entertainment devices (CD player, cassette player, etc.) can be connected to the unit. Install two 1/8- inch stereo jacks in a convenient location so that the pilot can plug in the entertainment devices into the system. -
Page 11: External Push-To-Talk
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual 2.4.3 External Push-to-Talk An important part of the installation is the PTT (Push-To-Talk) switches that allow the use of your aircraft communications radio for transmissions. There are three typical configurations that can be used. Select the case that best fits the installation. -
Page 12: Speaker Loads
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual located at the lower right hand side of the unit face will automatically adjust the backlight of the push- button lamps as well as the rotary mic selector switch light intensity. -
Page 13: Marker Antenna Installation
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Adjustment Clockwise Results In Cabin Speaker Level Increase Speaker Volume Marker Beacon Level Decrease Marker Volume MKR Hi Sense MKR Gain Increase overall sensitivity (211) MKR High Sense... -
Page 14: Post Installation Checkout
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Post Installation Checkout After wiring is complete, verify power is ONLY on pin 20 of the bottom connector, and airframe ground on bottom connector pin Z. Failure to do so will cause serious internal damage and void UPS Aviation Technologies's warranty. - Page 15 UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual and balance computation and other documentation as required. Return completed warranty registration application to UPS Aviation Technologies.
-
Page 16: Section Iii Operation
GENERAL INFORMATION SCOPE This section provides detailed operating instructions for the UPS Aviation Technologies SL10, SL10S, SL10M, SL10M-S, SL10C, SL10S-C, SL10M-C, and SL10M-S-C Audio Selector Panel/Intercom Systems. Please read it carefully before using the equipment so that you can take full advantage of its capabilities. -
Page 17: Swap Mode (Switch From Com 1 To Com 2 Remotely)
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual In SL10-series units, Serial Number T03092 and above, when switching the mic selector rotary switch from C 1 to C 2, while C 2 audio had been selected, Com 1 audio will continue to be heard. This eliminates the pilot having to switch Com 1 audio back on, if desired. -
Page 18: Adjusting The Vox-Squelch Control, Monaural (Sl10, Sl10M)
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual 3.5.2.1 Mono headsets in Stereo Installation All passenger headsets are connected in parallel. Therefore, if a monaural headset is plugged in to a SL10 Stereo installation, one channel will be shorted. Although no damage to the unit will occur, all passengers will lose one channel. -
Page 19: Push To Talk Intercom Mode
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual 3.5.5.2 Soft Mute (Stereo) Both entertainment devices have the "Soft Mute" mode. In units earlier than a “G” intercom board serial number (second set of numbers), only entertainment input #1 has the mute inhibit capability. "Soft Mute"... -
Page 20: Marker Beacon
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Marker Beacon (SL10M, SL10M-S The optional Marker Beacon Receiver uses visual and audio indicators to alert you when the aircraft passes over a 75 MHz transmitter. The Blue lamp, labeled "O," is the Outer Marker lamp and has an associated 400 Hertz 'dash' tone. The lamp and tone will be keyed at a rate of two tones/flashes per second when the aircraft is in the range of the Outer Marker Beacon. -
Page 21: Section Iv- Warranty And Service
UPS Aviation Technologies, Inc. The risk of loss or damage to the product is borne by the party making the shipment, unless the purchaser requests a specific method of shipment. In this case, the purchaser assumes the risk of loss. -
Page 22: Appendix A External Ptt Hook Up
PTT switch is depressed. A simple modification can be performed to allow proper intercom operation. NOTE: This mod does not alter normal operation. Below are some examples of typical modifications. Contact UPS Aviation Technologies or the PTT manufacturer for more details if necessary. -
Page 23: Appendix B- Installation Drawing
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Appendix B- Installation Drawing 1.62 in Cutout size for front mount installation (41.15 mm) 6.31in (160.3 mm) 6.65 in (167 mm) Side View 0.60 in (15.25 mm) 1.31 in... - Page 24 UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Appendix C Bottom Connector wiring, Mono and Stereo (see note 9) BOTTOM CONNECTOR Com 1 Audio Hi Communications Notes: Com 1 Lo Transceiver #1 Com 1 Mic Audio Hi 1.
-
Page 25: Appendix D Top Connector Wiring (Mono), Sl10, Sl10M
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Appendix D Top Connector wiring (Mono), SL10, SL10M Top Connector (monaural) Copilot Phones Hi Notes: Copilot Phones Lo 1. All shields should be grounded at audio panel only. -
Page 26: Appendix E Top Connector Wiring, (Stereo) Sl10S, Sl10Ms
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Appendix E Top Connector wiring, (Stereo) SL10S, SL10MS TOP CONNECTOR (Stereo) Pilot Phones (L) -see bottom connector. Notes: Copilot Phones (R) Copilot Phones (L) 1. All shields should be grounded at audio panel only. -
Page 27: Appendix F -Instructions For Continuing Airworthiness And Faa Form 337
(Airframe, Powerplant, Propeller, or Appliance) In the case of the PM6000 audio panel you may use the following text as a guide. Installed 6-place intercom/audio selector panel, UPS Aviation Technologies SL10MS, part number 430-6060-30 in center stack instrument panel location designated for panel mounted avionics at station . -
Page 28: Appendix G Rtca Do160B Environmental Qualification Form
UPS Aviation Technologies SL10 Series Audio Selector Panel and Intercom System Installation Manual Appendix G RTCA DO160B Environmental Qualification Form Audio Selector Panel/Intercom/Marker Beacon Receiver Part Number: 6000, 6000M, 6000MC, SL10S, SL10MS 6000M-S-C FAA TSO Number: C50c, C35b Class A... - Page 30 560-0978-00 December 2001...
