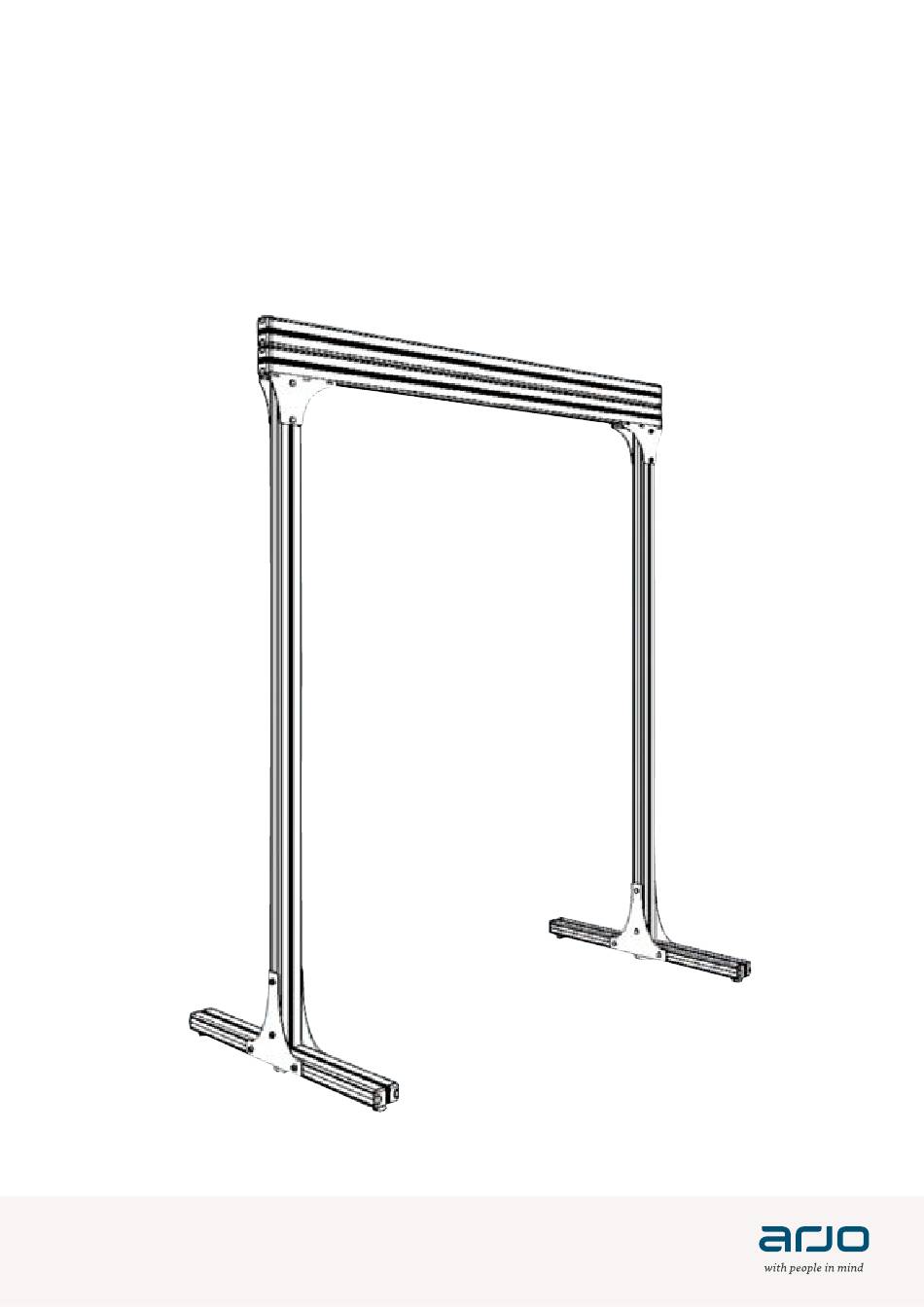

- Page 1 INSTRUCTIONS FOR USE KWIKtrak Semi-Permanent Rack Model Nº 700.11900 001-11900-EN rev 5 • 08/2019...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not...
-
Page 3: Table Of Contents
Table of Contents Foreword ............................2 Thank you for choosing Arjo products..................... 2 Please Read this Manual Thoroughly! ..................... 2 Service and Support ..........................2 Manufacturer Information ......................... 2 Definitions Used in this Manual ....................... 2 Safety Instructions ........................3 Operational Life ............................3 Equipment Identification .......................... -
Page 4: Foreword
This will ensure it remains safe and a series of quality products designed specially for functional. home care, nursing homes and other health care Please contact your local Arjo vendor for any of the uses. following: We are dedicated to serving your needs and •... -
Page 5: Safety Instructions
Equipment Identification The Semi-Permanent Rack is a portable track The unit’s identification number (specification, system to be used with Arjo ceiling lift in a homecare model, serial number) appears on a silver setting, at nursing homes and other assisted living nameplate attached inside the track of the KWIKtrak centres. -
Page 6: Safe Working Load
Safe Working Load Environmental Advice When disposing of any items associated with the CAUTION: The Safe Working Load of the product, contact local authorities for information. Semi-Permanent Rack is determined by the track, style and length, mounted on the rack (see Homecare Environment the table below). -
Page 7: Symbols Used
Symbols Used General Symbols Manufacturer’s name and address. May also point out manufacturing date. CE marking indicating conformity with European Community harmonised legislation. Points out the manufacturer’s catalogue number. Indicates a potential risk, refer to Instructions for Use (IFU) for details. Points out the manufacturer’s serial number. -
Page 8: Product Description
Product Description 3, 4, 5 Fig. 1 Item Part № Description Quantity 250.11060 LEG END CAP (WHITE) 000.00379 LEG SUPPORT “NON-SLIP” 3/8-16 X 1 1/4″ 000.00375 SCREW 3/8-16 X 1 1/4 ZINC 000.00425 LOCK WASHER 3/8 ZINC 225.11455 PUCK 200.11415 NEOPRENE PROTECTIVE PAD 200.10410 250.11460 225.11425... -
Page 9: Semi-Permanent Rack System Requirements
Floor Requirements: CAUTION: If you are unsure of the strength or stability of the floor – do not install the Semi-Permanent Rack – consult your local Arjo agent. • Flooring must comply to local building code standards. WARNING: Termites or water damages may affect the structure of the floor. -
Page 10: Assembling The Semi-Permanent Rack
Assembling the Semi-Permanent Rack Post - Top Assembly Post - Base Assembly (Leg) 000.04410 PRESSURE PLATE LOCKNUT M10 ZINC 000.04410 LOCKNUT M10 ZINC 000.04295 M10 X 75 HEX ZINC TRACK BRACKET 000.04910 LOCKWASHER M12 ZINC 000.04350 M10 X 110 HEX ZINC 000.04553 M12 X 30 SOCKET LOW HEAD ZINC... -
Page 11: Assembling The Track Onto First Post
Assembling the Track onto First Post 4) Fasten the assembly by tightening the two bolts located inside the track bracket Note for H140 tracks: Referring to "Fig. 6", taking note of how the track should be oriented to be in the proper position. Fig. -
Page 12: Inserting The Lift Into The Track
Inserting the Lift into the Track NOTE: Before proceeding to this step, make sure that the second post is assembled and ready to receive the track. 1) Insert the lift or portable trolley into the track. 2) Raise the track slightly to assure that the lift will not roll back out of the track. -
Page 13: Installing The Charger Station
Installing the Charger Station This section does not apply for tracks using portable lifts. 1) Determine the best suitable location for the lift to be placed when it is not being used. 2) Align the bottom hooks of the charger station clip to the lower groove on the track. -
Page 14: Care And Maintenance
Annual Inspection by an Authorized Technician The Semi-Permanent Rack must be inspected by a qualified Arjo technician on an annual basis to ensure the proper functioning of its components, as well as the safety of the patients and care givers that use the Semi-Permanent Rack. -
Page 15: Troubleshooting
Troubleshooting PROBLEM TO CHECK • Is the track levelled? Trolley moves substantially on its own when the • Is the floor levelled? Semi-Permanent Rack • Is the track secured to the posts? Press up on the track is fully assembled. to make sure that it is correctly fixed onto posts. -
Page 16: Technical Specifications
Technical Specifications PRODUCT INFORMATION Semi-Permanent Rack № 700.11900 Weight Total: 53 kg Post: 16.5 kg (each) Base: 10 kg (each) Max. safe working load Tracks: Aluminium Material Hardware: Steel, plastic END OF LIFE DISPOSAL Package Cardboard recyclable Components that are primarily be made up of different kinds of metal The Product (containing more than 90% metal by weight) should be recycled as metal. - Page 17 AUSTRALIA FRANCE POLSKA Arjo Polska Sp. z o.o. Arjo Australia Pty Ltd Arjo SAS 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 PL-62-052 KOMORNIKI (Poznań) O’Connor CS 70133 FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50...
- Page 18 Page intentionally left blank...
- Page 19 Page intentionally left blank...
- Page 20 001-11900-CS 001-11900-DA At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and dignified care.
