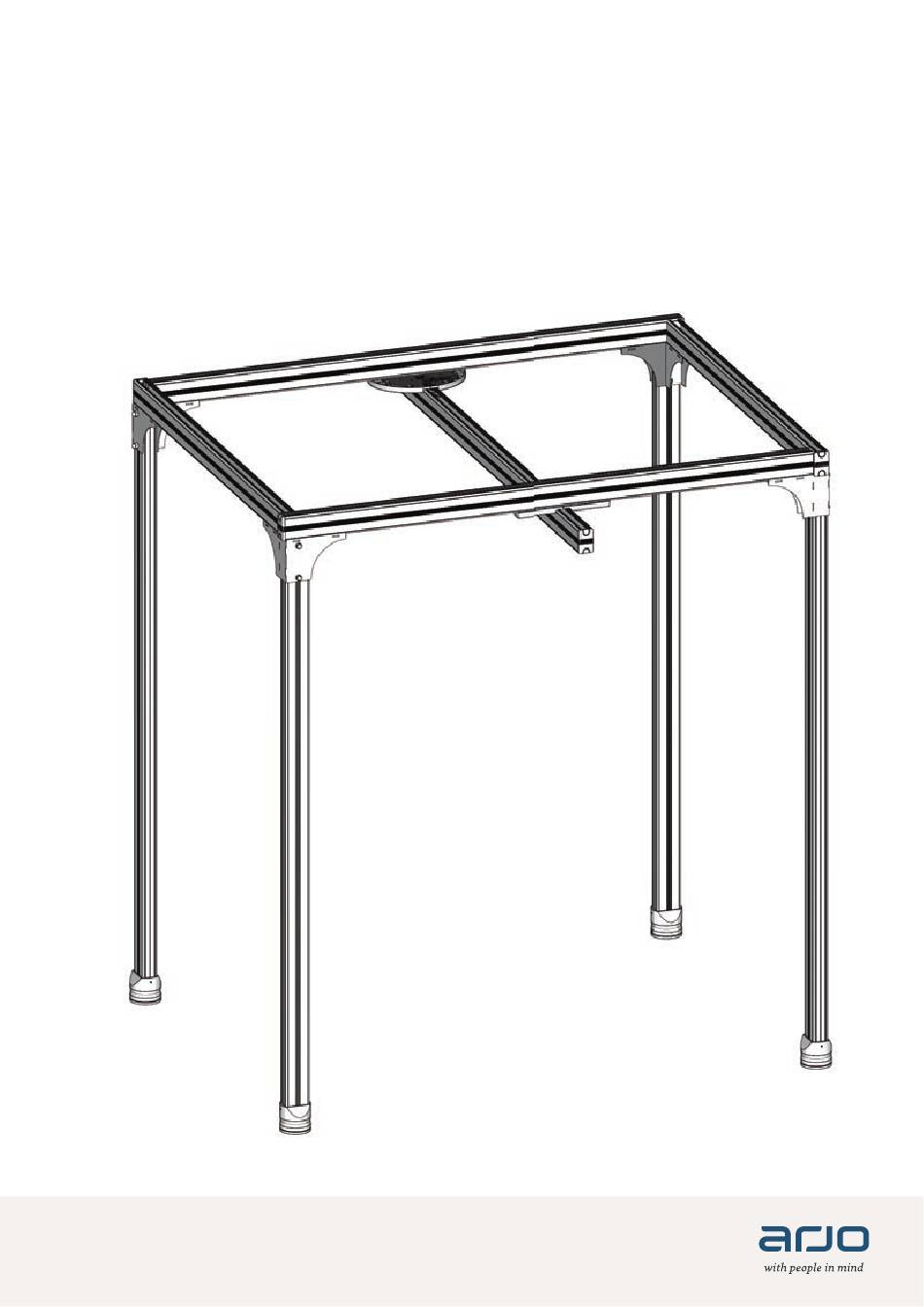

- Page 1 ASSEMBLING INSTRUCTIONS KWIKtrak 4-Post Semi-Permanent Rack Assembly 001.11950.EN rev. 5 • 01/2021...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2021. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or...
-
Page 3: Table Of Contents
Table of Contents General Information ................4 Foreword......................4 Service and Support ..................4 Supplier Information ..................4 Definitions Used in this Manual ..............5 Intended Use ....................5 Verifying the Package Contents upon Receipt ..........5 How to Use this Manual ................5 Safety Instructions ................6 Safety Instructions and Warnings ..............6 Symbols Used .....................7 Part Designation .................. -
Page 4: General Information
Arjo. Furthermore, unauthorized modifications on any Arjo equipment may affect its safety. Arjo will not be held responsible for any accidents, incidents or deficiencies of performance that occur as a result of any unauthorized modification to its products. -
Page 5: Supplier Information
SWEDEN Definitions Used in this Manual How to Use this Manual WARNING: To ensure the safe operation of the Arjo Semi-Permanent Rack system, read the entire manual carefully before installing or Means: Failure to understand and follow servicing this equipment. -
Page 6: Safety Instructions
Anyone using the equipment must also Lift Capacity & Track Style have read and understood the instructions Track in this manual. If there is anything you are not sure about, contact your local Arjo Lift representative. 90 mm 140 mm... -
Page 7: Symbols Used
Symbols used General Symbols Points out the name and address of the manufacturer Indicates conformity with the European Community harmonised legislation. Manufacturer's catalogue number. Indicates a potential risk, refer to the Instructions for Use (IFU) for details. Manufacturer's serial number. Safe Working Load. -
Page 8: Part Designation
Part Designation Part Designation Semi-Permanent Rack System Fig. 2 Item # Description Quantity Post Corner bracket assembly Parallel track (X) Parallel track (Y) Autolock end stoppers XY trolley Mobile track (X) Plastic end cap 6, 10 or 12, according to model Plastic end cap (halves - for kit including H140 rails 2 or 6, according to model Adjustable levelling feet... -
Page 9: Sold Seperately
Part Designation Sold Separately Trolley for portable lift 700.10650 Charger interface for fixed ceiling lift 700.15510 Fig. 3 Required Tools 5 mm Allen key 17 mm hexagonal key 6 mm Allen key Bubble level 8 mm Allen key... -
Page 10: Assembling Instructions
Assembling Instructions Assembling the 4-Post Rack Post Assembly - Corner Brackets Each set of pressure plates are assembled to the corner brackets prior to delivery. 1. Please verify the following (see Fig. 4): • Check if pressure plates are attached to the corner bracket with two M12 x 30 socket low-head bolts. -
Page 11: Post Assembly - Levelling Feet
Assembling Instructions Post Assembly - Levelling Feet 3. Make sure that the levelling feet turn easily and without friction. • Verify that the M6 x 10 HC screws (part #000.03030) does not protrude into the inner cavity of the levelling feet before attempting to insert the posts. M6 x 10 HC screws Screws must... -
Page 12: End Stoppers
Assembling Instructions • Tighten the M6 x 10 HC screws to a torque of 4 N m (3 lbf ft). • • Turn clockwise to Torque both raise post. screws to 4 N • (3 lbf Maximum • elevation: 25,4 mm (1 in) Fig. -
Page 13: Fastening The Fixed Tracks To The Post Assembly
Assembling Instructions Fastening the Fixed Tracks to the Post Assembly Make sure that the fixed tracks are properly inserted on the correct side (see Fig. 8). Fig. 8 6. Choose two of the four fixed track sections that will hold the trolleys for the mobile track (see Fig. - Page 14 Assembling Instructions 8. Insert the selected fixed track sections into the corner brackets with the pressure plates positioned in the lower channel of the fixed track (see Fig. 10). Be careful not to allow the trolleys for the mobile track or the end stoppers to fall out. Fig.
-
Page 15: Levelling The Assembly
Assembling Instructions CAUTION: Make sure that the lockwashers are installed at the proper locations. 8 mm Allen key Fig. 12 11. Slide the four individual autolock end stoppers towards the four ends of the two parallel tracks, to prevent the mobile XY track from running into any of the corner brackets. 12. -
Page 16: Mounting The Mobile Track
Assembling Instructions Mounting the Mobile Track The 4-Post Semi-Permanent Rack system is designed to receive a track lift for safe patient transfers. The track lift is installed on a mobile track that allows the lift to move within the area spanned by the 4-Post system. - Page 17 Assembling Instructions END STOPPER END STOPPER Fig. 14 Once the mobile track is in place: 18. Straighten the track so that it is squared to the fixed tracks. 19. Tighten both M12 bolts on each trolley with a 19 mm wrench (see Fig. 15). Fig.
- Page 18 Assembling Instructions 20. Slide the mobile track completely from one end of the 4-post system to the other end to make sure that the track is perfectly squared. The mobile track should contact the end stoppers of the fixed track evenly. If not, loosen the setscrews, readjust the mobile track, and retighten the setscrews (see Fig.
-
Page 19: Inserting The Track Lift Into The Mobile Track
Assembling Instructions Inserting the Track Lift into the Mobile Track Once the XY mobile track has been properly mounted and secured: 23. Position the first end stopper at the edge of the mobile track. Secure the end stopper according to the following procedure (see Fig. 18). •... - Page 20 Assembling Instructions End stopper (Install the ceiling lift before installing the second end stopper) Torque to 20 N • (15 lbf • Fig. 19 Fig. 20...
-
Page 21: Care And Maintenance
WARNING: If any of the above inspection points fails, DO NOT USE the Semi- Permanent Rack until appropriate corrective action is taken. The Semi-Permanent Rack must be inspected by a qualified Arjo technician on an annual basis to ensure the proper functioning of its components, as well as the safety of the patients and care givers that use the Semi-Permanent Rack. -
Page 22: Troubleshooting
Troubleshooting PROBLEM VERIFY trolley moves • Is the track levelled? substantially on its own when the Semi-Permanent • Is the floor level? Rack is fully assembled. • Are the tracks secured to the posts? Push up on the tracks to make sure that they are correctly attached to the posts. The trolley does not move •... -
Page 23: Specifications
Specifications c k ) t r a ( 9 0 t r a c k ) ( 1 4 t r a ( 1 8 Product Codification: 9 9 0 X X X X 30=3.0 m (10 ft) 35=3.5 m (11.5 ft) 40=4.0 m (13 ft) 45=4.5 m (14.75 ft) 30=3.0 m (10 ft) - Page 24 Intentionally left blank...
- Page 25 Intentionally left blank...
- Page 26 Intentionally left blank...
- Page 27 AUSTRALIA FRANCE Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi 11 Talavera Road CS 70133 Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Australia Tél: +33 (0) 3 20 28 13 13...
- Page 28 Hans Michelsensgatan 10 211 20 Malmö, Sweden www.arjo.com 001.11950.EN...
