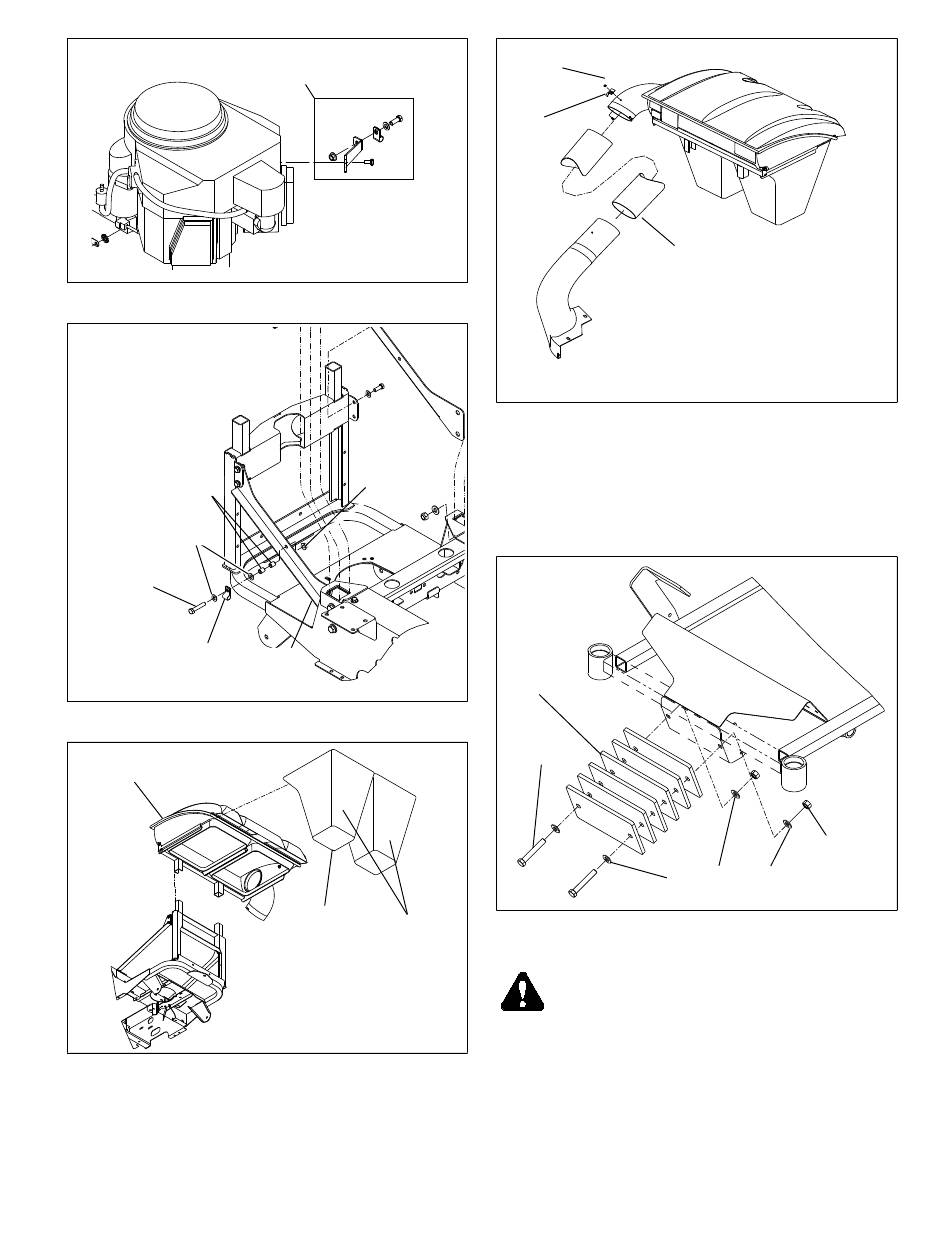

Excel Two Bag Catcher Operator's Manual page 13

Remove bracket, clamp and
hardware from engine
Figure 3-9
Bushing
FW .406 x .812
CS .375 x 2
Clamp
Figure 3-10
Lid assembly
Figure 3-11
112601_1211
NT .375-16
HXFLK
Frame
brace
Bags
Mesh side of
bag to face
rearward
Clamp
Inlet
tube
22. Place the bags in the catcher assembly, making sure
that the non-mesh side of the bag is towards the
operator, close the hood and fasten in place using the
elastic latch. Figure 3-11 and Figure 3-14
23. Reconnect the negative battery cable.
Weight
plate
CS .5 x 3.25
WARNING: Do not operate deck without discharge
chute or complete catcher system in place.
3-5
Upper
tube
Figure 3-12
NT .5-13
FW .531 x 1.063
Figure 3-13
