Excel Two Bag Catcher Operator's Manual page 12

12. Attach the catcher support to the hitch plate mount.

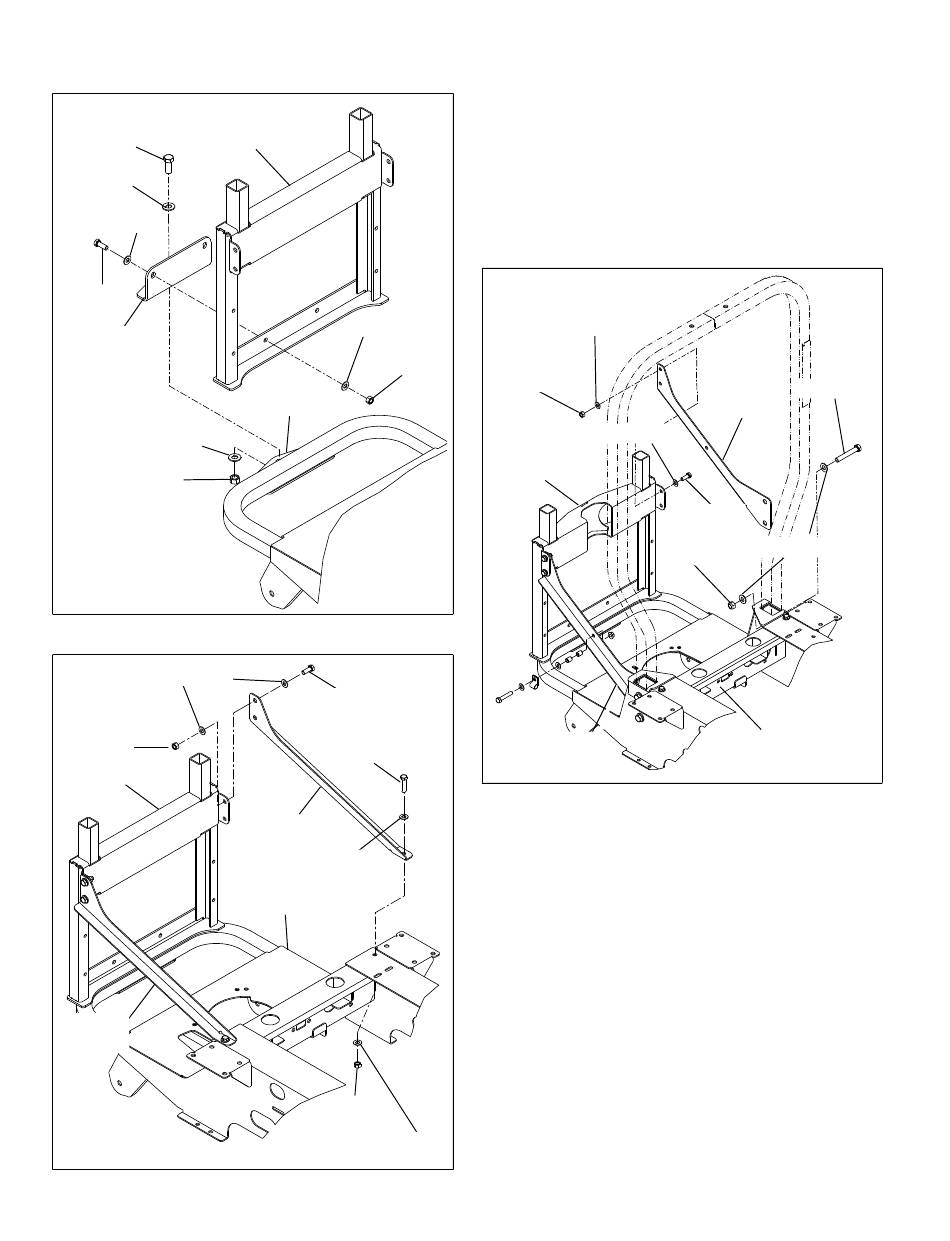

Figure 3-6
Catcher
support
CS .5 x 1.25
FW .531 x 1.063
FW .406 x .812
CS .375 x 1
Hitch plate
mount
FW .531 x 1.063
NT .5-13
Figure 3-6
FW .406 x .812
NT .375-16
Catcher
support
Frame
brace
Figure 3-7
FW .406 x .812
NT .375-16
Mower hitch
plate
CS .375 x 1
CS .375 x 1.5
Frame
brace
FW .406 x .812
Mower
frame
NT .375-16
FW .406 x .812
13. Attach the shield to the catcher support. Figure 3-5
14. For mowers with serial numbers prior to 1101000,
(frames without ROPS pockets), attach the right and
left frame braces to the catcher support and the mower
frame. Figure 3-7
15. For mowers with serial numbers higher than 11010000
(frames with ROPS pockets), remove hardware
attaching ROPS. Attach the right and left frame braces
to the catcher support and the mower frame, using
supplied hardware. Torque hardware to 55 ft.-lbs (74.6
N-m). Figure 3-8
FW .406 x .812
NT .375-16
FW .406 x .812
Catcher
support
Frame
brace
16. For mowers with Kawasaki engines and with serial
numbers higher than 11010000 (frames with ROPS
pockets), remove the throttle cable stand-off bracket
and clamp from the engine. Figure 3-9
NOTE: Retain these parts as they will be used if the
catcher is ever removed from the mower.
Attach the throttle cable, using the new clamp, spacer,
and hardware, to the right frame brace. Figure 3-10
17. Slide the lid assembly onto the frame mounting tube.
Figure 3-11
18. Slide the upper tube end onto the deck chute. Figure 3-
12
19. Slide the upper tube end onto the catcher lid inlet tube.
Figure 3-12
20. Secure with clamp on catcher lid inlet tube. Figure 3-
12
21. Attach the weights to the front of the mower. Figure 3-
13
3-4
Frame
CS .5 x 3.25
brace
CS .375 x 1
FW .531 x 1.063
NT .5-13*
*Torque to
Mower
55 ft-lbs
frame
(74.6 N-m)
Figure 3-8
112601_1211
