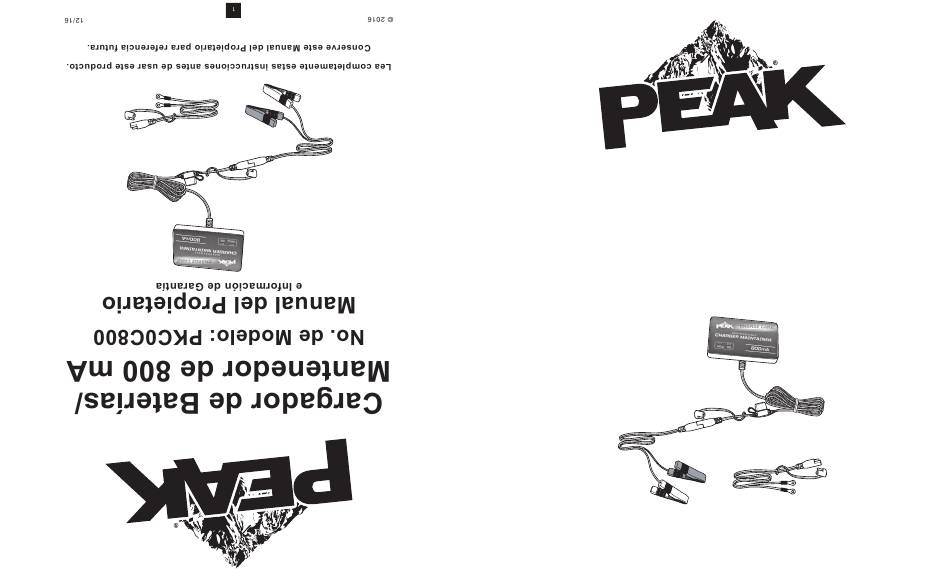

- Page 1 800mA Battery Charger/Maintainer Model No.: PKC0C800 Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. 12/16 © 2016...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........................ 2 Important Safety Instructions ....................2 INTRODUCTION ..........................6 FEATURES ............................7 SPECIFICATIONS ........................... 7 OPERATING INSTRUCTIONS ......................8 LED Display Panel ........................8 Before Charging ........................8 Pre-Charge Activation ......................8 Charging if Battery Is Installed in a Vehicle ................8 Charging if Battery Is Outside of Vehicle ................ - Page 3 3) Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. 4) To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
- Page 4 f) Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause explosion. g) Remove personal metal items such as rings, bracelets, necklaces, and watches when working with a lead-acid battery. A lead-acid battery can produce a shortcircuit current high enough to weld a ring or the like to metal, causing a severe burn.
- Page 5 b) Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons. c) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has larger diameter than NEGATIVE (NEG, N,–) post. d) Determine which post of battery is grounded (connected) to the chassis.
-
Page 6: Introduction

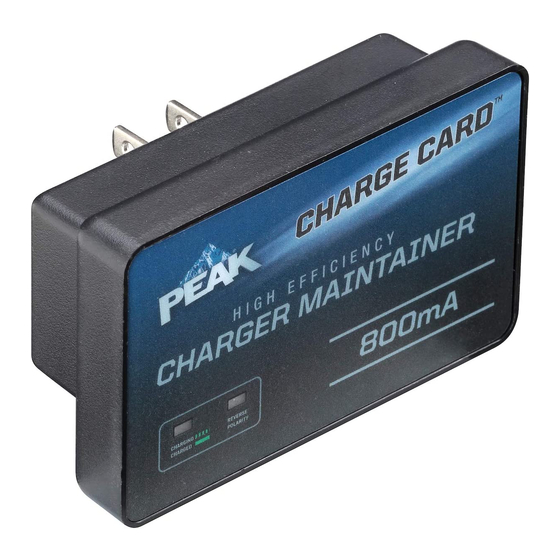

The 800mA or 0.8A CHARGE CARD™ is a fully automatic 12-volt Battery Charger Maintainer that will allow for maintenance-free charging of a vehicle’s battery over a long period of time. It is intended to be plugged in for long periods of time. The CHARGE CARD™ 800mA Battery Charger has 3 modes of charging: • Bulk Mode or Constant Current Mode: Where the charger provides constant current to charge... -
Page 7: Features
FEATURES • Charges 12-volt lead-acid battery (AGM, gel-cell and deep-cycle) • Green LED indicates charging status • Red LED indicates reverse polarity • Cables are corrosion-resistant for better connections • Connect to side or top-mount battery terminals • Ideal for charging during winter season when the starting performance of vehicle batteries is lowered by cold or extreme weather conditions CHARGING REVERSE... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS LED Display Panel Charge Indicator Light – While charging the battery, the green LED will flash. When the battery is fully charged, the green LED will remain lit. Reverse Polarity Indicator Light – The red LED will flash when the Battery Charger is not properly connected to the battery. -
Page 9: Charging If Battery Is Outside Of Vehicle
After charging is complete, disconnect the Battery Charger plug from the 110/120-volt AC power outlet. Disconnect the cables in the reverse order in which they were connected. Disconnect your first cable as far away from the battery as possible. Charging if Battery Is Outside of Vehicle Check polarity of battery terminals - For top-mounted battery connectors, the positive terminal usually has a larger diameter than the negative (–) battery terminal. -
Page 10: Care And Maintenance
CARE AND MAINTENANCE Fuse Replacement Disconnect the Battery Charger from its power source. Remove the fuse protective cover. Pull the fuse straight out of the holder. Replace with a new 4A spade-type fuse. Replace the fuse protective cover. Cleaning • After each use, clean the charging cables and connectors - be sure to remove any battery fluid that will cause corrosion. -
Page 11: Fcc Information
FCC INFORMATION WARNING: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Limited Warranty
Before returning this product for any reason, please call toll free (800) 477-5847. Do not return your PEAK® product to the place of purchase for service. Send your unit, postage prepaid and insured, along with a copy of the original sales receipt and a phone number to the address below.
