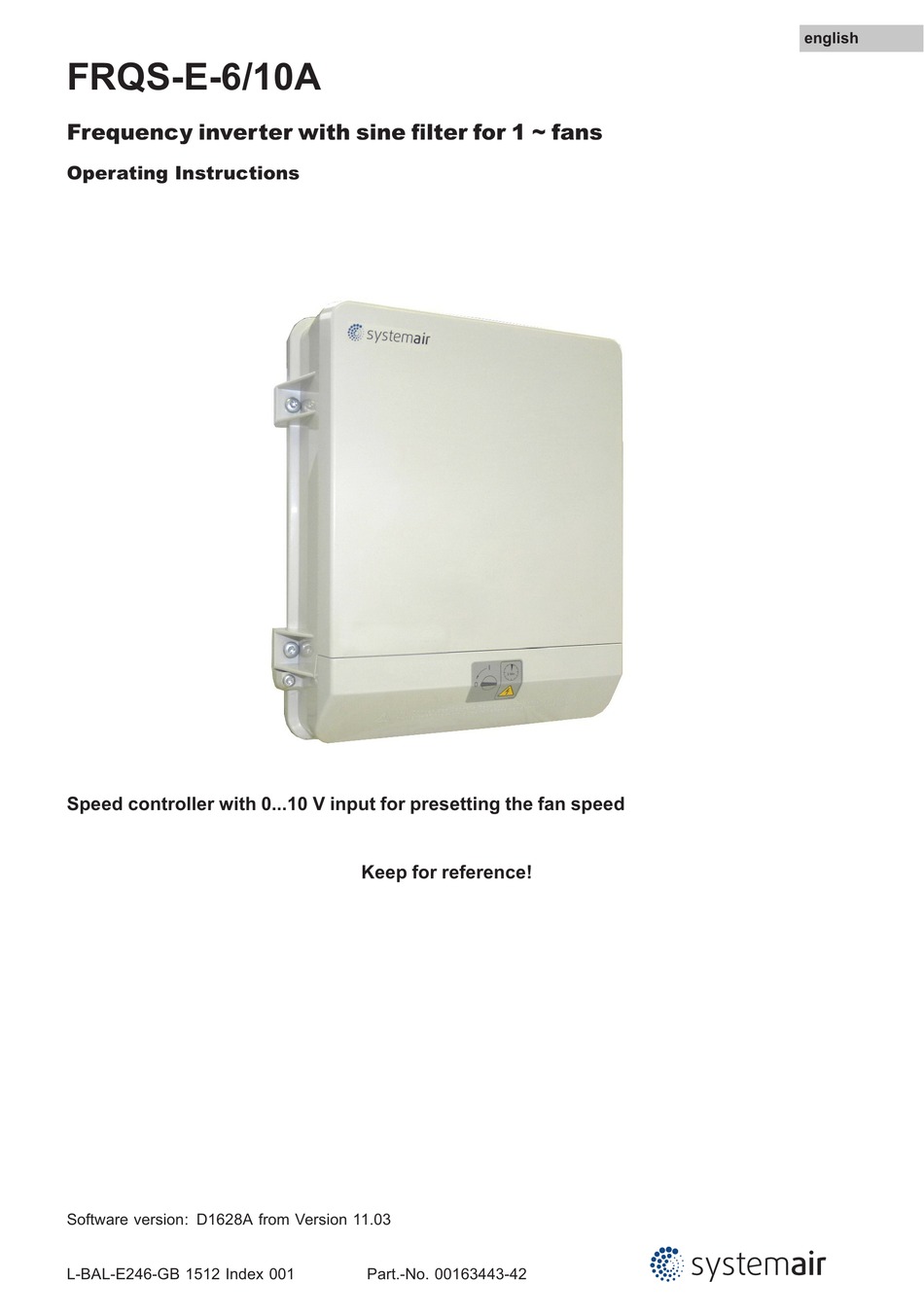

- Page 1 english FRQS-E-6/10A Frequency inverter with sine lter for 1 ~ fans Operating Instructions Speed controller with 0...10 V input for presetting the fan speed Keep for reference! Software version: D1628A from Version 11.03 L-BAL-E246-GB 1512 Index 001 Part.-No. 00163443-42...
-
Page 2: Table Of Contents
Operating Instructions FRQS-E-6/10A Content General notes ............. Structure of the operating instructions . - Page 3 Operating Instructions FRQS-E-6/10A Start-up ..............Prerequisites for commissioning .
-
Page 4: General Notes
Operating Instructions FRQS-E-6/10A General notes 1 General notes Structure of the operating instructions Before installation and start-up, read this manual carefully to ensure correct use! We emphasize that these operating instructions apply to specific units only, and are in no way valid for the complete system! Use these operating instructions to work safely with and on the device. -
Page 5: Product Safety
Operating Instructions FRQS-E-6/10A Safety instructions Danger due to electric current Danger by dangerous, electric voltage! Death or severe injury can occur if the corresponding precautions are not taken! Information Important additional information and advice for user. Product safety The device conforms to the state of the art at the time of delivery and is fundamentally considered to be reliable. -
Page 6: Modifications / Interventions In The Device
Operating Instructions FRQS-E-6/10A Safety instructions Danger due to electric current • It is generally forbidden to carry out work on electrical live parts. Protection class of the device when open is IP00! It is possible to touch hazardous voltages directly. •... -
Page 7: Product Overview
Operating Instructions FRQS-E-6/10A Product overview 3 Product overview Operational area Frequency inverter designed for a stepless control of fans without additional (electromagnetic) motor noise. By using the integrated all-pole effective Sine filter (phase to phase and phase to ground), an absolute parallel control of fans without risk of damage for motors is possible. -
Page 8: Minimum Space Requirement
Operating Instructions FRQS-E-6/10A Mounting • Maintain the stated minimum clearances to ensure unobstructed cooling- air feed as well as unobstructed outgoing air discharge ( minimum space requirement)! • The device should be installed in a location where it will not be disturbed, but at the same time can be easily accessed! •... -
Page 9: Electrical Installation
Operating Instructions FRQS-E-6/10A Electrical installation 5 Electrical installation Safety precautions Danger due to electric current • Work on electric components may only be carried out by trained electricians or by persons instructed in electricity under the supervision of an electrician in accordance with electrical engineering regulations. -
Page 10: Leakage Current, Securely Attached, Protective Earth Conductor
Operating Instructions FRQS-E-6/10A Electrical installation 5.3.3 Leakage current, securely attached, protective earth conductor Danger due to electric current The maximum leakage current depends on the type of device and the connected mains voltage Technical Data). With regard to fixed connection and the type of PE conductor connection, the specification for the leakage current must be observed under consideration of the locally valid standards (for Europe EN 50178 Section 5.2.11 or 5.3.2.1 etc.). -
Page 11: U/F-Characteristic Curve
Operating Instructions FRQS-E-6/10A Electrical installation 5.5.3 U/f-characteristic curve Diagram setting signal and U/f curve (quadratic) edge 100 % start [Hz] Analog In [V] 16.03.2015 v_u_f_frqs-e_0_10v.vsd Analog In: Speed setting signal 0 - 10 V Fout: Output frequency Uout: Output voltage Ustart: Start-up voltage Foff: Shutdown Freq. -
Page 12: Output 10 V (A2)
Operating Instructions FRQS-E-6/10A Start-up Output 10 V (A2) Constant voltage +10 V e.g. for external potentiometer. Connection to terminals “A2” - “GND” = “Analog Out 2” (I 6 mA). It is not permissible to connect outputs of several devices to each other! Enable, Device ON / OFF (Digital In 1 = D1) Electronic disconnection and Reset after motor fault via floating contact at terminals “D1”... -
Page 13: Diagnostics / Faults
Operating Instructions FRQS-E-6/10A Diagnostics / Faults 7 Diagnostics / Faults Operating conditions are indicated by the status LED with flashing code. 04.01.2012 v_flash_explain1_8.VSD Reaction of Controller Relay Code Explanation Adjustment In the event of a mains interruption the unit switches “OFF” and automatically de-energized “ON”... -
Page 14: Enclosure
The unit cuts out. Overvoltage Disconnect the device from mains. DC overvoltage because of shortcut earth Check motor wires at switch-on. 8 Enclosure Technical data Type FRQS-E-6A FRQS-E-10A 37419 37420 Part-No. (308305-42) (308306-42) Rated current output {1} 10 A Rated current input {2} 6.3 A... -
Page 15: Max. Load Dependent On Ambient Temperature And Line Voltage
Operating Instructions FRQS-E-6/10A Enclosure Electromagnetic compatibility for the Interference emission EN 61000-6-3 (domestic household applications) standard voltage 230 / 400 V according Interference immunity EN 61000-6-2 (industrial applications) to DIN IEC 60038 Harmonics current Active power factor adjustment for sinusoidal input current (PFC = Power Factor controller), harmonic current in accordance with EN 61000-3-2 are guaranteed Broadband noise (simulated life-endurance test) in accordance with EN 61373, Vibratory strength... -
Page 16: Connection Diagram
Operating Instructions FRQS-E-6/10A Enclosure Connection diagram FRQS-E-6/10A Kontaktbelastung Contact rating Digital Analog Analog max. AC 250 V 2 A In 1 Out 2 In 1 Eingang Input 0...10 V Aus / Ein Ausgang Off / On Output 10 V = 6 mA) Netz Line 1 ~ 208...277 V 50/60 Hz... -
Page 17: Manufacturer Reference
Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: Systemair Industrievägen 3 73930 Skinnskatteberg Telefon:+46 (0) 222 440 00 Telefax:+46 (0) 222 440 99 mailbox@systemair.se...
