Summary of Contents for SystemAir FRQ5S-E-10A

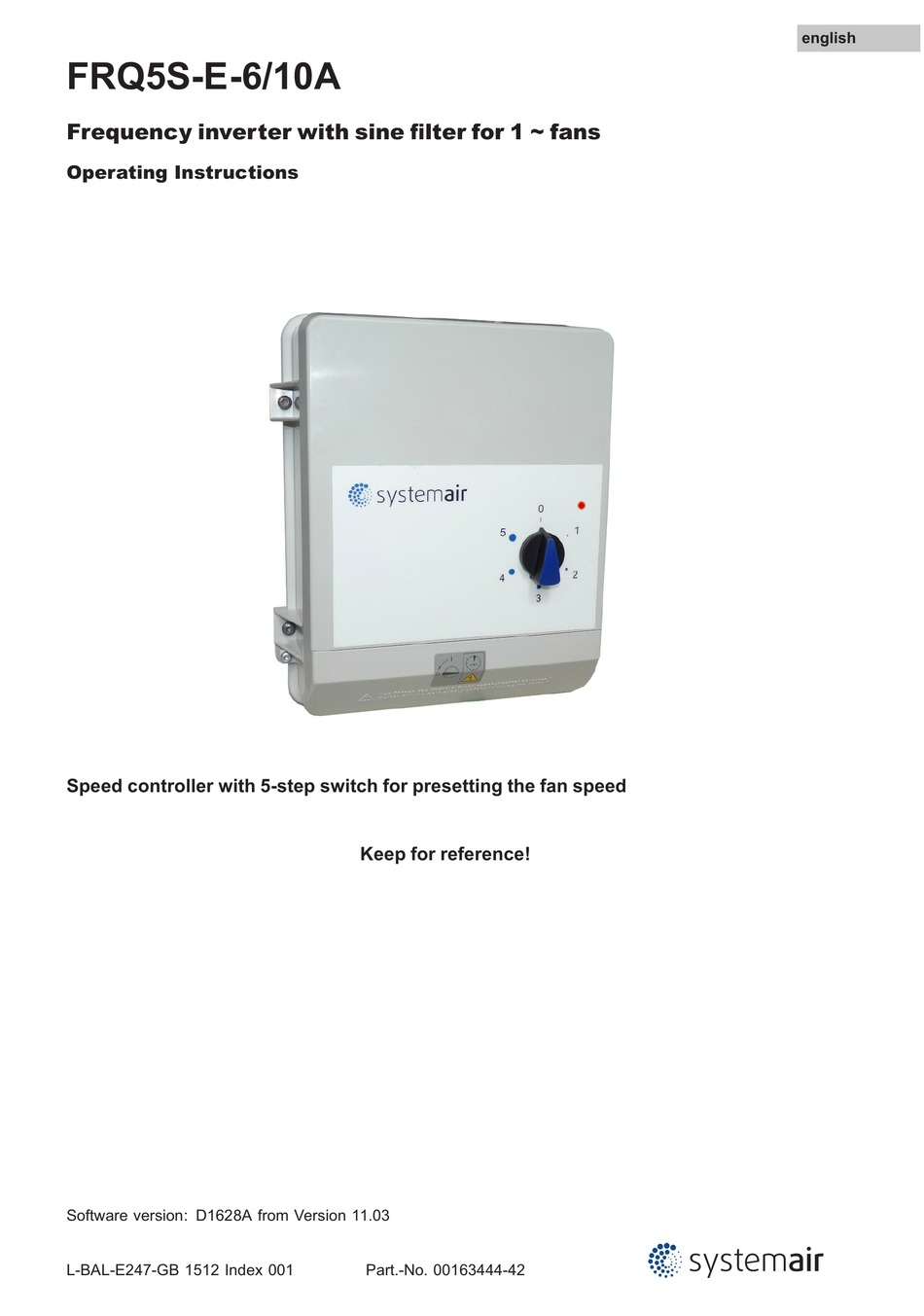

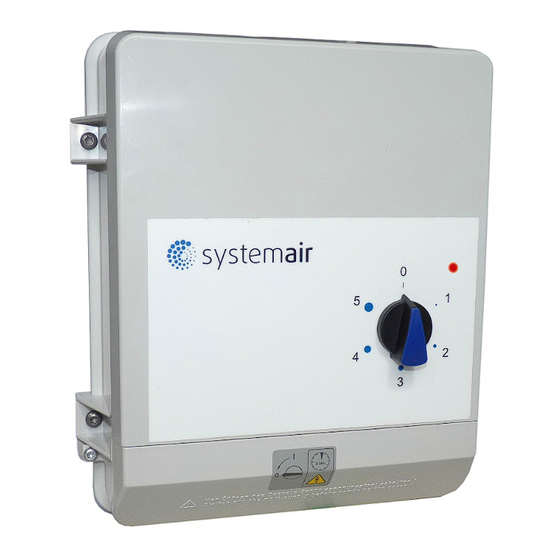

- Page 1 english FRQ5S-E-6/10A Frequency inverter with sine lter for 1 ~ fans Operating Instructions Speed controller with 5-step switch for presetting the fan speed Keep for reference! Software version: D1628A from Version 11.03 L-BAL-E247-GB 1512 Index 001 Part.-No. 00163444-42...
-
Page 2: Table Of Contents
Operating Instructions FRQ5S-E-6/10A Content General notes ............. Structure of the operating instructions . - Page 3 Operating Instructions FRQ5S-E-6/10A Diagnostics / Faults ............Enclosure .
-
Page 4: General Notes
Operating Instructions FRQ5S-E-6/10A General notes 1 General notes Structure of the operating instructions Before installation and start-up, read this manual carefully to ensure correct use! We emphasize that these operating instructions apply to specific units only, and are in no way valid for the complete system! Use these operating instructions to work safely with and on the device. -
Page 5: Product Safety
Operating Instructions FRQ5S-E-6/10A Safety instructions Danger due to electric current Danger by dangerous, electric voltage! Death or severe injury can occur if the corresponding precautions are not taken! Information Important additional information and advice for user. Product safety The device conforms to the state of the art at the time of delivery and is fundamentally considered to be reliable. -
Page 6: Modifications / Interventions In The Device
Operating Instructions FRQ5S-E-6/10A Safety instructions Danger due to electric current • It is generally forbidden to carry out work on electrical live parts. Protection class of the device when open is IP00! It is possible to touch hazardous voltages directly. •... -
Page 7: Product Overview
Operating Instructions FRQ5S-E-6/10A Product overview 3 Product overview Operational area Frequency inverter designed for a stepless control of fans without additional (electromagnetic) motor noise. By using the integrated all-pole effective Sine filter (phase to phase and phase to ground), an absolute parallel control of fans without risk of damage for motors is possible. -
Page 8: Disposal / Recycling
Operating Instructions FRQ5S-E-6/10A Mounting Disposal / recycling Disposal must be carried out professionally and environmentally friendly in accordance with the legal stipulations. 4 Mounting General notes Attention! The following points must be complied with during the mechanical installation to avoid causing a defect in the device due to assembly errors or environmental influences: •... -
Page 9: Installation Location For Agriculture
Operating Instructions FRQ5S-E-6/10A Electrical installation Installation location for agriculture In order to avoid damage caused by ammoniac vapours, the controller shall not be installed in the stable, but rather in an outhouse wherever possible. Temperature influences during commissioning Avoid condensation in the controller and functional faults attributable to condensation by storing the controller at room temperature! 5 Electrical installation Safety precautions... -
Page 10: Required Quality Attributes For The Mains Voltage
Operating Instructions FRQ5S-E-6/10A Electrical installation Attention! To activate the on current limitation, you must wait at least 90 seconds after switching off the line voltage before switching back on! 5.3.2 Required quality attributes for the mains voltage Danger due to electric current The mains voltage must comply with the EN 50160 quality characteristics and the defined standard voltages in IEC 60038! 5.3.3... -
Page 11: Motor Protection
Operating Instructions FRQ5S-E-6/10A Electrical installation Diagram setting signal and U/f curve (linear) edge 100 % [Hz] Analog In 1 0...10 V 22.05.2013 v_u_f_frq5_sa.vsd Analog In: Speed preset signal by 5-step switch Fout: Output frequency Uout: Output voltage Ustart: Start-up voltage Foff: Shutdown Freq. -
Page 12: Enable, Device On / Off (Digital In 1 = D1)
Operating Instructions FRQ5S-E-6/10A Start-up If a connected thermostat is tripped (break between the two terminals “TB”), the device is switched off and is not switched back on. Relais “K2” is de-energized, terminals “21” - “22” bridged. The signal lamp flashes in code Diagnostics / faults). -
Page 13: Diagnostics / Faults
Operating Instructions FRQ5S-E-6/10A Diagnostics / Faults 7 Diagnostics / Faults Operating conditions are indicated by the status LED with flashing code. 04.01.2012 v_flash_explain1_8.VSD Reaction of Controller Relay Code Explanation Adjustment In the event of a mains interruption the unit switches “OFF” and automatically de-energized “ON”... -
Page 14: Enclosure
Overvoltage Disconnect the device from mains. DC overvoltage because of shortcut earth Check motor wires at switch-on. 8 Enclosure Technical data Type FRQ5S-E-6A FRQ5S-E-10A 37421 37422 Part-No. (308307-42) (308308-42) Rated current output {1} 10 A Rated current input {2} 6.3 A 10.8 A... -
Page 15: Max. Load Dependent On Ambient Temperature And Line Voltage
Operating Instructions FRQ5S-E-6/10A Enclosure Harmonics current Active power factor adjustment for sinusoidal input current (PFC = Power Factor controller), harmonic current in accordance with EN 61000-3-2 are guaranteed Broadband noise (simulated life-endurance test) in accordance with EN 61373, Vibratory strength category 1 class B. -
Page 16: Connection Diagram
Operating Instructions FRQ5S-E-6/10A Enclosure Connection diagram FRQ5S-E-6/10A Kontaktbelastung Contact rating max. AC 250 V 2 A Aus / Ein Off / On Netz Line 1 ~ 208...277 V 50/60 Hz 1 ~ Motor UMPO09K13 mit eingebauten Thermostatschaltern 17.03.2015 with internal thermostats 1 Line 1 ~ 208...277 V, 50/60 Hz 2 1 ~ Motor with internal thermostats 3 Enable off / on... -
Page 17: Manufacturer Reference
Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: Systemair Industrievägen 3 73930 Skinnskatteberg Telefon:+46 (0) 222 440 00 Telefax:+46 (0) 222 440 99 mailbox@systemair.se...
