Summary of Contents for ecofort ecoheat TCT

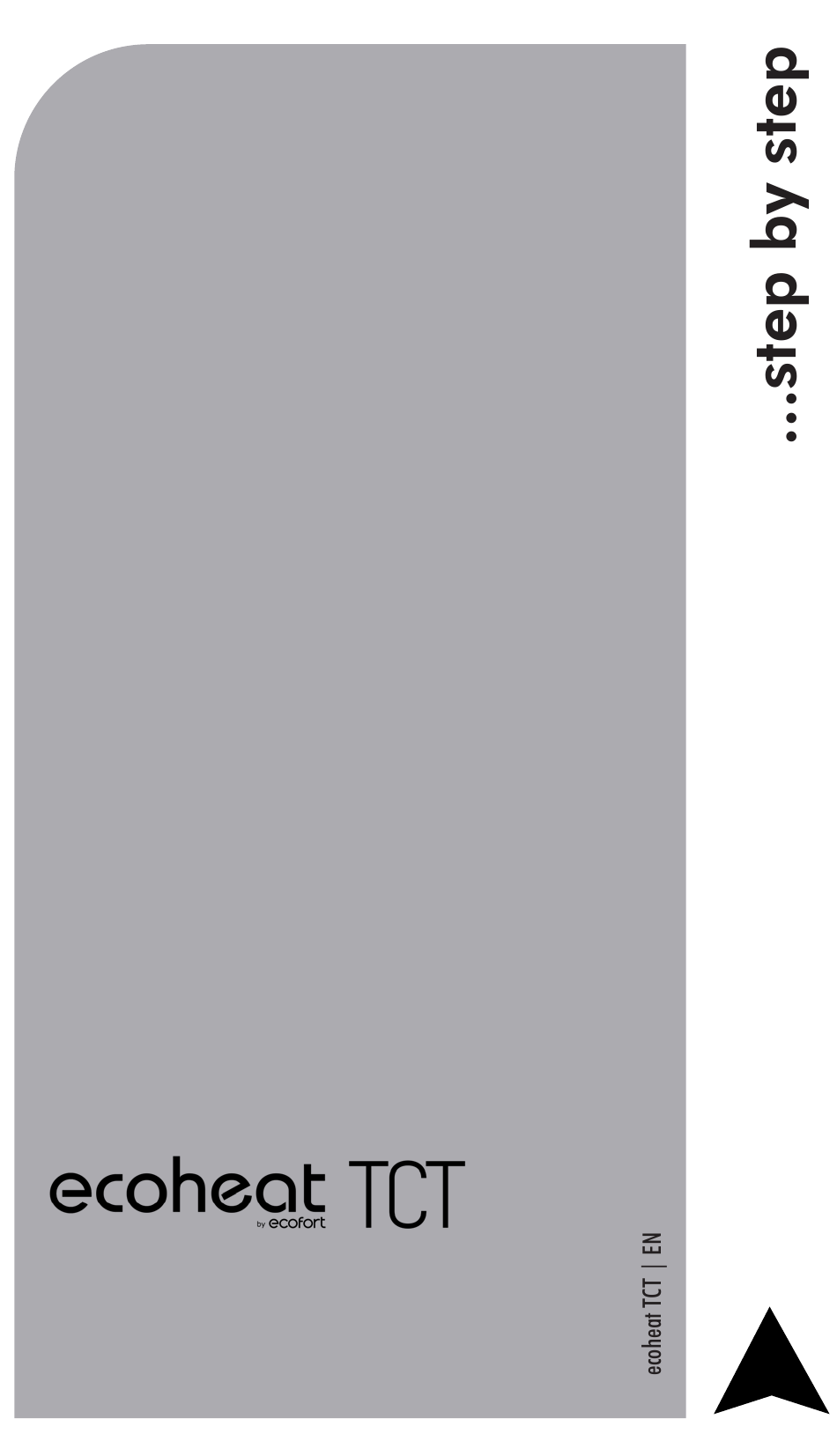

  • Page 1 Thermostat Manual...

  • Page 3: Important Notes

    Infrared heating systems, but can also be used for any other electrical heater. Unlike standard home thermostats, ecoheat TCT has two or more separate and wirelessly connected units (thermostat + receiver(s)) and the mobile application ecofort ThermoControl that allows monitoring and controlling of the heating system.

  • Page 4: Specifications

    Specifications Thermostat Power supply 3 V DC, 2 AA baterries Mounting Wall or portable RF Communication *CS, FEC Manual control Full Frost protection Window open detection Weekly mode Sensitivity 0.5 °C Temperature setting 5 °C – 35 °C Temperature measurement 5 °C –...
  • Page 5 Safety Risks due to poor handling Due to poor handling of the product you can harm yourself and cause material damage. • Read the accompanying instructions carefully, especially the chapter on safety and important notes. Danger of malfunctioning • Ensure that the air in the room can circulate freely around the thermostat and that the thermostat is not covered by furniture, curtains and other objects.
  • Page 6 the device can operate without any problem. In this case it is highly advised to replace the current batteries with new ones. The thermostat can still function with these batteries, but it is much more error-prone. NOTE: In case when communication is lost, the receiver immediately switches off the heating.
  • Page 7 Proper use of the device Improper use can result in health and life hazards to the plant operator or third parties. This product is not intended for use by persons (including children) with limited physical, sensory or intellectual abilities or persons without experience and / or knowledge, unless they are under the supervision of a person in charge of their safety or have been instructed by that person to use the product.

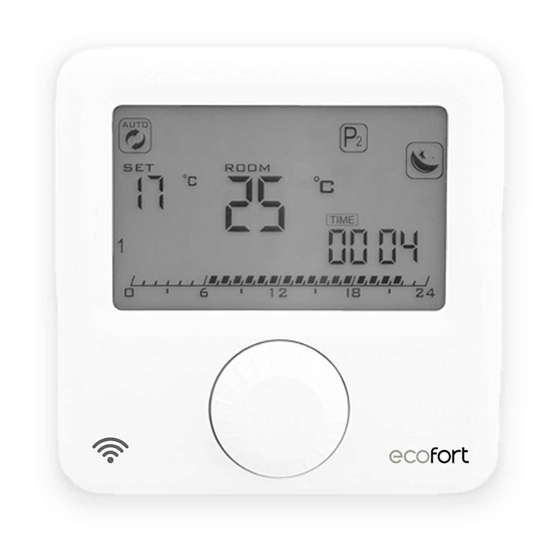

  • Page 8 Overview of command elements Room thermostat 1 – Display 2 – Rotary push button (increase/ decrease value or confirm selection) 3 – Side button: backlight, thermostat on/off button, step back Receiver 1 – Receiver ON/OFF Button 2 – Green light signal •...

  • Page 9: Display Description

    Display description Description of the basic display Frost protection Child lock Internet connection Heating state Working mode temperature temperature Eco/Comfort temperature Eco/Comfort temperature Current Current temperature temperature Time Time Program Program Overview of the basic functions Description of the settings display Weekly program Anti-Frost temperature Eco temperature...

  • Page 10: Setting The Working Mode

    Thermostat ON/OFF When the thermostat is off, it extends the battery life. 1. Press and hold the turn ON/OFF button (on the right) for 3 seconds. 2. The thermostat is successfully turned ON or OFF. Please note that by turning the thermostat off, the heating is turned off, unless anti frost protection turns it on.
  • Page 11 Program mode is active Manual mode is active...
  • Page 12 Set temperature setting Set temperature can only be set in manual mode. 1. Rotate the rotary push button to set the desired temperature. 2. Rotating clockwise increases the set temperature. 3. Rotating counterclockwise decreases the set temperature. Opening the settings display 1.

  • Page 13: Setting The Eco Temperature

    Setting the eco temperature 1. Open the settings display. 2. Rotate the rotary push button, select the symbol and press the rotary push button to enter the economic temperature setting. 3. Rotate the rotary push button and set the desired temperature. 4.

  • Page 14: Setting The Comfort Temperature

    Setting the comfort temperature 1. Open the settings display. 2. Rotate the rotary push button, select the symbol and press the rotary push button to enter the comfort temperature setting. 3. Rotate the rotary push button and set the desired temperature. 4.

  • Page 15: Setting The Weekly Program

    Setting the weekly program Program can be set for each day in a week separately. The program bar will show the current program. Icons ANTIFROST/ECO/COM and the set temperature will show which one of them is active for the selected half an hour.

  • Page 16: Setting The Time

    Setting the time Setting the time is only enabled if the device does not have an internet connection. Otherwise, time is synchronized with internet time. 1. Open the settings display. 2. Rotate the rotary push button, select the time symbol, and briefly press the rotary push button to enter the clock setting.
  • Page 17 SmartPairing mode SmartPairing allows easy connection of the thermostat with up to 6 receivers. 1. Open the settings display. 2. Rotate the rotary push button, select the and hold the rotary push button to enter SMART PAIRING. 3. The thermostat then connects with devices that are put on a factory reset.
  • Page 18 Primary receiver If multiple devices are connected through SmartPairing, the primary receiver can be changed. Only the primary receiver is connected to the Internet. 1. Open the advanced settings display. 2. Rotate the rotary push button, select the ADVANCED and hold the rotary push button to enter advanced menu.

  • Page 19: Factory Reset

    Factory reset Factory reset sets all values on the thermostat to their initial state, as well as unpairs the thermostat with all the paired receivers. 1. Open the advanced settings display. 2. Rotate the rotary push button, select the ADVANCED and hold the rotary push button to enter advanced menu.
  • Page 20 SmartConfig Mode SmartConfig allows easy connection of the thermostat to the Internet. The device has an option of changing the WiFi network in SmartConfig mode. 1. Open the settings display. 2. Rotate the rotary push button, select the and hold the rotary push button. 3.
  • Page 21 Symbol starts to blink when entering the SmartConfig mode...

  • Page 22: Creating An Account

    Ecofort ThermoControl App Creating an account Creating an account is possible with the mobile app. 1. Open Google Play / AppStore. 2. Search for the ecofort ThermoControl. 3. Click download. 4. After installing it, open the mobile app. 5. Choose CREATE ACCOUNT.
  • Page 23 Overview of the Overview of the register screen log in screen...

  • Page 24: Add New Device

    Add new device By adding a new device the first connection of the device with the internet is established. This is done via the mobile app. 1. Activate SmartConfig Mode on the thermostat as explained before. 2. Turn on the location function on mobile device.
  • Page 25 Overview of the screen Overview of the screen without connected devices with connected device...

  • Page 26: Share Device

    Share device It is possible to share already connected device with other accounts (e.g. with family members) by using the mobile app. 1. Open the mobile app. 2. Log in to the account you previously created. 3. Select the device you want to share. 4.
  • Page 27 Add existing device It is possible to add a device connected to other accounts (e.g. family member) by using the mobile app. This is related to the previously explained sharing of the device. 1. Open the mobile app. 2. Log in to the account you previously created. 3.

  • Page 28: Rename Device

    Rename device It is possible to rename the device via mobile app. 1. Open the mobile app. 2. Log in to the account you previously created. 3. Select the device you want to rename. 4. Click the symbol in the upper right corner. 5.

  • Page 29: Delete Device

    Delete device It is possible to delete the device from mobile app. If the device is shared with multiple accounts, it will only be deleted from your account. 1. Open the mobile app. 2. Log in to the account you previously created. 3.

  • Page 30: Settings Menu

    Settings Menu Child Lock With Child Lock turned on, the thermostat can only be controlled via mobile app while changing the settings on the thermostat itself is disabled. The Child Lock will turn on immediately but the information will be displayed on the thermostat a few minutes later (Max.

  • Page 31: Temperature Sensor Calibration

    Temperature sensor calibration The temperature sensor calibration can be done via mobile app. 1. Open the mobile app. 2. Log in to the account you previously created. 3. Select the device. 4. Click the symbol in the upper right corner and then click SETTINGS. 5.

  • Page 32: Setting The Hysteresis

    Setting the hysteresis Hysteresis is the value for which the current temperature must be lower than the set temperature in order to switch the heating on. Hysteresis setup is possible via mobile app. 1. Open the mobile app. 2. Log in to the account you previously created. 3.

  • Page 33: Window Open Detection

    Sensor overheat The status of the thermostat is shown on the right side. In case of overheating, the heating turns off until the heater cools down to normal working temperature. Standard overheat temperature is 75 °C. Window open detection Window open detection is a feature that detects whether your window is open.
  • Page 34 Antifrost Setting the frost protection temperature can be done via mobile app. Frost protection can also be enabled or disabled. 1. Open the mobile app. 2. Log in to the account you previously created. 3. Select the device. 4. Click the symbol in the upper right corner and then click SETTINGS.
  • Page 35 Setting the eco temperature Setting the ECONOMIC temperature is possible by using the mobile app. The symbol is displayed on the thermostat. 1. Open the mobile app. 2. Log in to the account you previously created. 3. Select the device. 4.
  • Page 36 Setting the comfort temperature Setting the COMFORT temperature is possible by using the mobile app. The symbol is displayed on the thermostat. 1. Open the mobile app. 2. Log in to the account you previously created. 3. Select the device. 4.
  • Page 37 Adaptive program Setting the adaptive automatic program is possible by using the mobile app. It enables the user to turn on the heating several minutes before it is scheduled in 7 Days program, so that the desired room temperature is achieved at the scheduled time.
  • Page 38 Setting the weekly program The program can be set for each day in a week separately or for the whole week at once. During one day for every half an hour comfort temperature is being set. Economic temperature is set by default in other half-hour intervals. To setup the whole week, swipe all the way to the right.
  • Page 39 Overview of the screen for setting the weekly program...

  • Page 40: Battery Replacement

    Maintenence Battery replacement If the battery symbol appears on the screen, change the batteries: 1. Remove the thermostat from the thermostat mount. 2. Replace the batteries with two Alkaline AA 1.5V batteries. 3. Place the thermostat on the thermostat mount. 4.
  • Page 41 Interference detection and correction Condition: The room thermostat display is off • Make sure the thermostat is on. • Check that the room thermostat batteries are properly inserted into the battery compartment. • Check the correct polarity of the batteries. •...

  • Page 42: Handling And Maintenance

    Handling and maintenance The device is designed to operate reliably for many years with appropriate handling. Here are some tips to handle it properly: 1. Before using the product, read the manual carefully. 2. Do not expose the product to direct sunlight, extreme cold and humidity, and sudden changes in temperature.
  • Page 43 - the contents of this manual may not be copied without prior consent ecofort ag declares that ecoheat TCT (thermostat + receiver) meets the essential requirements and other relevant provisions of Directive 2014/53/EU. The device can be used freely in the EU.
  • Page 44 Birkenweg 11 CH-2560 Nidau +41 (0) 32 322 31 11 support@ecofort.ch www.ecofort.ch...
