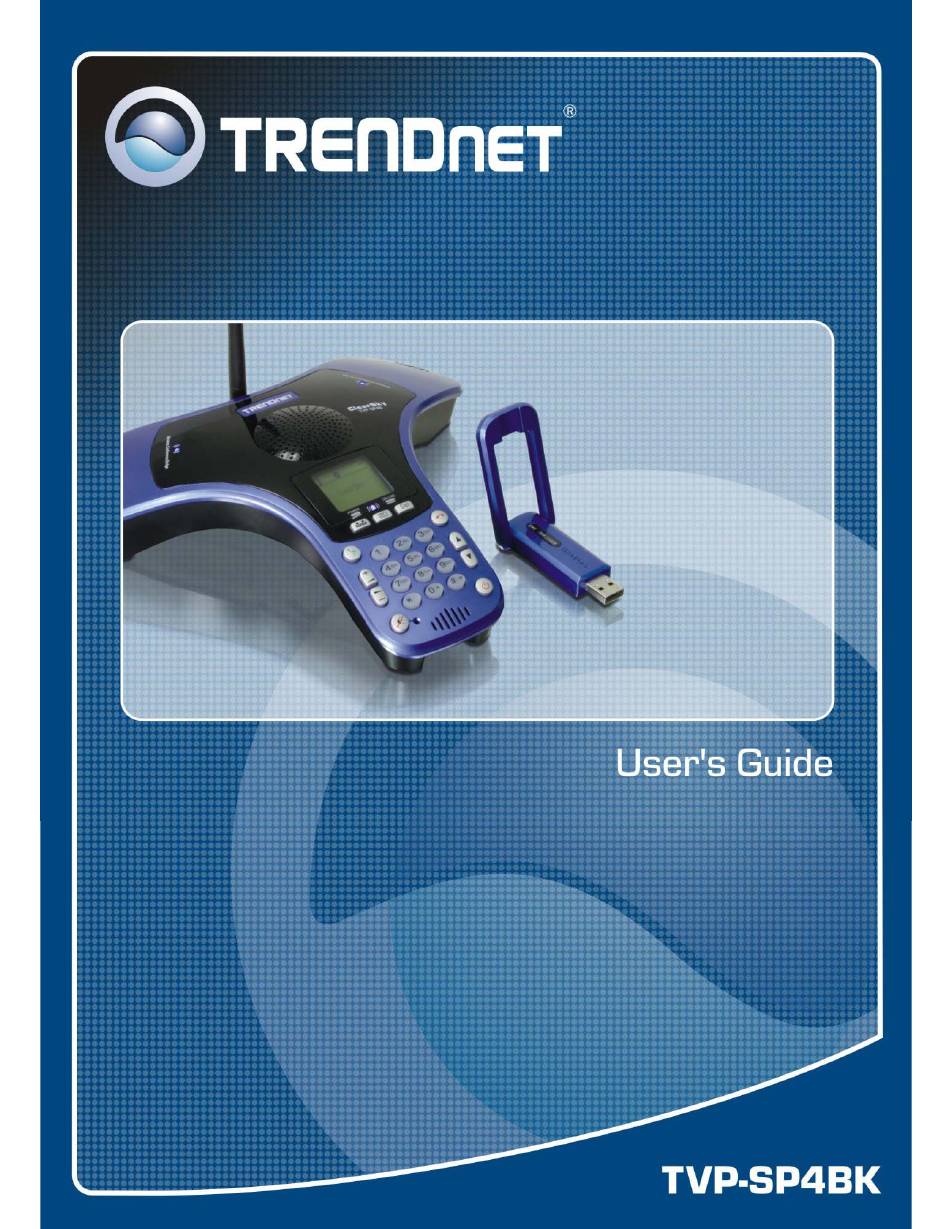

TRENDnet TVP-SP4BK User Manual
Hide thumbs
Also See for TVP-SP4BK:
- User manual (19 pages) ,
- Quick installation manual (13 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TRENDnet TVP-SP4BK
Summary of Contents for TRENDnet TVP-SP4BK
-
Page 2: Table Of Contents
Table Contents Introduction....................... 3 Getting to know the Telephone Kit................3 Packing Contents ........................3 Identifying Components....................... 3 Getting Started ......................5 Minimum System Requirements ....................5 Setting up the conference kit....................... 5 Software / Driver Installation......................5 Appliactions Installed........................7 Exploring the Telephone Kit Display............... -
Page 3: Introduction
Introduction Welcome to the Bluetooth Conference Bridge manual. In this manual, you will learn how to use this Conference Phone Kit to do all popular Skype standard functions, such as Conference call, Contacts, History, SkypeOut, SkypeIn, etc. This Conference Phone kit enables you to make and receive Skype calls anywhere, without being in front of the PC. - Page 4 TVP-SP4B MIC3 LED Antenna MIC 3 MIC2 LED Speakerphone MIC 2 Bluetooth LED MIC1 LED LCD: 128 x 80 Power LED miniUSB Connector Mute LED MIC1 Sync Skype Contacts Menu Select Concall Participants Function Key Make a call, Answer a call, Redial last call, Hold a call End a call, Back to...
-
Page 5: Getting Started
Getting Started Minimum System Requirements PC running Windows XP, 2000 Skype software installed At least 400 MHz processor At least 128 MB RAM At least 50MB free disk space on your hard drive CD-ROM drive Setting up the Conference Phone kit 1. - Page 6 5. Please click Install. 6. Please click Finish. 7. Please click Yes to 8. Please select begin Bluetooth Language from adapter the drop down installation. menu and then click OK. 10. Please select I accept the terms in the license 9.
-
Page 7: Appliactions Installed
Bluetooth Phone Utility. 22. Select Allow the program to use Skype and then click OK. Appliactions Installed After you finish above installations, “IVT BlueSoleil” and “TRENDnet TVP-SP4B” items will be added to Windows Start Menu Programs group. - Page 8 TRENDnet TVP-SP4B Phone Utility Phone Utility icon ( ) in system tray can display phone utility version and has some options by right-clicking the icon. 1. Pair BT Phone This utility help you pair Clearsky Bluetooth Phone with USB bluetooth adapter.
-
Page 9: Exploring The Telephone Kit Display
Exploring the Conference Kit Display Display Icons Volume Operation Battery Status Skype Status Ringtone off Signal Strength Icons Description Operation Indicate which operation your phone is doing. Main page Sync Skype contact lists Configuration Menu Incoming or Outgoing calls connected Incoming call ringing Skype Status Skype Me... -
Page 10: Main Page
Main page Press to go to main page. 4 possible cases on main page: 1. Bluetooth is disconnected: LCD shows “ClearSky”, Signal strength icon is disconnected 2. Bluetooth is connected but skype is not signed in: LCD shows “ClearSky / Skype Unavailable”, Signal strength icon shows levels of signal strength 3. -
Page 11: Configuration Menu
Configuration Menu Press to enter configuration menu Menu Submenus Descriptions Missed Display Missed call lists History Incoming Display Incoming call lists Outgoing Display Outgoing call lists Change my status. Status options: “Skypeme”, “Online”, “Away”, “Not Status Available”, “Do Not Disturb”, “Invisible”, “Offline” Pairing Let Bluetooth Phone enter Pairing Mode Skype Credit... -
Page 12: Guide To Basic Functions
Guide to Basic Functions Call Skype™ contact 1. Press 3 sec. Wait until phone shows “ClearSky” and signal strength is connected press to sync contact lists with PC skype 2. Use List button to scroll up/down the contact lists 3. Press to start a call. -
Page 13: Redial Outgoing Calls
B. invite contacts and conference them together 1. Press to go to the contact list menu. 2. Press to mark the contact you want to include in this conference call. (Conference participants (max 4+host) 3. Press to start this conference call Redial outgoing calls 1. -
Page 14: Appendix
Appendix Specifications Class 1 Bluetooth v2.0 with EDR RF Standard Backward compatible with Bluetooth v1.1 & v1.2 RF Frequency 2.4~2.4835 GHz, ISM band Spread Spectrum Frequency Hopping and Adaptive Frequency Hopping RF Output Power Up to 17 dBm (TBD) 128 x 80 pixel, graphical type STN LCD with backlight Display Mini-USB connector for charging from computer USB port or Interface... - Page 15 Off-hook, Make a call, Answer a call Redial last calls Mute Microphone Power on / off Bridge: 242 x 242 x 54 mm (9.5 x 9.5 x 2.1 in.) Dimension Adapter: 71.25 x 35.6 x 11.25 mm (2.8 x 1.4 x 0.44 in.) Environmental Operating Temperature: 0 ~50°...
-
Page 16: Troubleshooting
Troubleshooting Problem: Press “Power on” button, but nothing happen, no display Solution: 1. Make sure the included rechargeable battery is fitted in the handset correctly. 2. Please press “Power on” button for about 3 sec. until you see an icons. Problem: Pop up a Bluetooth Security window Solution: 1. - Page 17 Problem: Another ringer during my conversation Solution: This means another incoming call is waiting for your response. You can answer this call and hold current one by pressing “off-hook” or reject this incoming call by pressing “on-hook” Question: What’s the time period before the phone goes into standby mode? Answer: 3 minutes Problem: One warning sound made by Bluetooth phone Solution: This might be “low battery warning”...
- Page 18 TRENDware warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of time from the date of purchase. TVP-SP4BK – 2 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
- Page 19 LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDWARE ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE...
