Let's go green; Let's win together
SWS Series
Wind&Solar Hybrid Controller
User Manual
SP
Model
300W 12V WWS03-12
400W 12V WWS04-12
600W 24V WWS06-24
i
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Win Power SWS Series

Summary of Contents for Win Power SWS Series

  • Page 1 Let’s go green; Let’s win together SWS Series Wind&Solar Hybrid Controller User Manual Model 300W 12V WWS03-12 400W 12V WWS04-12 600W 24V WWS06-24 V1.0...

  • Page 2: Table Of Contents

    Let’s go green; Let’s win together CONTENTS 1. Important Safety Warning......................１ 2. Basic I Information........................１ 2.1 Introduction and Features......................１ 2.2 Product Structure........................２ 3. Product Installation........................３ 3.1 Installation Notes........................３ 3.2 Installation and Wiring......................３ 3.2.1 Installation Steps........................３ 3.2.2 Electrical Connection......................４ 4.

  • Page 3: Important Safety Warning

    Before Using the controller, please read all instructions and cautionary markings on the unit and this manual. Store the manual where it can easily be accessed. This manual includes all safety warnings, installation, and operation guidance of SWS series wind&solar hybrid controllers.

  • Page 4: Product Structure

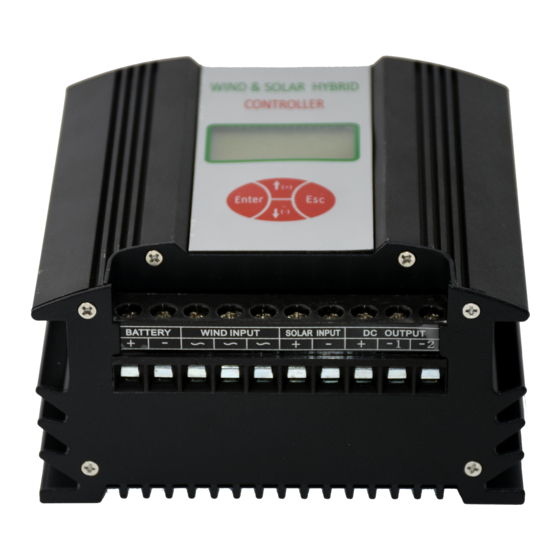

    Let’s go green; Let’s win together Features:  Wind&Solar hybrid controller in high quality.  LCD Display. Easy setup.  Complete protection functions.  RS232/RS485/RJ45/GPRS/ WiFi /Bluetooth Optional (For those with GPRS/WiFi/Bluetooth/RJ45 can also be monitored though App.) 2.2 Product Structure Chart1.

  • Page 5: Product Installation

    Let’s go green; Let’s win together Battery terminal Load terminal ① ④ Wind turbine terminal Button ② ⑤ PV panel terminal LCD display ③ ⑥ 3. Product Installation 3.1 Installation Notes 1) The machine should be kept indoors and well ventilated; 2) Environment temperature: -20～+40℃;...

  • Page 6: Electrical Connection

    Let’s go green; Let’s win together Chart 2: Installation Steps 3.2.2 Electrical Connection Chart 3: System Overview V1.0 ４...

  • Page 7: Operation Interface Introduction

    Let’s go green; Let’s win together Please connect those parts according to the order of ①-④, and notice the following items. 1) Connect the load positive and negative terminal to the “DC OUTPUT” terminals as“+”“-1”“-2”relatively. 2 output loads share the same “+” terminal. 2) Connect the battery bank to the controller by the terminal which marks “BATTERY”.
  • Page 8 Let’s go green; Let’s win together Interface Interface Display interface Display interface Introduction Introduction Battery Voltage Wind turbine voltage Light control off voltage PV voltage Light control on Wind turbine voltage power Load 2 Control off PV Power time Load 1 Control off Wind turbine time current...

  • Page 9: Lcd Information Define

    Let’s go green; Let’s win together 4.2 LCD Information Define Name Icon Status Rotate means wind turbine works normally Wind Turbine Brake by hand. Press “Esc” and “Enter” at the same time, cancel brake status or enter brake status. Night or PV is not connected Charging Fully charged.

  • Page 10: Load Output Modes

    Let’s go green; Let’s win together Set/confirm: Enter setting status when it’s pressed on browsing status. Save data and back to browsing status when it’s pressed on setting status. Page down/Reduce Show next parameter when it’s pressed on browsing status. Change to next value of the parameter or reduce the value of the paremeter when it’s pressed on setting status.

  • Page 11: Parameters Setting

    Let’s go green; Let’s win together light control off / on Keep on ① ⑤ Light control on, Keep off ② ⑥ time control off Light control on/off, and time ③ control half power. Keep half power ⑦ Light control on, and time ④...

  • Page 12: Trouble Shooting

    Let’s go green; Let’s win together Load light control on, time Press “Enter” on the load 1/2 output control off interface to enter the setting interface. Press “Enter” on the light control on Night voltage point interface to enter the setting interface. Press “Enter”...

  • Page 13: Technical Parameters

    Let’s go green; Let’s win together reached the charging voltage, reasonable. Wait the wind turbine recover if it brakes automatically. Wind turbine is in “Brake” status Press “Enter” and “Esc” at the same time to release the brake status if it brakes by hand.
  • Page 14 Let’s go green; Let’s win together Press button “Enter” “Esc” at the same time to unload completely. Then Brake by hand recover by hand. 25A（factory 34A（factory 25A（factory default,0~25A settable） default,0~34A settable） default,0~25A settable） Unload completely Unload completely Unload completely Brake by over current when reached the set when reached the set when reached the set...
  • Page 15 Let’s go green; Let’s win together control on and time control off. Output voltage range 10.8V~16V 21.6V~32V Rated output current 10A/each loop Overload protection 120% rated DC output -1min,150% rated DC output -10s Short circuit protection 200% rated DC output, instant protection General Parameters Rectifier mode Uncontrolled rectifier...

  • Page 16: Warranty

    Let’s go green; Let’s win together 7. Warranty The product shall be in warranty for one year from production. Please take contract as the final one if it has special terms on warranty. V1.0 １４...
