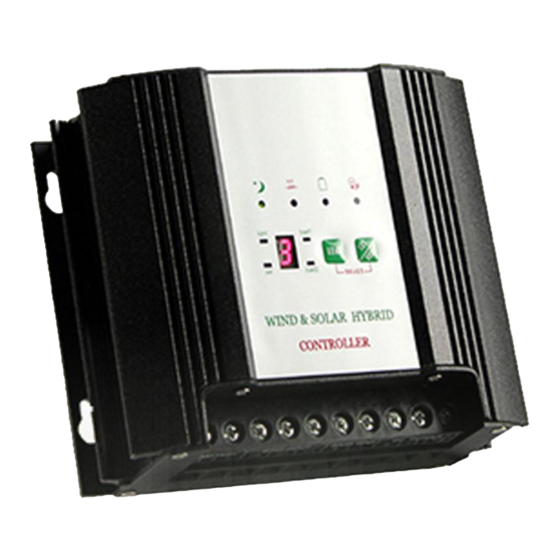

- Page 1 Let’s go green; Let’s win together SWSB Series Economical wind&solar hybrid controller User Manual Model 200W 12V WWS02-12B 400W 24V WWS04-24B 600W 24V WWS06-24B V1.0...
-
Page 2: Table Of Contents
Let’s go green; Let’s win together CONTENTS 1. Important Safety Warning......................１ 2. Basic I Information........................２ 2.1 Introduction and Features......................２ 2.2 Product Structure........................３ 3. Product Installation........................４ 3.1 Installation Notes........................４ 3.2 Installation and Wiring......................５ 3.2.1 Installation Steps......................５ 3.2.2 Electrical Connection....................... ６ 4. -
Page 3: Important Safety Warning
Before Using the controller, please read all instructions and cautionary markings on the unit and this manual. Store the manual where it can easily be accessed. This manual includes all safety warnings, installation, and operation guidance of SWSB series wind&solar hybrid controllers. -
Page 4: Basic I Information
Let’s go green; Let’s win together 2. Basic I Information 2.1 Introduction and Features SWSB series is a kind of economical wind&solar hybrid controller. Features Apply for independent wind &solar hybrid system, lighting system and monitoring system. LED Display ... -
Page 5: Product Structure
Let’s go green; Let’s win together 2.2 Product Structure Chart1. Product Overview ① ④ Battery terminal Load terminal ② ⑤ Wind turbine terminal Button ③ ⑥ PV panel terminal LED Display V1.0 ３... -
Page 6: Product Installation
Let’s go green; Let’s win together 3. Product Installation 3.1 Installation Notes 1) The machine should be kept indoors and well ventilated; 2) Environment temperature: -20～+40℃; Humidity: <=95%，no condensing 3) Altitude should not be more than 40000m。 （when the altitude is more than 1000m, the machine should be used according to the GB/T3859.2 regulations）... -
Page 7: Installation And Wiring
Let’s go green; Let’s win together 3.2 Installation and Wiring 3.2.1 Installation Steps Please refer to the specific installation situation. Generally speaking, if it is used in street light pole, you can fix the controller to the rail inside the light pole. If it is installed in the power box, the power box is drilled according to the hole size, and the controller is fixed with M4 screw. -
Page 8: Electrical Connection
Let’s go green; Let’s win together 3.2.2 Electrical Connection Chart 3: System Overview Please connect those parts according to the order of ①-④, and notice the following items. 1) Connect the load positive and negative terminal to the “DC OUTPUT” terminals as“+”“-1”“-2”relatively. -
Page 9: Operation Interface Introduction
Let’s go green; Let’s win together Check all the connection to make sure they are connected rightly and tightly. 4. Operation Interface Introduction 4.1 LED Display After the power is connected, the whole screen is in a browsing status. It shows battery voltage, and can be changed to the following information by press related buttons. -
Page 10: Load Output Modes
Let’s go green; Let’s win together Set icon Indicator light is on means it is at the setting status. Indicator light is off means it is at the browsing stauts. Light control icon Indicator light is on means it is on the light control voltage interface. -
Page 11: Parameters Setting
Let’s go green; Let’s win together ① light control off / on Keep on ⑤ Light control on, Keep off ② ⑥ time control off Light control on, time control ③ half power, light control off. Keep half power ⑦ Light control on, time control ④... - Page 12 Let’s go green; Let’s win together 1. Press “READ” to enter Load1 or Load2 interface, and “Load1”or “Load2” indicator light will be on relatively. 2. Press “SET/RESET”, and “set” indicator light will be on. Load light control on/off 3. Press “READ”, and the value will add one relatively every time, until the LED display shows “L”.
-
Page 13: Trouble Shooting
Let’s go green; Let’s win together The value showed on LED display will increase one (until add to “5”) once the “0”means the battery controller voltage increases 1V (0.5V voltage is lower than for 12V controller). 11V(12V system) or ... - Page 14 Let’s go green; Let’s win together The PV is connected negatively to the Reconnect the cable. controller. PV output voltage is not in accordance Check the PV output and the system with the system voltage. parameters. Check if the load connection is normal.
-
Page 15: Technical Parameters
Let’s go green; Let’s win together 6. Technical Parameters Model WWS02-12B WWS04-24B WWS06-24B Wind Turbine Input Rated input 200W 400W 600W power Rated input 14Vdc 28Vdc 28Vdc voltage Input voltage 0~16Vdc 0~32Vdc 0~32Vdc range Rated input 17Adc 17Adc 25Adc current Press button “READ”... - Page 16 Let’s go green; Let’s win together connection protection Charge Parameters Rated battery voltage Temperature compensation -3mV/℃/2V function(optional Output Parameters Rated output voltage Output 14.5V (factory default， 29V (factory default，22Vdc~32Vdc settable） overvoltage point 11Vdc~16Vdc settable） Output overvoltage 13.2V (factory default) 26.4V (factory default) recovery point Max.
- Page 17 Let’s go green; Let’s win together Short circuit 200% rated DC output, instant protection protection General Parameters Rectifier mode Uncontrolled rectifier Display mode Display Battery voltage, light control voltage, 1 loop output mode, 2 loop output mode. information Brake guidance. Lightning protection Conversion...
-
Page 18: Warranty
Let’s go green; Let’s win together 7. Warranty The product shall be in warranty for one year from production. Please take contract as the final one if it has special terms on warranty. V1.0 １６...
