Summary of Contents for barkman Bitsbox

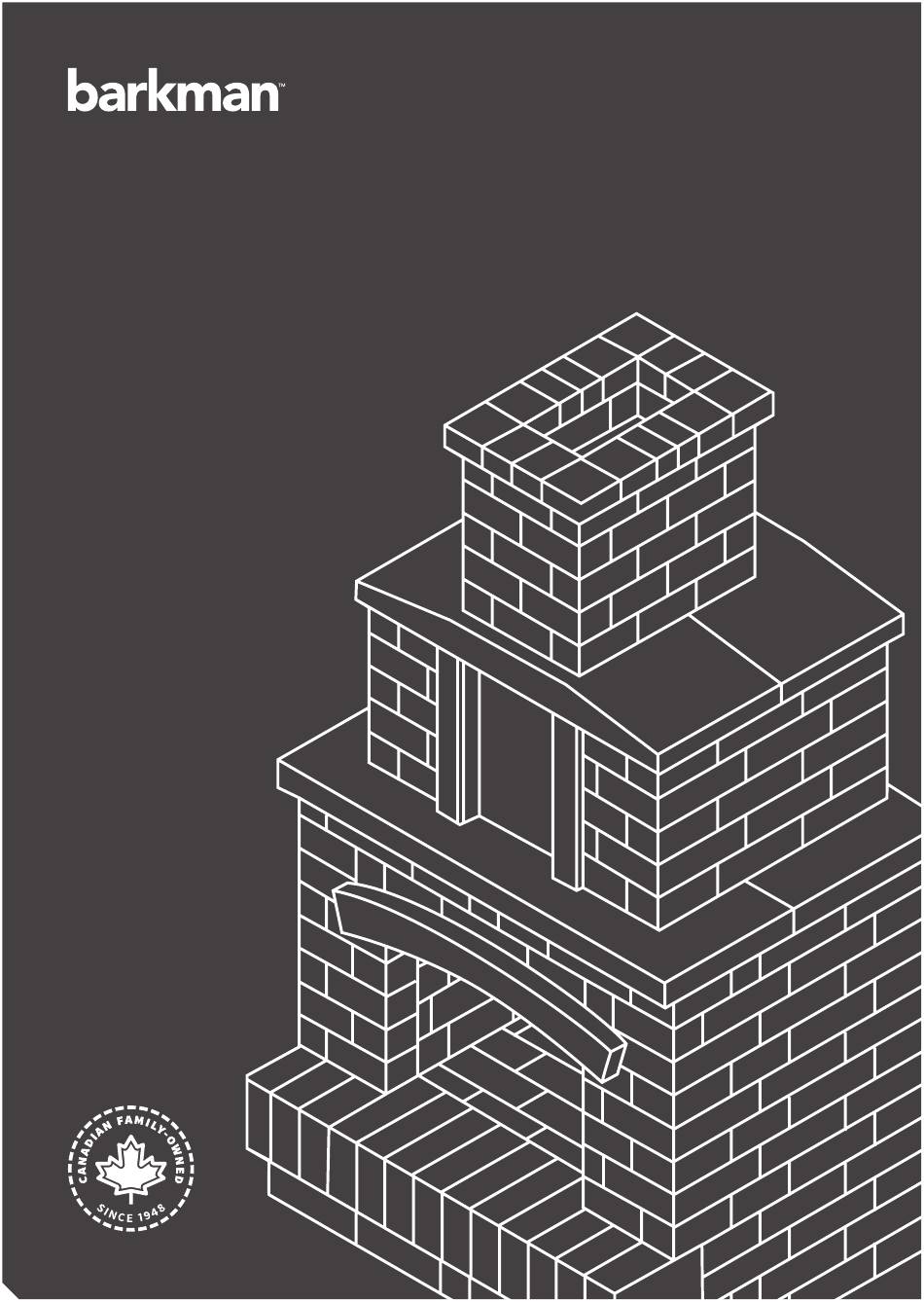

- Page 1 Barkman Landscape Kits Quarry Stone Fireplace...
-
Page 2: Installation And Use
Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. Barkman Concrete Ltd. is not liable for any property damage or bodily injury caused by failure to follow the installation instructions, improper use of the product or any negligence or carelessness of the consumer. -
Page 3: Fire Warning
4. DO NOT use charcoal, pressure treated lumber, chipped wood products, sappy wood (such as pine), laminated wood, or any material other than dry medium or hard natural firewood. 5. DO NOT use liquid fuel (firelighter fluid, gasoline, kerosene or similar liquids) to start or maintain a fire. PROXIMITY TO BUILDINGS AND OTHER COMBUSTIBLE MATERIALS 1. -
Page 4: Materials Included
Materials This kit measures 52"W x 40"D x 97.375"H. MATERIALS INCLUDED: • 12 x 4 in Quarry Stone – 2 pieces • 12 x 3.5 in Quarry Stone – 1 pieces • 8 x 12 in Quarry Stone – 149 pieces 12 x 4 12 x 3.5 8 x 12... - Page 5 Instructions On your prepared level base, lay out the first layer of the fireplace base as indicated in the diagram. USE: 8" x 12" (21) 8 x 12 blocks (2) 4 x 8 blocks 4" x 8" IMPORTANT: Periodic checks must be made to ensure that the layers remain level.
- Page 6 Lay out the accent band as shown in the diagram. Glue the accent band in place where it contacts the Quarry Stone behind and below using the included landscape glue. USE: (13) 8 x 12 Accent Stone 8" x 12" Lay out the fourth layer of the wood box surround as shown in the diagram...
- Page 7 8" x 12" Lay out the first layer of the wall 4" x 4" surround as indicated in the diagram. Glue this layer down using the included landscape glue. USE: 8" x 4" (6) 8 x 12 blocks (2) 8 x 8 blocks 4"...
- Page 8 2.5" x 9" x 4.5" Place the second row of Fire Brick as indicated. Using a rubber mallet, tap the Quarry Stone to tightly fit against Fire Brick. 2.5" x 3.5" x 4.5" USE: (8) 2.5 x 9 x 4.5 Fire Bricks (2) 2.5 x 3.5 x 4.5 Fire Bricks Repeat patterns from steps 7-10 to a height of 5 layers.
- Page 9 Place the Arch into the seventh layer as indicated in the diagram. Glue the Arch down where it contacts the Quarry Stone below using the included landscape glue. USE: (1) Arch IMPORTANT: Be sure to hold the arch in place until the next layer of quarry stone is set atop of it.
- Page 10 8" x 12" Lay out the eighth layer of the wall surround as indicated in the diagram. Glue this layer down using the 4" x 8" included landscape glue. 4" x 4" 12" x 4" USE: (7) 8 x 12 blocks (6) 4 x 8 blocks (3) 4 x 4 blocks (2) 12 x 4 blocks...
- Page 11 Match distance from back edge with Quarry Stone beneath the mantle. 8" x 12" Centre the recess panel on the 8" x 8" mantle and lay out the first layer of the wall surround. Quarry stone sits in recess panel notch in all 5 layers. Glue this layer down using the included landscape glue, except for 4"...
- Page 12 Spark Arrestor Roof Pieces Place the spark arrestor at the top of the fireplace setup as shown. Carefully place both front and back pieces of the roof on the wall surround, ensuring that the opening for the chimney is facing the front and aligned with the opening below it.
- Page 13 Repeat steps 23 and 24 to a height of five layers above the roof, checking that the layers remain level. Glue the fifth layer down with landscape glue. USE: (24) 4 x 8 blocks Install the two-piece Fireplace Cap as indicated in the diagram. Adjust the cap as needed to ensure that it is centred with a 1 3/8”...
-
Page 14: After Installation
AFTER INSTALLATION CURING INSTRUCTIONS Upon installation of your new fireplace, there are still small amounts of moisture needing to work their way out of the fireplace. If you immediately begin to build large fires in your fireplace, you will compromise your fireplace longevity and can ultimately cause damage, including cracking. -
Page 15: Maintenance Instructions
MAINTENANCE INSTRUCTIONS 1. Make sure that your fireplace is completely cool before inspecting and cleaning it. If fire previously made was a large one, probe through the ashes with a poker or fireplace shovel. Slowly shovel the ashes into a metal container with a tight-fitting lid. This container should be stored on a non-combustible surface, away from fire hazards. - Page 16 T 1 800 342 2879 KELOWNA DISTRIBUTION CENTER 1904 Old Okanagan Highway, Westbank, BC V4T 1T8 T 1 204 346 9490 SURREY DISTRIBUTION CENTER 8157 132nd Street, Surrey, BC V3W 4N5 T 1 204 346 9490 barkman concrete limited BarkmanConcrete.com...
