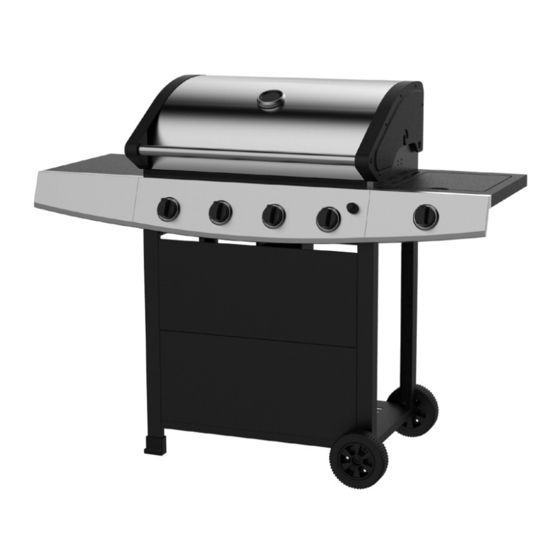

- Page 1 LIVE THE BRAAI LIFE COMMANDER 3 & 4 MODEL No: 1195-31 & 1195-43 MODEL 1195-31 MODEL 1195-43 1002-161/1-RSA-17-A ASSEMBLY INSTRUCTIONS NOTE! PRODUCT MAY VARY FROM ILLUSTRATIONS 503-0758 LEV3...
-
Page 3: Box Contents
BOX CONTENTS 1195-43 1195-43 1195-31 BOTTOM PANEL DRIP TRAY BRACKET 1195-43 1195-31 1195-31 WHEEL AXEL BOTTOM PANEL 1195-43 1195-43 1195-31 1195-31 LEFT LEG WHEEL 1195-43 1195-43 1195-31 BURNER BOX RIGHT LEG 1195-43 1195-31 BURNER BOX FRONT PANEL 1195-43 1195-31 1195-31 LEFT TABLE FRONT PANEL 1195-43... - Page 4 1195-43 1195-43 1195-31 CONTROL KNOB WARMING RACK 1195-43 1195-31 WARMING RACK SIDE BURNER 1195-43 1195-43 DRIP TRAY SB BRACKET 1195-43 1195-31 SB POT STAND DRIP TRAY 1195-43 1195-31 1195-31 GRID DRIP CUP HARDWARE 1195-43 & M6 NUT AXEL WASHER AXEL MAT SMALL SPANNER 1195-31 QTY: 1...
- Page 5 Step 1 Start by fastening the legs (Items 3 & 4) to the bottom panel (Item 1 for 1195-43 and Item 2 for • 1195-31) using x2 M6x12 screws and M6 lock washers (Item B) as shown below. 1195-43 1195-31...
- Page 6 Step 2 Insert x8 M6x12 screws with M6 lock washers (Item B) into the pre drilled holes in the lower and • upper part of the left and right front legs. Do not tighten screws. Line up the slots in the front panel (Item 5 for 1195-43 and Item 6 for 1195-31) with the screws.
- Page 8 Step 4 Fasten the left and right drip tray brackets (Item 9 & 10) to the left legs and right legs using x4 • M4x8 screws (Item C) Step 5 Slot the burner box (Item 13 for 1195-43 and Item 14 for 1195-31) onto the trolley and fasten •...
- Page 9 Model 1195-31 Step 6 Line up the holes to fasten the left side table (Item 15) with the pre-installed screws (x6) on the • left side of the burner box. Slide the left side table into place over the screws and then tighten the screws to secure the side table.
- Page 10 Step 7 Line up the holes to fasten the right side table (Item 17) for model 1195-31 and the right side • burner table (Item 16) for model 1195-43) with the pre-installed screws (x6) on the right side of the burner box.
- Page 11 Fasten control knob base (Item 18) to the side • burner table using x2 M4x8 screws (Item C). Install and fasten the side burner (Item 20) into the side burner • table using x2 M4x8 screws (Item C) as shown. Connect the piezo ignition cabel to the piezo ignition unit.
- Page 12 Fasten the side burner bracket (Item 21) to the side burner table using x2 M4x8 screws (Item C) as shown. Place the pot stand in the side burner table.
- Page 13 Step 8 Place 4 flame tamers (Item 7) for model 1195-43 and 3 flame tamer (Item 7) for model 1195-31. • Model 1195-43 Model 1195-31...
- Page 14 Step 9 Place the grids (Item 8 for model 1195-43 and Item 22 for model 1195-31) into the burner box as • shown. Model 1195-43 Model 1195-31...
- Page 15 Step 10 Place the warming rack (Item 24 for model 1195-43 and Item 25 for model 1195-31) into the • burner box as shown. Model 1195-43 Model 1195-31 Unscrew the piezo ignition button to insert a battery in order to power the ignitors that light the burners once the button is pushed...
- Page 16 Step 11 Insert the drip tray (Item 26 for model 1195-43 and Item 27 for model 1195-31) into the back of the • burner box and then place the drip cup (Item 28) into the space provided underneath the drip tray. Model 1195-43 Model 1195-31 Your product is now ready for use.
