ETNA T106VRVS Concise Manual

CONCISE MANUAL
Description
1. standard burner
2. rapid burner
3. simmer burner
4. pan support
5. drip tray
6. control knob
Operation
1 Ignition and adjustment
1. 0 position
2. zone indicator
4
2
3. Low setting
4. High setting
3
Each burner is fully adjustable between high and low settings.
Burners with electric ignition:
• Press the control knob and turn it anticlockwise.
• Keep the control knob fully depressed between high and low settings for at least 3 seconds.
Use
Pans
• Always ensure that the flames remain under the pan. A lot of energy is lost when flames burn around
• Do not use pans with a base diameter smaller than 12 cm.
The recommended pan base diameters are:
error
• rapid burner:
• standard burner:
• simmer burner:
Pan support
• Set the pan supports down vertically, without sliding them over the drip tray.
good
Burners
Put the parts of the burner in the correct order so they fit together properly.
1. Burner cover
2. Burner base
3. Thermocouple
4. Spark plug
1 1
2 3
The burner will ignite.
The thermocouple safety pilot has been activated. The burner will go out if the control knob is
released too quickly. If the burner goes out, the gas supply is automatically cut off.
the outside of the pan. The handles will also become too hot.
Smaller pans are not stable.
at least 24 cm.
at least 20 cm.
at least 12 cm.
Moving the pan supports across the drip tray may cause scratches.
5
6
4

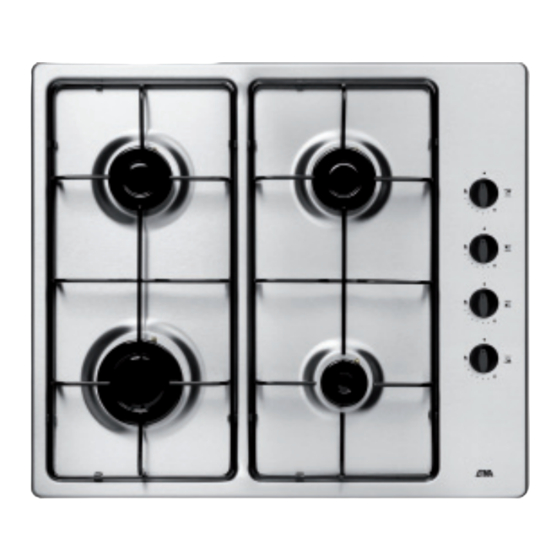

GAS HOB T106VRVS
