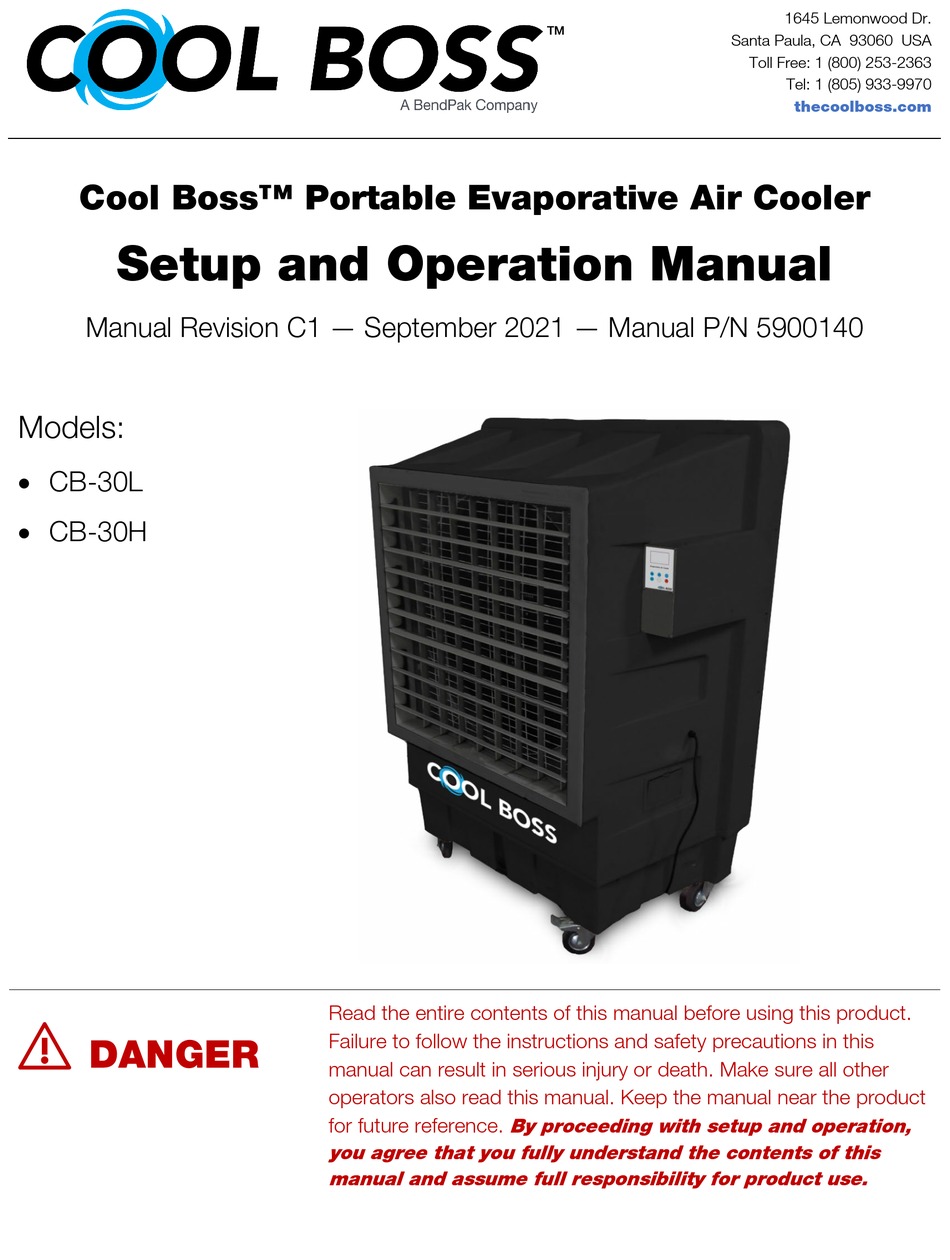

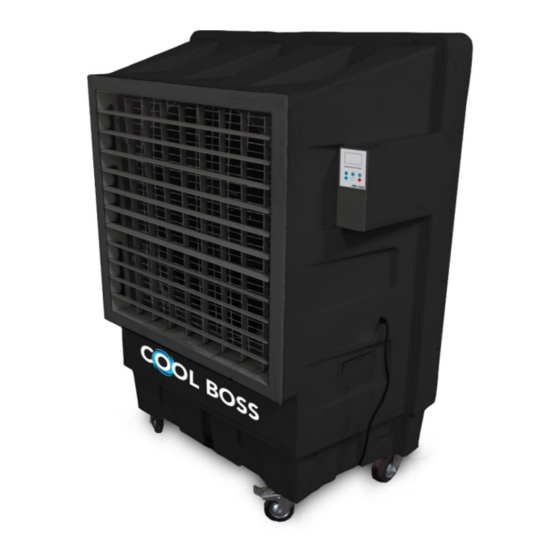

Cool Boss™ Portable Evaporative Air Cooler
Setup and Operation Manual
Manual Revision C1 — September 2021 — Manual P/N 5900140
Models:
• CB-30L
• CB-30H
⚠
DANGER
Read the entire contents of this manual before using this product.
Failure to follow the instructions and safety precautions in this
manual can result in serious injury or death. Make sure all other
operators also read this manual. Keep the manual near the product
for future reference. By proceeding with setup and operation,
you agree that you fully understand the contents of this
manual and assume full responsibility for product use.
1645 Lemonwood Dr.
Santa Paula, CA 93060 USA
Toll Free: 1 (800) 253-2363
Tel: 1 (805) 933-9970
thecoolboss.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BendPak Cool Boss CB-30L
Summary of Contents for BendPak Cool Boss CB-30L
- Page 1 1645 Lemonwood Dr. Santa Paula, CA 93060 USA Toll Free: 1 (800) 253-2363 Tel: 1 (805) 933-9970 thecoolboss.com Cool Boss™ Portable Evaporative Air Cooler Setup and Operation Manual Manual Revision C1 — September 2021 — Manual P/N 5900140 Models: • CB-30L •...
- Page 2 Manual. Cool Boss Portable Evaporative Air Cooler, Installation and Operation Manual, P/N 5900140, Manual Revision C1, September 2021. Copyright. Copyright © 2021 by BendPak Inc. All rights reserved. No part of this manual can be reproduced, adapted, translated, or transmitted by any means, electronic or mechanical, for any purpose or in any form, without prior written permission of BendPak Inc.
-
Page 3: Table Of Contents
Table of Contents Introduction Operation Shipping Information Maintenance Safety Considerations Troubleshooting FAQ’s Wiring Diagram Specifications Labels Components Replacement Parts Setup Introduction This manual describes the CB-30 Cool Boss Portable Evaporative Air Cooler, which keeps your shop or workplace cool and comfortable on even the hottest summer days. The CB-30 comes in two models: CB-30L: 115 VAC power unit •... -
Page 4: Safety Considerations
900 chemicals identified by the State of California to cause cancer, birth defects or reproductive harm. Always use this product in accordance with Cool Boss BendPak’s instructions. For more information go to www.p65warnings.ca.gov. - Page 5 Cool Boss at (805) 933-9970, or email Cool Boss at support@thecoolboss.com. • BendPak recommends making a thorough inspection of the product at least once a year. Replace any damaged or severely worn parts, decals, or warning labels. Symbols Following are the symbols used in this manual: ⚠...
-
Page 6: Faq's
Frequently Asked Questions Question: Is the Cool Boss an air conditioner? Answer: No. it is an evaporative air cooler, sometimes called a swamp cooler. The fan pulls in hot outdoor air, a water drip system releases water, the water drops evaporate when they meet the hot air, lowering the air temperature by up to 26°F, and the fan blows the cooled air in the direction you point Q: How big of an area can a Cool Boss cool? A: 2,000 to 2,500 square feet, depending on the layout of the space you are cooling. -
Page 7: Specifications
Specifications Dimensions 44" by 59" by 28.5" (width by height by depth) 1,118 mm by 1,499 mm by 724 mm Weight 115 pounds, 52 kg Fan diameter 30", 762 mm Maximum airflow 10,595 CFM, 18,000 CMH Fan speeds Three: low, medium, and high Fan type Axial Water consumption... -
Page 8: Components
Components System components include the main unit, the control panel, and the remote control. The Main Unit This figure shows the front of the unit. CB-30 Cool Boss Evaporative Air Cooler P/N 5900140 — September 2021 — Rev. C1... - Page 9 This figure shows the inside of the unit, from the back. The Control Panel The following figure shows the Control Panel. CB-30 Cool Boss Evaporative Air Cooler P/N 5900140 — September 2021 — Rev. C1...
-
Page 10: Setup
The Remote The following figure shows the remote that comes with the unit (in the box with the casters). Setup To set up the CB-30: 1. Put on the casters. The casters come in a box with the remote. Two of the casters have brake locks;... -
Page 11: Operation
4. Connect to an appropriate power source. Before connecting this unit to a power source, first verify the voltage that will be required by studying the model nameplate affixed to your machine (110 VAC, 60Hz, 1Ph, 15A or 208-230 VAC, 60Hz, 1 Ph, 15A). If your Cool Boss is equipped with a Plug not applicable to your power source, change the Plug as required using only an approved NEMA-rated plug. -
Page 12: Maintenance
⚠ CAUTION Always dry the Cooling Pad after use by turning off the Cooling and running without circulating water; do this approximately 15 minutes before shutting the unit off. This ensures that the Cooling Pad continues to function optimally. Maintenance ⚠... - Page 13 ⚠ WARNING Disconnect the unit from its power source before performing any maintenance. Make sure the unit is locked out from power and cannot be energized while maintenance is being performed. If your organization has Lockout/Tag out policies, make sure to implement them before servicing the Cool Boss. To clean the cooling pad: 1.
-
Page 14: Troubleshooting
Troubleshooting This section describes how to troubleshoot your Cool Boss. All repair work must be performed by qualified personnel. ⚠ Only use factory-supplied parts as replacement parts WARNING . If you use parts from a different source, you void your warranty and compromise the safety of everyone who uses it. -
Page 15: Wiring Diagram
Wiring Diagram ⚠ All electrical work must be performed by a licensed, certified Electrician in DANGER accordance with local and national electrical codes. CB-30 Cool Boss Evaporative Air Cooler P/N 5900140 — September 2021 — Rev. C1... -
Page 16: Labels
Labels CB-30 Cool Boss Evaporative Air Cooler P/N 5900140 — September 2021 — Rev. C1... - Page 17 CB-30 Cool Boss Evaporative Air Cooler P/N 5900140 — September 2021 — Rev. C1...
- Page 18 CB-30 Cool Boss Evaporative Air Cooler P/N 5900140 — September 2021 — Rev. C1...
-
Page 19: Replacement Parts
Replacement Parts Replacement parts available for the CB-30 models include: Part Number Product Description 5150552 CB-30H; Ranger Evaporative Air Cooler – 220V 5150551 CB-30L; Ranger Evaporative Air Cooler – 115V 5900140 Installation and Operation Manual; CB-30H/L Evaporative Air Cooler 5900023 Cool Boss Extended 2-Year Warranty;... - Page 20 1645 Lemonwood Drive Santa Paula, CA 93060 USA © 2021 BendPak Inc. All rights reserved. bendpak.com...
