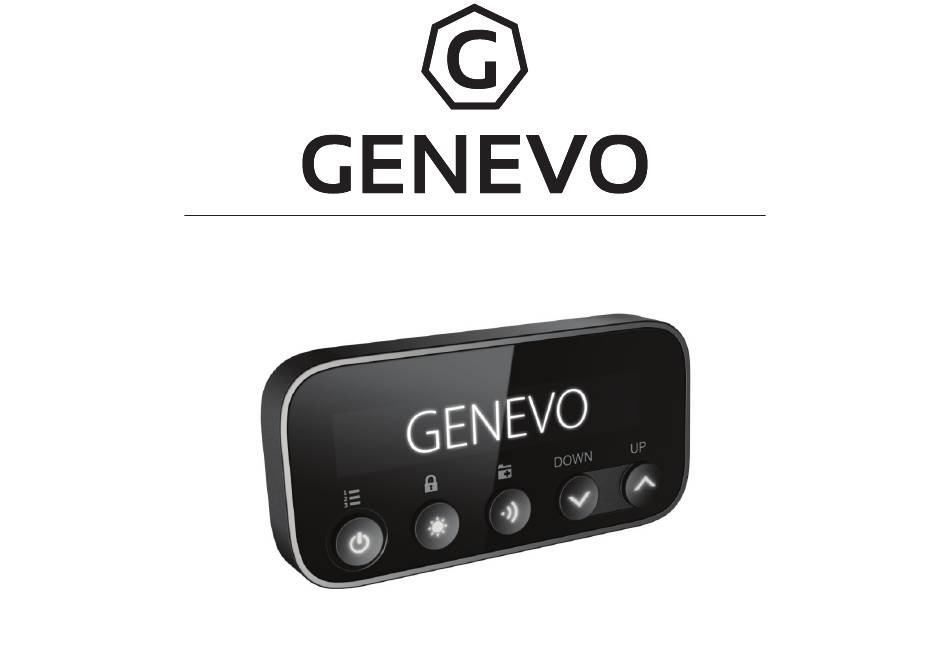

- Page 1 USER + INSTALLATION MANUAL Radar Detector Genevo PRO...
- Page 2 Main functions of Genevo PRO Genevo PRO is the most advanced detector from Genevo family and is designed to protect the driver from speeding fines. Genevo PRO communicates with driver in English language and its main functions are detection of microwave radars (K / Ka bands), red light cameras and sectional speed cameras (using its own GPS database), MultaRadars CT/CD and radar Gatso RT3 and RT4, or jamming laser guns.
- Page 3 Alternatively, you can get out of the menu by pressing the third button . After five seconds of inactivity, the menu will automatically save and quit. Alternatively, you can quit the settings menu by pressing the mid button. GENEVO Radar Detector Genevo PRO...
- Page 4 0-9. For example, when setting is X2 K2 and Ka2 the level of detection in all bands are slightly decreased. The minimum speed for signaling radar: Off, 10 km/h, 20 km/h, 30km/h ... 130 km/h GENEVO Radar Detector Genevo PRO...
- Page 5 F - MR Filter: Low / High / Off - Filtering false alerts from blind spots and ACC. (When MR Filter is activated, detection distance on MR band radars is slightly reduced. We recommend using „Normal“ which is very good in sensitivity/false alerts immunity ratio.) GENEVO Radar Detector Genevo PRO...
- Page 6 In any other country, we recommend to leave the function „Off”. R - MR CD: Wide / Narrow / Off R - Gatso RT3: On / Off R - Gatso RT4: On / Off GENEVO Radar Detector Genevo PRO...
- Page 7 Jammer: ALP / FF / Off - Turns on accessories. Please note, that it is important that you would select the correct type of accessories you have installed in your car, for the PRO will not work as intended if your settings are incorrect.
- Page 8 Delete all user points: For deleting all user points press third button S/N: XXXXX - Displays you Serial Number, that might be needed for you Genevo PRO Update SpeedMeter Option: This function is intended for the legalization of the detector when used in countries where radar detectors are prohibited.
-
Page 9: Operating Frequency
Database update is recommended to check once in three months. Download the new database is performed according to the instructions www.genevoupdate.com while at www.genevo.com/en/updates-subscription you can register and receive notifications of new and updated database to your email. www.genevoupdate.com GENEVO Radar Detector Genevo PRO... - Page 10 Instalation manual Genevo PRO GENEVO Radar Detector Genevo PRO...
- Page 11 Control unit connection scheme Power port Laser module (G - Laser sensors) Radar antenna Additional radar antenna Speaker Display USB port GPS antenna GENEVO PRO control unit GENEVO Radar Detector Genevo PRO 10...
-
Page 12: Gps Antenna
GENEVO PRO might not work properly or be permanently damaged. Also be mindful of placing the control unit so that the speaker on top of it is placed facing in free space. - Page 13 It has the shape of the letter “L” and is made of thick steel plate with pre-drilled holes. Firstly, screw the support plate to the appropriate place, and then attach the antenna to the plate. GENEVO Radar Detector Genevo PRO 12...
- Page 14 NOTE: 1A fuse is placed inside the control box. If you require extra fuse it can be installed on the cables (not necessary). After the laser system control unit is connected to the Genevo PRO hub, connect the sensors into one of the „S” slots. In case you use multiple sensors connect all of the regardless of the order.
- Page 15 If necessary, you can bend the holder into required position. Make sure that the sensor is held firmly and can withstand vibrations caused by cruising and is still in horizontal front/rear facing position. GENEVO Radar Detector Genevo PRO 14...
- Page 16 To ensure proper functionality of all assets of the Genevo PRO detector, we recommend having the device installed in authorized garage. To arrange installation, please contact your dealer. GENEVO Radar Detector Genevo PRO 15...
-
Page 17: Your Dealer
Your Dealer: Manual REV: 2021-06-15 GENEVO Radar Detector Genevo PRO 16...
