Scan for full manual
Step 1: Check what's in the box
102XL 2-Channel Audio Mixer
1 Power supply (12V DC)

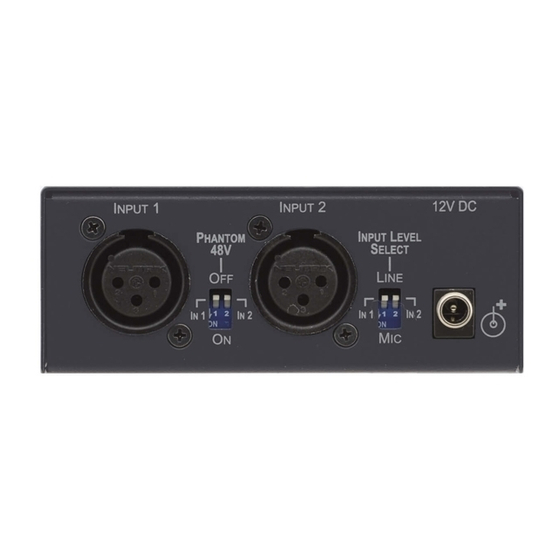

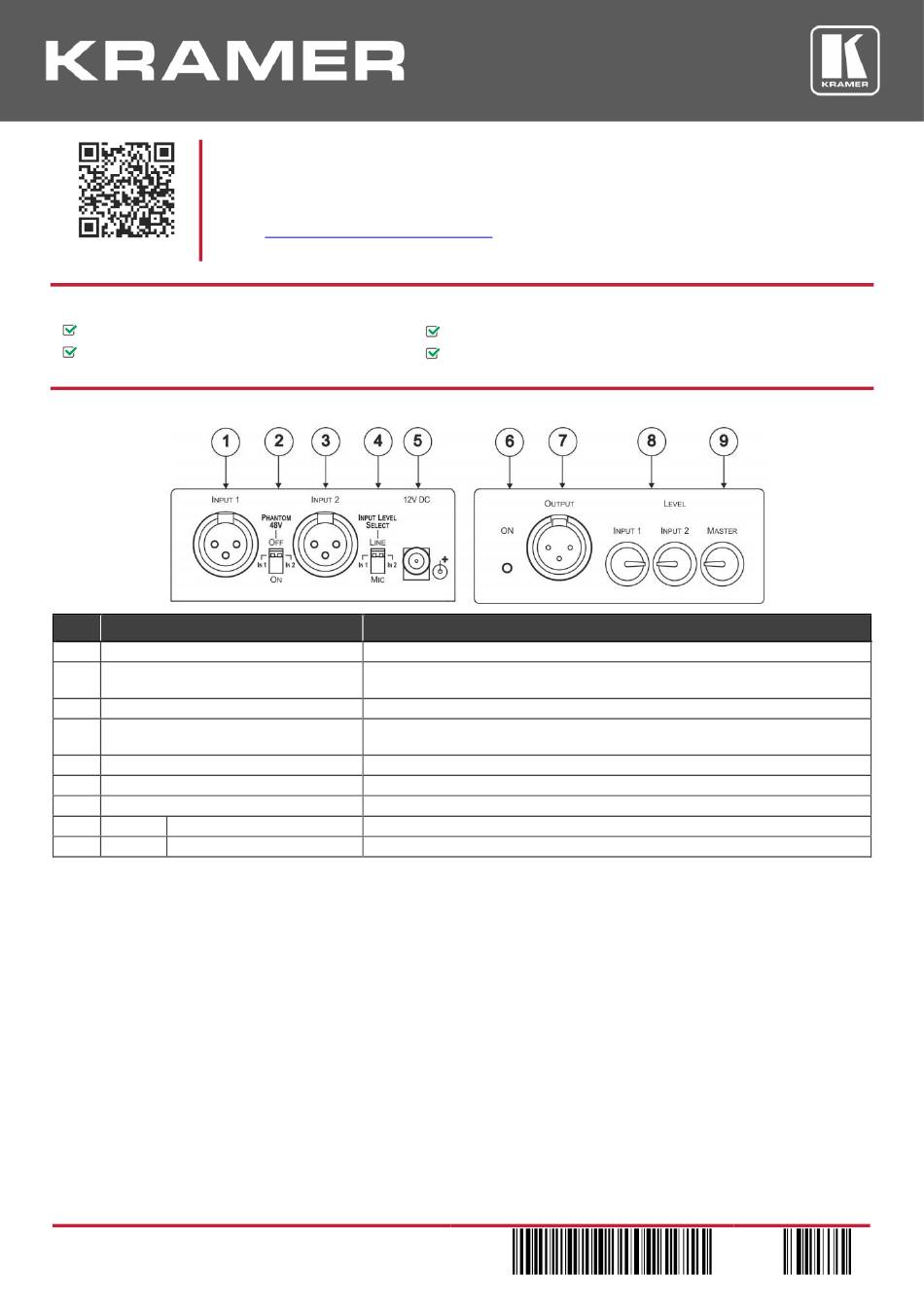

Step 2: Get to know your 102XL
#
Feature
1
INPUT 1 XLR Female Connector
2
PHANTOM 48V (OFF/ON) Switches
3
INPUT 2 XLR Female Connector
4
INPUT LEVEL SELECT (LINE/MIC)
Switches
5
12V DC
6
ON LED
7
OUTPUT XLR Male Connector
8
LEVEL
INPUT Knobs
9
MASTER Knob
102XL Quick Start
102XL Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/102XL
upgrades are available.
Function
Connects to the audio source 1
Move to ON to select a condenser microphone; move to OFF to select dynamic
microphone (1 and 2)
Connects to the audio source 2
Move to MIC to select microphone level input; move to LINE to select line level
input (1 and 2)
+12V DC connector for powering the unit
Lights when the unit is powered
Connects to the audio acceptor
Adjust the input levels of each channel (1 and 2)
Adjusts the combined signals from both inputs mixed to the output
102XL
for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 1 2 8 5 QS
Rev: 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer 102XL
Summary of Contents for Kramer 102XL
- Page 1 Step 1: Check what’s in the box 102XL 2-Channel Audio Mixer 4 Rubber feet 1 Power supply (12V DC) 1 Quick start guide Step 2: Get to know your 102XL Feature Function INPUT 1 XLR Female Connector Connects to the audio source 1 PHANTOM 48V (OFF/ON) Switches Move to ON to select a condenser microphone;...
- Page 2 Always switch OFF the power on each device before connecting it to your 102XL. To connect up to two balanced audio sources to the 102xl 2 Channel Audio Mixer, do the following: Connect a balanced audio source (for example, a condenser microphone) to the INPUT 1 XLR female connector.
