Scan for full manual
Step 1: Check what's in the box
102MX 2 Channel Audio Mixer
1 Power supply (12V DC)

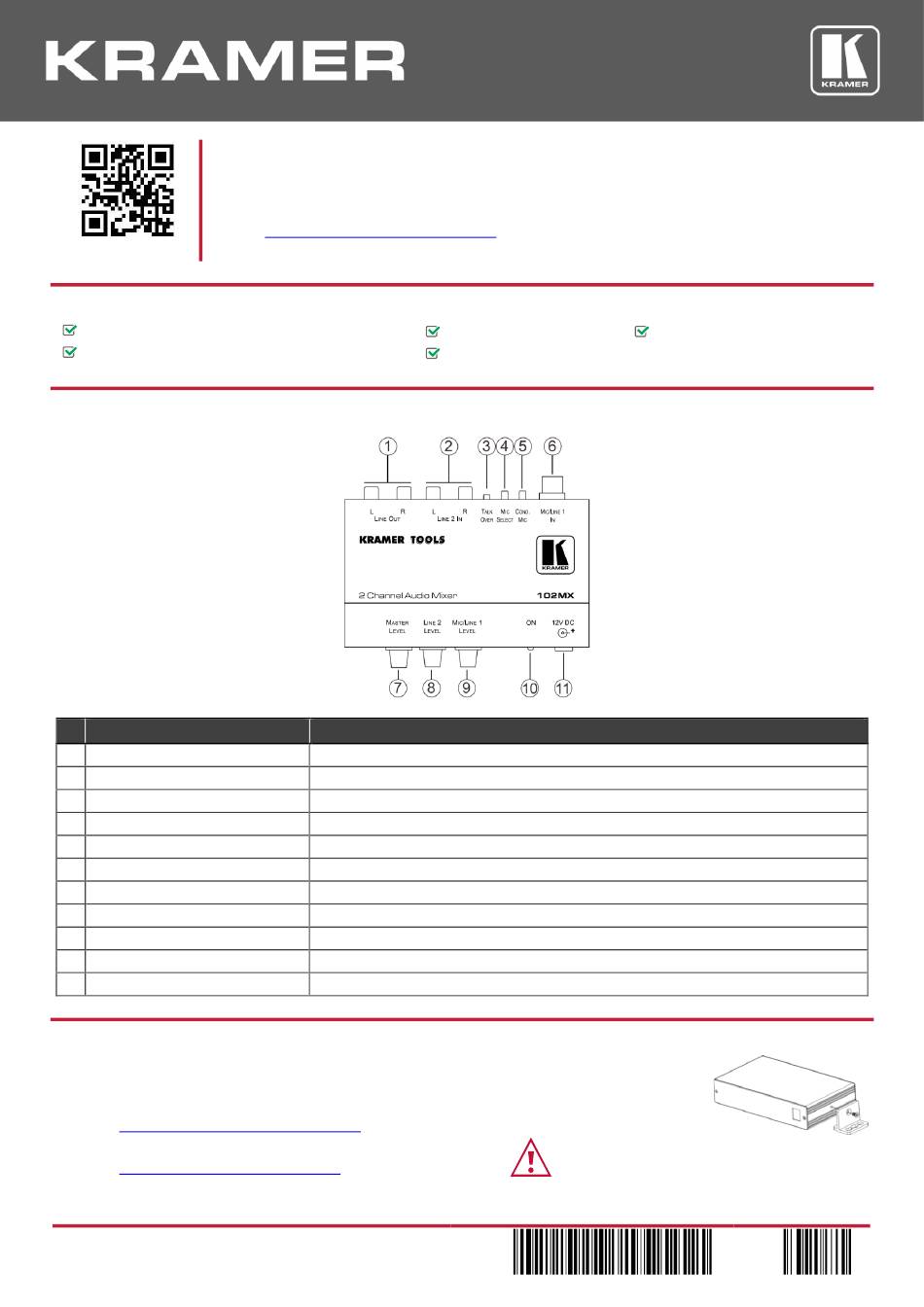

Step 2: Get to know your 102MX
#
Feature
1
LINE OUT (L, R) RCA Connectors
2
LINE 2 IN (L, R) RCA Connectors
3
TALK OVER Button
4
MIC SELECT Button
5
COND. MIC Button
6
MIC/LINE 1 IN 6mm Socket
7
MASTER LEVEL Knob
8
LINE 2 LEVEL Knob
9
MIC/LINE1 LEVEL Knob
10
ON LED
11
12V DC Connector
Step 3: Mount 102MX
Install
102MX
using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/102MX).
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/102MX).
102MX Quick Start
102MX Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/102MX
upgrades are available.
Function
Connect to the right and left channels of a line level stereo audio acceptor.
Connect to the right and left channels of a line level stereo audio source.
Press to activate the talk-over function.
Press to select the Input 1 mic level signal, release to select Input 1 line level signal.
Press for a powered condenser mic, release for an unpowered dynamic mic.
Connect to a mic or line level source.
Use to control the mixed signal output level.
Use to control the line 2 input level.
Use to control the mic/line 1 input level and talk-over sensitivity.
Lights when the unit is ON.
Connect to the 12V DC power supply.
102MX
for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Bracket set
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 8 6 QS
1 Quick start guide
Rev: 2
