Related Manuals for Calsense RRe-TRAN
Summary of Contents for Calsense RRe-TRAN

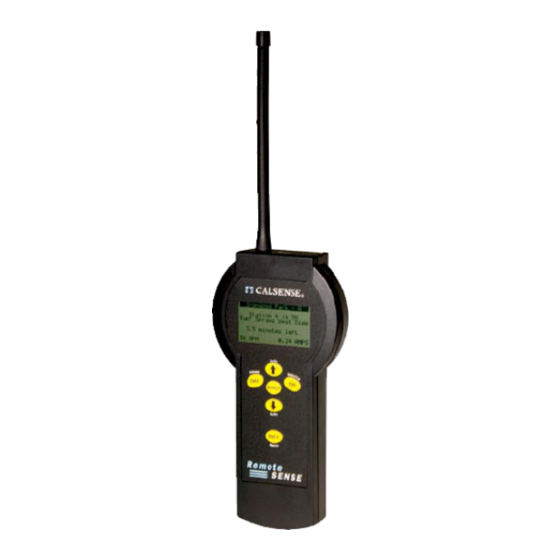

- Page 1 ® RRe-TRAN USERS GUIDE RRe-TRAN USERS GUIDE For use with firmware version 1.5a and above. CHANGE 3 INCORPORATED 1 May 2008 water work m aking since 1986...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ® TABLE OF CONTENTS SECTION 1: RRe-TRAN SECTION 5: CHANGE LIST 1A. RRe-TRAN DESCRIPTION 5A. ADD VIA CONTROLLER 1B. TECHNICAL SPECIFICATIONS 5B. PC COMMUNICATIONS 1C. EQUIPMENT INVENTORY 5C. DELETE CONTROLLERS ! 1D. HANDHELD KEY MAP SECTION 6: SETUP SECTION 2: BATTERY CHARGING &... -
Page 3: Section 1: Rre-Tran
SECTION 1 RRe-TRAN ® SECTION 1: RRe-TRAN 1A. RRe-TRAN Description Unit is OFF ( push ON key ) Note: Item number 6 is a speaker reset button. Do attempt reset RRe- TRAN Handheld Characteristics: INFRARED TRANSMIT / RECEIVE – Provides... -
Page 4: Technical Specifications
The ON/RESUME button is used to turn the from bottom to top of a sellected screen, also / Command RRe-TRAN Handheld Radio Remote ON, or to MINUS/AUTO option allows user to turn off Center RESUME any highlighted station valve currently single valve irrigating and turn on next software. -
Page 5: Section 2: Battery Charging & Replacement
Charging Guidelines VBatt=: This entry shows the current voltage status It is best to plug the RRe-TRAN handheld radio remote of the batteries in volts DC. into the charger and do not disturb until the unit has completed the charging cycle. -
Page 6: Section 3: Handheld On & Off
Figure 3.0.1 Unit is OFF ( push ON key ) Note: The RRe-Tran can be personalized to read anything up to 50 characters on the title bar of this screen to aid in identifying owner / operator, by use of the RRe Interface software. -
Page 7: Section 4: Select From List
SECTION 4: SELECT FROM LIST ® SECTION 4: SELECT FROM LIST 4B. Select a Controller From the MAIN MENU screen (Figure 3.0.1). This screen allows the user to access a controller that has been added to the handheld unit controller list. -
Page 8: Controller Status
SECTION 4: SELECT FROM LIST ® Note: The SELECT/EDIT key serves the same Note: Figure 4.1.1 shows ‘All Stations OFF’. This purpose as the ON/RESUME key in the SELECT screen appears when no action is being performed STATION screen. by the controller of choice. 4B.1 Controller Status: Note: When this screen is displayed the handheld unit will keep in constant communication with the... - Page 9 SECTION 4: SELECT FROM LIST ® 4B.2.1 Access Control: If the controller being contacted has Access Control restrictions in place, the user will have to send an Access Code to the controller prior to making any SELECT WHAT TO CHANGE changes to station information or learning expected Station Times...
- Page 10 SECTION 4: SELECT FROM LIST ® Press the RIGHT/LEFT ARROW Note: The Radio Remote will loop to the SEND keys to move the highlight to the YOUR CHANGES screen if any other key is pressed desired choice. until a choice is made. 4B.2.3 Expected Flow Rates: From the SELECT WHAT TO CHANGE screen Press the PLUS/AUTO or...
- Page 11 SECTION 4: SELECT FROM LIST ® entries made on the remote will be set back to what they were before this session. Note: The Radio Remote will loop to the SEND Press the PLUS/AUTO or YOUR CHANGES screen if any other key is pressed MINUS/AUTO keys to adjust until a choice is made.
- Page 12 SECTION 4: SELECT FROM LIST ® To turn ON multiple station valves at one time Note: The maximum number of stations ON or perform steps 1 and 2 to include step 4 each time. PAUSED at one time is limited to no more than four (4).
- Page 13 SECTION 4: SELECT FROM LIST ® 4B.5 Use UP/AUTO and DOWN/AUTO Function When Irrigating One Station Valve: Press the BACK/MENU key This section of the handheld unit allows the user to to return to the SELECT A turn off the valve currently irrigating and turn on the STATION screen (Figure 4.0.3).
-
Page 14: Section 5: Change List
SECTION 4 SELECT FROM LIST / SECTION 5: CHANGE LIST ® SECTION 5: CHANGE LIST Using PLUS/AUTO feature: This section allows the user to add or delete a controller from the handheld unit. From the MAIN MENU screen (Figure 5.0.1). Press the PLUS /AUTO key While the selected station is ALABASTER COVE... -
Page 15: Add Via Controller
Automatic: This setting is used when the customer MAIN MENU select wants the controller to search for an open channel RADIO REMOTE and communicate to a RRe-Tran..waiting Automatic Setting CH: This setting will display the channel that... -
Page 16: Pc Communications
SECTION 5: CHANGE LIST ® 5C. Delete Controllers ! ADD CONTROLLER TO HANDHELD From the CHANGE LIST screen (Figure 5.0.2). The HandHeld must be on the ADD CONTROLLER screen. Then push The button below and wait for the response. OK Controller has been added Press the PLUS/AUTO or Add This Controller to the Handheld MINUS/AUTO keys to scroll... -
Page 17: Section 6: Setup
SECTION 5: CHANGE LIST / SECTION 6: SETUP ® SECTION 6: SETUP CAUTION: From the MAIN MENU screen (Figure 5.0.1). The next step will delete this site and every single controller assigned to this site. If you only want to delete an individual controller skip to step 5. -
Page 18: Battery Status
SECTION 6: SETUP ® 6B. Range Test 6A. Battery Status This screen allows user monitor The Battery Status screen allows the user to quickly communication signal strength between the selected check on the real time voltage of the handhelds controller and the handheld unit. battery supply. -
Page 19: Section 7: Fcc Information
Class B digital device, There is no FCC licensing requirement for operating pursuant to part 15 of the FCC Rules. These limits the RRe-TRAN Handheld Radio Remote. are designed to provide reasonable protection against... -
Page 20: Fcc Warning
® 2075 Corte del Nogal, Suite P, Carlsbad CA 92011 1-(800)-572-8608 FAX: 1-(760)-438-2619 www.calsense.com Stock Number: PG3-RRe-TRAN-D2 Rev. 05/08 water work m aking since 1986...
