General Notes:
All materials contained on this documentation is protected by the copyright law and
may not be reproduced, transmitting, published or broadcast without the prior obtaining
authorization of Wonde Proud Technology. The documentation is provided for testing,
evaluation, integration and product information purpose and it may contain deficiencies or
inadequacies information of products. This product is not intended for use in life support
appliance, devices or systems where a malfunction of the product can reasonably be
expected to result personal injury. Wonde Proud or its supplier will not be liable for any
consequential, direct, indirect, incidental, punitive or other damages including without
limitation, damages for loss of business profits, business interruption, loss of business
information or other pecuniary loss that arising out the use of or inability to use the
documentation or product, even if Wonde Proud has been advised of the possibility of such
damages. The customers using or reselling the product in such application do so at their
own risk and agree to full indemnify Wonde Proud for any damages resulting from illegal
use or resale. Subject to change without notice at any time.
Copyright
Reproduction, dissemination, edition of this document, or utilization of the content and
communication format as well as giving to other without authorization are prohibited.
Offenders will be held liable for payment of damages.
Copyright ©Wonde Proud Technology 2007. All right are reserved.
Copyright © Wonde Proud Technology. 2007. All rights are reserved.
WONDE PROUD TECHNOLOGY.
of 19
2
Advertisement
Table of Contents
Related Manuals for Wonde Proud SPT100
Summary of Contents for Wonde Proud SPT100
- Page 1 This product is not intended for use in life support appliance, devices or systems where a malfunction of the product can reasonably be expected to result personal injury. Wonde Proud or its supplier will not be liable for any consequential, direct, indirect, incidental, punitive or other damages including without...
-
Page 2: Table Of Contents
10. Quick Dial Function:.........................15 11. Sending Emergency SMS Messages to Emergency Contacts: ..........16 12. Unauthorized Movement Alert: ....................17 13. Key Lock/Unlock Function:......................18 14. About Wonde Proud Technology ....................19 Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 3: Safety Instruction
FCC RF exposure requirement . The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter . Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 4: Checking Supplied Items
WONDE PROUD TECHNOLOGY. Make sure you have the following items supplied with your SPT100 device. The number of in the parentheses indicates the number of that item supplied. Cigarette Lighter Power Adapter (1) USB Communication/Power Cable (1) AC adapter (1),... -
Page 5: Introduction To Wondex Spt100 Device

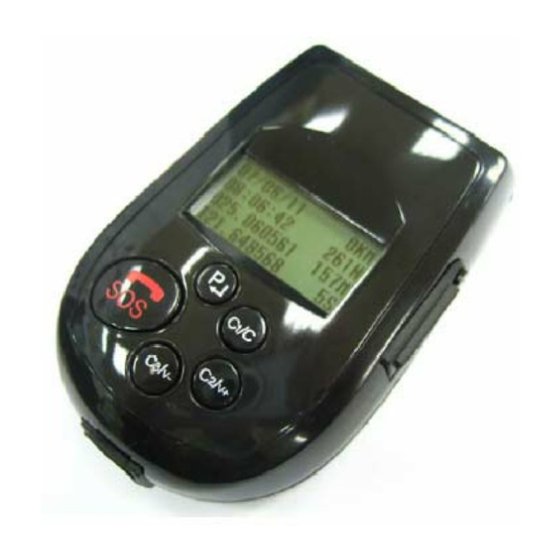

WONDE PROUD TECHNOLOGY. This “SPT100 Operation User Manual” describes the basic operation for WondeX STP100 device. For the detail functionalities, please refer to the “WondeX SPT100A Protocol Document”. Front View LCD Display Power Button SIM Card Slot 5 Function Keys:... -
Page 6: How To Charge The Spt 100 Device
Connect the supplied USB cable between the computer USB port and the mini USB connector of the SPT 100 device. If the computer does not have the driver for SPT100 installed, them the Windows OS might ask for the SPT100 device. The driver of SPT100 device is not required for battery charging. -
Page 7: Insert Sim Card
WONDE PROUD TECHNOLOGY. Please insert the SIM card in the direction of the arrow until it can not move forward. . Direction Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 8: Power On/Off The Device
If you have seen the above message, either you might use your mobile phone to disable the PIN code function for the SIM card or using below steps to enter correct PIN code. a. Establish the USB communication between the SPT100 device and the Hyper Terminal program. -
Page 9: Mode Selection
Local Time: time information is based on the time zone adjustment setting. Latitude and Longitude: Blinking: GPS has not fixed yet. Non-blinking: GPS signal is received and fixed. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 10: Gps Mode
Speed (Km/h) based on the GPS information. Heading: Direction based on the GPS information Altitude: Height from Sea Level based on the GPS information Number of Satellite: Number of satellite fixed. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 11: Advanced Mode
1. Please press “Function key 1 ” for 3 seconds to return to GPS mode. 2. Press “Power button” for 1 second to exit this mode and enter to “Dialing Mode”. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 12: Dialing Mode
If no button is pressed within 60 seconds, the LCD screen returns back to the “Normal Mode” automatically. Exit “Dialing Mode”: 1. Press the “Power Button” for 1 second to return to the Normal Mode. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 13: Answer/Hang Up Incoming Calls
If you have adjusted the volume to 0% while in the voice communication then the volume level will be 0% (mute) for the next incoming or outgoing call. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 14: Quick Dial Function
Once this function is applied, the dialing process will be displayed on the LCD screen as following: If a non-defined quick dial key is pressed, then a message “No Phone” is displayed for 3 seconds as following: Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 15: Sending Emergency Sms Messages To Emergency Contacts
LCD screen as following: Example: sending the emergency text message to 2 contact numbers: Note: Please refer to the protocol document for detail setting information. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 16: Unauthorized Movement Alert
2. The report will NOT be sent if it has been disabled within 1 minute after event triggering. 3. Please refer to the protocol document for detail setting information. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 17: Key Lock/Unlock Function
The LCD display will display the “Button Lock” message on the LCD screen while perform the “Key Lock” function and display the “Button un-lock” message while perform the “Key-unlock” function while perform the “Key-unlock” function. Copyright © Wonde Proud Technology. 2007. All rights are reserved. of 19... -
Page 18: About Wonde Proud Technology
WONDE PROUD TECHNOLOGY. The SPT 100 series device is manufactured by Wonde Proud Technology. Wonde Proud Technology provides advanced solution for GPS related solutions including the various GPS components, Automatic Vehicle Location (AVL) device (data logger & real time tracking devices).
