Owners Manual
XILI VEHICLE CO LTD
DAISY

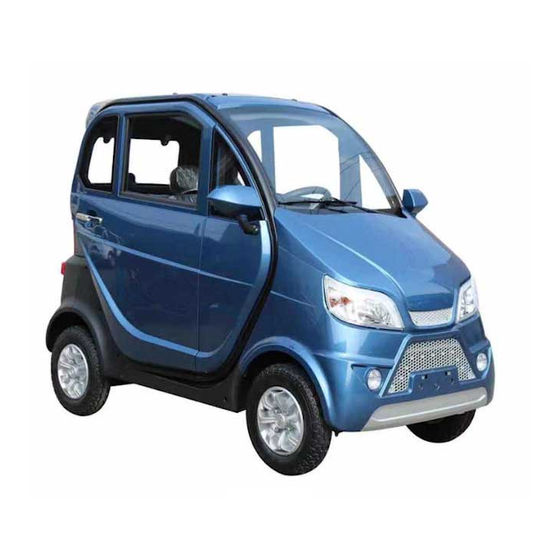

[ LEMS ] Luxury Enclosed Mobility Scooter
INTRODUCTION
Please read this manual carefully before using the vehicle and use the vehicle in
accordance with the manual.
We reserve the right to interpret any discrepancy between this manual and the actual
vehicle.
Important notes
Thank you for purchasing this four-wheel battery mobility scooter. You should be
familiar with the contents of this manual before driving.
Your personal safety depends not only on your alertness and familiarity with various
operating techniques, but also on your familiarity with the mechanical properties of
the electric four-wheeler.
This manual is for the DAISY four-wheel electric mobility scooter. Correct operation
method and simple maintenance adjustment method, essentials, etc. to give a
detailed description.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DAISY and is the answer not in the manual?

Questions and answers

Related Manuals for Mobility scooters DAISY

Summary of Contents for Mobility scooters DAISY

  • Page 1 This manual is for the DAISY four-wheel electric mobility scooter. Correct operation method and simple maintenance adjustment method, essentials, etc. to give a detailed description.
  • Page 2 Never exceed the load weight specified in this manual. This manual should be regarded as a permanent part of the DAISY, that is, attached to the vehicle, can be read by the new vehicle driver at any time, even if the transfer of the vehicle, the manual should also be transferred to the new owner.
  • Page 3 DAISY Luxury Enclosed Cabin Mobility Scooter §2-7 Right switch collection §2-8 Function switch §2-9 Power switch §2-10 Doors, Windows and glass lifters §2-11 Front seat and back seat §2-12 Door lock and open wrench §2-13 Door maintenance and waterproofing PART 3 Operation guide §3-1 Check before driving...
  • Page 4 LEMS in all circumstances. DAISY maybe required to be registered in some states, please check. DAISY maybe driven as a mobility scooter or bicycle and must follow the rules of the road for pedestrians, mobility scooters and cyclists.
  • Page 5 Avoid driving in blinding, shining / glaring and unguarded conditions at evening and night times. Ronica Trade, Mobility Scooters for Hire Sale Service or any agent or authorised person will not be liable for any accident or traffic infringement caused by any driver of...
  • Page 6 DAISY Luxury Enclosed Cabin Mobility Scooter §2-1 Vehicle front and back ：...
  • Page 7 DAISY Luxury Enclosed Cabin Mobility Scooter §2-3 Vehicle nameplate and VIN number： The product nameplate is riveted to the plastic of the rear seat bottom plate on the right side of the body. It is also stamped into the sub-frame at the right hand side of the front seat.
  • Page 8 DAISY Luxury Enclosed Cabin Mobility Scooter §2-5 Start switch: 1. Turn on/off the power to DAISY with one of the two keys. 2. Turn the drive (D/R) switch right to Drive, left to Reverse. 3. To right of D/R switch is Air Conditioner switch if A/C fitted.
  • Page 9 DAISY Luxury Enclosed Cabin Mobility Scooter §2-7 Right switch assembly： 1. Low, medium and high speed switch, 10/20/30 kph. 2. Light switch: move the switch to the right position, that is off; Move the switch to middle, park lights; to far left, headlights on.
  • Page 10 Daisy. Daisy can have two sets of batteries installed, use the charger to charge each sets of batteries, one at a time as required. When charging, switch the position of the two power/overload switches according to the battery required to charge.
  • Page 11 DAISY Luxury Enclosed Cabin Mobility Scooter §2-11 Front seat and back seat ： 1. Front seat: Pull up the lever on the slide track to move the seat back and forth and adjust to the appropriate position. If the lever cannot be locked, the seat should be moved front and back until the seat is locked securely.
  • Page 12 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter door glass and the glass guide groove from entering the interior of the car body, so that it can be discharged from the leakage hole under the door to the exterior of the car body.
  • Page 13 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter 3. To reduce the speed, close the acceleration handle and use the front and rear brake handles. §3-3 Braking operation： 1. It is very important to reduce the speed by first turning off the acceleration Handle and using the front and rear brake handle at the same time.

  • Page 14: Vehicle Cleaning

    Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter battery), plug one end into the charging port of the car, and plug one end into the ~ 220V power outlet. Charge time and discharge time is proportional to usage, you can control.
  • Page 15 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter Periodic Maintain table： The vehicle shall be repaired in accordance with the prescribed repair time. The meanings of various symbols in the table are as follows: 1. Inspect, clean, adjust, lubricate or replace.

  • Page 16: Battery Maintenance

    Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter △ Front and rear lighting 1 month △ Nuts and bolts 1 month △ △△ Wheels 3 month △△ Bearing 6 month △△ Battery 1 year or charged 300 times R §4-2 Battery maintenance 1.
  • Page 17 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter §4-3 Simple vehicle trouble shooting： Elimination Problems Cause analysis, method Lack of oil, poor lubrication Replace or replenish the specified gear oil Replace or replenish Low viscosity of gear oil The specific gear oil...
  • Page 18 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter 2.The end face of the box body or cover 3.Replace the box is uneven or has convex points 4.Tighten the bolts as required 3.Case body or cover is distorted 4.The fixing bolts between the boxes...
  • Page 19 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter reliable connection Unstable Adjust the phase to ensure that Motor phase deviation is large operation it is normal Check the connection between vehicle The motor is not properly connected motor and controller...
  • Page 20 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter 1.tire inflation pressure is not 1.make the pressure of the left uniform and right wheels consistent, and reach the specified value 2.The front hub bearing is worn, and Brake the tightness on...
  • Page 21 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter start 2 the motor wiring harness is broken battery 2.Check the motor wiring harness and replace it if necessary The tires wear The tire pressure is too low Inflate recommended unevenly pressure 1.Key switch break...
  • Page 22 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter Drop the lifting arm, fix the wheels on the chassis with iron wire, and shovel the vehicle and chassis to the corresponding place. Open the door and wrap the corresponding accessories in paper boxes, place them in the compartment and secure them.
  • Page 23 Owners Manual DAISY Luxury Enclosed Cabin Mobility Scooter PART 6 Electrical schematic diagram...
