User Manual

Electric Spray Gun

Model: SGP17AC

Table of Contents

Need help?

Do you have a question about the SGP17AC and is the answer not in the manual?

Questions and answers

Clydell Richardson

June 10, 2025

Can I buy replacement parts

Neil D Yanez

March 15, 2025

Can I have the instructions emailed to me? To print out and have on hand. I don't like reading about (example) thinner cup #8 and not being able to actually turn back to the page and look at #8. Thank you for your time. Mr. Yanez

Summary of Contents for TACKLIFE SGP17AC

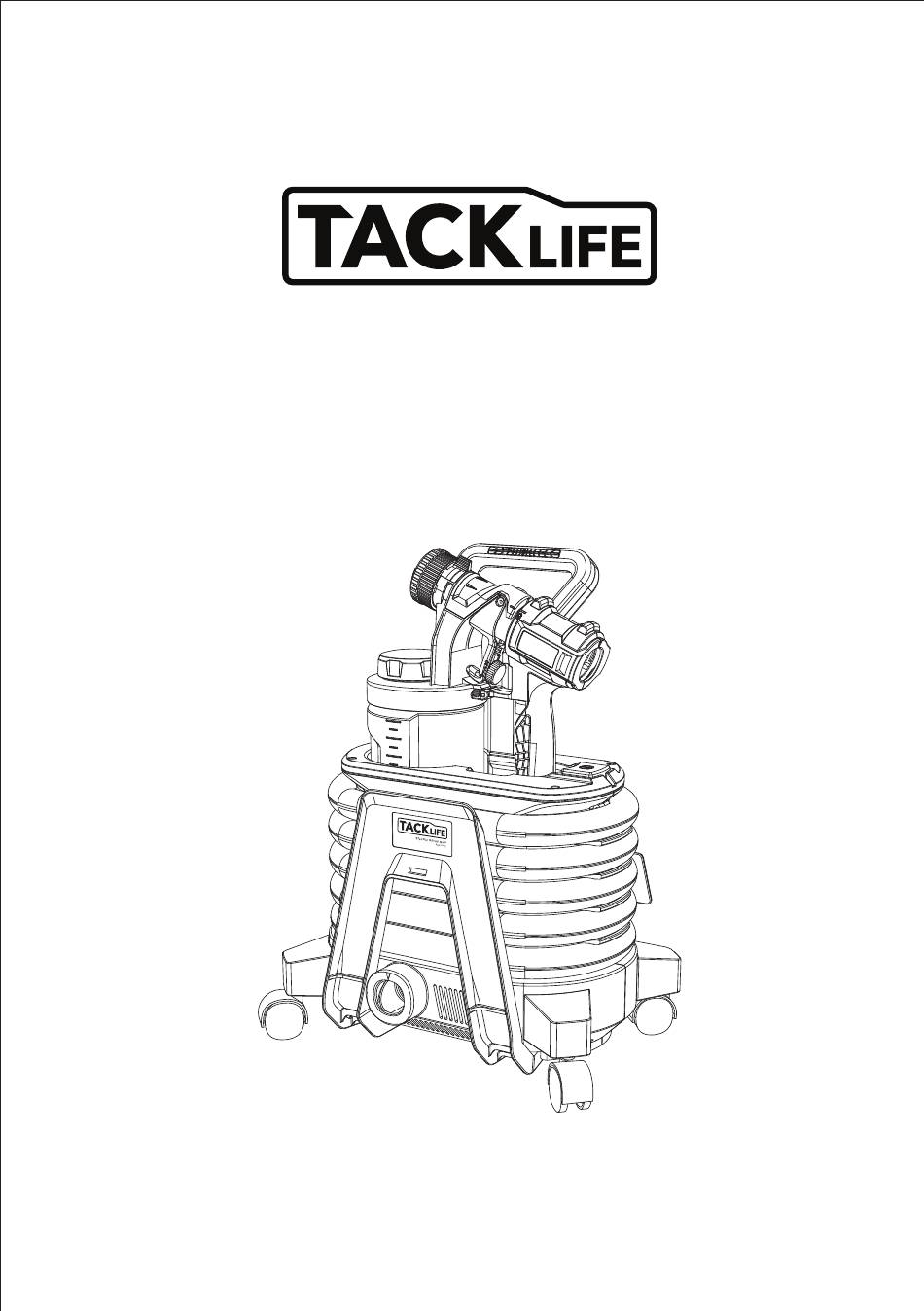

Page 1 User Manual Electric Spray Gun Model: SGP17AC...
Page 2 FIG. A - 01 -...
Page 3 FIG. A1 FIG. A2 - 02 -...
Page 4 FIG. B FIG. B1 FIG. C FIG. D1 - 03 -...
Page 5 FIG. D2 FIG. E FIG. E1 FIG. F - 04 -...
Page 6 FIG. G FIG. H FIG. H1 FIG. I - 05 -...
Page 7 FIG. J 50 to 300mm FIG. K FIG. L - 06 -...
Page 8 FIG. M FIG. N FIG. O FIG. P - 07 -...
Page 9 FIG. Q FIG. Q1 90° FIG. R FIG. S - 08 -...
Page 10 FIG. T FIG. T1 FIG. U1 FIG. U2 - 09 -...
Page 11: Technical Data
English WARNING: READ INSTRUCTIONS MANUAL BEFORE USING PRODUCT. TECHNICAL DATA Vol.~Fre. 120V~60 Hz Rated Current 8.5 A Flow Rate 1100 ml/min Max. Viscosity 150 DIN-s (runout time: 150seconds) Nozzle Size Φ2.5/Φ2.0/Φ1.0mm Canister Capacity 1200 ml Air Hose Length 3.5 metres SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual.The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS.
Page 12: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS: To reduce the risks of fire or explosion, electrical shock and the injury to persons, please read and understand all instructions included in this manual. Be familiar with the controls and the proper usage of the equipment. ►...
Page 13: General Safety Warnings
To avoid these risks, take the following preventions: ► Use a respirator or mask if vapors can be inhaled. Read all instructions supplied with the mask to be sure it will provide the necessary protection. ► Wear protective eyewear. ► Wear protective clothing as required by coating manufacturer. Warning! Electric shock hazard.
Page 14: Electrical Safety
ELECTRICAL SAFETY Before using the spray gun or after replacing the nozzle, pay attention to check whether the seal ring is put in palce; The seal ring should be carefully stored to avoid loss; The spray gun is forbidden to be used without the seal ring. This tool is double insulated;...
Page 15 16. Check valve assembly 25. Filter 16.1 Check valve sleeve 1 26. On / off switch 16.2 Check valve 27. Filter 16.3 Spring 28.Universal wheels with lock 16.4 Check valve sleeve 2 29. Universal wheels without lock 16.5 Valve extension 30.
Page 16: Operation
Liquid material preparation (Fig. E and E1) Tip: Make sure the type of material you used can be cleaned with either mineral spirits or paint thinner (for oil-based paints) or a warm water and soap solution (for water soluble paints like latex). Use drop cloths during pouring,mixing, and viscosity testing of materials to be sprayed to protect your floors and anything else in the spraying area that you wish to remain untouched.
Page 17: Preparation Tips
PREPARATION TIPS ► Always stir and strain the material thoroughly before use. ► With any spraying job you should always ensure that you have properly prepared the surface to get the best finish.That is, all surfaces are free from dust, dirt,rust and grease. Lightly pressure wash decks orex terior surfaces and ensure that they are dry before spray- ing.
Page 18 To select Circular Jet, turn the Spray - Circular Jet Width Lever (#8) to the icon of Minimum. Note: Spray nozzle can only be assembled in one direction that the notch of the nozzle(#6) must align with the skirt on spray unit housing(#10). Refer to (Fig. T1) for properas sembly Warning! Risk of injury.
Page 19 FLOW CONTROL KNOB (Fig. I) The flow control knob(#19) regulates the amount of liquid that can be sprayed. Turning the flow knob clockwise increasesthe flow of liquid. Turning the knob counter anti-clockwise decreases the flow of liquid. Tip: Always test the spray pattern on scrap cardboardor similar material first. Begin with flow control knob on the highest flow setting.
Page 20 ► Do not submerse power unit. ► Use drop cloths during pouring, mixing, and viscosity testing of materials to be sprayed to protect your floors and anything else in the spraying area that you wish to remain untouched. To begin cleaning: ►...
Page 21: Maintenance
Note: Assemble the pickup tube(#15) and check valve (#16) by firmly pushing them onto the inlet on the sprayer. ► Wrap the air hose around the power unit and put all accessories back into place MAINTENANCE Use only mild soap and damp cloth to clean the power unit. Never let any liquid get inside the power unit;...
Page 22: Troubleshooting
Separate collection of the used products and packaging allows materials to be recycled and used again. Re-use of recycled materials help sprevent environ- mental pollution and reduces the demand for raw materials. Local regulations may provide for separating collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
Page 23 TROUBLE! WHAT’S WRONG? WHAT TO DO… Thin material per manufacturer Viscosity of material too high. recommendation. ATOMIZATION Flow control knob setting too high Decrease flow control setting IS TOO COARSE Air hose split or disconnected Check air hose Air inlet blocked Clean or change air filter Canister loose Screw canister tightly in place...
Page 24 Shenzhen Take Tools Co., Ltd. Web: www.tacklifetools.com Facebook: www.facebook.com/Tacklife.US E-mail: support@tacklife.net ADD: No. B714, Niulanqian Building, Minzhi Road, Longhua District, Shenzhen 518000 , Guangdong, P.R. China Made in China Double Insulated...
