Page 1: Table Of Contents

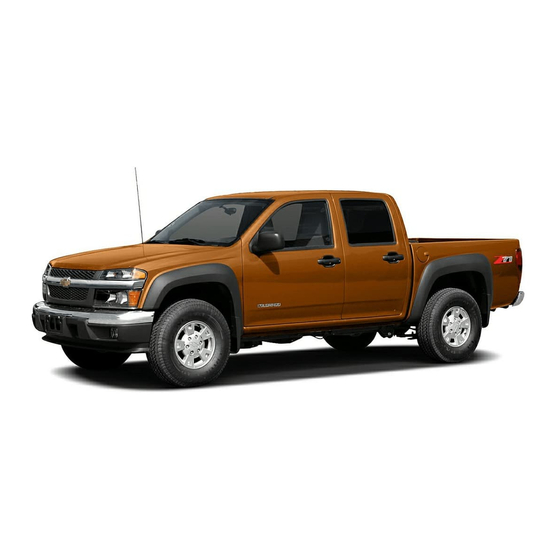

2004 Chevrolet Colorado Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-3 Rear Seats ... 1-8 Safety Belts ... 1-10 Child Restraints ... 1-31 Air Bag Systems ... 1-62 Restraint System Check ... 1-75 Features and Controls ... 2-1 Keys ...
Page 2: How To Use This Manual
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Please keep this manual in your vehicle, so it will be there if you ever need it when you’re on the road.
Page 3 Safety Warnings and Symbols You will ﬁnd a number of safety cautions in this book. We use a box and the word CAUTION to tell you about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this book you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice will tell you about something that can damage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 5 These are some examples of symbols you may ﬁnd on your vehicle:...
Page 6 NOTES...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ...1-3 Manual Seats ...1-3 Power Seats ...1-4 Manual Lumbar ...1-4 Heated Seats ...1-5 Reclining Seatbacks ...1-5 Head Restraints ...1-7 Seatback Latches ...1-8 Rear Seats ...1-8 Rear Seat Operation (Crew Cab) ...1-8 Rear Seat Operation (Extended Cab) ...1-10 Safety Belts ...1-10 Safety Belts: They Are for Everyone ...1-10 Questions and Answers About Safety Belts ...1-15...
Page 8 Section 1 Air Bag Systems ...1-62 Where Are the Air Bags? ...1-64 When Should an Air Bag Inﬂate? ...1-67 What Makes an Air Bag Inﬂate? ...1-68 How Does an Air Bag Restrain? ...1-68 What Will You See After an Air Bag Inﬂates? ...1-69 Air Bag Off Switch ...1-71 Seats and Restraint Systems...
Page 9: Front Seats
Front Seats Manual Seats This section tells you about the seats – how to adjust them, and fold them up and down. CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving.
Page 10: Power Seats
Power Seats If your vehicle has this feature, there will be a control on the outboard side of the front seat(s). Horizontal Control: Raise or lower the front of the seat by raising or lowering the forward edge of the control. Raise or lower the rear of the seat by raising or lowering the rear edge of the control.
Page 11 Heated Seats If your vehicle has this feature, the controls are located on the outboard side of the front seats. This feature will quickly heat the lower cushion and lower back of the driver’s and front passenger’s seats for added comfort. Press the lower part of the switch to turn the heater on at low heat.
Page 12 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body.
Page 13: Head Restraints
Head Restraints If your vehicle is equipped with adjustable head restraints, adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. Push up on the head restraint to raise it.
Page 14: Rear Seats
Seatback Latches Your vehicle may be equipped with front seatbacks that fold forward to let people get into the rear seat or to access the storage area behind the seat. To fold the front seatback forward, push the lever on the side of the seat rearward and pull the seatback forward.
Page 15 2. Grasp the loop located on the side of the seatback you want to fold and pull until you hear a click. 3. Fold the seatback down. 4. Repeat Steps 2 and 3 to fold down the other seatback. CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash.
Page 16: Safety Belts
Rear Seat Operation (Extended Cab) If your vehicle has an extended cab, there may be a forward folding seat in the rear area. To fold the rear seat down, pull down on the bottom of the seat until the seat is in place. To store the seat, push the entire seat up until it is ﬂush with the trim panel.
Page 17 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 18: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it’s just a seat on wheels. 1-12...
Page 19 Get it up to speed. Then stop the vehicle. The rider doesn’t stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-13...
Page 20 or the instrument panel... 1-14 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense.
Page 21 Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 22: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This part is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-31 or Infants and Young Children on page 1-34.
Page 23 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 24: Shoulder Belt Height Adjuster
The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 25 What’s wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should ﬁt against your body.
Page 26 What’s wrong with this? The belt is buckled in the wrong place. 1-20 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 27 What’s wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 28 What’s wrong with this? The belt is twisted across the body. 1-22 CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 29: Safety Belt Use During Pregnancy
To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 30: Center Front Passenger Position
The best way to protect the fetus is to protect the mother. When a safety belt is worn properly, it’s more likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
Page 31: Rear Seat Passengers
To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt. If the belt is not long enough, see Safety Belt Extender on page 1-30. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 32 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 33 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 34 To unlatch the belt, just push the button on the buckle. 1-28 Rear Safety Belt Comfort Guides for Children and Small Adults Your vehicle may have rear safety belt comfort guides for the rear outside positions. Rear safety belt comfort guides provide added safety belt comfort for older children who have outgrown booster seats and for small adults.
Page 35 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top.
Page 36: Safety Belt Pretensioners
4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-25. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
Page 37: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. If you have a choice, a child should sit in a seat that has a lap-shoulder belt to get the additional restraint a shoulder belt can provide.
Page 38 1-32 CAUTION: Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 39 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 40: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 41 CAUTION: (Continued) For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint. CAUTION: Children who are up against, or very close to, any air bag when it inﬂates can be seriously injured or killed.
Page 42 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 43: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 44 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-38 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 45 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 46: Where To Put The Restraint
When choosing a child restraint, be sure the child restraint is designed to be used in a vehicle. If it is, it will have a label saying that it meets federal motor vehicle safety standards. Then follow the instructions for the restraint. You may ﬁnd these instructions on the restraint itself or in a booklet, or both.
Page 47 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s frontal air bag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating air bag.
Page 48: Top Strap
Top Strap Some child restraints have a top strap, or “top tether”. It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored.
Page 49 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored. In the United States, some child restraints also have a top strap. If your child restraint has a top strap, it should be anchored. Anchor the top strap to one of the following anchor points.
Page 50: Top Strap Anchor Location
Top Strap Anchor Location Extended cab anchors shown A. Top strap routing loops B. Top strap anchors C. LATCH anchors. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-46. 1-44 Anchor points for the top strap in a regular or extended cab vehicle are located behind the front seat on the back wall of the passenger compartment.
Page 51 Crew Cab The anchor points for the top strap on Crew Cab vehicles are located on the back wall behind the rear seat. You must pull the seatback forward to access the anchors. Follow these steps to access the anchors and attach the top strap to an anchor: 1.
Page 52 Lower Anchorages and Top Tethers for Children (LATCH System) Your vehicle may be equipped with the LATCH System. If it is you will ﬁnd anchors (A) in the second row outboard seating positions (crew cab and extended cab) and in the front passenger position (regular cab and extended cab without rear seats).
Page 53 In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. To assist you in locating the anchors for this child restraint system, place your hand in a palm-up position and reach up between the seat cushion and the seatback.
Page 54: Securing A Child Restraint Designed For The Latch System
Securing a Child Restraint Designed for the LATCH System (Models with an Air Bag Off Switch) Regular Cab Models and Extended Cab Models without Rear Seats Your vehicle has air bags. Regular cab models and extended cab models without rear seats have an air bag off switch on the instrument panel you can use to turn off the right front passenger’s frontal air bag.
Page 55 CAUTION: (Continued) Even though the air bag off switch is designed to turn off the right front passenger’s frontal air bag, no system is fail-safe, and no one can guarantee that an air bag will not deploy under some unusual circumstance, even though it is turned off.
Page 56 2. Find the LATCH anchorages in the passenger seat. See Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-46. 3. Put the child restraint on the seat. 4. Attach and tighten the LATCH attachments on the child restraint to the LATCH anchorages in the vehicle.
Page 57: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint Designed for the LATCH System (Models without an Air Bag Off Switch) Crew Cab Models and Extended Cab Models with Rear Seats 1. Find the LATCH anchorages for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion.
Page 58 2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 59 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 60: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position (Models with an Air Bag Off Switch) Regular Cab Models and Extended Cab Models without Rear Seats Your vehicle has a right front passenger’s frontal air bag. Regular cab models and extended cab models without rear seats have a switch on the instrument panel that you can use to turn off the right front passenger’s frontal air bag.
Page 61 CAUTION: If the air bag readiness light ever comes on when you have turned off the air bag, it means that something may be wrong with the air bag system. The right front passenger’s frontal air bag could inﬂate even though the switch is off.
Page 62 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-56...
Page 63 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 64 If you were using a rear-facing child restraint, turn on the right front passenger’s frontal air bag when you remove the rear-facing child restraint from the vehicle unless the person who will be sitting there is a member of a passenger air bag risk group. See Air Bag Off Switch on page 1-71.
Page 65 Here is why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s air bag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating air bag. Always secure a rear-facing child restraint in a rear seat.
Page 66 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-60...
Page 67 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 68: Air Bag Systems
Air Bag Systems This part explains the air bag systems. Your vehicle has air bags – one air bag for the driver and another air bag for the right front passenger. Your vehicle may also have roof-mounted side impact air bags; one for the driver and the passenger directly behind the driver and one for the right front passenger and the person seated directly behind that passenger.
Page 69 CAUTION: (Continued) The roof-mounted side impact air bags are designed to inﬂate only in moderate to severe crashes where something hits the side of your vehicle. They are not designed to inﬂate in frontal, in rollover or in rear crashes. Everyone in your vehicle should wear a safety belt properly —...
Page 70: Where Are The Air Bags
There is a air bag readiness light on the instrument panel which shows the air bag symbol. The system checks the air bag electrical system for malfunctions. The light tells you if there is an electrical problem. See Air Bag Readiness Light on page 3-27 for more information.
Page 71 The right front passenger’s air bag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted side impact air bag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows.
Page 72 If your vehicle has a roof-mounted side impact air bag for the right front passenger and the person seated directly behind that passenger, it is located in the ceiling above the side windows. 1-66 CAUTION: If something is between an occupant and an air bag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 73: When Should An Air Bag Inﬂate
When Should an Air Bag Inﬂate? The driver’s and right front passengers frontal air bags are designed to deploy only in moderate to severe frontal, or near-frontal crashes. But they are designed to inﬂate only if the impact speed is above the system’s designed “threshold level.”...
Page 74: What Makes An Air Bag Inﬂate
What Makes an Air Bag Inﬂate? In an impact of sufficient severity, the air bag sensing system detects that the vehicle is in a crash. For both frontal and side impact air bags, the sensing system triggers a release of gas from the inﬂator, which inﬂates the air bag.
Page 75: What Will You See After An Air Bag
What Will You See After an Air Bag Inﬂates? After an air bag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the air bag inﬂated. Some components of the air bag module — the steering wheel hub for the driver’s air bag, the instrument panel for the right front passenger’s bag or the ceiling of your vehicle near the side windows —...
Page 76 In many crashes severe enough to inﬂate an air bag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger air bag. • Air bags are designed to inﬂate only once. After an air bag inﬂates, you will need some new parts for your air bag system.
Page 77: Air Bag Off Switch
Air Bag Off Switch Regular Cab Models and Extended Cab Models without Rear Seats If your vehicle is a regular cab model or an extended cab model without rear seats, it has a switch on the instrument panel that you can use to turn off the right front passenger’s frontal air bag.
Page 78 Medical Condition. A passenger has a medical condition which, according to his or her physician: • causes the passenger air bag to pose a special risk for the passenger; and • makes the potential harm from the passenger air bag in a crash greater than the potential harm from turning off the air bag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash.
Page 79 CAUTION: If the air bag readiness light ever comes on when you have turned off the air bag, it means that something may be wrong with the air bag system. The right front passenger’s frontal air bag could inﬂate even though the switch is off. If this ever happens, do not let anyone whom the national government has identiﬁed as a member of a passenger air bag risk group sit...
Page 80: Servicing Your Air Bag-Equipped Vehicle
Servicing Your Air Bag-Equipped Vehicle Air bags affect how your vehicle should be serviced. There are parts of the air bag systems in several places around your vehicle. Your dealer and the service manual have information about servicing your vehicle and the air bag systems.To purchase a service manual, see Service Publications Ordering Information on page 7-12.
Page 81: Restraint System Check
Restraint System Check Checking Your Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 82 If the LATCH system was being used during a more severe crash, you may need new LATCH system parts. If belts are cut or damaged, replace them. Collision damage also may mean you will need to have LATCH system, safety belt or seat parts repaired or replaced. New parts and repairs may be necessary even if the belt or LATCH system was not being used at the time of the collision.
Page 83: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry System ...2-5 Remote Keyless Entry System Operation ...2-6 Doors and Locks ...2-8 Door Locks ...2-8 Power Door Locks ...2-9 Programmable Automatic Door Locks ...2-9 Rear Door Security Locks (Crew Cab) ...2-10 Lockout Protection ...2-11 Leaving Your Vehicle ...2-11 Rear Doors (Extended Cab) ...2-11 Tailgate ...2-11...
Page 84 Section 2 Storage Areas ...2-44 Glove Box ...2-44 Cupholder(s) ...2-44 Front Armrest Storage Area ...2-44 Features and Controls Assist Handles ...2-45 Rear Storage Area ...2-45 Bed Rails ...2-45...
Page 85: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 86 There is one double-sided key for the ignition, driver’s door lock, and tailgate. When a new vehicle is delivered, the dealer provides the owner with a pair of identical keys and a key code number. The key code number tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 87: Remote Keyless Entry System
Remote Keyless Entry System If equipped, the keyless entry system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 88: Remote Keyless Entry System Operation
Remote Keyless Entry System Operation With this system you can lock and unlock your doors from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter supplied with your vehicle. UNLOCK: Press this button to unlock the driver’s door and turn on the interior lights.
Page 89: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 90: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 91: Power Door Locks
Power Door Locks If your vehicle has power door locks, the switches are located on the driver’s and the front passenger’s armrests. Remove the ignition key and press L (lock) to lock all the doors at once. To unlock all the doors, press U (Unlock).
Page 92: Rear Door Security Locks (Crew Cab)
Rear Door Security Locks (Crew Cab) If you have the crew cab model, your vehicle may be equipped with rear door security locks. With this feature, you can lock the rear doors so they cannot be opened from the inside by passengers. The security lock lever is located on the inside edge of each rear door.
Page 93: Lockout Protection
Lockout Protection If you have power door locks, this feature protects you from locking your key in the vehicle when the key is in the ignition and a door is open. If the power door lock switch is pressed when a door is open and the key is in the ignition, all of the doors will lock and then the driver’s door will unlock.
Page 94 Removing the Tailgate Follow these steps if you want to remove the tailgate: 1. Raise the tailgate slightly. Tailgate Fully Down 2. Remove the retaining cables from both ends of the tailgate by pulling upward on the clip. Then, push forward so the larger part of the hole on the bracket is over the bolt.
Page 95: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 96: Power Windows
Power Windows The power window controls are located on the armrest of each door. Crew cab switches shown The driver’s door has switches for the passenger windows as well. Your power windows will work when the ignition has been turned to ACC (Accessory) or ON or when Retained Accessory Power (RAP) is active.
Page 97: Sliding Rear Window
Sliding Rear Window If your vehicle has this feature, squeeze the latch in the center of the window and slide the glass to open it. When you close the window, be sure the latch is engaged. Sun Visors To block glare, pull the visor down. It can also be detached from the center mount and moved to the side to block glare from that direction.
Page 98: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal. However, there are ways you can help.
Page 99: Passlock
If you set off the alarm by accident, you can turn off the alarm by pressing unlock on the remote keyless entry transmitter. The alarm won’t stop if you try to unlock a door any other way. Testing the Alarm The alarm can be tested by following these steps: 1.
Page 100: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: • Keep your speed at 55 mph (88 km/h) or less for the ﬁrst 500 miles (805 km).
Page 101: Retained Accessory Power (Rap)
LOCK (A): This position locks your steering wheel, ignition and transmission on automatic transmission vehicles. If your vehicle has a manual transmission, this position locks your steering wheel. It is a theft-deterrent feature. You will only be able to remove your key when the ignition is turned to LOCK.
Page 102: Automatic Transmission
Starting Your Engine Automatic Transmission Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position — that is a safety feature. To restart when you are already moving, use NEUTRAL (N) only. Notice: Do not try to shift to PARK (P) if your vehicle is moving.
Page 103: Engine Coolant Heater
Depending on the outside temperature, the engine starter may continue cranking the engine up to approximately four seconds after you release the ignition key. This is normal. When starting your engine in very cold weather (below 0°F or 18°C), do this: 1.
Page 104: To Use The Engine Coolant Heater
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located in the engine compartment behind the underhood fuse block on the driver’s side of the vehicle. 3.
Page 105 It features an electronic shift position indicator within the instrument cluster. This display must be powered anytime the shift lever is capable of being moved out of PARK (P). This means that if your key is in OFF, but not locked, there will be a small current drain on your battery which could discharge your battery over a period of time.
Page 106 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 107 SECOND (2): This position gives you more power but lower fuel economy than THIRD (3). You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on. You can also use SECOND (2) for starting your vehicle from a stop on slippery road surfaces.
Page 108: Manual Transmission Operation
Manual Transmission Operation Five-Speed This is your shift pattern. Here is how to operate your manual transmission: FIRST (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you slowly press down on the accelerator pedal. You can shift into FIRST (1) when you are going less than 20 mph (30 km/h).
Page 109: Shift Speeds
Up-Shift Light This light will show you when to shift to the next higher gear for best fuel economy. When this light comes on, you can shift to the next higher gear if weather, road and traffic conditions permit. For the best fuel economy, accelerate slowly and shift when the light comes on.
Page 110: Four-Wheel Drive
Four-Wheel Drive If your vehicle has four-wheel drive, you can send your engine’s driving power to all four wheels for extra traction. To get the most satisfaction out of four-wheel drive, you must be familiar with its operation. Read the part that follows before using four-wheel drive. You should use two-wheel-drive high (2HI) for most normal driving conditions.
Page 111 (4LO): This setting also engages your front axle to give you extra traction. It sends the maximum power to all four wheels. You might choose 4LO if you were driving off-road in sand, mud or deep snow and climbing or descending steep hills. Indicator lights in the buttons show you which setting you are in.
Page 112 Shifting from 4LO to 2HI or 4HI To shift from 4LO to 2HI or 4HI, your vehicle must be stopped or moving less than 1.2 mph (2 km/h) with the transmission in NEUTRAL (N) or the clutch pedal engaged. The preferred method for shifting out of 4LO is to have your vehicle moving 1.2 mph (2 km/h).
Page 113: Parking Brake
Parking Brake The parking brake pedal is located to the left of the regular brake pedal, near the driver’s door. To set the parking brake, hold the regular brake pedal down with your right foot. Push down the parking brake pedal with your left foot. A chime will activate and the warning light will ﬂash when the parking brake is applied and the vehicle is moving at least 3 mph (5 km/h) for at least three...
Page 114: Shifting Into Park (P) (Automatic
Shifting Into Park (P) (Automatic Transmission) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 115: Leaving Your Vehicle With The Engine Running
• Move the lever up as far as it will go. 3. Turn the ignition key to LOCK. 4. Remove the key and take it with you. If you can leave your vehicle with the key, your vehicle is in PARK (P).
Page 116: Shifting Out Of Park (P) (Automatic
Torque Lock If you are parking on a hill and you don’t shift your transmission into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transmission. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 117: Parking Your Vehicle
Parking Your Vehicle (Manual Transmission) Your vehicle has a manual transmission. Before you get out of your vehicle, move the shift lever into REVERSE (R), and ﬁrmly apply the parking brake. Once the shift lever has been placed into REVERSE (R) with the clutch pedal pressed in, you can turn the ignition key to LOCK, remove the key and release the clutch.
Page 118: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can not see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different.
Page 119 CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 120: Mirrors
Mirrors Manual Rearview Mirror You can adjust the mirror for day or night driving. Press the tab forward (away from you) for day driving. Pull the tab back (toward you) for night driving. The mirror may have lamps. To manually turn the lamps on or off, press the button next to each lamp.
Page 121: Compass Operation
Mirror Operation The mirror automatically changes to reduce glare from headlamps behind you. A time delay feature prevents rapid changing from the day to night positions while driving under lights and through traffic. (On/Off): The automatic dimming feature is automatically activated when the vehicle is started. The automatic dimming feature is turned on or off by pressing this button located on the lower part of the mirror.
Page 122: Compass Variance
Compass Variance Compass variance is the difference between earth’s magnetic north and true geographic north. If the mirror is not adjusted for compass variance, your compass could give false readings. The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if you live outside zone eight.
Page 123: Temperature Display Operation
Temperature Display Operation The outside air temperature is displayed in the window located at the lower center of the mirror face. Press and hold the far right button for four seconds and release. This will change the temperature reading between degrees Fahrenheit, degrees Celsius, or turn the display off.
Page 124: Onstar System
The mirrors can be manually folded inward to prevent damage when going through an automatic car wash. To fold, push the mirror toward the vehicle. To return the mirror to its original position, push outward. Be sure to return both mirrors to the unfolded position before driving.
Page 125 ® OnStar Services One of the following plans is normally included for a speciﬁc duration with each vehicle equipped with ® OnStar . You can upgrade or extend your OnStar service plan to meet your needs. Safe and Sound Plan •...
Page 126: Storage Areas
Storage Areas Glove Box To open the glove box, pull on the lever. Cupholder(s) Front Cupholders Your vehicle may have two cupholders located on the lower part of the front doors as well as two cupholders located at the front end of the console. Vehicles with bench seats may have cupholders attached to the front of the center seat.
Page 127: Assist Handles
Assist Handles Your vehicle may have assist handles to be used when getting out of your vehicle. If your vehicle has assist handles, they may be located above the front passenger door if you have a regular cab, or above the front and rear passenger doors if you have an extended cab or crew cab.
Page 128 NOTES 2-46...
Page 129: Instrument Panel
Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-7 Horn ...3-7 Tilt Wheel ...3-7 Turn Signal/Multifunction Lever ...3-8 Exterior Lamps ...3-14 Interior Lamps ...3-17 Accessory Power Outlets ...3-18 Ashtrays and Cigarette Lighter ...3-19 Climate Controls ...3-19 Climate Control System ...3-19 Outlet Adjustment ...3-22 Warning Lights, Gages, and Indicators ...3-23...
Page 130 Section 3 Audio System(s) ...3-44 Setting the Time for Radios without Radio Data Systems (RDS) ...3-45 Setting the Time for Radios with Radio Data Systems (RDS) ...3-45 AM-FM Radio ...3-46 Radio with CD ...3-49 Radio with Six-Disc CD ...3-58 Instrument Panel Theft-Deterrent Feature (Non-RDS Radios) ...3-70 Theft-Deterrent Feature (RDS Radios) ...3-70...
Page 131 NOTES...
Page 132: Instrument Panel Overview
Instrument Panel Overview Manual transmission shown, automatic transmission similar...
Page 133 The main components of your vehicle’s instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-22. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-8. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-24. D.
Page 134: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on the instrument panel, between the two air vents in the center.
Page 135: Other Warning Devices
Other Warning Devices If you carry reﬂective triangles, you can set one up at the side of the road about 300 feet (100 m) behind your vehicle. Horn To sound the horn, press the horn symbol on the steering wheel pad. Tilt Wheel A tilt wheel allows you to adjust the steering wheel before you drive.
Page 136: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals • Headlamp High/Low-Beam Changer • Flash-to-Pass • Windshield Wipers • Windshield Washer • Cruise Control Turn and Lane Change Signals The turn signal has two upward (for right) and two downward (for left) positions.
Page 137 Turn Signal On Chime If your turn signal is left on for more than 3/4 of a mile (1.2 km), a chime will sound at each ﬂash of the turn signal and the message TURN SIGNAL will also appear in the DIC. To turn the chime and message off, move the turn signal lever to the off position.
Page 138: Windshield Washer
Windshield Wipers You control the windshield wipers by turning the band with the wiper symbol on it. (Mist): For a single wiping cycle, turn the band to mist. Hold it there until the wipers start. Then let go. The wipers will stop after one wipe. If you want more wipes, hold the band on mist longer.
Page 139 Cruise Control Your vehicle may be equipped with cruise control. (Off): This position turns the system off. (On): This position activates the system. + (Resume/Accelerate): Move the lever to this symbol to make the vehicle accelerate or resume to a previously set speed.
Page 140 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 141 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed: • Use the accelerator pedal to get to the higher speed. Press the set button at the end of the lever, then release the button and the accelerator pedal.
Page 142: Exterior Lamps
Exterior Lamps The control on the driver’s side of your instrument panel operates the exterior lamps. (Exterior Lamps): Turn the knob, located to the right of this symbol, to choose one of the four exterior lamp positions. (Off): Turn the knob to this position to turn off all exterior lamps including the DRLs.
Page 143: Automatic Headlamp System
Automatic Headlamp System Your vehicle may be equipped with this feature. When it is dark enough outside, your automatic headlamp system will turn on your headlamps at the normal brightness along with other lamps such as the taillamps, sidemarker, parking lamps and the instrument panel lights.
Page 144: Daytime Running Lamps
Daytime Running Lamps Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 145: Interior Lamps
The fog lamps will go off whenever your high-beam headlamps come on. When the high beams go off, the fog lamps will come on again. The fog lamps will be cancelled after the ignition is turned off. If you still want to use the fog lamps after you restart the vehicle, you will need to press the fog lamp button again.
Page 146: Exit Lighting
Exit Lighting With exit lighting, the interior lamps will come on when you remove the key from the ignition. The lamps will not come on if the dome override button is pressed in. Battery Run-Down Protection This feature shuts off the dome lamp if it is left on for more than 20 minutes when the ignition is in LOCK.
Page 147: Climate Controls
Ashtrays and Cigarette Lighter Your vehicle may have an ashtray and cigarette lighter. Your ashtray is located at the front of your center console area. Notice: If you put papers or other ﬂammable items in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage your vehicle.
Page 148: Temperature Knob
Temperature Knob The left knob on the control panel is used to adjust the temperature of the air in the vehicle. Turn the knob clockwise or counterclockwise to increase or decrease the temperature. Fan Knob (Fan): The center knob on the control panel is used to control the fan speed.
Page 149: Defogging And Defrosting
(Air Conditioning): Your vehicle may have air conditioning. Press this button to turn the air-conditioning system on or off. An indicator light on the button will come on to let you know the air conditioning is activated. When the system is on, this setting cools and dehumidiﬁes the air entering your vehicle.
Page 150: Outlet Adjustment
Outlet Adjustment The ﬂow-through outlets on your vehicle allow outside air to enter your vehicle while it is moving. Outside air will also enter your vehicle while the air conditioning compressor is running. Use the thumbwheel on the outlets to change the direction of the air ﬂow.
Page 151: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 152: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
Page 153: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). The odometer mileage can be checked without the vehicle running.
Page 154: Tachometer
Tachometer The tachometer displays the engine speed in revolutions per minute (rpm). Notice: If you operate the engine with the tachometer in the shaded warning area, your vehicle could be damaged, and the damages would not be covered by your warranty. Do not operate the engine with the tachometer in the shaded warning area.
Page 155: Air Bag Readiness Light
Air Bag Readiness Light There is an air bag readiness light on the instrument panel, which shows the air bag symbol. The system checks the air bag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the air bag sensors, the air bag modules, the wiring and the crash sensing and diagnostic module.
Page 156: Air Bag Off Light
Air Bag Off Light Regular Cab Models and Extended Cab Models without Rear Seats When you turn the air bag off switch to the off position, the off indictor will come on and stay on to remind you that the air bag has been turned off. When you turn the air bag off switch to the auto position, the on indicator will come on.
Page 157: Battery Warning Light
CAUTION: If the air bag readiness light ever comes on when you have turned off the air bag, it means that something may be wrong with the air bag system. The right front passenger’s frontal air bag could inﬂate even though the switch is off. If this ever happens, do not let anyone whom the national government has identiﬁed as a member of a passenger air bag risk group...
Page 158: Up-Shift Light (Manual Transmission)
Up-Shift Light (Manual Transmission) This light appears when you need to shift to the next higher gear on a manual transmission vehicle. Shifting when the indicator light is on will help you get the best fuel economy. See “Up-Shift Light” under Manual Transmission Operation on page 2-26 for more information.
Page 159: Anti-Lock Brake System Warning Light
When the ignition is on, the brake system warning light will also come on when you set your parking brake. See Parking Brake on page 2-31 for more information. The light will stay on if your parking brake does not release fully.
Page 160: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage shows the engine coolant temperature. If the gage pointer is near the top of the gage, the engine is too hot. It means that your engine coolant has overheated. If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 161 Notice: If you keep driving your vehicle with this light on, after a while, your emission controls may not work as well, your fuel economy may not be as good and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
Page 162: If The Light Is Flashing
If the Light is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed. • Avoiding hard accelerations. • Avoiding steep uphill grades. • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 163 If you experience one or more of these conditions, change the fuel brand you use. It will require at least one full tank of the proper fuel to turn the light off. If none of the above steps have made the light turn off, your dealer can check the vehicle.
Page 164: Maintenance Schedule
Oil Pressure Light CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced.
Page 165: Security Light
Security Light This light will come on brieﬂy when you turn the key to START. The light will stay on until the engine starts. If the ignition is turned on, and the light ﬂashes, the ® Passlock system has entered a tamper mode. If the vehicle fails to start, see Passlock If the light comes on continuously while driving and stays on, there may be a problem with the Passlock...
Page 166: Daytime Running Lamps Indicator Light
Daytime Running Lamps Indicator Light This light turns on whenever the Daytime Running Lamps are on. See “Daytime Running Lamps (DRL)” under Exterior Lamps on page 3-14 for more information. Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have remaining in the fuel tank.
Page 167: Driver Information Center (Dic)
Driver Information Center (DIC) The DIC display is located on the instrument panel cluster. The DIC can display information such as the trip odometer, and personalization features. DIC Controls and Displays The Driver Information Center (DIC) comes on when the ignition is on. After a short delay the DIC will display the current driver and the information that was last displayed before the engine was turned off.
Page 168: Automatic Door Locks
GM Oil Life System™ Press the reset stem until OIL LIFE appears (ﬂashing) on the display. The GM Oil Life System™ shows an estimate of the oil’s remaining useful life. It will show 100% when the system is reset after an oil change. It will alert you to change your oil on a schedule consistent with your driving conditions.
Page 169: Dic Warnings And Messages
Mode 3: Lock all doors when the vehicle is shifted out of PARK (P) with an automatic transmission, or when vehicle speed is greater than 15 mph (24km/h) with a manual transmission. Driver’s door will unlock when the vehicle is shifted into PARK (P) with an automatic transmission, or when the ignition key is removed on a manual transmission.
Page 170: Change Oil
ABS (Anti-Lock Brake System) This message will be displayed on the DIC if there is a problem with your antilock brake system. Check your antilock brake system as soon as possible and have your vehicle serviced. See Brakes on page 5-39 and Anti-Lock Brake System Warning Light on page 3-31 for more information.
Page 171: Fuel Cap
FLUID This message will be displayed on the DIC if your brake ﬂuid is low. Check the brake ﬂuid as soon as possible and have your vehicle serviced. See Brakes on page 5-39 for more information. Press the reset stem to acknowledge the message and clear it from the DIC display.
Page 172: Serv Veh (Service Vehicle)
REDUCED POWER This message will be displayed on your DIC when your vehicle’s engine power is reduced. Press the reset stem to acknowledge the message and clear it from the display. SERV (Service) 4WD (Four-Wheel Drive) This message will be displayed on your DIC when there is a problem with your transfer case control system.
Page 173: Setting The Time For Radios Without
So, before adding sound equipment, check with your dealer and be sure to check federal rules covering mobile radio and telephone units. Your audio system has been designed to operate easily and to give years of listening pleasure. You will get the most enjoyment out of it if you acquaint yourself with it ﬁrst.
Page 174: Finding A Station
AM-FM Radio Playing the Radio PWR (Power): Press this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease volume. RCL (Recall): Press this knob to switch the display between the radio station frequency and the time. Time display is available with the ignition turned off.
Page 175: Setting Preset Stations
Setting Preset Stations The six numbered pushbuttons let you return to your favorite stations. You can set up to 18 stations (six FM1, six FM2, and six AM) by performing the following steps: 1. Turn the radio on. 2. Press AM FM to select FM1, FM2, or AM. 3.
Page 176: Radio Messages
Adjusting the Speakers (Balance/Fade) AUDIO: To adjust the balance between the right and the left speakers, press and release AUDIO until BAL appears on the display. Then press and hold the up or the down arrow to move the sound toward the right or the left speakers.
Page 177: Radio With Cd
Radio with CD Playing the Radio PWR (Power): Press this knob to turn the system on and off. (Volume): Turn this knob to increase or to decrease volume. AUTO VOL (Automatic Volume): With automatic volume, your audio system adjusts automatically to make up for road and wind noise as you drive.
Page 178 Finding a Station BAND: Press this button to switch between FM1, FM2, or AM. The display will show your selection. TUNE : Turn this knob to select radio stations. SEEK : Press the right or the left arrow to go to the next or to the previous station and stay there. The radio will seek only to stations that are in the selected band and only to those with a strong signal.
Page 179 Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass or treble level. If a station is weak or noisy, you may want to decrease the treble.
Page 180 Radio Data System (RDS) Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, your radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 181: Setting Preset Ptys
SCAN: You can scan the stations within a PTY by performing the following: 1. Turn the P-TYPE knob to activate program type select mode. TYPE and a PTY will appear on the display. 2. Turn the P-TYPE knob to select a PTY. 3.
Page 182: Rds Messages
RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 183: Playing A Cd
Radio Messages CAL ERR (Calibration Error): Your audio system has been calibrated for your vehicle from the factory. If CAL ERR appears on the display, it means that your radio has not been conﬁgured properly for your vehicle and must be returned to the dealer for service. LOCKED: This message is displayed when the ®...
Page 184 2 NEXT: Press this pushbutton to go to the next track. TRACK and the track number will appear on the display. If you hold this pushbutton or press it more than once, the player will continue moving forward through the CD. 3 REV (Reverse): Press and hold this pushbutton to reverse quickly within a track.
Page 185 DISPL (Display): Press this knob to see how long the current track has been playing. ET and the elapsed time of the track will appear on the display. To change the default on the display (track or elapsed time), press this knob until you see the display you want, then hold the knob for two seconds.
Page 186: Radio With Six-Disc Cd
Radio with Six-Disc CD Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOLUME: Turn this knob to increase or to decrease volume. 3-58 AUTO VOL (Automatic Volume): With automatic volume, your audio system will adjust automatically to make up for road and wind noise as you drive.
Page 187 Finding a Station BAND: Press this button to switch between FM1, FM2, AM. The display will show your selection. TUNE: Turn this knob to select radio stations. SEEK : Press the right or the left arrow to go to the next or to the previous station and stay there. The radio will seek only to stations that are in the selected band and only to those with a strong signal.
Page 188 Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS, MID, or TREB appears on the display. Turn the knob to increase or to decrease. The display will show the bass, midrange, or treble level. If a station is weak or noisy, you may want to decrease the treble.
Page 189 Radio Data System (RDS) Your audio system is equipped with a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, your radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 190 To use the PTY interrupt feature, press and hold the P-TYPE button until you hear a beep on the PTY you want to interrupt with. When selected, an asterisk will appear beside that PTY on the display. You may select multiple interrupts if desired. When you are listening to a CD, the last selected RDS station will interrupt play if that selected program type format is broadcast.
Page 191 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is muted or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 192 Playing a CD The CD player can play the smaller 8 cm single CDs with an adapter ring. Full-size CDs and the smaller CDs are loaded in the same manner. If playing a CD-R the sound quality may be reduced due to CD-R quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R has been handled.
Page 193: Playing A Speciﬁc Loaded Cd
3. Once the light stops ﬂashing and turns green, load a CD. Insert the CD partway into the slot, label side up. The player will pull the CD in. 4. Once the CD is loaded, the light will begin ﬂashing again.
Page 194 Do not repeatedly press the CD button to eject a CD after you have tried to push it in manually. The receivers 25-second eject timer will reset at each press of eject, which will cause the receiver to not eject the CD until the 25-second time period has elapsed.
Page 195: Using Song List Mode
SEEK : Press the left arrow to go to the start of the current track, if more than ten seconds have played. Press the right arrow to go to the next track. If you hold either arrow or press it more than once, the player will continue moving backward or forward through the CD.
Page 196 3. Select the desired CD by pressing the numbered pushbutton and then use the SEEK SCAN right arrow button to locate the track that you want to save. The track will begin to play. 4. Press and hold the SONG LIST button for two or more seconds to save the track into memory.
Page 197 To delete the entire song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST will appear on the display. 3. Press and hold the SONG LIST button for more than four seconds.
Page 198: Theft-Deterrent Feature
Theft-Deterrent Feature (Non-RDS Radios) ® THEFTLOCK is designed to discourage theft of your radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOC will appear on the display. ®...
Page 199: Care Of Your Cd Player
Care of Your CD Player The use of CD lens cleaners for CD players is not advised, due to the risk of contaminating the lens of the CD optics with lubricants internal to the CD mechanism. Fixed Mast Antenna The ﬁxed mast antenna can withstand most car washes without being damaged.
Page 200 NOTES 3-72...
Page 201 Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-6 Traction Control System (TCS) ...4-8 Steering ...4-9 Off-Road Recovery ...4-11 Passing ...4-12 Loss of Control ...4-13 Off-Road Driving with Your Four-Wheel-Drive Vehicle ...4-14 Driving at Night ...4-28 Driving in Rain and on Wet Roads ...4-29...
Page 202: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-10. Defensive driving really means “be ready for anything.”...
Page 203 Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological and developmental reasons for these laws.
Page 204 There is a gender difference, too. Women generally have a lower relative percentage of body water than men. Since alcohol is carried in body water, this means that a woman generally will reach a higher BAC level than a man of her same body weight will when each has the same number of drinks.
Page 205: Control Of A Vehicle
CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Please do not drink and drive or ride with a driver who has been drinking.
Page 206: Braking
Braking Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about 3/4 of a second. But that is only an average.
Page 207 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 208: Traction Control System (Tcs)
Remember: Anti-lock does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 209: Steering
When the traction control system is turned off, an indicator light on the button will illuminate. If your vehicle is in cruise control when the traction control system begins to limit wheel spin, the cruise control will automatically disengage. When road conditions allow you to safely use it again, you may re-engage the cruise control.
Page 210: Steering In Emergencies
Suppose you are steering through a sharp curve. Then you suddenly accelerate. Both control systems — steering and acceleration — have to do their work where the tires meet the road. Adding the sudden acceleration can demand too much of those places.
Page 211: Off-Road Recovery
An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
Page 212: Passing
Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
Page 213: Loss Of Control
• Check your mirrors, glance over your shoulder, and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your inside mirror, activate your right lane change signal and move back into the right lane.
Page 214: Off-Road Driving With Your Four-Wheel-Drive Vehicle
If your vehicle starts to slide, ease your foot off the accelerator pedal and quickly steer the way you want the vehicle to go. If you start steering quickly enough, your vehicle may straighten out. Always be ready for a second skid if it occurs. Of course, traction is reduced when water, snow, ice, gravel or other material is on the road.
Page 215: Before You Go Off-Roading
Before You Go Off-Roading There are some things to do before you go out. For example, be sure to have all necessary maintenance and service work done. Check to make sure all underbody shields (if so equipped) are properly attached. Be sure you read all the information about your four-wheel-drive vehicle in this manual.
Page 216: Environmental Concerns
Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. GM recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads and areas that have been specially set aside for public off-road recreational driving;...
Page 217: Scanning The Terrain
Controlling your vehicle is the key to successful off-road driving. One of the best ways to control your vehicle is to control your speed. Here are some things to keep in mind. At higher speeds: • you approach things faster and you have less time to scan the terrain for obstacles.
Page 218: Driving On Off-Road Hills
When you drive over obstacles or rough terrain, keep a ﬁrm grip on the steering wheel. Ruts, troughs or other surface features can jerk the wheel out of your hands if you are not prepared. When you drive over bumps, rocks, or other obstacles, your wheels can leave the ground.
Page 219: Driving Uphill
On a large hill, the incline may get steeper as you near the top, but you may not see this because the crest of the hill is hidden by bushes, grass or shrubs. Here are some other things to consider as you approach a hill.
Page 220 • Ease up on your speed as you approach the top of the hill. • Attach a ﬂag to the vehicle to make you more visible to approaching traffic on trails or hills. • Sound the horn as you approach the top of the hill to let opposing traffic know you are there.
Page 221 • As you are backing down the hill, put your left hand on the steering wheel at the 12 o’clock position. This way, you will be able to tell if your wheels are straight and maneuver as you back down. It is best that you back down the hill with your wheels straight rather than in the left or right direction.
Page 222: Driving Downhill
Driving Downhill When off-roading takes you downhill, you will want to consider a number of things: • How steep is the downhill? Will I be able to maintain vehicle control? • What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? •...
Page 223: Driving Across An Incline
• Never go downhill with the transmission in NEUTRAL (N), or with the clutch pedal pressed down with a manual transmission. This is called “free-wheeling.” Your brakes will have to do all the work and could overheat and fade. Am I likely to stall when going downhill? It is much more likely to happen going uphill.
Page 224: Stalling On An Incline
• Hidden obstacles can make the steepness of the incline even worse. If you drive across a rock with the uphill wheels, or if the downhill wheels drop into a rut or depression, your vehicle can tilt even more. For reasons like these, you need to decide carefully whether to try to drive across an incline.
Page 225 CAUTION: Getting out on the downhill (low) side of a vehicle stopped across an incline is dangerous. If the vehicle rolls over, you could be crushed or killed. Always get out on the uphill (high) side of the vehicle and stay well clear of the rollover path.
Page 226: Driving In Mud, Sand, Snow Or Ice
Driving in Mud, Sand, Snow or Ice When you drive in mud, snow or sand, your wheels will not get good traction. You can not accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud — the deeper the mud, the lower the gear.
Page 227: After Off-Road Driving
If the water is not too deep, drive slowly through it. At faster speeds, water splashes on your ignition system and your vehicle can stall. Stalling can also occur if you get your tailpipe under water. And, as long as your tailpipe is under water, you will never be able to start your engine.
Page 228: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. 4-28 Here are some tips on night driving. •...
Page 229: Driving In Rain And On Wet Roads
You can be temporarily blinded by approaching headlamps. It can take a second or two, or even several seconds, for your eyes to re-adjust to the dark. When you are faced with severe glare (as from a driver who does not lower the high beams, or a vehicle with misaimed headlamps), slow down a little.
Page 230 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road and even people walking.
Page 231: Driving Through Flowing Water
Hydroplaning does not happen often. But it can if your tires do not have much tread or if the pressure in one or more is low. It can happen if a lot of water is standing on the road. If you can see reﬂections from trees, telephone poles or other vehicles, and raindrops “dimple”...
Page 232: City Driving
City Driving 4-32 One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 233: Freeway Driving
Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 234: Before Leaving On A Long Trip
Before changing lanes, check your mirrors. Then use your turn signal. Just before you leave the lane, glance quickly over your shoulder to make sure there is not another vehicle in your “blind” spot. Once you are moving on the freeway, make certain you allow a reasonable following distance.
Page 235: Highway Hypnosis
• Tires: They are vitally important to a safe, trouble-free trip. Is the tread good enough for long-distance driving? Are the tires all inﬂated to the recommended pressure? • Weather Forecasts: What is the weather outlook along your route? Should you delay your trip a short time to avoid a major storm system? •...
Page 236: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-36 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 237 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 238: Winter Driving
Winter Driving 4-38 Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 5-57. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth and a couple of reﬂective warning triangles.
Page 239 What is the worst time for this? “Wet ice.” Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing (32°F;...
Page 240: If You Are Caught In A Blizzard
If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow. Here are some things to do to summon help and keep yourself and your passengers safe: •...
Page 241 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You can not see it or smell it, so you might not know it is in your vehicle.
Page 242: If You Are Stuck: In Sand, Mud, Ice Or Snow
If You Are Stuck: In Sand, Mud, Ice or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as “rocking” can help you get out when you are stuck, but you must use caution.
Page 243 Using the Recovery Hooks Your vehicle may be equipped with recovery hooks. The hooks are provided at the front of your vehicle. You may need to use them if you are stuck off-road and need to be pulled to some place where you can continue driving.
Page 244 4-44 CAUTION: These hooks, when used, are under a lot of force. Always pull the vehicle straight out. Never pull on the hooks at a sideways angle. The hooks could break off and you or others could be injured from the chain or cable snapping back.
Page 245: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-6. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 246: Dinghy Towing
Dinghy Towing Two-Wheel Drive Vehicles Notice: If you tow your vehicle with all four wheels on the ground, the drivetrain components could be damaged. The repairs would not be covered by your warranty. Do not tow your vehicle with all four wheels on the ground.
Page 247: Dolly Towing
5. Shift the transfer case to NEUTRAL. See Four-Wheel Drive on page 2-28 for more information. 6. Release the parking brake only after the vehicle being towed is ﬁrmly attached to the towing vehicle. Notice: If you exceed 55 mph (90 km/h) while towing your vehicle, it could be damaged.
Page 248 Four-Wheel-Drive Vehicles Front Towing (Front Wheels Off the Ground) Use the following steps to dolly tow your vehicle from the front: 1. Drive the vehicle up onto the dolly. 2. Firmly set the parking brake. See Parking Brake on page 2-31 for more information. 3.
Page 249 Rear Towing (Rear Wheels Off the Ground) Four-Wheel-Drive Vehicles Use the following steps to dolly tow your vehicle from the rear: 1. Drive the vehicle up onto the dolly. 2. Follow the dolly manufacturer’s instructions to attach and secure the vehicle being towed to the dolly and then the loaded dolly to the tow vehicle.
Page 250: Loading Your Vehicle
Notice: If you exceed 55 mph (90 km/h) while towing your vehicle, it could be damaged. Never exceed 55 mph (90 km/h) while towing your vehicle. 7. Turn the ignition to LOCK. To prevent your battery from draining while towing, remove the RDO BATT and CLSTR fuses from the instrument panel fuse block.
Page 251 The Tire and Loading Information is attached to the driver’s side center pillar, below the door latch post. Vehicle’s without a center pillar, extended cab models, will have the Tire and Loading Information label attached to the edge of the driver’s side third door, above the door latch post.
Page 252 Example 1 Loading Your Vehicle Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs. (68 kg) x 2 Available Cargo Weight = 4-52 Total Item 1,000 lbs. (453 kg) 300 lbs. (136 kg) 700 lbs. (317 kg) Example 2 Loading Your Vehicle Description...
Page 253: Certiﬁcation/Tire Label
Example 3 Loading Your Vehicle Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs. (91 kg) x 5 = Available Cargo Weight = Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 254 This is called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, cargo and trailer tongue weight, if pulling a trailer. The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR).
Page 255: Two-Tiered Loading
CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or in a crash. • Put things in the cargo area of your vehicle. Try to spread the weight evenly. • Never stack heavier things, like suitcases, inside the vehicle so that some of them are above the tops of the seats.
Page 256: Truck-Camper Loading Information
Add-On Equipment When you carry removable items, you may need to put a limit on how many people you carry inside your vehicle. Be sure to weigh your vehicle before you buy and install the new equipment. Notice: Overloading your vehicle may cause damage.
Page 257: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 258: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 259 Vehicle* Axle Ratio 2WD Regular Cab Automatic Transmission, 3.73 2.8 L Engine Automatic Transmission, 3.42 3.5 L Engine Automatic Transmission, 3.73 3.5 L Engine Manual Transmission, 3.42 2.8 L Engine Manual Transmission, 3.73 2.8 L Engine Manual Transmission, 3.42 3.5 L Engine Manual Transmission, 3.73 3.5 L Engine...
Page 260 Vehicle* Axle Ratio Automatic Transmission, 3.73 3.5 L Engine Manual Transmission, 3.42 2.8 L Engine Manual Transmission, 3.73 2.8 L Engine Manual Transmission, 3.42 3.5 L Engine Manual Transmission, 3.73 3.5 L Engine Vehicle* Axle Ratio ® 2WD Crew Cab Automatic Transmission, 3.73 2.8 L Engine...
Page 261 Vehicle* Axle Ratio 4WD Regular Cab Automatic Transmission, 3.73 2.8 L Engine Automatic Transmission, 4.10 2.8 L Engine Automatic Transmission, 3.42 3.5 L Engine Automatic Transmission, 3.73 3.5 L Engine Automatic Transmission, 4.10 3.5 L Engine Manual Transmission, 3.73 2.8 L Engine Manual Transmission, 4.10 2.8 L Engine...
Page 262 Vehicle* Axle Ratio 4WD Extended Cab Automatic Transmission, 3.73 2.8 L Engine Automatic Transmission, 4.10 2.8 L Engine Automatic Transmission, 3.42 3.5 L Engine Automatic Transmission, 3.73 3.5 L Engine Automatic Transmission, 4.10 3.5 L Engine Manual Transmission, 4.10 2.8 L Engine Manual Transmission, 3.42 3.5 L Engine...
Page 263 Vehicle* Axle Ratio ® 4WD Crew Cab Automatic Transmission, 3.73 2.8 L Engine Automatic Transmission, 4.10 2.8 L Engine Automatic Transmission, 3.42 3.5 L Engine Automatic Transmission, 3.73 3.5 L Engine Automatic Transmission, 4.10 3.5 L Engine Manual Transmission, 4.10 2.8 L Engine **The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle...
Page 264: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 265: Total Weight On Your Vehicle's Tires
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You’ll ﬁnd these numbers on the Certiﬁcation label at the rear edge of the driver’s door above the door latch, or see Loading Your Vehicle on page 4-50.
Page 266: Trailer Brakes
Trailer Brakes If your trailer weighs more than 1,000 lbs. (450 kg) loaded, then it needs its own brake–and they must be adequate. Be sure to read and follow the instructions for the trailer brakes so you’ll be able to install, adjust and maintain them properly.
Page 267: Following Distance
Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You’ll need more passing distance up ahead when you’re towing a trailer.
Page 268: Driving On Grades
Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you don’t shift down, you might have to use your brakes so much that they would get hot and no longer work well. When towing at high altitude on steep uphill grades, consider the following: Engine coolant will boil at a lower temperature than at normal altitudes.
Page 269: Maintenance When Trailer Towing
4. Reapply the regular brakes. Then apply your parking brake, and then shift into PARK (P), or REVERSE (R) for a manual transmission. See Parking Brake on page 2-31 for more information. 5. If you have a four-wheel-drive vehicle, be sure the transfer case is in a drive gear and not in NEUTRAL.
Page 270 NOTES 4-70...
Page 271 Section 5 Service ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-4 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling Your Tank ...5-7 Filling a Portable Fuel Container ...5-10 Checking Things Under the Hood ...5-10 Hood Release ...5-11...
Page 272 Section 5 Tires ...5-57 Inﬂation - Tire Pressure ...5-64 Tire Inspection and Rotation ...5-65 When It Is Time for New Tires ...5-67 Buying New Tires ...5-68 Uniform Tire Quality Grading ...5-69 Wheel Alignment and Tire Balance ...5-70 Wheel Replacement ...5-70 Tire Chains ...5-72 If a Tire Goes Flat ...5-73 Changing a Flat Tire ...5-74...
Page 273: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 274: Doing Your Own Service Work
Doing Your Own Service Work If you want to do some of your own service work, you will want to use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-12.
Page 275: Fuel
Fuel Use of the recommended fuel is an important part of the proper maintenance of your vehicle. Gasoline Octane Use regular unleaded gasoline with a posted octane of 87 or higher. If the octane is less than 87, you may get a heavy knocking noise when you drive.
Page 276: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emission Standards (see the underhood emission control label), it is designed to operate on fuels that meet California speciﬁcations. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 277: Fuels In Foreign Countries
Fuels in Foreign Countries If you plan on driving in another country outside the United States or Canada, the proper fuel may be hard to ﬁnd. Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel would not be covered by your warranty.
Page 278 The tethered fuel cap is located behind a hinged door on the driver’s side of your vehicle. While refueling, hang the cap by the tether from the hook on the fuel ﬁller door. To remove the fuel cap, turn it slowly to the left (counterclockwise).
Page 279 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 280: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 281: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle located inside the vehicle on the lower left side of the instrument panel. 2. Release the secondary latch on the hood. The secondary latch is located below the front center of the hood.
Page 282: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 2.8 L engine, you’ll see: 2.8 L engine shown. 3.5 L engine similar 5-12...
Page 283: Engine Oil
A. Windshield Washer Fluid. See Windshield Washer Fluid on page 5-38. B. Coolant Recovery Tank. See Engine Coolant on page 5-25. C. Power Steering Fluid Reservoir (low in engine compartment). See Power Steering Fluid on page 5-36. D. Transmission Fluid Dipstick. See Automatic Transmission Fluid on page 5-19 and Manual Transmission Fluid on page 5-22.
Page 284: When To Add Engine Oil
When to Add Engine Oil If the oil is at or below the cross-hatched area (L), then you will need to add at least one quart of oil. But you must use the right kind. This section explains what kind of oil to use.
Page 285 • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. However, if it is going to be 0°F (–18°C) or above and SAE 5W-30 is not available, you may use SAE 10W-30. These numbers on an oil container show its viscosity, or thickness.
Page 286: When To Change Engine Oil
Notice: Use only engine oil identiﬁed as meeting GM Standard GM6094M and showing the American Petroleum Institute Certiﬁed For Gasoline Engines starburst symbol. Failure to use the recommended oil can result in engine damage not covered by your warranty. ® GM Goodwrench oil meets all the requirements for your vehicle.
Page 287: What To Do With Used Oil
How to Reset the CHANGE OIL Message The GM Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a CHANGE OIL message being turned on, reset the system.
Page 288 5-18 When to Inspect the Engine Air Cleaner/ Filter Inspect the air cleaner/ﬁlter every 15,000 miles (24 140 km), and replace at 25,000 miles (40 000 km). How to Inspect the Engine Air Cleaner/ Filter To remove the engine air cleaner/ﬁlter, do the following: 1.
Page 289: Automatic Transmission Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air, it helps to stop ﬂame if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 290: How To Check
How to Check Because this operation can be a little difficult, you may choose to have this done at the dealership service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick. Notice: Too much or too little ﬂuid can damage your transmission.
Page 291 Then, without shutting off the engine, follow these steps: The transmission dipstick handle has this symbol on it. The transmission dipstick is located toward the rear of the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location.
Page 292: Manual Transmission Fluid
How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transmission ﬂuid to use. See Recommended Fluids and Lubricants on page 6-13. Add ﬂuid only after checking the transmission ﬂuid while it is hot. (A cold check is used only as a reference.) If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level up to the HOT area for a hot check.
Page 293: How To Add Fluid
Then, follow these steps: 1. Remove the ﬁller plug. 2. Check that the lubricant level is up to the bottom of the ﬁller plug hole. 3. If the ﬂuid level is good, install the plug and be sure it is fully seated. If the ﬂuid level is low, add more ﬂuid as described in the next steps.
Page 294: Hydraulic Clutch (Manual Transmission)
Hydraulic Clutch (Manual Transmission) The hydraulic clutch linkage in your vehicle is self-adjusting. The clutch master cylinder reservoir is ﬁlled with hydraulic clutch ﬂuid. The hydraulic clutch ﬂuid reservoir cap has this symbol on it. It is not necessary to regularly check clutch ﬂuid unless you suspect there is a leak in the system.
Page 295: Engine Coolant
How to Check and Add Fluid The proper ﬂuid should be added if the level does not reach the bottom of the diaphragm when it’s in place in the reservoir. See the instructions on the reservoir cap. Engine Coolant The cooling system in your vehicle is ﬁlled with ®...
Page 296: What To Use
What to Use Use a mixture of one-half clean, drinkable water and ® one-half DEX-COOL coolant which won’t damage aluminum parts. If you use this coolant mixture, you don’t need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 297: Radiator Pressure Cap
The vehicle must be on a level surface. When your engine is cold, the coolant level should be at FULL COLD, or a little higher. When your engine is warm, the level should be above the FULL COLD level. Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the coolant recovery tank.
Page 298: Engine Overheating
Engine Overheating You will ﬁnd a coolant temperature gage on your vehicle’s instrument panel. See Engine Coolant Temperature Gage on page 3-32. Your air conditioning may stop working if your engine is too hot. This is normal and helps cool the engine. If Steam Is Coming From Your Engine 5-28 CAUTION:...
Page 299: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 300: Cooling System
Cooling System When you decide it’s safe to lift the hood, here’s what you’ll see: A. Coolant Recovery Tank B. Engine Cooling Fan If the coolant inside the coolant recovery tank is boiling, don’t do anything else until it cools down. The vehicle should be parked on a level surface.
Page 301 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 302 How to Add Coolant to the Coolant Recovery Tank If you haven’t found a problem yet, but the coolant level isn’t at the FULL COLD mark, add a 50/50 mixture of clean, drinkable water and DEX-COOL at the coolant recovery tank. See Engine Coolant on page 5-25 for more information.
Page 303 When the coolant in the coolant recovery tank is at the FULL COLD mark, start your vehicle. If the overheat warning continues, there’s one more thing you can try. You can add the proper mixture directly to the radiator, but be sure the cooling system is cool before you do it.
Page 304: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator You can remove the radiator pressure cap when the cooling system, including the upper radiator hose, is no longer hot. 5-34 1. Turn the pressure cap slowly counterclockwise about one full turn. If you hear a hiss, wait for that to stop. A hiss means there is still some pressure left.
Page 305 4. Then ﬁll the coolant recovery tank to the FULL COLD mark. 5. Reinstall the cap on the coolant recovery tank, but leave the radiator pressure cap off. 6. Start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 306: Engine Fan Noise
Engine Fan Noise This vehicle has a clutched engine cooling fan. When the clutch is engaged, the fan spins faster to provide more air to cool the engine. In most everyday driving conditions, the clutch is not engaged. This improves fuel economy and reduces fan noise.
Page 307: When To Check Power Steering Fluid
When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise. A ﬂuid loss in this system could indicate a problem. Have the system inspected and repaired.
Page 308: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 309: Brakes
Brakes Brake Fluid Your brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 310: Checking Brake Fluid
Checking Brake Fluid You can check the brake ﬂuid without taking off the cap. Just look at the brake ﬂuid reservoir. The ﬂuid level should be above MIN. If it is not have your brake system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the MIN but not over the MAX mark.
Page 311: Brake Wear
Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal ﬁrmly).
Page 312: Battery
Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts. When you replace parts of your braking system —...
Page 313: Jump Starting
Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to follow the steps below to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 314 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 315 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables don’t have loose or missing insulation. If they do, you could get a shock.
Page 316 7. Don’t let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 8. Now connect the black negative ( ) cable to the negative ( ) terminal of the good battery.
Page 317: Rear Axle
A. Heavy, Unpainted Metal Engine Part To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery. 2. Disconnect the black negative ( ) cable from the vehicle with the good battery.
Page 318: Four-Wheel Drive
Four-Wheel Drive Lubricant checks in this section also apply to these vehicles. However, there are two additional systems that need lubrication. Transfer Case When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant. See Additional Required Services on page 6-6.
Page 319: Front Axle
Front Axle When to Check and Change Lubricant It is not necessary to regularly check front axle ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 320: Bulb Replacement
Bulb Replacement See Replacement Bulbs on page 5-54 for the proper types of bulbs to use. For any bulb changing procedure not listed in this section, contact your dealer’s service department. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb.
Page 321: Sealed Beam Headlamps
3. Turn the bulb socket counterclockwise and pull it straight out of the headlamp housing. 4. Unplug the electrical connector from the old bulb. 5. Plug in the electrical connector to the new bulb. Use care not to touch the new bulb with your bare hand or anything damp or oily.
Page 322: Front Turn Signal, Sidemarker And Daytime Running Lamps
Front Turn Signal, Sidemarker and Daytime Running Lamps 1. Remove the turn signal/parking lamp/daytime running lamp (DRL) assembly by pressing on the release clip on the outboard side of the housing and pulling the outboard end of the lamp toward you. 2.
Page 323: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) 1. Remove the screws and lift off the lamp assembly. 2. Turn the bulb socket counterclockwise and remove it from the housing. 3. Pull the bulb straight out of the socket. 4. Insert the new bulb into the socket and press it in until tight.
Page 324: Replacement Bulbs
A. Stoplamp/Taillamp B. Turn Signal C. Back-up Lamp 3. Turn the bulb socket counterclockwise to remove it from the taillamp housing. 4. Pull the old bulb straight out from the socket. 5. Press a new bulb into the socket and turn the socket clockwise into the taillamp housing until it is tight.
Page 325: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear and cracking. See “Wiper Blade Check” under Cleaning the Outside of Your Vehicle on page 5-99 for more information. Replacement blades come in different types and are removed in different ways.
Page 326 4. To install the new wiper insert, slide the insert (D), notched end last, into the end with two blade claws (A). Slide the insert all the way through the blade claws at the opposite end (B). The plastic caps (C) will be forced off as the insert is fully inserted.
Page 327: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
Page 328: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The following illustrations are examples of a typical P-Metric and a compact spare tire sidewall. P-Metric Tire Example 5-58...
Page 329 (A) Tire Size Code: The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description. See the “Tire Size Code” illustration later in this section for more detail. (B) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC...
Page 330 (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 331: Tire Size
(F) Tire Size: A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type and service description. The letter “T” as the ﬁrst character in the tire size means the tire is for temporary use only. (G) TPC Spec (Tire Performance Criteria Speciﬁcation): Original equipment tires designed to GM’s speciﬁc tire performance criteria have a TPC...
Page 332: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 333 Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Inﬂation Pressure: The maximum air pressure to which a cold tire may be inﬂated. The maximum air pressure is molded onto the sidewall. Maximum Load Rating: The load rating for a tire at the maximum permissible inﬂation pressure for that tire.
Page 334: Inﬂation - Tire Pressure
Treadwear Indicators: Narrow bands, sometimes called “wear bars,” that show across the tread of a tire when only 1/16 inch (1.6 mm) of tread remains. See When It Is Time for New Tires on page 5-67. UTQGS: Uniform Tire Quality Grading Standards, a tire information system that provides consumers with ratings for a tire’s traction, temperature and treadwear.
Page 335: Tire Inspection And Rotation
When to Check Check your tires once a month or more. Also, check the tire pressure of the spare tire. If you have a compact spare tire, it should be at 60 psi (420 kPa). How to Check Use a good quality pocket-type gage to check tire pressure.
Page 336 When rotating your tires, always use one of the correct rotation patterns shown here. If your vehicle has a compact spare tire or a spare tire that does not match your vehicle’s road tires and wheels, in size and type, do not include the spare in the tire rotation.
Page 337: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. Some commercial truck tires may not have treadwear indicators.
Page 338: Buying New Tires
Buying New Tires To ﬁnd out what kind and size of tires you need, look at the Certiﬁcation/Tire label or the Tire and Loading Information label. See Loading Your Vehicle on page 4-50, for examples of these labels and where they can be found on your vehicle.
Page 339: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 340: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 341: Used Replacement Wheels
Your dealer will know the kind of wheel you need. Each new wheel should have the same load-carrying capacity, diameter, width, offset and be mounted the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts.
Page 342: Tire Chains
Tire Chains CAUTION: If your vehicle has P225/75R15, P265/75R15 or P235/50R17 size tires, do not use tire chains. They can damage your vehicle because there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension or other vehicle parts.
Page 343: If A Tire Goes Flat
If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag that pulls the vehicle toward that side.
Page 344: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. See Hazard Warning Flashers on page 3-6 for more information. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 345: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools Crew Cab Regular and Extended Cab The tools you will need are under the passenger’s seat. For crew cab models, the jack and wheel blocks are under the driver’s side rear seat. For regular and extended cab vehicles the jack and wheel blocks are located under the cover at the center of the vehicle behind the front seats.
Page 346 2. Move the seats forward and turn the wing nut on the cover counterclockwise to remove it. For crew cab models, reach under the rear seat to access the jack and wheel blocks. To reinstall the jack and wheel block assembly in the mounting bracket, insert the tabs into the jack base by pushing the blocks up into the assembly.
Page 347 2. Insert the hoist end (chiseled end) of the extension tool through the hole in the rear bumper and into the funnel-shaped guide. The chiseled end of the extension is used to lower the spare tire. 3. Turn the wheel wrench (D) counterclockwise to lower the spare tire to the ground.
Page 348 Removing the Flat Tire and Installing the Spare Tire Use the following pictures and instructions to remove the ﬂat tire and raise the vehicle. The tools you will be using include the bottle jack (A), the wheel blocks (B), the extension tool (C), the jack handle extensions (D), and the wheel wrench (E).
Page 349 Front Location 2. Use the wheel wrench to loosen all the wheel nuts. Turn the wheel wrench counterclockwise to loosen the wheel nuts. Do not remove the wheel nuts yet. 5-79...
Page 350 Front Location Rear Location 3. Position the jack (A) under the vehicle as shown. 5-80...
Page 351 Front Location If the ﬂat tire is on the front of the vehicle, position the jack to the rear of the front tire in the pocket off of the frame. If the ﬂat tire is on the rear, position the jack under the rear axle and get as close as possible to the shock absorber.
Page 352 Rear Position 4. Make sure the jack head is positioned so that the rear axle is resting securely between the grooves that are on the jack head. 5. Turn the wheel wrench clockwise to raise the vehicle. Raise the vehicle far enough off the ground so there is enough room for the spare tire to ﬁt under the wheel well.
Page 353 CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 354 Front Position Rear Position 9. Turn the wheel wrench counterclockwise to lower the vehicle. Lower the jack completely. 5-84...
Page 355 10. Tighten the wheel nuts ﬁrmly in a crisscross sequence as shown by turning the wheel wrench clockwise. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident.
Page 356: Storing A Flat Or Spare Tire, Jack And Tools
Storing a Flat or Spare Tire, Jack and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. Notice: Storing an aluminum wheel with a ﬂat tire under your vehicle for an extended period of time or with the valve stem pointing up may damage the...
Page 357 3. Attach the wheel wrench and extensions together. 2. Tilt the retainer downward and through the wheel opening. Make sure the retainer is fully seated across the underside of the wheel. 5-87...
Page 358 4. Insert the hoist end through the hole in the rear bumper and into the funnel-shaped guide. 5. Turn the wheel wrench clockwise to raise the tire part way up. Make sure the retainer is seated in the wheel opening and the valve stem is pointed down. 6.
Page 359 Return the wheel wrench and jack extensions and the storage bag to the location under the front passenger’s seat. Reinstall the jack and wheel blocks, be sure to install the wheel blocks ﬁrst. Secure the items in the vehicle as shown. Crew Cab A.
Page 360: Secondary Latch System
Secondary Latch System Your vehicle has an underbody mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop the spare tire from suddenly falling off your vehicle. For the secondary latch to work, the spare must be installed with the valve stem pointing down.
Page 361 2. If the cable end ﬁtting is not visible proceed to Step 6. If it is visible, ﬁrst try to tighten the cable by turning the wheel wrench clockwise until you hear two clicks or feel it skip twice. You cannot overtighten the cable. 3.
Page 362 8. Attach the jack handle, extension, and wheel wrench to the jack and place it (with the wheel blocks) under the vehicle towards the front of the rear bumper. Position the center lift point of the jack under the wheel. 9.
Page 363 CAUTION: Someone standing too close during the procedure could be injured by the jack. If the spare tire does not slide off the jack completely, make sure no one is behind you or on either side of you as you pull the jack out from the spare.
Page 364: Spare Tire
Spare Tire Compact Spare Tire Your vehicle may be equipped with a compact spare tire. Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa).
Page 365: Appearance Care
Appearance Care Remember, cleaning products can be hazardous. Some are toxic. Others can burst into ﬂames if you strike a match or get them on a hot part of the vehicle. Some are dangerous if you breathe their fumes in a closed space. When you use anything from a container to clean your vehicle, be sure to follow the manufacturer’s warnings and instructions.
Page 366: Cleaning Fabric/Carpet
Cleaning Fabric/Carpet Your dealer has cleaners for the cleaning of fabric and carpet. They will clean normal spots and stains very well. You can get GM- approved cleaning products from your dealer. See Vehicle Care/Appearance Materials on page 5-102. Here are some cleaning tips: •...
Page 367: Special Fabric Cleaning Problems
Special Fabric Cleaning Problems Stains caused by such things as catsup, coffee (black), egg, fruit, fruit juice, milk, soft drinks, vomit, urine and blood can be removed as follows: 1. Carefully scrape off excess stain, then sponge the soiled area with cool water. 2.
Page 368: Care Of Safety Belts
Cleaning the Top of the Instrument Panel Use only mild soap and water to clean the top surfaces of the instrument panel. Sprays containing silicones or waxes may cause annoying reﬂections in the windshield and even make it difficult to see through the windshield under certain conditions.
Page 369: Cleaning The Outside Of Your Vehicle
Cleaning the Outside of Your Vehicle The paint ﬁnish on your vehicle provides beauty, depth of color, gloss retention and durability. Washing Your Vehicle The best way to preserve your vehicle’s ﬁnish is to keep it clean by washing it often with lukewarm or cold water. Do not wash your vehicle in the direct rays of the sun.
Page 370: Cleaning Aluminum Wheels
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage your vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible.
Page 371: Sheet Metal Damage
The surface of these wheels is similar to the painted surface of your vehicle. Do not use strong soaps, chemicals, abrasive polishes, abrasive cleaners, cleaners with acid, or abrasive cleaning brushes on them because you could damage the surface. Do not use chrome polish on aluminum wheels.
Page 372: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan and exhaust system even though they have corrosion protection.
Page 373 Description Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls. Cleans vinyl tops, Vinyl Cleaner upholstery and convertible tops. Removes dirt, grime, Glass Cleaner smoke and ﬁngerprints. Removes dirt and grime Chrome and Wire from chrome wheels and Wheel Cleaner...
Page 374: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certiﬁcation and Service Parts labels and the certiﬁcates of title and registration.
Page 375: Windshield Wiper Fuses
Windshield Wiper Fuses The windshield wiper motor is protected by a circuit breaker and a fuse. If the motor overheats due to heavy snow or ice, the wiper will stop until the motor cools. If the overload is caused by some electrical problem, be sure to get it ﬁxed.
Page 376: Engine Compartment Fuse Block
Engine Compartment Fuse Block The engine compartment fuse block is located on the driver’s side of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location of the engine compartment fuse block. To remove the cover, push in on the tab on the end of the cover and lift.
Page 377 Fuse Usage Antilock Brake System (ABS), ABS module, Four-Wheel Drive, Gravity Sensor Supplemental Inﬂatable Restraint System, Sensing and Diagnostic Module, Air Bag Off Switch Heated Seat Cruise Control Switch, Inside Rearview Mirror, Transfer Case Control Module, Brake Switch, Clutch Disable Electronic Throttle Control (ETC) Power Door Locks Injectors...
Page 378 Fuse Usage Antilock Brake System 2 (ABS Pump) Antilock Brake System 1 (ABS Logic) Power Seat Circuit Breaker/ POA Seat Fuel Canister Vent Solenoid Not Used Not Used Not Used Not Used Air Conditioning Compressor Oxygen Sensors Relays Usage Beam Selection Air Conditioning Compressor Fuel Pump, Fuel Pump Fuse Fog Lamps...
Page 379: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate conversion capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-13 for more information. Application Air Conditioning Capacity Refrigerant R-134a Cooling System 2.8 L Engine 3.5 L Engine Differential Fluid Rear Axle Front Axle...
Page 380 Application Fuel Tank Transmission (Drain and Reﬁll) Automatic Manual Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the appropriate level or as recommended in this manual. Recheck ﬂuid level after ﬁlling. Type 2.8 L 3.5 L 5-110 Capacities and Speciﬁcations (cont’d)
Page 381 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-13...
Page 382: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts and recommended ﬂuids and...
Page 383 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the tire and loading information label. See Loading Your Vehicle on page 4-50. • are driven on reasonable road surfaces within legal driving limits.
Page 384: Scheduled Maintenance
Owner Checks and Services on page 6-9 tells you what should be checked, when to check it and what you can easily do to help keep your vehicle in good condition. The proper replacement parts, ﬂuids and lubricants to use are listed in Recommended Fluids and Lubricants on page 6-13 and Normal Maintenance Replacement Parts on page 6-15.
Page 385 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and ﬁlter. Reset oil life system. See Engine Oil on page 5-13. An Emission Control Service. Visually check for any leaks or damage. See footnote (g). Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-17.
Page 386: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Replace fuel ﬁlter. Replace engine air cleaner ﬁlter.
Page 387: Maintenance Footnotes
Service and Miles (Kilometers) Engine cooling system service (or every 5 years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to...
Page 388 (d) Visually inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield. (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly.
Page 389: Owner Checks And Services
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your vehicle. Your GM Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 390: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 391 Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 392 Parking Brake and Automatic Transmission Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 393: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 394 Usage Fluid/Lubricant Chassis Lubricant (GM Part No. U.S. 12377985, in Canada Chassis 88901242) or lubricant meeting Lubrication requirements of NLGI #2, Category LB or GC-LB. SAE 75W-90 Synthetic Axle Front and Lubricant (GM Part No. U.S. Rear Axle 12378261, in Canada 10953455) meeting GM Speciﬁcation 9986115.
Page 395: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer. Part Transmission Filter Kit Automatic Engine Air Cleaner/Filter Engine Oil Filter 2.8 L Engine 3.5 L Engine Fuel Filter Spark Plugs Windshield Wiper Blades Driver’s Side Passenger’s Side...
Page 396: Engine Drive Belt Routing
Engine Drive Belt Routing 6-16...
Page 397: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2 in this section. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages.
Page 398 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 399 Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Program for Persons with Disabilities ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Customer Assistance and Information...
Page 400: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Chevrolet. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 401: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within...
Page 402: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Chevrolet, the letter should be addressed to Chevrolet’s Customer Assistance Center. United States – Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 403: Gm Mobility Program For Persons With Disabilities
Overseas – Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) – Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 404: Roadside Assistance Program
Roadside Assistance Program Security While You Travel 1-800-CHEV-USA (243-8872) As the proud owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 405: Courtesy Transportation
(1-800-234-8872), text telephone (TTY) users, call 1-888-889-2438. Chevrolet reserves the right to limit services or reimbursement to an owner or driver when, in Chevrolet’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 406: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait Chevrolet helps minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following:...
Page 407: Vehicle Data Collection And Event Data Recorders
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled “Warranty and Owner Assistance Information” furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 408 This information has been used to improve vehicle crash performance and may be used to improve crash performance of future vehicles and driving safety. Unlike the data recorders on many airplanes, these on-board systems do not record sounds, such as conversation of vehicle occupants.
Page 409: Reporting Safety Defects
Reporting Safety Defects Reporting Safety Defects to the United States Government If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
Page 410: Reporting Safety Defects To General Motors
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O. Box 33170 Detroit, MI 48232-5170 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 411: Service Bulletins
Service Bulletins Service Bulletins give technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle. In Canada, information pertaining to Product Service Bulletins can be obtained by contacting your General Motors dealer or by calling 1-800-GM-DRIVE (1-800-463-7483).
Page 412 NOTES 7-14...
Page 413 ABS (Anti-Lock Brake System) ... 3-42 AC (Air Conditioning) OFF ... 3-41 Accessory Power Outlets ... 3-18 Adding Washer Fluid ... 5-38 Additional Program Information ... 7-9 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-104 Add-On Equipment ... 4-56 Adjusting the Speakers (Balance/Fade) ...
Page 414 Audio System(s) (cont.) Automatic Door Locks ... 3-40 Automatic Headlamp System ... 3-15 Automatic Transmission ... 2-20 Fluid ... 5-19 Operation ... 2-22 Backing Up ... 4-67 BATTERY ... 3-42 Battery ... 5-42 Battery Replacement ... 2-7 Battery Run-Down Protection ... 3-18 Battery Warning Light ...
Page 415 Chains, Tires ... 5-72 CHANGE OIL ... 3-42 Check Engine Light ... 3-32 Checking Brake Fluid ... 5-40 Checking Coolant ... 5-26 Checking Engine Oil ... 5-13 Checking the Fluid Level ... 5-20 Checking Things Under the Hood ... 5-10 Checking Your Restraint Systems ...
Page 416 Coolant Engine Temperature Gage ... 3-32 Heater, Engine ... 2-21 Cooling System ... 5-30 Crew Cab Models and Extended Cab Models with Rear Seats ... 1-51, 1-58 Cruise Control ... 3-11 Cruise Control Light ... 3-37 Cupholder(s) ... 2-44 Current and Past Model Order Forms ... 7-13 Customer Assistance Information Courtesy Transportation ...
Page 417 Driving (cont.) Drunken ... 4-2 Freeway ... 4-33 Hill and Mountain Roads ... 4-36 In Rain and on Wet Roads ... 4-29 Winter ... 4-38 Driving Across an Incline ... 4-23 Driving Downhill ... 4-22 Driving in Mud, Sand, Snow or Ice ... 4-26 Driving in Water ...
Page 418 Fan Knob ... 3-20 Filter Engine Air Cleaner ... 5-17 Finding a Program Type (PTY) Station ... 3-52, 3-61 Finding a Station ... 3-46, 3-50, 3-59 Finish Care ... 5-99 Finish Damage ... 5-101 Five-Speed ... 2-26 Fixed Mast Antenna ... 3-71 Flash-to-Pass ...
Page 419 Hazard Warning Flashers ... 3-6 Head Restraints ... 1-7 Headlamp High/Low-Beam Changer ... 3-9 Headlamps ... 5-50 Bulb Replacement ... 5-50 Front Turn Signal, Sidemarker and Daytime Running Lamps ... 5-52 Halogen Bulbs ... 5-50 Heated Seats ... 1-5 Highbeam On Light ... 3-37 Highway Hypnosis ...
Page 420 Keyless Entry System ... 2-5 Keys ... 2-3 Lamps Exterior ... 3-14 Interior ... 3-17 Lamps On Reminder ... 3-15 Language ... 3-41 Lap Belt ... 1-24 Lap-Shoulder Belt ... 1-16 LATCH System Child Restraints ... 1-46 Securing a Child Restraint Designed for the LATCH System ...
Page 421 Maintenance Schedule Additional Required Services ... 6-6 At Each Fuel Fill ... 6-9 At Least Once a Month ... 6-9 At Least Once a Year ... 6-10 Introduction ... 6-2 Maintenance Footnotes ... 6-7 Maintenance Record ... 6-17 Maintenance Requirements ... 6-2 Normal Maintenance Replacement Parts ...
Page 422 Odometer ... 3-25 Odometer, Trip ... 3-25 Off-Road Recovery ... 4-11 OIL ... 3-43 Engine ... 5-13 Pressure Light ... 3-36 OIL LIFE ... 3-43 Older Children, Restraints ... 1-31 Online Owner Center ... 7-3 ® OnStar Personal Calling ... 2-43 ®...
Page 423 Pretensioners, Safety Belt ... 1-30 Programmable Automatic Door Locks ... 2-9 Questions and Answers About Safety Belts ... 1-15 Radiator Pressure Cap ... 5-27 Radio Data System (RDS) ... 3-52, 3-61 Radio Messages ... 3-48, 3-55 Radios ... 3-44 AM-FM Radio ... 3-46 Care of Your CD Player ...
Page 424 Restraint System Check Checking Your Restraint Systems ... 1-75 Replacing Restraint System Parts After a Crash ... 1-75 Restraint Systems Checking ... 1-75 Replacing Parts ... 1-75 Retained Accessory Power (RAP) ... 2-19 Right Front Passenger Position, Safety Belts ... 1-24 Roadside Assistance Program ...
Page 425 SERV VEH (Service Vehicle) ... 3-44 Service ... 5-3 Adding Equipment to the Outside of Your Vehicle ... 5-4 Doing Your Own Work ... 5-4 Engine Soon Light ... 3-32 Publications Ordering Information ... 7-12 Service Bulletins ... 7-13 Service Manuals ... 7-12 Setting Preset PTYs ...
Page 426 Tilt Wheel ... 3-7 Tire Sidewall Labeling ... 5-58 Tire Size ... 5-61 Tire Terminology and Deﬁnitions ... 5-62 Tires ... 5-57 Buying New Tires ... 5-68 Chains ... 5-72 Changing a Flat Tire ... 5-74 If a Tire Goes Flat ... 5-73 Inﬂation - Tire Pressure ...
Page 427 Understanding Radio Reception ... 3-70 Uniform Tire Quality Grading ... 5-69 United States – Customer Assistance ... 7-4 Up-Shift Light ... 2-27, 3-30 Used Replacement Wheels ... 5-71 Using Cleaner on Fabric ... 5-96 Using Song List Mode ... 3-67 Using the Recovery Hooks ...
Page 428 When to Check and What to Use ... 5-24 When to Check Power Steering Fluid ... 5-37 When You Are Ready to Leave After Parking on a Hill ... 4-69 When to Inspect the Engine Air Cleaner/Filter ... 5-18 Where to Put the Restraint ... 1-40 Why Safety Belts Work ...
