LG 43US670H0UA Owner's Manual
Hide thumbs
Also See for 43US670H0UA:
- Owner's manual (89 pages) ,
- Easy setup manual (89 pages) ,
- Owner's manual (49 pages)
Table of Contents
Advertisement
Quick Links
ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter
ultérieurement.
www.lg.com

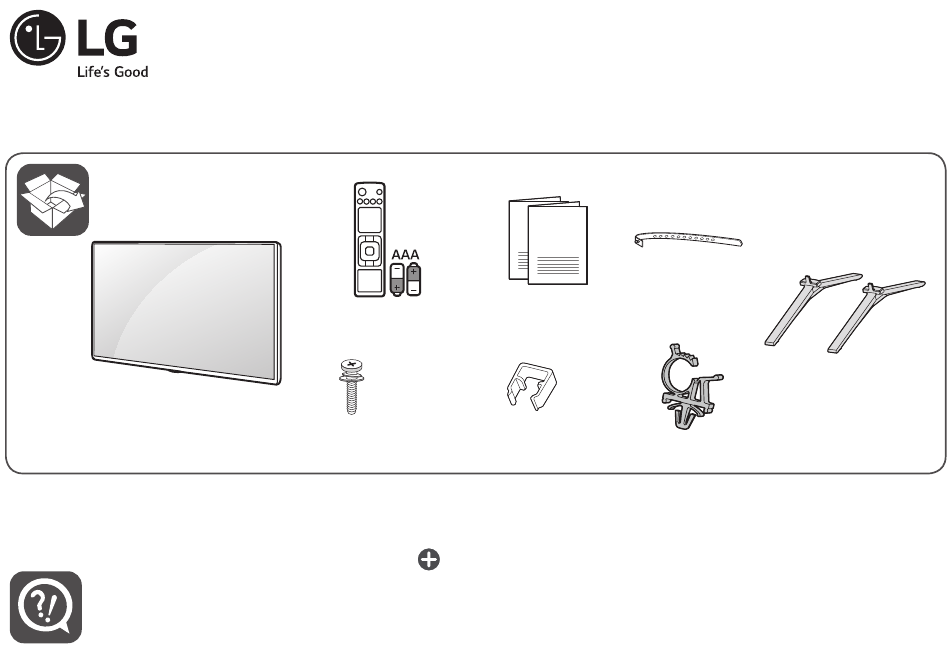

X 6
(M5 x L30)
Depending upon model / Según el modelo / Selon le modèle
X 2
LED TV
75US770H0UD
Printed in Korea
Advertisement
Table of Contents
Related Manuals for LG 43US670H0UA
Summary of Contents for LG 43US670H0UA
- Page 1 FRANÇAIS Guide de configuration rapide Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement. (M5 x L30) Depending upon model / Según el modelo / Selon le modèle www.lg.com Printed in Korea...
- Page 2 ENGLISH Read Safety and Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références.
- Page 4 SPEAKER OUT LINE OUT RS-232C IN (CONTROL & SERVICE)
- Page 5 GAME CONTROL / M.P.I. TV-LINK CFG...
- Page 7 1,674 1 674 1,031 1 031 64.6 64,6 38.4 38,4 37.7 37,7 75US770H0UD 270 W (65.9) (65,9) (40.5) (40,5) (14.2) (14,2) (38.0) (38,0) (2.5) (2,5) (84.6) (84,6) (83.1) (83,1) AC 120 V ~ 50 / 60 Hz...
- Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 43US670H0UA 49US770H0UA 50US670H0UA 55US770H0UA 55US670H0UA 65US770H0UD 75US770H0UD www.lg.com *MFL71705702* Copyright ©...
-
Page 10: Important Safety Instruction
Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 11 Warning! Safety instructions - Near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. - Do not install in excessively dusty places. Otherwise, this may result in fire, electric shock, CAUTION combustion/ explosion, malfunction or product deformation.
- Page 12 • Use only an authorized attachments / accessories - TV with a three-prong grounded AC plug must be approved by LG Electronics. Otherwise, this may connected to a three-prong grounded AC outlet. result in fire, electric shock, malfunction, or product Ensure that you connect the earth ground wire to damage.
- Page 13 • Moving • The device must be easily accessed to a location - When moving, make sure the product is turned outlet near the access. Some devices are not made off, unplugged, and all cables have been removed. by turning on / off button, turning off the device It may take 2 or more people to carry larger TVs.
-
Page 14: Optional Extras
Make sure to use screws and wall mounts that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. • Use at least two people to move a large TV. 43US670H0UA 55US670H0UA Model 50US670H0UA... -
Page 15: Mounting On A Table
Mounting on a Table • When transporting the TV by hand, hold the TV as shown in the following illustration. 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. -
Page 16: Using The Kensington Security System (Optional)
Using the Kensington Security (TYPE A) System (optional) (Depending upon model) The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http:// www.kensington.com. -
Page 17: Mounting On A Wall
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall (Depending upon model) - Page 18 Connections • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. You can connect various external devices to the TV. • For more information of screws and wall For more information on external device’s connection, mount bracket, refer to the Separate refer to the manual provided with each device.
-
Page 19: Other Connections
Other connections External Devices Supported external devices are: Blu-ray player, HD Connect your TV to external devices. For the best receivers, DVD players, VCRs, audio systems, USB picture and audio quality, connect the external device storage devices, PC, gaming devices, and other and the TV with the HDMI cable. -
Page 20: External Speakers
External Speakers Method of volume control port (Depending upon model) • Cable Spec. Each up/down pins are connected to CPU with pull up resistor EXTERNAL SPEAKER OUT respectively. SPEAKER OUT LINE OUT GND / UP / DOWN CPU detects transition from 3.3 V to GND VOLUME CONTROL... -
Page 21: Network Setup
Using the Button Network setup (Depending upon model) You can simply operate the TV functions, using the button. Wired network connection This TV can be connected to a Pro:Centric server via the port. After making the physical connection, the TV needs to be set up for network communication. -
Page 22: Adjusting The Angle Of The Tv To Suit View
Adjusting the Angle of the TV to suit view (Depending upon model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ • When adjusting the angle of the product, watch out for your fingers. - Page 23 (Power) Turns the TV on or off. Selects menus or options and confirms your input. Accesses the Smart menu. (Back) Returns to the previous screen. Selects the remote’s operating mode: TV. Accesses the quick settings. Selects the remote’s operating mode: DVD. Clears all on-screen displays and returns to TV Changes the input source.
-
Page 24: Troubleshooting
TV. Some minute dot performance. The customer is responsible to ensure defects may be visible on the screen, appearing the compatibility of their equipment with any LG as tiny red, green, or blue spots. However, they Electronics software. If needed, please consult with have no adverse effect on the TV’s performance. - Page 25 Settings To set additional picture options [Picture] [Picture Mode Settings] [Picture Options] To select Picture Mode Adjusts detailed setting for images. • [Noise Reduction] Eliminates noise in the picture. [Picture] [Picture Mode • [MPEG Noise Reduction] Eliminates noise generated Settings] [Picture Mode] while creating digital picture signals.
-
Page 26: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). Broadcasting Specifications Television system ATSC, NTSC-M, 64 &... - Page 27 HDMI (PC) supported mode HDMI (DTV) supported mode • Use HDMI IN 1 for PC mode. Horizontal Vertical (Depending upon model) Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.46 59.94 Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.50 60.00 640 x 350 31.46 70.09 31.47...
-
Page 28: Supported Photo Formats
Supported Video Formats Supported Photo Formats File File Codec Format Resolution Format Format VC-1 Advanced Profile Minimum: 64 (W) x 64 (H) Video (except for WMVA), VC-1 Maximum: .asf .jpeg Simple and Main Profiles - Normal Type: .wmv .jpg JPEG 15360 (W) x 8640 (H) WMA Standard (except for Audio .jpe WMA v1/ WMA Speech) -
Page 29: Supported External Subtitles
Cautions for Video Playback • ULTRA HD Video: 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than the content officially provided by LG Electronics may not be played. • Some codecs can be supported after a software upgrade. -
Page 30: Key Codes
KEY CODES * This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button (Green) R/C Button R/C Button (Red) R/C Button R/C Button (Yellow) R/C Button R/C Button (Blue) R/C Button R/C Button R/C Button R/C Button R/C Button... -
Page 31: External Control Device Setup
USB Type (TV) (TV) (PC) (PC) • LG TV supports PL2303 chip-based (Vendor ID: 0 x 0557, Product ID: 0 x 2008) USB to serial converter which is not RS-232C IN (CONTROL & SERVICE) made nor provided by LG. (PC) (TV) •... - Page 32 (PC) RS-232C with RS-232C Cable (TV) (PC) (TV) (PC) (TV) (PC) DE9 (D-Sub 9pin) Type RS-232C IN RS-232C IN (CONTROL & SERVICE) RS-232C IN (PC) RS-232C IN (TV) (CONTROL & SERV (PC) (CONTROL & SERVICE) (CONTROL & SERVICE) (TV) (PC) (TV) (PC) (PC)
- Page 33 RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 RS-232C configurations (75US770H0UD Only) 7-Wire or 3-Wire Configuration IR-OUT D-Sub 9 Phone-Jack Set ID For Set ID number, see “Real data mapping (Hexadecimal: Decimal)”. 1 Press to access the main menus.
-
Page 34: Communication Parameters
Communication Parameters • Baud rate: 9600 bps (UART) • Stop bit: 1 bit • Data length: 8 bits • Communication code: ASCII code • Parity: None • Use a crossed (reverse) cable. Command reference list * (Depending upon model) COMMAND1 COMMAND2 DATA (Hexadecimal) 1 Power... -
Page 35: Transmission / Receiving Protocol
TRANSMISSION / RECEIVING PROTOCOL * (Depending upon Model) Transmission (Command1)(Command2)( )([Set ID])( )(Data)(Cr) (Command 1): First command to control the TV. (j, k, m or x) (Command 2): Second command to control the TV. ([Set ID]): You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. - Page 36 1 Power (Command: k a) * Full wide mode may work differently based on model and is supported for DTV fully, and ATV, AV ► To control power on or off of the set. partially. Transmission 3 Screen Mute (Command: k d) (k)(a)( )([Set ID])( )(Data)(Cr) ►...
- Page 37 6 [Contrast] (Command: k g) 10 [Sharpness] (Command: k k) ► To adjust screen contrast. You can also adjust ► To adjust the screen sharpness. You can also adjust contrast in the picture settings. sharpness in the picture settings. Transmission Transmission (k)(g)( )([Set ID])( )(Data)(Cr) (k)(k)( )([Set ID])( )(Data)(Cr)
- Page 38 13 [Balance] (Command: k t) 16 Tune Command (Command: m a) * This command may work differently Depending ► To adjust balance. You can also adjust balance in upon model and signal. the audio settings. * For Europe, Mid-East, Colombia, Asia except South Transmission Korea and Japan Model (k)(t)( )([Set ID])( )(Data)(Cr)
- Page 39 • Tune Command Examples: • Analog Antenna/Cable 1 Tune to the Analog antenna (PAL) Channel 10. Data 00: Physical Channel Number [Set ID] = All = 00 - Antenna (ATV): 02~45 (Decimal: 2 ~ 69) Data 00 & 01 = Channel Data is 10 = 00 0a - Cable (CATV): 01, 0E~87 (Decimal: 1, 14~135) Data 02 = Analog Antenna TV = 00...
- Page 40 • Tune Command Examples: • Digital Antenna/Satellite 1 Tune to the Analog cable (NTSC) channel 35. Data 00: xx (Don’t care) (Data 01)(Data 02): Major Channel Number [Set ID] = All = 00 Data 01: High byte Channel Data Data 00 = Channel Data is 35 = 23 Data 02: Low byte Channel Data Data 01 &...
- Page 41 17 [Channel] Skip/Add (Command: m b) 20 Input select (Command: x b) (Main Picture Input) ► To skip current channel for next time. ► To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )(Data)(Cr) (x)(b)( )([Set ID])( )(Data)(Cr) Data 00: Del(ATSC,ISDB)/Skip(DVB) Data 00: DTV Data 01: Add...
- Page 42 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
-
Page 43: Open Source Software Notice Information
Dolby Atmos, and the double-D symbol are available for download. trademarks of Dolby Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 44: Fcc Notice
Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) (For USA) FCC Notice High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. (For USA) These radar stations can cause interference with and/ This equipment has been tested and found to or damage this device. -
Page 45: Industry Canada Statement
Industry Canada Statement RSS-247 Requirement (For Canada) (For Canada) [For having wireless function (WLAN, Bluetooth,...)] [For product having the wireless function using 5 GHz frequency bands] This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and (1) The device for operation in the band 5150–5250 Economic Development Canada’s licence-exempt MHz is only for indoor use to reduce the potential for RSS(s). - Page 46 NOTE TO CABLE/TV INSTALLER Symbols (For USA and Canada) Refers to alternating current (AC). This reminder is provided to call the CATV system Refers to direct current (DC). installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines Refers to class II equipment.
-
Page 47: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER TECHNOLOGY INDUSTRY CARES Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 48 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 E-mail lg.environmental@lge.com LG Customer Information Center The model and serial number of the product are For inquires or comments, located on the back and on one side of the product.
