Page 1: Table Of Contents

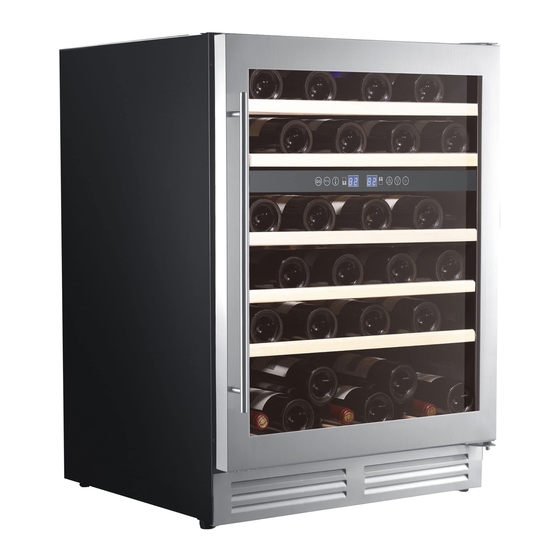

BUILT-IN WINE COOLER IOW51DDSS ERVICE ANUAL CONTENT 1. SPECIFICATIONS 2. NAME OF PARTS 3. REFRIGERANT CYCLE DIAGRAM 4. WIRING DIAGRAM 5. COMPRESSOR ROOM VIEW AND PARTS LIST 6. HOW TO REVERSE THE DOOR SWING 7. HOW TO REMOVE THE WIRE SHELVES 8. -
Page 2: Specifications
Service Manual for Mabe 1. SPECIFICATIONS Model No. IOW51DDSS Type BUILT-IN Capacity No. of Wine Bottles Capacity Zone One - L Zone Two - L Zone Three - L Performance & Features Ambient Temp. Range °C 16 ~ 38 Setting Temp. Range °C/°F... -
Page 3: Name Of Parts
Service Manual for Mabe 2. Name of Parts Upper Zone Kickplate Roll-Out Shelves (2) Leveling Legs (4) Control Panel Top Hinge Lower Zone Stainless Steel Door And Handle Roll-Out Shelves (3) Roll-Out Shelf – Small (1) WARNING • Before servicing, make sure to unplug the appliance. •... -
Page 4: Refrigerant Cycle Diagram
Service Manual for Mabe 3. REFRIGERANT CYCLE DIAGRAM 4. WIRING DIAGRAM... -
Page 5: Compressor Room View And Parts List
Service Manual for Mabe 5. COMPRESSOR VIEW AND PARTS LIST 1. Junction Box 2. Electrical Box of Compressor 3. Process Pipe 4. Outlet Pipe of Condenser 5. Compressor 6. Dry Filter 7. Dry Filter Clamp 8. Suction Pipe 9. Capillary 10. -
Page 6: How To Reverse The Door Swing
Service Manual for Mabe 6. HOW TO REVERSE THE DOOR SWING This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions. - Page 7 Service Manual for Mabe Remove the upper hinge pivot from the right side then install and tighten it into the left position. Remove the lower door hinge from the right side. Remove the three screws that are used to fix the bottom grille with cabinet then install the three screws at the designated position at the right side.
- Page 8 Service Manual for Mabe 7. HOW TO REMOVE THE ROLLER SHELVES This appliance is equipped with wooden roller shelves,these allow you to slide the shelves smoothly in and out to access your wine selection(except for the bottom wooden shelf). To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
-
Page 9: How To Replace The Main Parts
Service Manual for Mabe 8. HOW TO REPLACE THE MAIN PARTS 8.1 REPLACING THE DISPLAY PCB、CONTROL PCB、SENSORS、FAN MOTORS、EVAPORATOR 1. Remove all the shelves according to “How to remove roller the shelves”. 2. The evaporator fan motor and charcoal filtration system are located in the following position. 3. - Page 10 Service Manual for Mabe 5. Remove the one fixing screw. 6. Disconnect the wire connector then you can replace the sensors and evaporator fan motor.
- Page 11 Service Manual for Mabe 8.2 REPLACING MIDDLE AIR-BOARD AND THE DISPLAY PCB 1. Screw off the power box cover 2. Screw off 3. Pull out...
- Page 12 Service Manual for Mabe 4. Remo ve the screws that used to secure the control board with the cabinet. Remove the inside screws to get out of the control panel board...
- Page 13 Service Manual for Mabe Disconnect the communication cables with the display PCB and remove the screws and pull out the display PCB. Now you can replace the display PCB. 8.3 REPLACING THE LED LIGHT ASSEMBLY AND FAN According to the above instruction pull out the middle air-board. And Remove the screws of LED light assembly then you can replace a new LED light assembly.
- Page 14 Service Manual for Mabe 8.4 REPLACING THE COMPRESSOR PTC STARTER AND OVERLOAD PROTECTOR 1. Remove the two screws that are used to fix the condenser fan motor with the compressor base. 2. Remove the three screws that are used to fix the junction box with the cabinet in the compressor room.
- Page 15 Service Manual for Mabe 4. Remove the clamp that is used to fix the compressor junction box. 5. Remove the compressor junction box. 6. Dismantle the compressor PTC starter and overload protector , which is such following figure.
- Page 16 Service Manual for Mabe 8.5 REPLACING THE BOTTOM GRILLE 1． Remove the lower door hinge according to “HOW TO REVERSE THE DOOR SWING”. 2． Remove the two screws that are used to fix the bottom grille with reinforced plate. 3． Remove the middle two screws that are used to fix the reinforced plate with the cabinet. 4．...
- Page 17 Service Manual for Mabe 8.6 REPLACING THE DOOR GASKET 1. Open the door and detach the old door gasket from the door frame by pulling off the gasket. 2. Attach the new door gasket on the door frame. Pay attention not to damage the door and the new door gasket.
-
Page 18: Troubleshooting
Service Manual for Mabe 9. TROUBLESHOOTING 9.1 Troubleshooting Guide PROBLEM POSSIBLE CAUSE Not plugged in. Wine Chiller does not operate. The appliance is turned off. The circuit breaker tripped or a blown fuse. Check the temperature control setting. External environment may require a higher setting. - Page 19 Service Manual for Mabe 9.2 Trouble Check for Refrigerant System Symptom Cause Action • The evaporator cools down and warms Moisture Replace the refrigerant. again. refrigerant causes the • The condenser warms in proportion as malfunction. the evaporator. • The process repeats again. •...
-
Page 20: Explosion Views & Parts Lists
Service Manual for Avanti 10. EXPLOSION VIEWS & PARTS LISTS 10.1 Exploded View 10.2 Parts List 名称 Part Name Drawing No. (pcs/unit) 冷凝器 Condensor YC150A.02.15 冷凝器罩 Condensor Base YC150A.02.04.00 回气管组件 Muffler Components YC150A.01.07.00 压缩机 Compressor Compressor Base 压缩机托板 YC150A.02.01.01 Board 电源线... - Page 21 Service Manual for Avanti 下门铰座 Door Axis YC150A.03.07.00 大铁层架 Deep Shelf 导轨 Roller 小木层架 Shallow Shelf YC150A.03.07 层架前木饰条 Wooden stim for shelf 中间风道板下 Down Baffle Board YC150B.03.02.03.01 灯盒 Light Box YC-TY.LJ.02 LED 灯组件 YC150A.01.12 Light PCB 灯罩 Light Cover YC-TY.LJ.02 控制板板支架...
