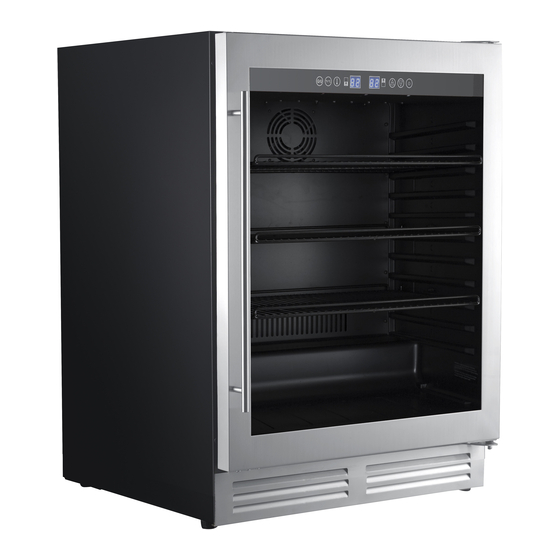

BUILT-IN WINE COOLER IOB150SS ERVICE ANUAL CONTENT 1. SPECIFICATIONS 2. NAME OF PARTS 3. REFRIGERANT CYCLE DIAGRAM 4. WIRING DIAGRAM 5. COMPRESSOR ROOM VIEW AND PARTS LIST 6. HOW TO REVERSE THE DOOR SWING 7. HOW TO REPLACE THE MAIN PARTS 8. -
Page 2: Specifications
Service Manual for Mabe 1. SPECIFICATIONS Model No. IOB150SS Type BUILT-IN Capacity No. of Wine Bottles Capacity Zone One - L Zone Two - L Zone Three - L Performance & Features Ambient Temp. Range °C 16 ~ 38 Setting Temp. Range °C/°F... -
Page 3: Name Of Parts
Service Manual for Mabe 2. Name of Parts Interior Fan Control Panel Handle Glass Door Leveling Leg Front Grille Metal Shelves WARNING • Before servicing, make sure to unplug the appliance. • Replace all parts before operating the appliance. •... -
Page 4: Refrigerant Cycle Diagram
Service Manual for Mabe 3. REFRIGERANT CYCLE DIAGRAM 4. WIRING DIAGRAM... -
Page 5: Compressor Room View And Parts List
Service Manual for Mabe 5. COMPRESSOR VIEW AND PARTS LIST 1. Junction Box 2. Electrical Box of Compressor 3. Process Pipe 4. Outlet Pipe of Condenser 5. Compressor 6. Dry Filter 7. Dry Filter Clamp 8. Suction Pipe 9. Capillary 10. -
Page 6: How To Reverse The Door Swing
Service Manual for Mabe 6. HOW TO REVERSE THE DOOR SWING This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions. - Page 7 Service Manual for Mabe Remove the upper hinge pivot from the right side then install and tighten it into the left position. Remove the lower door hinge from the right side. Remove the three screws that are used to fix the bottom grille with cabinet then install the three screws at the designated position at the right side.
-
Page 8: How To Replace The Main Parts
Service Manual for Mabe 7. HOW TO REPLACE THE MAIN PARTS 7.1 REPLACING THE DISPLAY PCB、CONTROL PCB、SENSORS、FAN MOTORS、EVAPORATOR 1. The evaporator fan motor system is located in the following position. 2. Remove the screws that are used to fix the rear air duct with the cabinet then remove the rear air duct. - Page 9 Service Manual for Mabe 4. Remove the one fixing screw. 6. Disconnect the wire connector then you can replace the sensors and evaporator fan motor. 7.2 REPLACING MIDDLE AIR-BOARD AND THE DISPLAY PCB 1. Screw off the power box cover...
- Page 10 Service Manual for Mabe 2. Screw off 3. Pull out 4. Remo ve the screws that used to secure the control board with the cabinet.
- Page 11 Service Manual for Mabe Remove the inside screws to get out of the control panel board Disconnect the communication cables with the display PCB and remove the screws and pull out the display PCB. Now you can replace the display PCB.
- Page 12 Service Manual for Mabe 7.3 REPLACING THE LED LIGHT ASSEMBLY AND FAN According to the above instruction pull out the middle air-board. And Remove the screws of LED light assembly then you can replace a new LED light assembly. 2. Screw off and replace the fan. 7.4 REPLACING THE COMPRESSOR PTC STARTER AND OVERLOAD PROTECTOR...
- Page 13 Service Manual for Mabe 1. Remove the two screws that are used to fix the condenser fan motor with the compressor base. 2. Remove the three screws that are used to fix the junction box with the cabinet in the compressor room.
- Page 14 Service Manual for Mabe 4. Remove the clamp that is used to fix the compressor junction box. 5. Remove the compressor junction box. 6. Dismantle the compressor PTC starter and overload protector , which is such following figure.
- Page 15 Service Manual for Mabe 7.5 REPLACING THE BOTTOM GRILLE 1． Remove the lower door hinge according to “HOW TO REVERSE THE DOOR SWING”. 2． Remove the two screws that are used to fix the bottom grille with reinforced plate. 3． Remove the middle two screws that are used to fix the reinforced plate with the cabinet. 4．...
- Page 16 Service Manual for Mabe 7.6 REPLACING THE DOOR GASKET 1. Open the door and detach the old door gasket from the door frame by pulling off the gasket. 2. Attach the new door gasket on the door frame. Pay attention not to damage the door and the new door gasket.
-
Page 17: Troubleshooting
Service Manual for Mabe 8. TROUBLESHOOTING 8.1 Troubleshooting Guide PROBLEM POSSIBLE CAUSE Not plugged in. Wine Chiller does not operate. The appliance is turned off. The circuit breaker tripped or a blown fuse. Check the temperature control setting. External environment may require a higher setting. - Page 18 Service Manual for Mabe 8.2 Trouble Check for Refrigerant System Symptom Cause Action • The evaporator cools down and warms Moisture Replace the refrigerant. again. refrigerant causes • The condenser warms in proportion as malfunction. the evaporator. • The process repeats again. •...
-
Page 19: Explosion Views & Parts Lists
Service Manual for Mabe . EXPLOSION VIEWS & PARTS LISTS 8 .2 Parts List PARTS NAME Door assembly S/S handle Lower door hinge Lower door hinge screw Bottom Grille Right upper door hinge Shelf support Iron shelf... - Page 20 Service Manual for Mabe Air board Big fan Evaporator control panel film Control panel box CONTROL PCB BOARD Light board Condenser air-board assembly Condensor AC Fan Fan cover Sunction Pipe Assembly Power board box Power board Compressor Compressor bracket Power cord Handle hole hinge caps...
