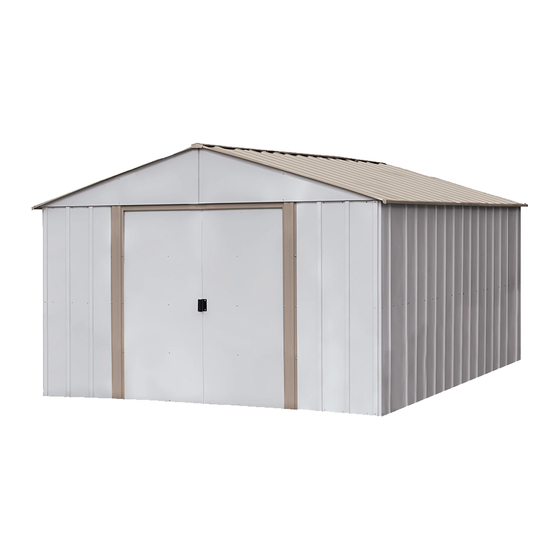

Arrow Storage Products CM1014-A1 Owner's Manual & Assembly Instructions
  1. Manuals
  2. Brands
  3. Arrow Storage Products Manuals
  4. Outdoor Storage
  5. CM1014-A1
  6. Owner's manual & assembly instructions

Arrow Storage Products CM1014-A1 Owner's Manual & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Assembly Instructions
AX01
Model No.
714740417
Storage Area: 129 Sq. Ft.
12,0 m
2
BUILDING DIMENSIONS
*Approx.
Base
Size
Size
10' x 14'
121" x 160 1/4"
3,0 m x 4,0 m
307,3 cm x 407,0 cm
CM1014-A1
697.68103-C1
OB1014EU-C1
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
assist@arrowsheds.com
Do not return to dealer, they are not
equipped to handle your requests.
769 Cu. Ft.
21,8 m
3
* Size rounded o to the nearest foot
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
123 1/4" 162 3/4"
313,1 cm
413,4 cm
OB1014-C1
697.68664-A
OB1014FB-C1
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Height
Width
Depth
81 3/8"
118 1/4" 157 1/2" 80 1/8"
206,7 cm
300,4 cm
400,1 cm 203,5 cm
697.68104
Door
Opening
Height
Width
55 1/2"
141,0 cm 152,4 cm
Height
60"

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM1014-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arrow Storage Products CM1014-A1

Summary of Contents for Arrow Storage Products CM1014-A1

  • Page 1 Owner's Manual & Assembly Instructions AX01 Model No. CM1014-A1 OB1014-C1 697.68103-C1 697.68104 OB1014EU-C1 697.68664-A OB1014FB-C1 Missing Parts, Questions on Assembly? Call: 1-800-851-1085 or assist@arrowsheds.com Do not return to dealer, they are not equipped to handle your requests. 714740417 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE Storage Area: 129 Sq.
  • Page 2 GB: Assembly manual in additional languages available online. Scan QR code below to access. FR: Manuel de montage disponible en ligne dans d’autres langues. Pour y accéder, scannez le code QR ci-dessous. SP: Manual de montaje en idiomas adicionales disponible online. Escanee el código QR a continuación para acceder.
  • Page 3 BEFORE YOU BEGIN..Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.

  • Page 4: Tools And Materials

    PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 5 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
  • Page 6 CARE & MAINTENANCE..Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
  • Page 7 ACCESSORIES..FLOOR FRAME KITS ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces designed for added protection against heavy snow accumulation. Increases the strength of your roof. BEFORE AFTER ANCHOR KITS Model No. AK4 MODELS FB47410, FB5465, FB106-A Anchor Kit contains heavy-duty steel FB109-A and FB1014-A augers, 60' (18 m) of steel cable and...

  • Page 8: Special Note

    ORDERING ACCESSORIES..02/13 We recommend that you purchase accessory items from your local storage building dealer whenever possible; however, because the full line of accessories is not always available from all dealers, Arrow is o ering them to you on a direct basis. There are two ways to order Arrow Storage Building Accessories: Option 1 Option 2...
  • Page 9 Base The Base For Your Building No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is recommended as an e ective method of properly securing your building after assembly is complete. OPTION 1: Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
  • Page 10 Anchoring Anchoring Down The Building It is important that the entire oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) Recommended for use with any suggested base.
  • Page 11 Hardware SP11 ctr Remove from bag of screws and save for the last step 65900A 65923 65004 #10Bx1/2" (13 mm) 65103 #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) Black Screw (8) #8-32 Hex Nut (192) Bolt (192) Screw (446) (Packed with Screws) 65109 66646 #8-32 Acorn Nut (4)

  • Page 12: Parts List

    Parts List BZ12 ctr Assembly Part Part Quantity Check Key No. Number Description in Carton List 8576 Right Gable 8577 Left Gable 10497 Horizontal Door Brace 7743 Roof Panel 9984 Right Roof Panel 9983 Left Roof Panel 10475 Right and Left Doors 9369 Door Jamb 9373...
  • Page 13 Assembly by Key No. SP13 ctr...
  • Page 14 Step 1 8934 Ramp (1) Parts Needed For 9367 Front Floor Frame (2) Floor Frame Assemblies 8936 Rear Floor Frame (2) SO14ctr 10387 Side Floor Frame (4) (13) 9367 The front oor frame is made up of 8934 three pieces. The side floor frames and the rear floor frame are made 9367 up of two pieces.
  • Page 15 5986 Rear Wall Angle (2) Step 2 Parts Needed For 10389 Rear Wall Channel (2) Frame Assemblies 10388 Side Wall Channel (4) SO15 ctr 10391 Side Wall Angle (4) Rear Wall Channel 10389 118 1/8" 300,0 cm (27) 10389 The main frame pieces reinforce the walls.
  • Page 16 Step 3 Parts Needed For 10386 Roof Beam (8) Roof Beam Assemblies SP16 ctr 10386 (30) 10386 The roof beams join the two gables Roof Beam 159 3/8" 404,8 cm and support the roof panels. The main roof beam is made up of four pieces overlapped back to back at the center.

  • Page 17: End View

    Step 4 Parts Needed For 6403 Door Track Splice (1) Door Track Assembly 9366 Door Track (2) A17 ctr NOTE: Door Track Splice (painted part) 6403 The door track assembly supports the sliding doors and reinforces the front wall. It is made up of three pieces. Using the door track splice, (painted), join the door track (galvanized) pieces end-to-end as...
  • Page 18 Step 5 Front Floor Assembly (1) Parts Needed For Side Floor Assembly (2) Floor Frame Rear Floor Assembly (1) SO18 ctr RIGHT REAR Assemble the four corners of 10387 the oor frame using two screws at each corner as shown. At the front corners fasten bolts through from the bottom with nuts on top.
  • Page 19 Step 6 Parts Needed For 6515 Wall Panel (2) 9373 Front Wall Panel (2) Corners 6020 Corner Panel (4) SO19 ctr Narrow Side 6020 (34) Wide Side NOTE REAR The remainder of the building assembly 6020 requires many hours and more than one person.
  • Page 20 Step 7 Parts Needed For Rear Wall Channel Assembly (1) Mid Frames Side Wall Channel Assembly (2) SO20 ctr (20) The mid frame pieces give rigidity to the side and rear walls. Fasten the rear wall channel across the middle of the rear wall using screws.
  • Page 21 Step 8 Door Track Assembly (1) Parts Needed For Rear Wall Angle Assembly (1) Top Frames Side Wall Angle Assembly (2) SO21 ctr (26) The top frame pieces give rigidity to the walls and provide a surface for attaching the gables which support the roof.
  • Page 22 Step 9 Parts Needed For 6515 Wall Panel (10) Wall Panels SO22 ctr STEP (144) (15) Crimped Rib STEP Each wall panel has a crimped rib Underneath on one side. The crimped rib should go under the rib of the panel that 6515 Detail Showing follows it.
  • Page 23 Step 10 Parts Needed For 9369 Door Jamb (2) Front Channel/Door Jamb 9365 Front Wall Channel (2) SO23 ctr 9365 (18) STEP The door jambs reinforce the door opening and provide an attractive INSIDE OF trim. Follow these steps for both BUILDING door jambs.
  • Page 24 Step 11 Parts Needed For 8576 Right Gable (2) 8577 Left Gable (2) Gable Assemblies 6635 Roof Beam Bracket (4) SR24 ctr The gables go on top of the front and rear walls to support the roof beams. NOTE The gables are packed nested together and might be mistaken as one piece.
  • Page 25 Step 12 Parts Needed For Left Gable Assemblies (2) Right Gable Assemblies (2) Gables/Braces 9009 Gable Brace (2) SR25 ctr (32) Lift and fasten a right and left gable, under angle at corner, to the door track with screws. Hint: On the rear gable, use a bolt and nut at the overlapping rear wall angle.
  • Page 26 Step 13 Parts Needed For Main Roof Beam (1) Single Roof Beam (2) Roof Beam/Braces 9204 Roof Beam Brace (2) SR26 ctr (16) Wrap the weather stripping tape around the two joined edges of the left and right gables. See diagram. Cut the weather stripping to length.
  • Page 27 Step 14 Parts Needed For 9984 Right Roof Panel (1) Right Roof Panel SP27 ctr Locate the roof panels and nd the right roof panel part number 9984. Position the right roof panel at Installing the roof panels is best done the back right corner and fasten to with a step ladder.
  • Page 28 Step 15 Parts Needed For 9983 Left Roof Panel (1) 7743 Roof Panel (2) Ridge Cap & Panels 6797 Ridge Cap (1) SP28 ctr Screws To Roof Beam (22) (12) Install a left roof panel 9983 at the left rear corner of the roof. Fasten at Fasten At Cover the joint at the peak with...
  • Page 29 Step 16 Parts Needed For 7743 Roof Panel (4) Ridge Cap & Panels 6869 Ridge Cap (1) SP29 ctr (32) Install two roof panels 7743 work- NOTE ing side to side. Continue weather If roof beam holes do not line up stripping the ridge.
  • Page 30 6797 Ridge Cap (1) Step 17 Parts Needed For 7743 Roof Panel (2) Ridge Cap & Panels 9983 Left Roof Panel (1) SP30 ctr 9984 Right Roof Panel (1) (22) (72) Install the third ridge cap 6797 overlapping the second ridge cap while installing the remaining two roof panels 7743.
  • Page 31 Step 18 Parts Needed For 6893 Left Side Roof Trim (2) 6015 Side Roof Trim (2) Roof Trim 6892 Right Side Roof Trim (2) SP31 ctr (10) Attach the right, left and side roof trim pieces to the lower end of the roof panels on each side of the building using screws at each panel overlap.

  • Page 32: Door Assembly

    3719 Door Handle Brace (2) Step 19 Parts Needed For 10475 Right and Left Doors (2) Door Assembly 10497 Horizontal Door Brace (4) SO32 ctr 6278 Vertical Door Brace (2) (12) The steps on this page tell how to assemble the right door. You will per- form exactly the same procedures for the left door.
  • Page 33 Step 20 Parts Needed For Right Door Assembly (1) Door Installation & Adjustment Left Door Assembly (1) SQ33 ctr Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the front frame track.
  • Page 34 Anchoring and Floor Frame XA34 Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time.
  • Page 35 SOME FACTS ABOUT RUST XA35 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
  • Page 36 CM1014-A1 OB1014-C1 OB1014EU-C1 OB1014FB-C1 697.68103-C 697.68104 697.68664-A AX36 714740417...
