- Page 1 Instruction Manual Induction& Ceramic Hob &Combine Hob IDH4001P CDH4019S ICDH4201SP Safety Warnings Your safety is important to us. Please read this information before using your cooktop.
- Page 2 Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. • Alterations to the domestic wiring system must only be made by a qualified electrician.
- Page 3 Operation and maintenance Electrical Shock Hazard • Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack,switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. •...
- Page 4 Important safety instructions • Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite. • Never use your appliance as a work or storage surface. • Never leave any objects or utensils on the appliance. •...
- Page 5 applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments. •WARNING: The appliance and its accessible parts become hot during use.
-
Page 6: Product Overview

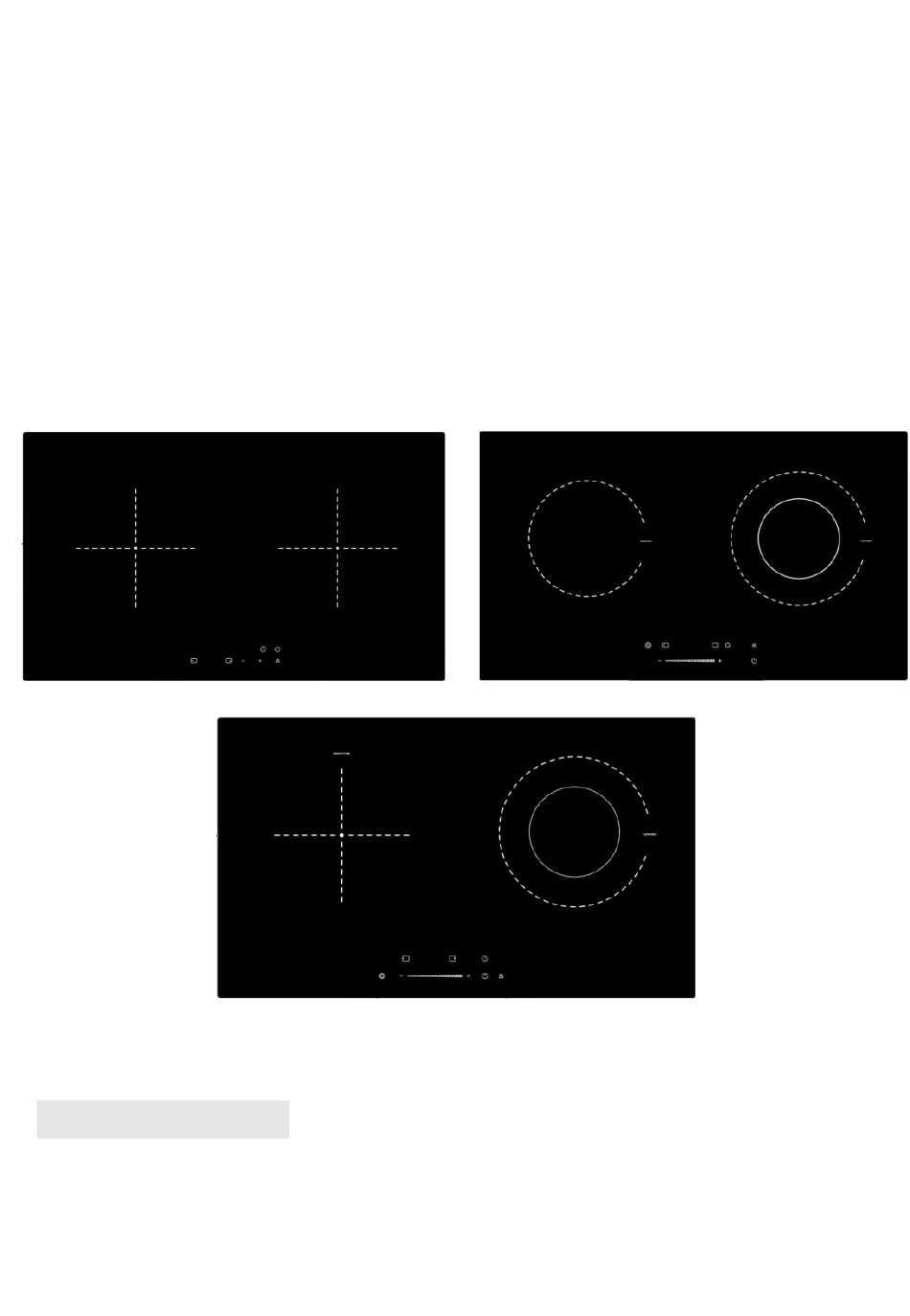

Product Overview Top View YL-IDH4001P 1. 2000W heating zone 2. 2000W heating zone 3. Control Panel 4. Glass plate YL-CDH4019S 1.200mm/1800W heating zone 2.230mm/138mm 2200W /1000W heating zone 3.Control Panel 4.Glass plate YL-ICDH4201SP 1. 200MM/1800W heating zone 2. 230MM/138MM 2200/1000W heating zone 3. - Page 7 Control Panel YL-IDH4001P 1. Heating zone selection controls 2. Power / Timer regulating key 3. Child Lock control 4. Timer control 5. ON/OFF Control YL-CDH4019S 1.Heating zone selection controls 2.Timer control 3.Power / Timer regulating key 4.Child Lock control 5.ON/OFF Control 6.Double ring control...
- Page 8 Product Information of Ceramic Hob Ceramic hob cooking is based on infrared heating technology, the nickel chrome wires of the hob would radiate heat and give out the infrared to warm up the food. The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.
-
Page 9: Using The Touch Controls
Before using your New Induction and Infrared Cooker • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your Induction and Infrared cooker. Using the Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. •... - Page 10 Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. Using your Induction and Infrared Hob To start cooking •...
- Page 11 3. Touching the heating zone selection control ,and an indicator next to the key will flash. 4. Set a power level by touching the “-”, “+”, or slide along “l” control, a. If you don’t select a heat zone within 1 minute, the induction or infrared hob will automatically switch off.
-
Page 12: When You Have Finished Cooking
When you have finished cooking 1. Touching the heating zone selection control that you wish to switch off 2. Turn the cooking zone off by scrolling down to”0” . or slide along the “l”control to the left point.Make sure the display shows”0”,then show”H”. 3.For model YL-CD4019S &... -
Page 13: Using The Timer As A Minute Minder
Using the timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. • You can set it to turn one cooking zone off after the set time is up. •... -
Page 14: Setting The Timer To Turn One Cooking Zone Off
5. To cancel the timer, touch the “Timer”, the timer is cancelled, and the “00” will show in the minute display, and then “--”. 6. Buzzer will bips for 30 seconds and the timer indicator shows “- - “ when the setting time Finished. - Page 15 10 minutes. 4. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected. 5.
-
Page 16: Locking The Controls
NOTE: The red dot next to power level indicator will flash. (set to 30 minutes) (set to 3 minutes) ②. When cooking timer expires, the corresponding cooking zone will be switch off automatically. NOTE: If you want to change the time after the timer is set, you have to start from step 1 Locking the Controls •... - Page 17 operation Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the infrared hob /induction hob. When an excessive temperature is monitored, the infrared hob will stop operation automatically. Residual Heat Warning When the hob has been operating for some time,there will be some residual heat.The letter “H ”...
-
Page 18: Heat Settings
Simmering, cooking rice • Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. - Page 19 Heat setting Suitability • delicate warming for small amounts of food 1 - 2 • melting chocolate, butter, and foods that burn quickly • gentle simmering • slow warming • reheating 3 - 4 • rapid simmering • cooking rice •...
-
Page 20: Care And Cleaning
Care and Cleaning What? How? Important! • When the power to the cooktop is Everyday soiling 1. Switch the power to the switched off, there will be no ‘hot on glass cooktop off. surface’ indication but the (fingerprints, 2. Apply a cooktop cleaner marks, stains left while the glass is still cooking zone may still be hot! -
Page 21: Hints And Tips
Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. -
Page 22: Failure Display And Inspection
Pans do not become The induction hob cannot Use cookware suitable for hot and appears in detect the pan because it is induction cooking. See section ‘Choosing the right cookware’. the display. suitable for induction cooking. Centre the pan and make sure that The induction hob cannot its base matches the size of the detect the pan because it is... -
Page 23: Technical Specification
Technical Specification Cooking Hob YL-IDH4001P YL-CDH4019S YL-ICDH4201SP Cooking Zones 2 Zones 2 Zones 2 Zones Rated Voltage 220-240V~ 220-240V~ 220-240V~ Rated Frequency 50-60Hz 50-60Hz 50-60Hz Installed Electric Power 4000W 4000W 4200W Product Size 730*430*62 730*430*52 730*430*62 L×W×H(mm) Building-in Dimensions 695*410... - Page 24 YL-IDH4001P 50 mini YL-CDH4019S 50 mini YL-ICDH4201SP 50 mini Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction cooker hob is in good work state. As...
-
Page 25: Before Locating The Fixing Brackets
this variation of the requirements) • the isolating switch will be easily accessible to the customer with the hob installed • you consult local building authorities and by-laws if in doubt regarding installation • you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob. -
Page 26: Connecting The Hob To The Mains Power Supply
installation. Adjust the bracket position to suit for different table top thickness. Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3. - Page 27 The power supply should be connected in compliance with the relevant standard,or a single-pole circuit breaker.the method of connection is shown below If the cable is damaged or to be replaced, the operation must be • carried out the by after-sale agent with dedicated tools to avoid any accidents.
- Page 28 This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
